Dual Mode Bluetooth Module SPP BLE Serial Port UART Interface

Dual Mode Bluetooth Module SPP BLE Serial Port UART Interface Description

Product introduction:

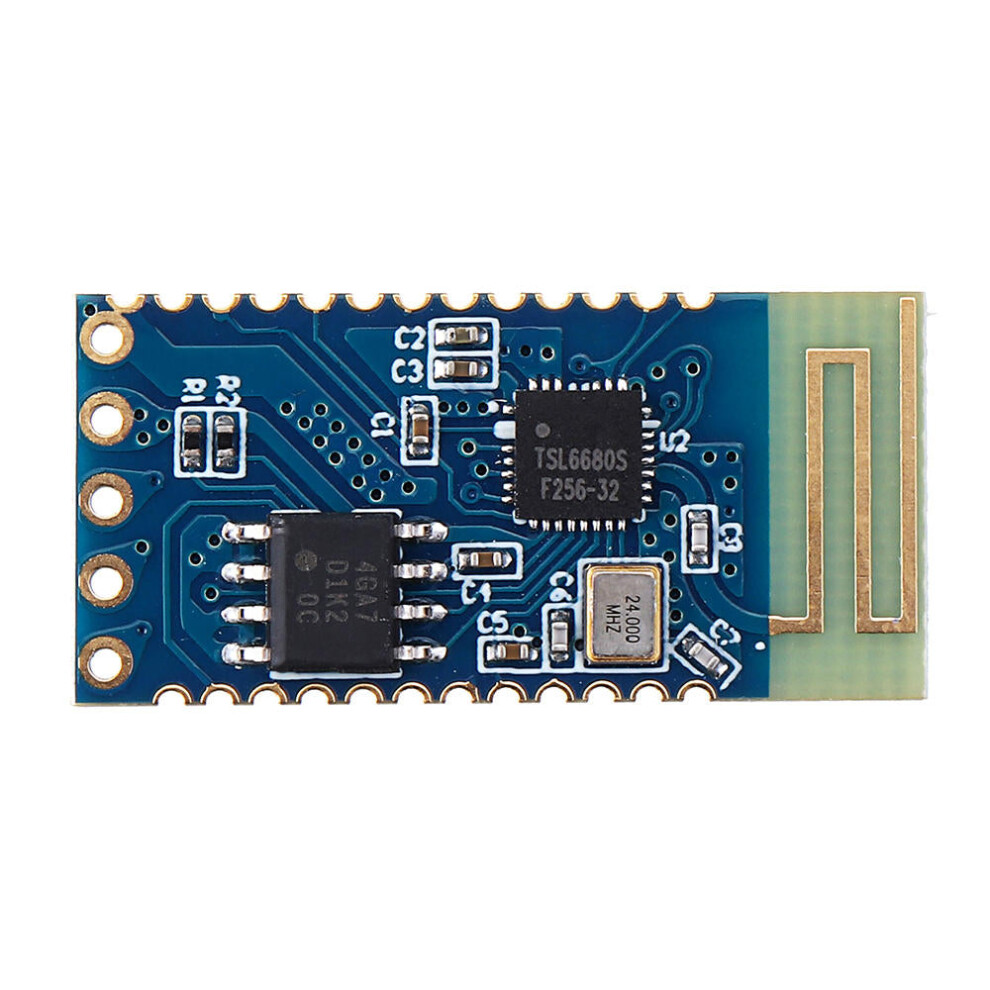

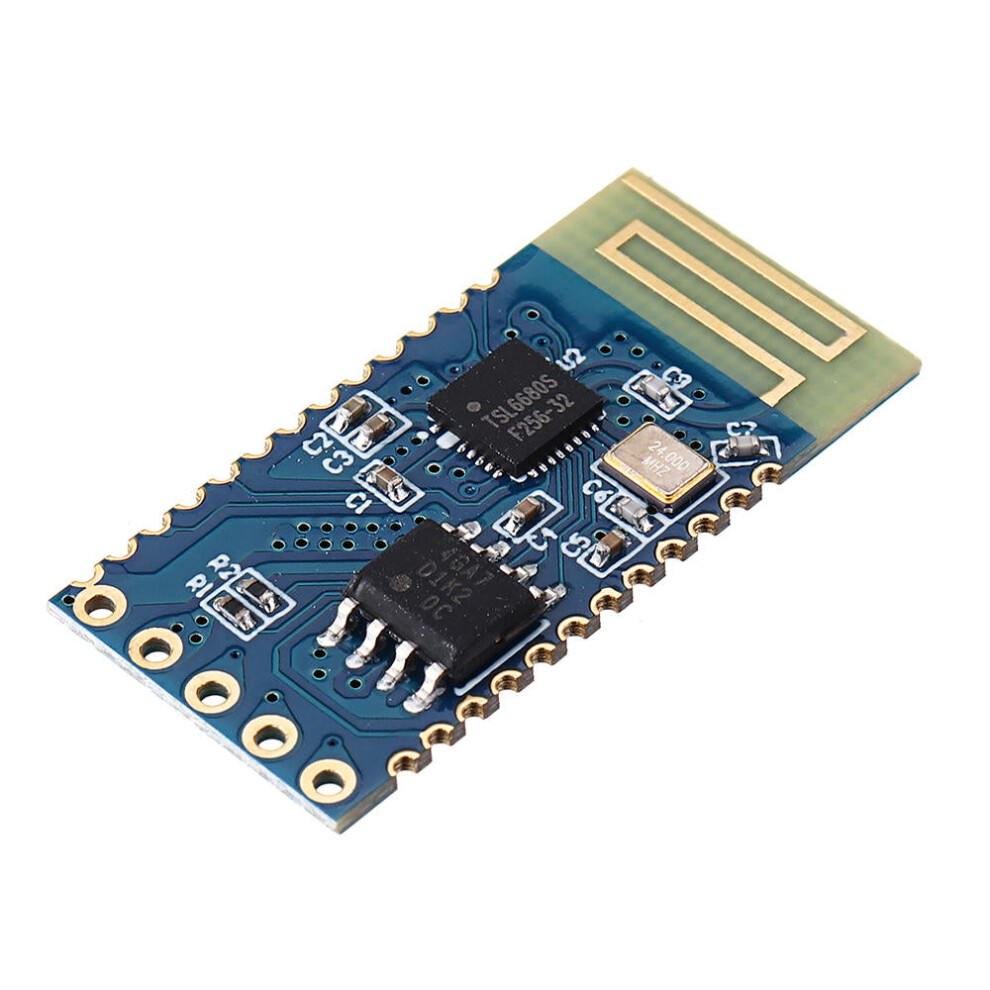

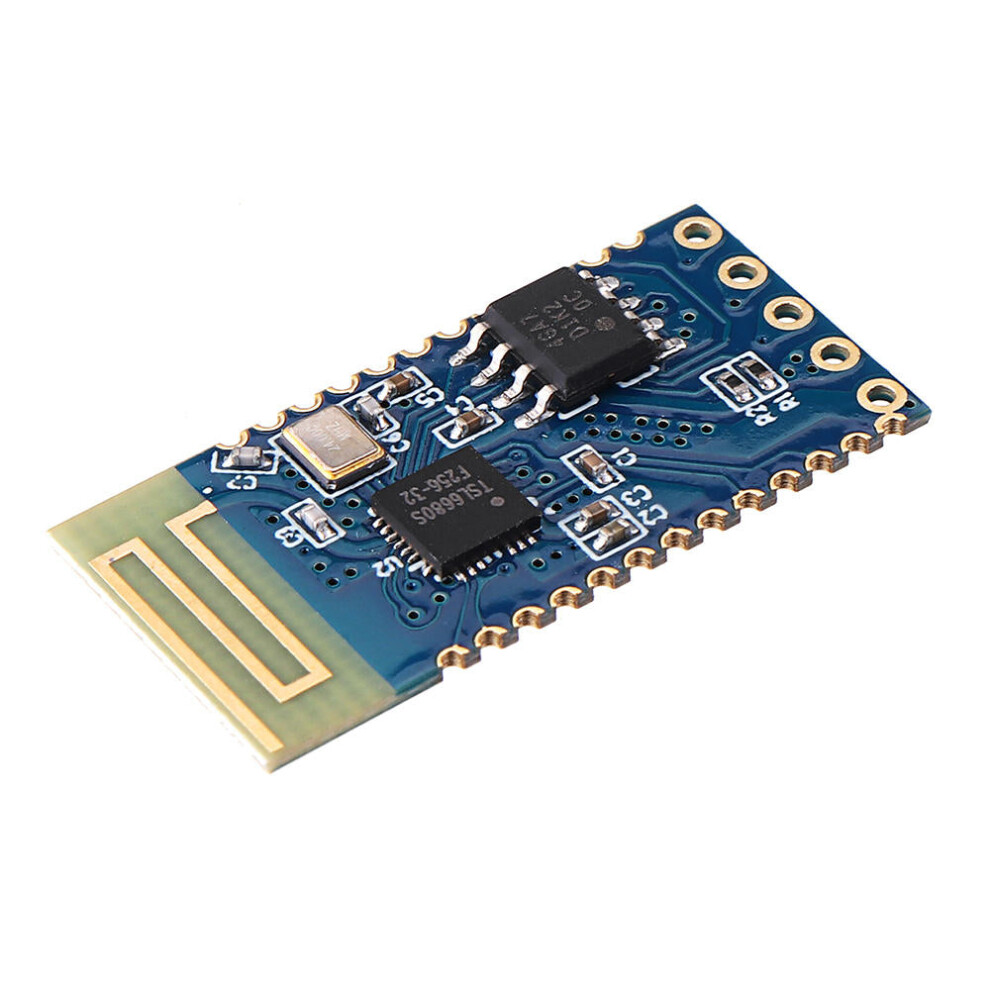

JDY-32 dual-mode Bluetooth is based on Bluetooth 3.0 SPP + Bluetooth 4.2 BLE design, which can support Windows, Linux, ios, android data transmission, working frequency 2.4GHZ, modulation mode GFSK, maximum transmission power 5db, maximum transmission distance 40 meters, Support users to modify the device name, baud rate and other commands through the AT command, which is convenient and quick to use.

Applications:
JDY-32 is a classic Bluetooth protocol that can communicate with Bluetooth-enabled computers (desktops, notebooks) and mobile phones (android). Can be applied.
Windows computer Bluetooth serial port transparent transmission.
Android Bluetooth serial port transparent transmission.
Smart home control.
Automotive ODB testing equipment.
Bluetooth toy.
Share mobile power, share weight.
Medical equipment.

Specification:
Working frequency: 2.4GHZ.

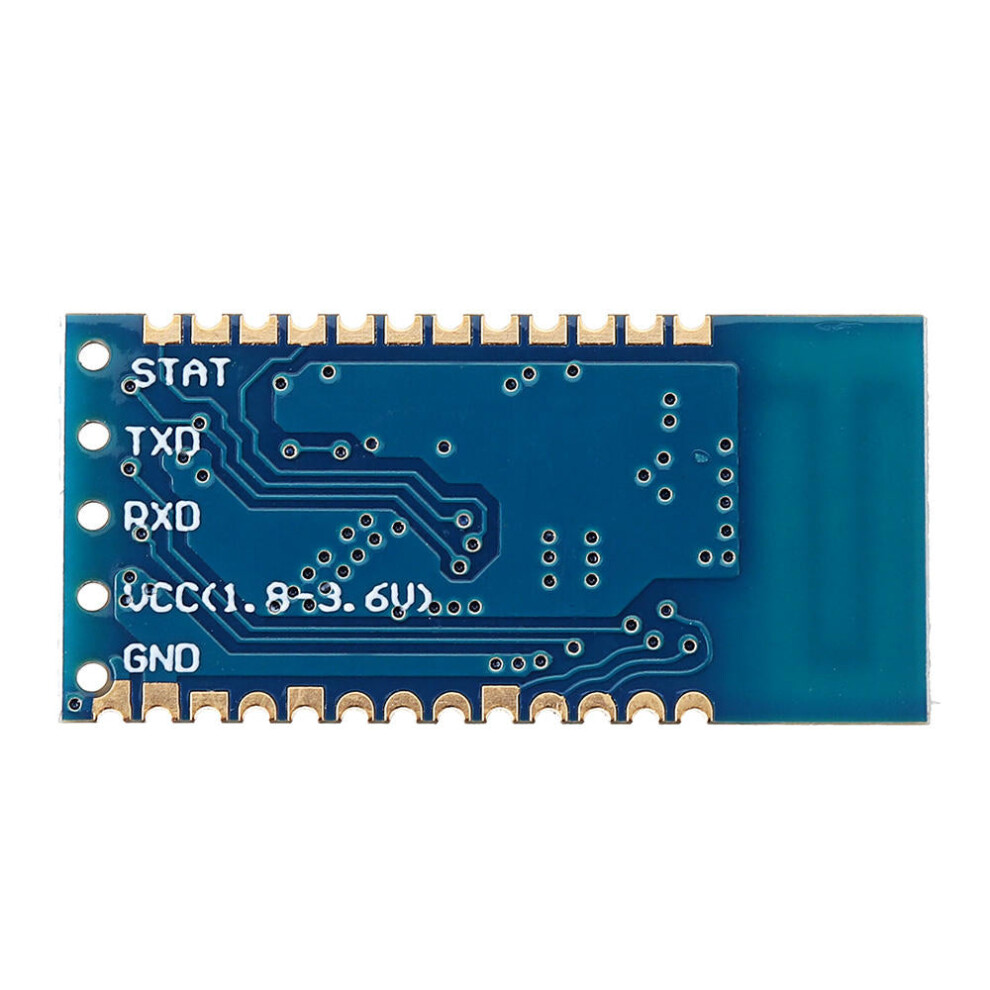

Communication Interface: UART.
Operating Voltage: 1.8-3.6V (3.3V recommended).
Operating temperature: -40 C - 80 C.
Antenna: Built-in PCB antenna.
Transmission distance: 40 m.
Master-slave support: Slave.
Module size: 19.6 * 14.94 *1.8 mm (length, width, height).
Bluetooth version: Bluetooth 4.2 BLE/Bluetooth 3.0 SPP.
SMT soldering temperature: <260C.
Broadcast current: 4.4mA.
BLE connected current: 3.8mA.
SPP connected current: 12mA.
Transmit power: 5db (maximum).
Receiving sensitivity: -97dbm.

Package includes:
1 x Module
