Durable Waterproof LCD Odometer & Speedometer for Motorbikes

Durable Waterproof LCD Odometer & Speedometer for Motorbikes Description

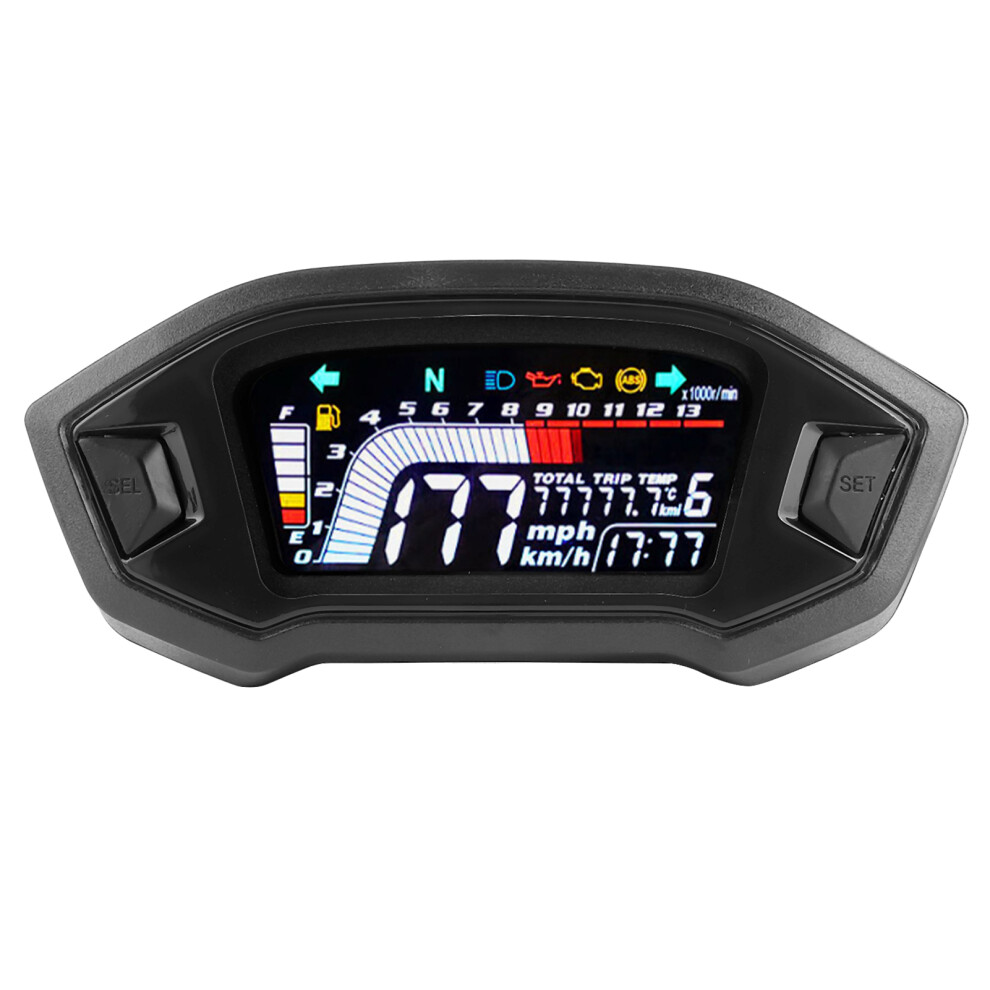

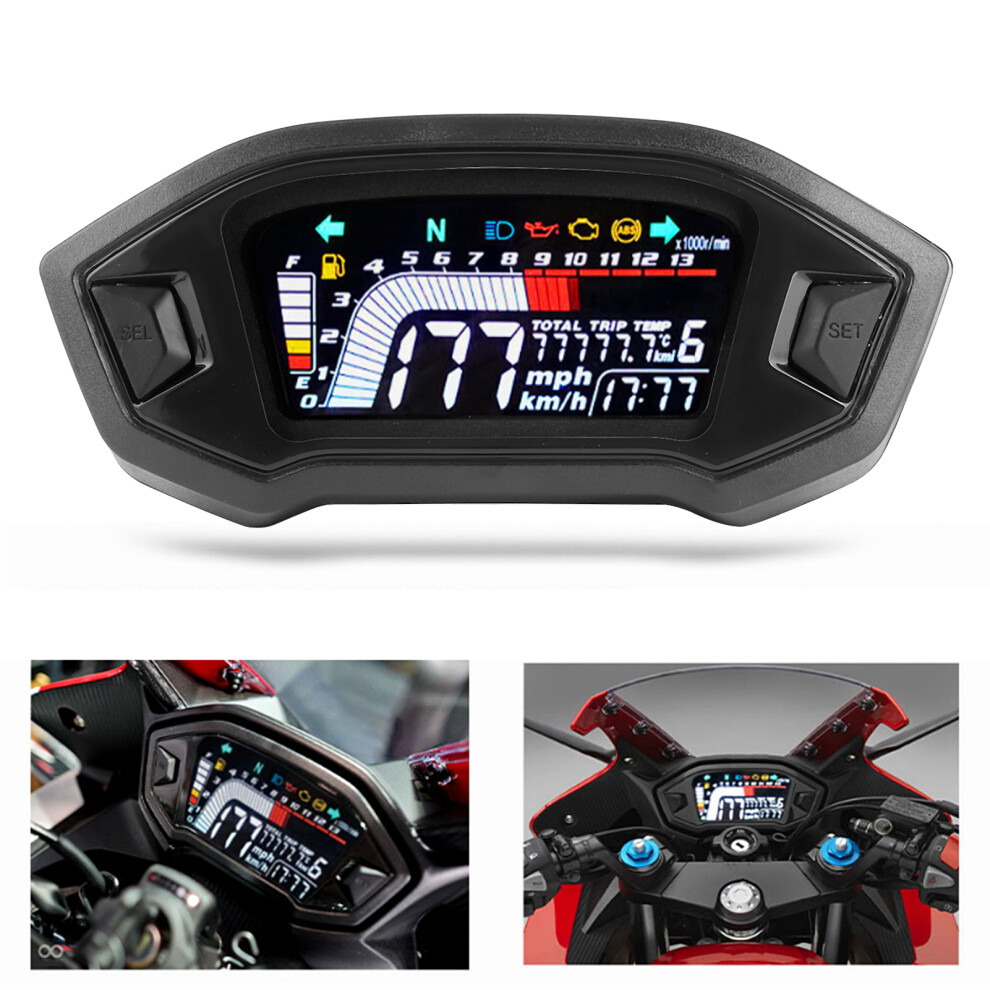

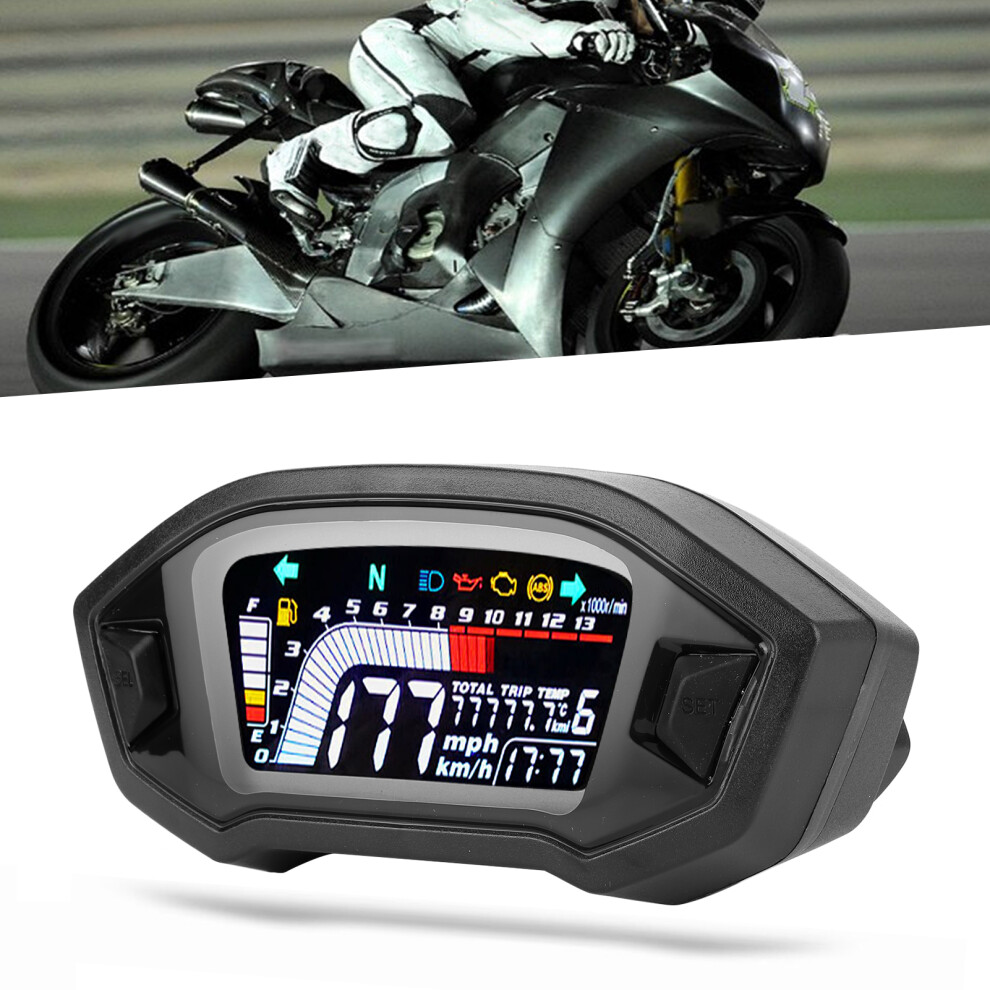

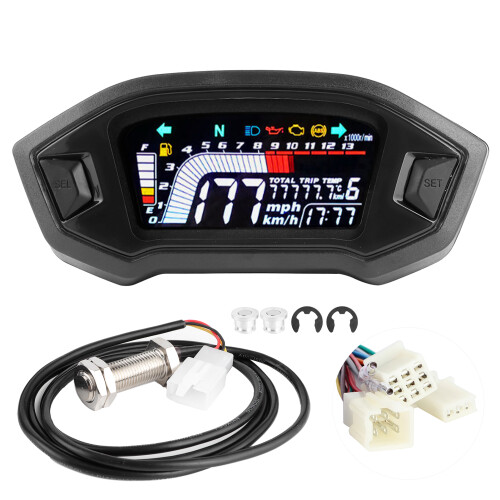

Motorcycle Instrument LCD Odometer Waterproof Speed Gauge for 1 2 4 Cylinder Motorbike
Condition: Item Type: Motorcycle InstrumentMaterial: ABSColor: BlackTime: 24 Hours
Oil Level: 6 Sections Display
Power Supply Voltage: DC8-12VSpeed Display: Km/H, Mph
Gear Position: 1/2/3/4/5/6 N
Speed Display Range: 0-199km/H (Miles)
Internal Display: <0.5 Seconds
Odometer Display: 0-999999 Kilometers (Miles)
Odometer Display Unit: 0.1km
Odometer Display Distance: 999.9km (Miles)
Odometer Display Unit: 0.1km

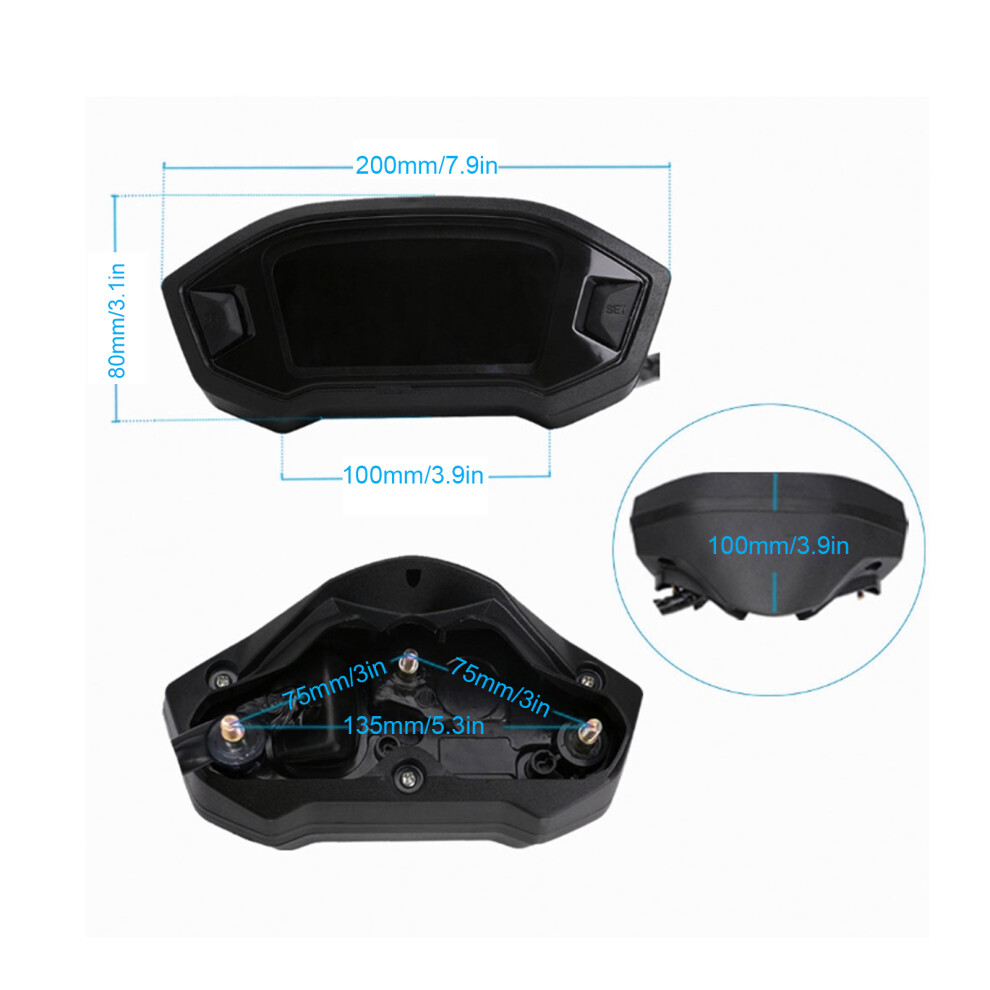

Rpm Range: 0-13000 R/MinSize: Approx. 200 x 80 x 100mm/7.9 x 3.1 x 3.9inInstruction:
Background setting: use a password to enter the background. (Metric and imperial backstage must be settable)
Press and hold the left button to power on and enter the background setting interface. P000: Password input 6610
4C1850:
1850 means perimeter, long press the left button, the bit unit will flash, short press the left button +1, long press the left button again to switch to the tens place (0-9)
Tens place flashes, short press left key +1, long press left key again to switch to hundreds place (0-9)
Hundreds place flashes, short press the left button +1, long press the left button again to switch to thousands (0-9)
Thousands of flashes, short press the left button +1 (0-2), long press the left button again to enter the magnet number adjustment interface
4 means the number of magnets, short press the left button +1, long press the left button to save. After saving, short press the left button to enter the metric system interface
1-01: Metric
1-02: English system, when you long press the 1 of 001 will flash, short press the left button to switch to 2, long press the left button to save. After saving, short press the left button to enter the speed interface
2-002: Rotation speed 166hz=10x1000 rpm, 2-004: Rotation speed 333hz=10x1000 rpm, long press the left button and the number flashes, short press the left button to switch, long press the left button to save and then short press the left button to enter the fuel interface . 3-002: Two-line fuel
3-003: Three-line fuel, long press the left key to flash, short press the left key to switch, long press the left key to save and short press the left key to enter the main interface of the instrument.Wiring Method:

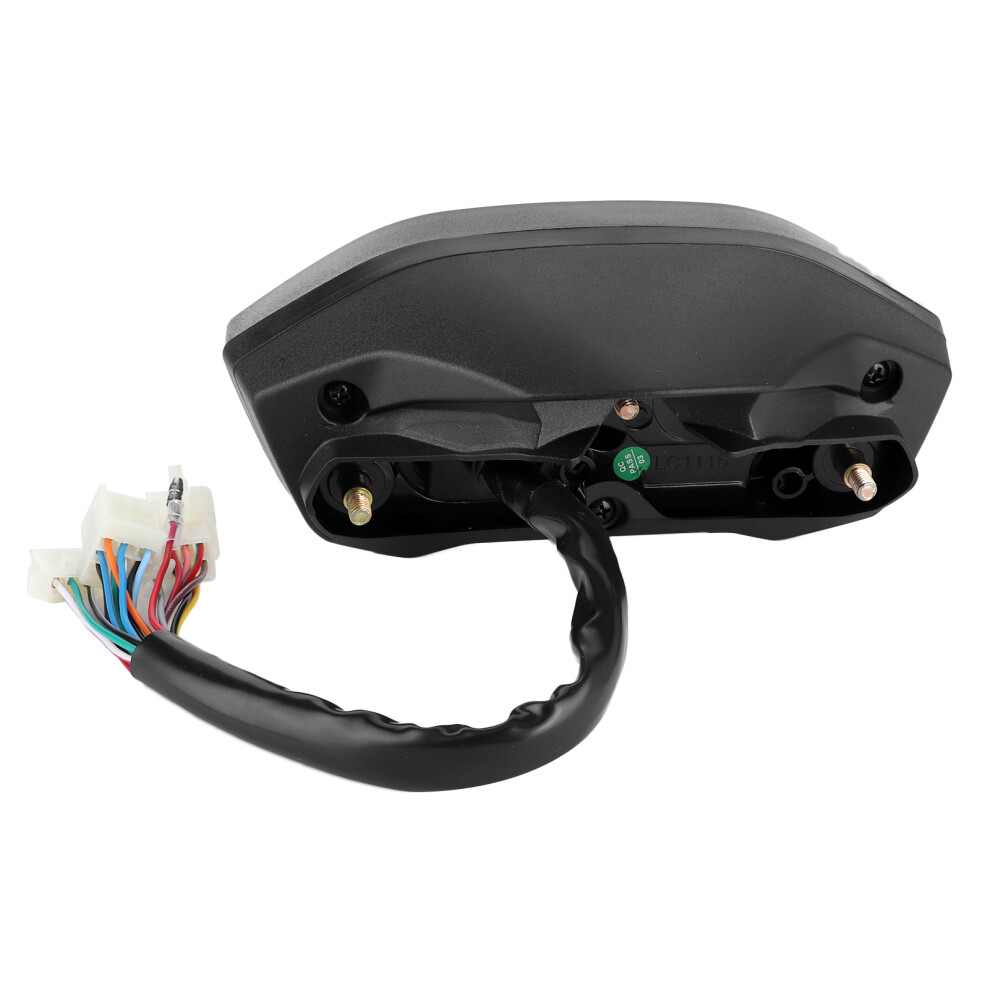

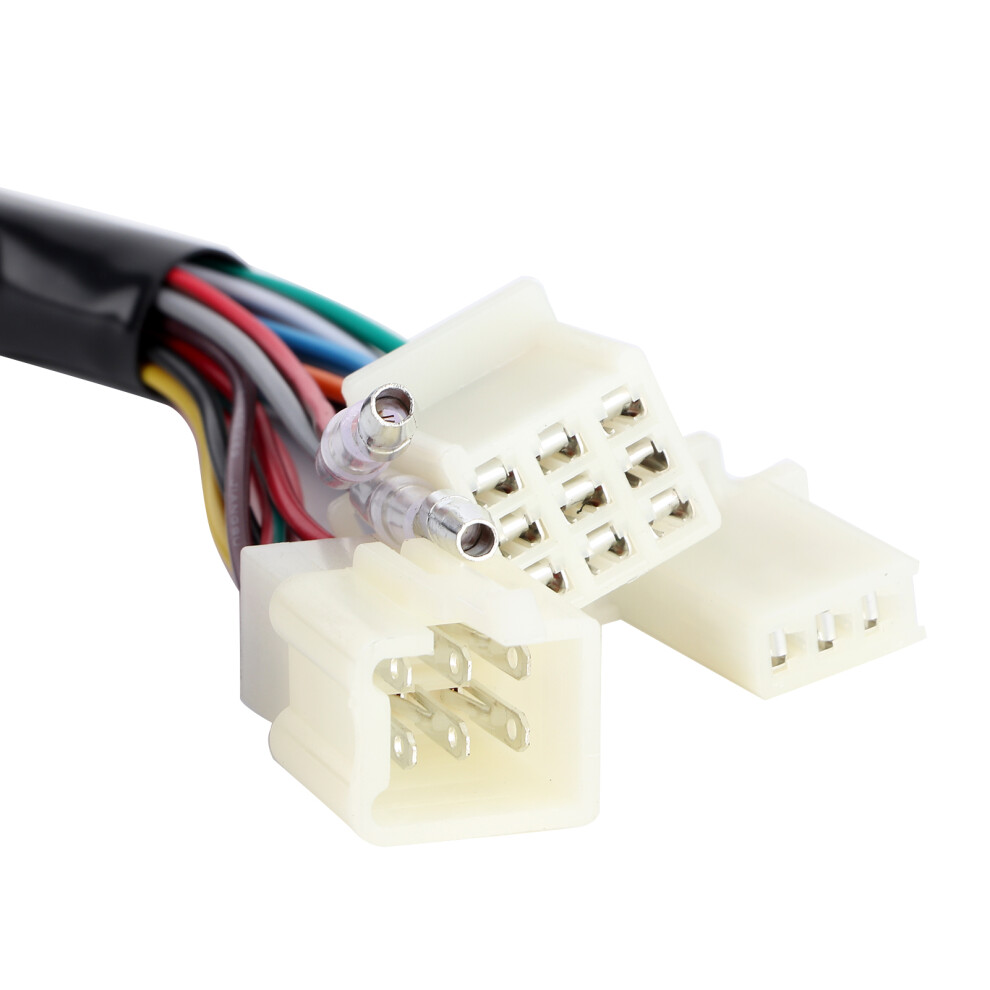

9PIN
Light Blue: Turn Right, 12V Positive Control, LCD Display
Yellow/Black: Speed Signal
Red: Battery (Normal Power, 12V Positive)
Blue: High Beam, 12V Positive Control, LCD Display
Green/White: Water Temperature Signal
Green: 12V Negative
Orange: Turn Left, 12V Positive Control, LCD Display
Blue/White: Fuel Signal
Black: 12V Positive
6PIN
Pink: 1 Gear, Negative Control, LCD Display
Blue/Red: 2 Gears, Negative Control, LCD Display
Green/Black: 3 Gears, Negative Control, LCD Display
Yellow/Red: 4 Gears, Negative Control, LCD Display
Brown/White: 5 Gears, Negative Control, LCD Display
Green/Red: Neutral, Negative Control, LCD Display
3PIN

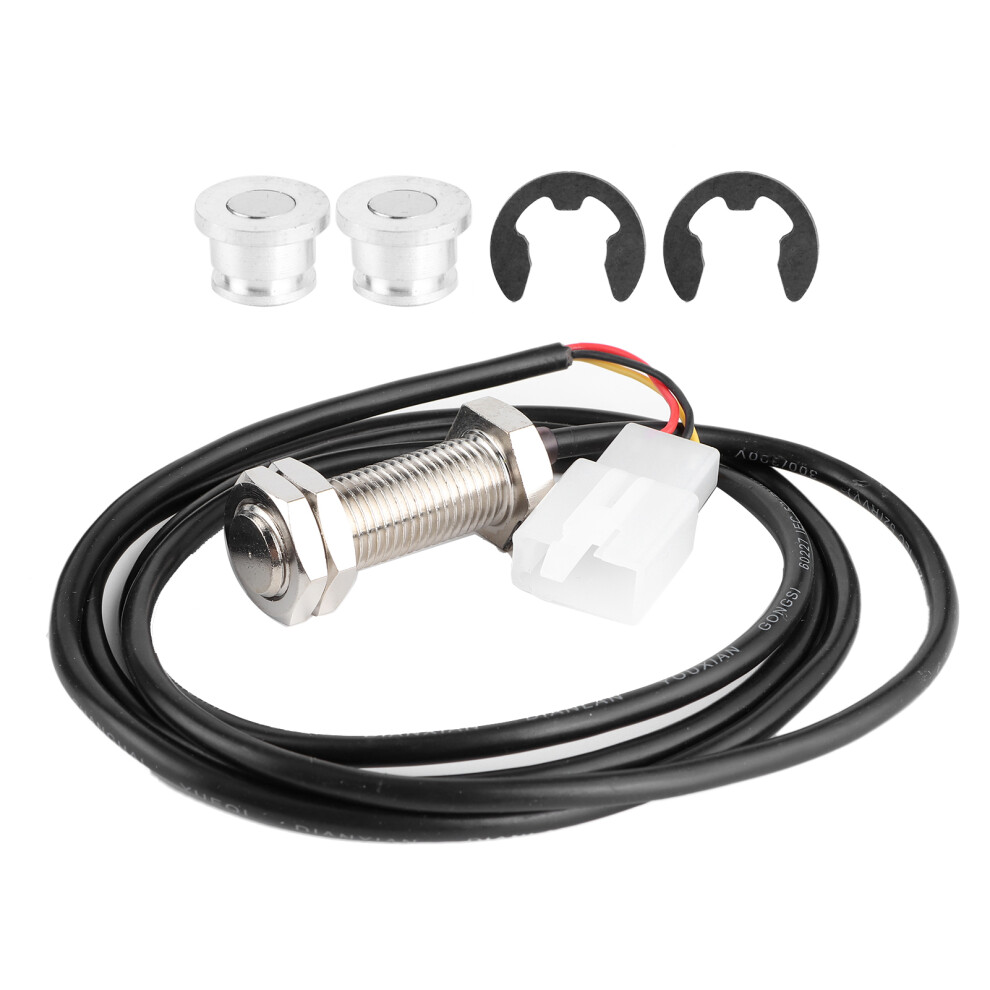

Red/White: Sensor Positive
Green: Sensor Negative
Black/White: Sensor Signal
Round Head Line:
Brown/Red: Engine Failure, Negative Control, LCD Display
Gray: 6 Gears, Negative Control, LCD Display
