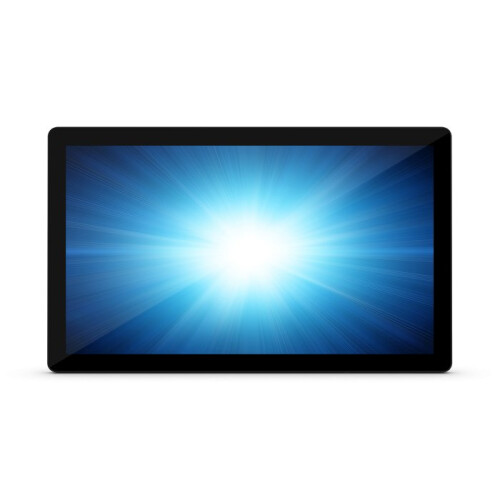

Elo Touch Solution I-Series E850387 All-in-One PC/workstation 54.6... Description
I-Series for Windows Elo's I-Series for Windows delivers commercial-grade computing with the capabilities, security and enterprise infrastructure of a powerful, Windows-based platform—all in a sleek, yet durable fixed tablet form factor. Built on a modular platform and available with either 15-inch or 22-inch displays, the I-Series for Windows can be found in installations across the globe, from in-store interaction and point-of-sale to self-service, hospitality and corporate office environments. The uses are virtually unlimited. Endless Versatility The Elo I-Series offers versatility across environments. From retail and entertainment to corporate offices and signage, the I-Series is an excellent choice to meet the demands of continuous public use. Configure with Elo Edge Connect Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of...
Features
- Keywords: All-in-One
Details
| OPC | P5YHKTN |
|---|---|
| Brand | Elo Touch Solution |
| Codes | 0843173112527 (EAN) |
| MPN | E850387 |
Disclaimer: The information below is provided by various external sources and should be used as a guide only.
I-Series for Windows
Elo's I-Series for Windows delivers commercial-grade computing with the capabilities, security and enterprise infrastructure of a powerful, Windows-based platform—all in a sleek, yet durable fixed tablet form factor.
Built on a modular platform and available with either 15-inch or 22-inch displays, the I-Series for Windows can be found in installations across the globe, from in-store interaction and point-of-sale to self-service, hospitality and corporate office environments. The uses are virtually unlimited.
Endless Versatility
The Elo I-Series offers versatility across environments. From retail and entertainment to corporate offices and signage, the I-Series is an excellent choice to meet the demands of continuous public use.
Configure with Elo Edge Connect
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripherals that seamlessly attach to the edge of the touchscreen. And you can add or swap them out later as your needs change.
Stands & Mounts
With a standard VESA mount, we give you the flexibility to mount our products however you want.
Windows or Linux. You Choose.
Elo's I-Series utilizes the reliability-tested performance and security of Intel's 8th-generation processors and vPro™ platform. Available with Windows 10 or, for added flexibility, the I-Series offers models with no OS-all pretested with Linux SuSE, Ubuntu and Red Hat operating systems-allowing businesses to get the solution best suited for them.
Get Peace of Mind With EloCare
EloCare is service and support from the people who know your Elo products best. From extended warranties and on-site exchange to advance unit replacement and field services, the highly skilled Elo technical specialists will get you up and running.
Alternative names:
- Elo Touch Solutions I-Series E850387 All-in-One PC/workstation Intel® Core™ i3 i3-8100T 54.6 cm (21.5") 1920 x 1080 pixels Touchscreen 8 GB DDR4-SDRAM 128 GB SSD Wi-Fi 5 (802.11ac) Black
Detailed Product Information
Processor
| Processor model | i3-8100T |
|---|---|
| Processor manufacturer | Intel |
| Processor lithography | 14 nm |
| Processor family | Intel® Core™ i3 |
| Processor socket | LGA 1151 (Socket H4) |
| Stepping | B0 |
| 64-bit computing | Yes |
| Processor cores | 4 |
| Processor code | SR3Y8 |
| System bus rate | 8 GT/s |
| Processor threads | 4 |
| PCI Express slots version | 3.0 |
| Processor operating modes | 64-bit |
| Processor cache | 6 MB |
| Tjunction | 82 °C |
| Bus type | DMI3 |
| PCI Express configurations | 1x16, 1x8+2x4, 2x8 |
| Processor frequency | 3.1 GHz |
| Thermal Design Power (TDP) | 35 W |
| Processor codename | Coffee Lake |
| Maximum number of PCI Express lanes | 16 |
| Configurable TDP-down | 25 W |
| Processor cache type | Smart Cache |
| Configurable TDP-down frequency | 2.4 GHz |
| Maximum internal memory supported by processor | 64 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2400 MHz |
| Memory bandwidth supported by processor (max) | 37.5 GB/s |
| Memory channels supported by processor | Dual |
| ECC supported by processor | Yes |
| Processor generation | 8th gen Intel® Core™ i3 |
Memory
| Internal memory type | DDR4-SDRAM |
|---|---|
| Memory slots | 2 |
| Maximum internal memory | 32 GB |
| Memory clock speed | 2666 MHz |
| Memory slots type | SO-DIMM |
| Memory layout (slots x size) | 1 x 8 GB |
| Internal memory | 8 GB |
Network
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
|---|---|
| Bluetooth version | 5.0 |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
Performance
| Motherboard chipset | Intel® H310 |
|---|
Operational conditions
| Operating relative humidity (H-H) | 20 - 80% |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage relative humidity (H-H) | 5 - 95% |
Storage
| Compatible memory cards | Not supported |
|---|---|
| Optical drive type | No |
| Total storage capacity | 128 GB |
| Card reader integrated | No |
| SSD capacity | 128 GB |
| Number of SSDs installed | 1 |
| Storage media | SSD |
| SSD form factor | M.2 |
| Total SSDs capacity | 128 GB |
Weight & dimensions
| Package weight | 7 kg |
|---|---|
| Package depth | 196 mm |
| Package height | 437 mm |
| Package width | 625 mm |
| Width (with stand) | 525.9 mm |
| Height (with stand) | 319.2 mm |
| Depth (with stand) | 52.6 mm |
| Weight (with stand) | 5.2 kg |
Power
| AC adapter input voltage | 100 - 240 V |
|---|---|
| AC adapter frequency | 50-60 Hz |
| AC adapter power | 100 W |
Display
| Display diagonal | 54.6 cm (21.5") |
|---|---|
| Display brightness | 225 cd/m² |
| Response time | 14 ms |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| LED backlight | Yes |
| Touch technology | Multi-touch |
| Native aspect ratio | 16:9 |
| HD type | Full HD |
| Screen shape | Flat |
| Display number of colours | 16.78 million colours |
Design
| Product colour | Black |
|---|---|
| Panel mounting interface | 75 x 75,100 x 100 mm |
| VESA mounting | Yes |
Audio
| RMS rated power | 2 W |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
Ports & interfaces
| USB 2.0 ports quantity | 4 |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
Pen
| Pen included | No |
|---|
Software
| Operating system installed | No |
|---|
Processor special features
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
|---|---|
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Smart Cache | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel Trusted Execution Technology | No |
| Scalability | 1S |
| CPU configuration (max) | 1 |
| Intel Enhanced Halt State | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Embedded options available | Yes |
| Intel TSX-NI | No |
| Intel® Secure Key | Yes |
| Thermal solution specification | PCG 2015A |
| Intel 64 | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Clear Video Technology | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel TSX-NI version | 0.00 |
| Processor package size | 37.5 x 37.5 mm |
| Processor ARK ID | 129944 |
Other features
| 3D | No |
|---|---|
| Detachable display | No |
Camera
| Built-in camera | No |
|---|
Packaging content
| Keyboard language | Italian |
|---|
Graphics
| On-board graphics card model | Intel® UHD Graphics 630 |
|---|---|
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| On-board graphics card ID | 0x3E91 |
| On-board graphics card 4K support | Yes |
| Maximum on-board graphics card memory | 64 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| Discrete graphics card | No |
| On-board graphics card family | Intel® UHD Graphics |
Logistics data
| Harmonized System (HS) code | 84713000 |
|---|
