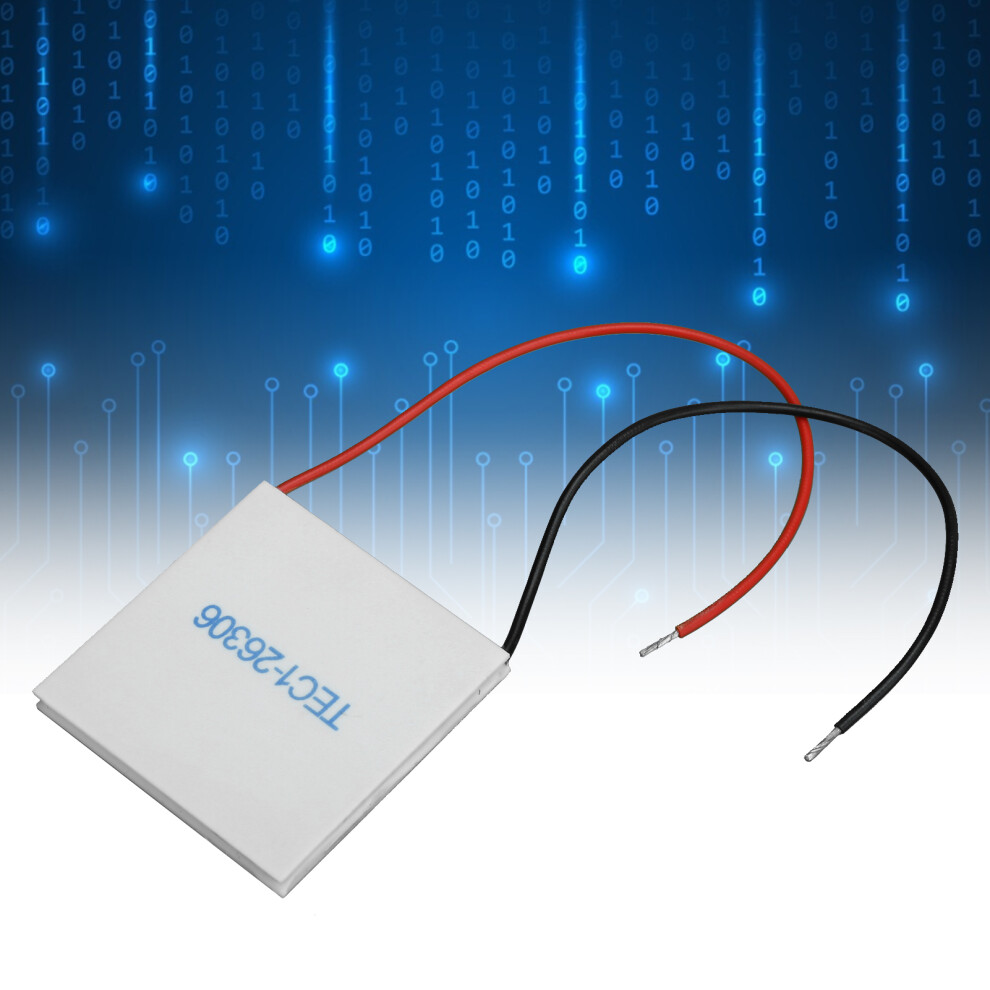

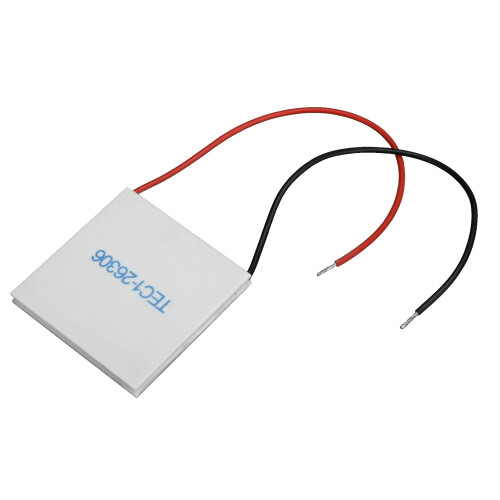

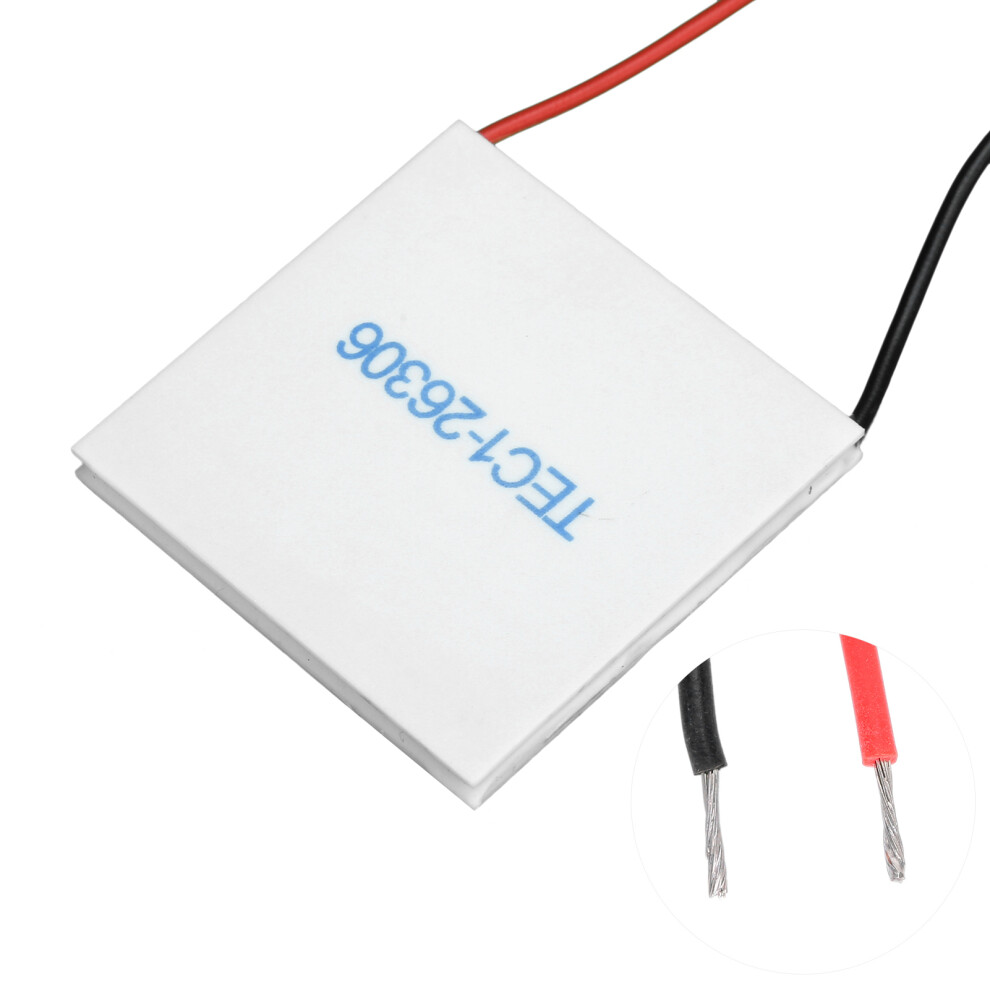

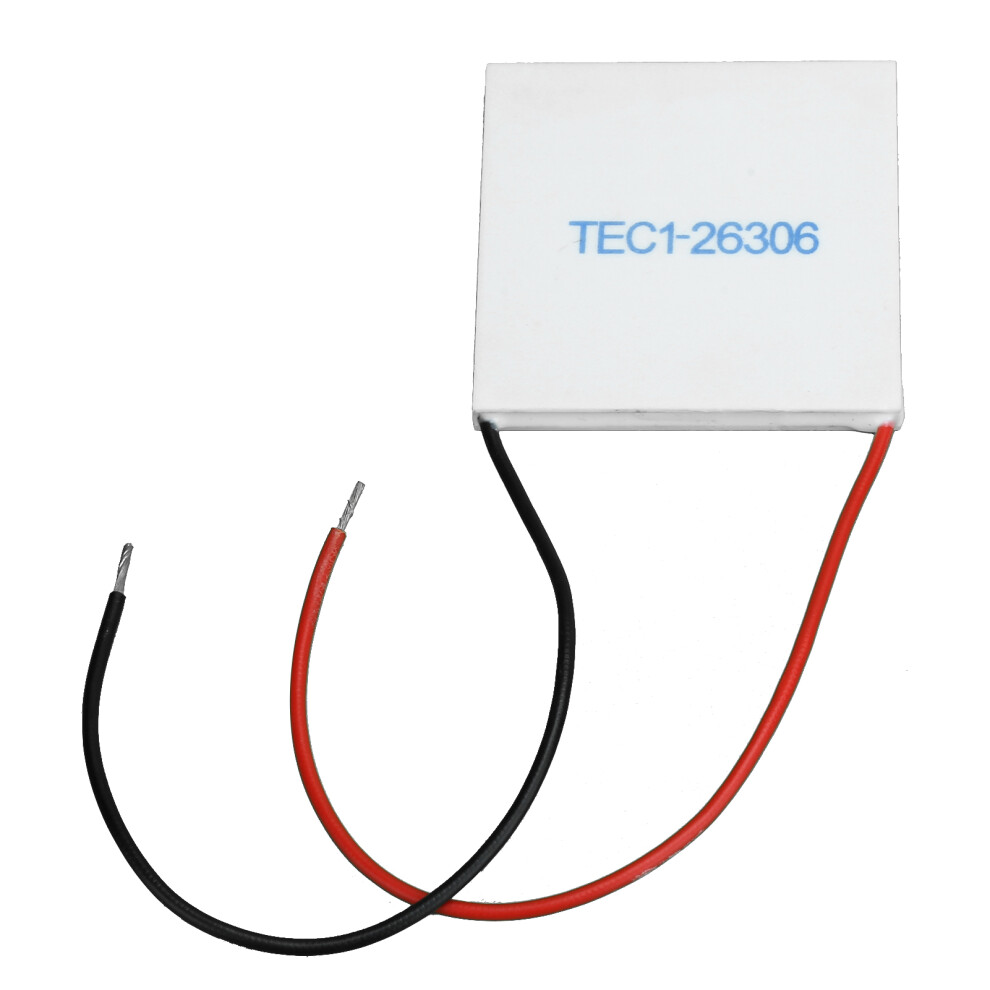

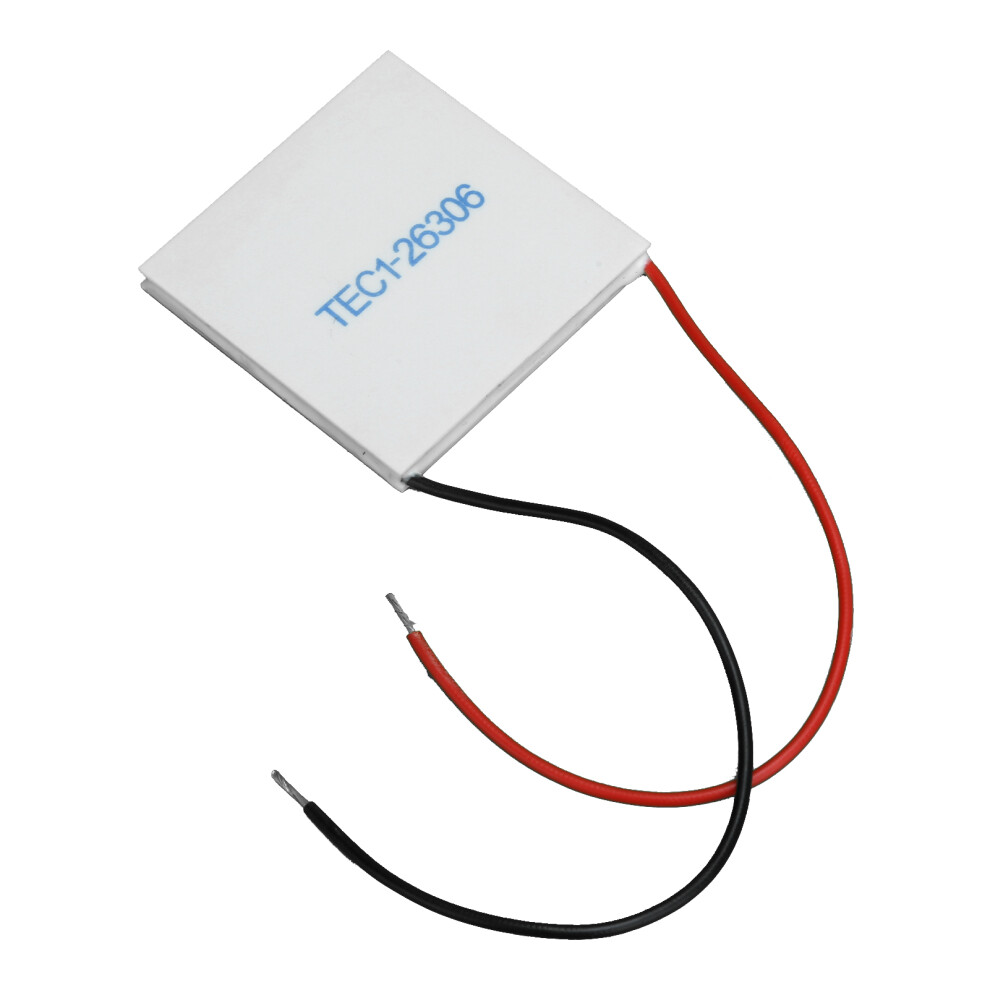

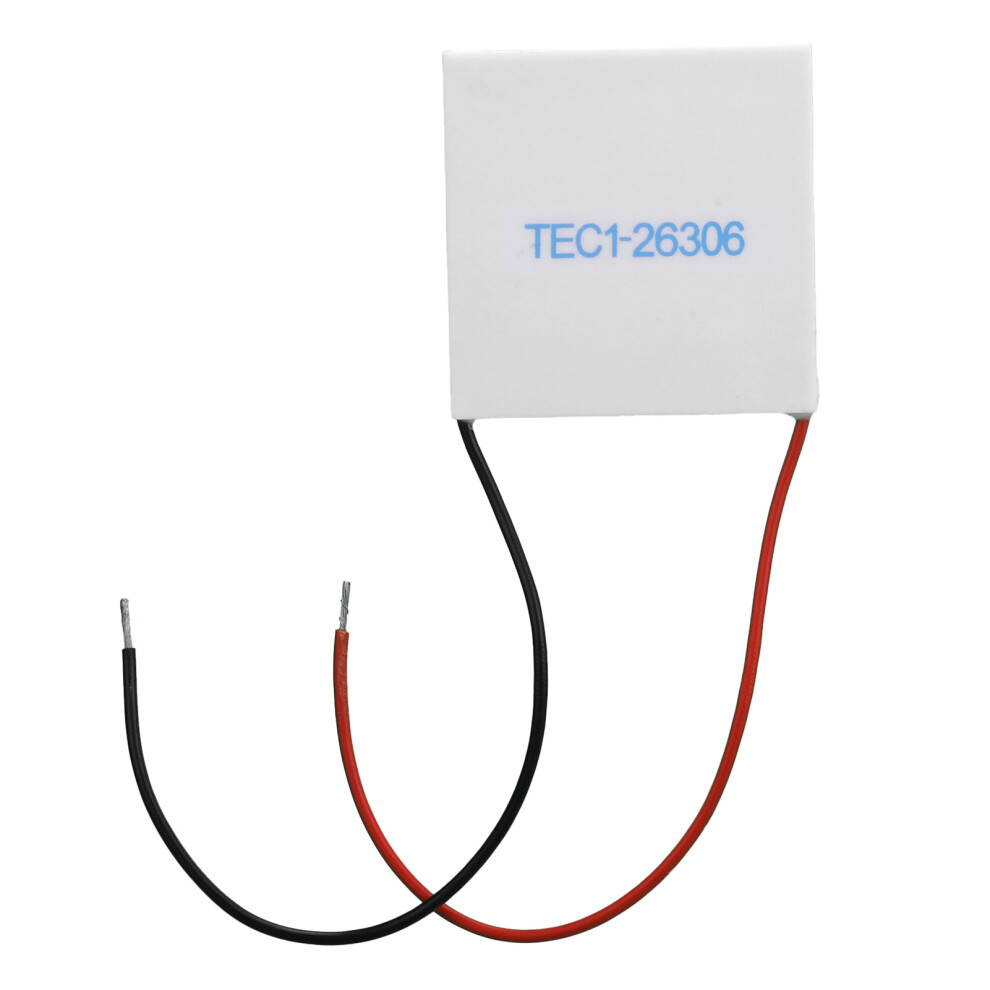

Energy-Efficient TEC1-26306 24V 6A 50mm Thermoelectric Module
New
Hurry only 1 left
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 128,000 Trustpilot reviews and an 'Excellent' rating
£26.29
£36.01
27% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Thu 16th - Sat 18th Jul
Returns: 30 days
180-day payment protection
Most Popular in Computer Cooling Thermal Paste & Supplies
Description & Details
Summary

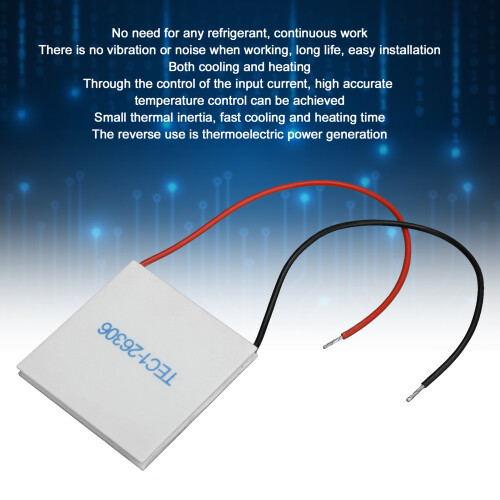

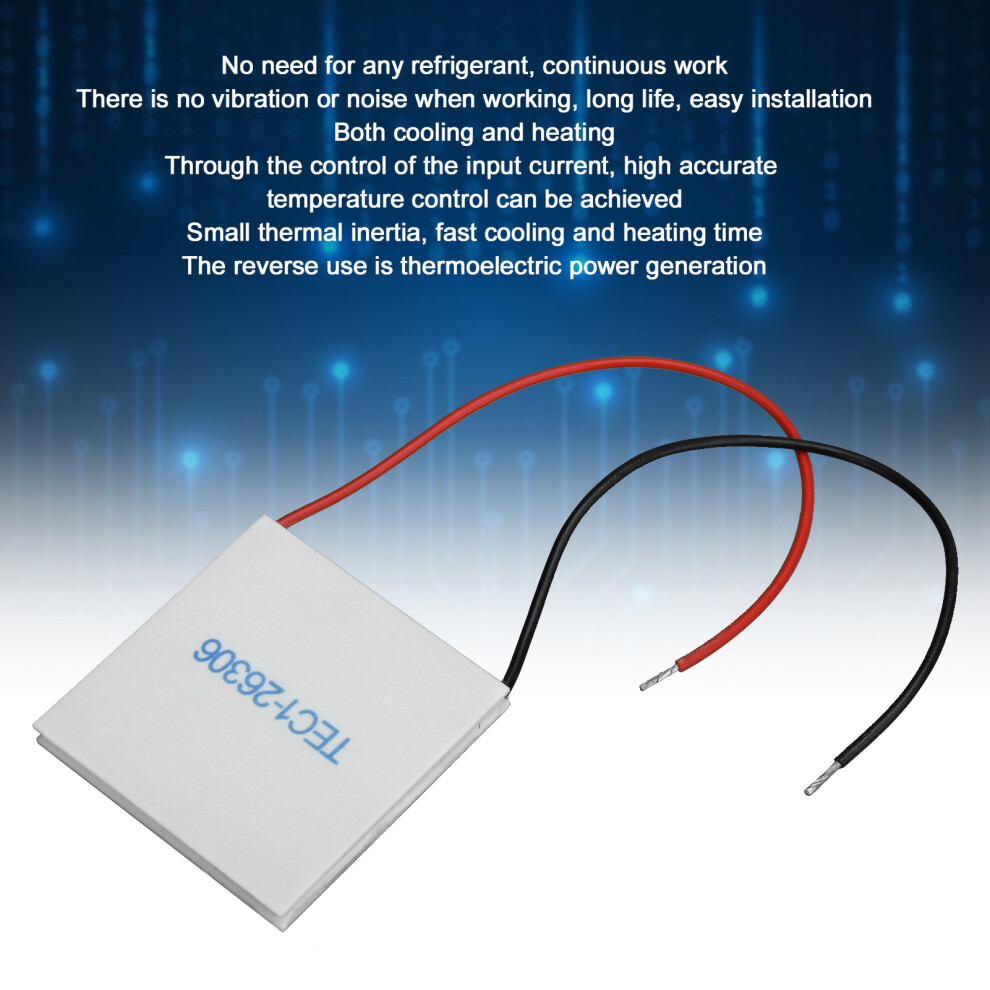

- No need for any refrigerant, continuous work, no pollution source, no rotating parts, no rotation effect, no sliding part is a solid piece, no vibration, noise, long life, easy installation.
- Semiconductor refrigeration fins have two functions, both cooling and heating. The cooling efficiency is generally 55-60%, but the heating efficiency is always higher than 1, so using one can replace the separate cooling system and heating system.
- Semiconductor refrigeration chip is a current‑transducer type chip. Through the control of input current, high‑accurate temperature control can be realized. Coupled with temperature detection and control means, it is easy to realize remote control, program control, and computer control to form an automatic control system.
- The thermal inertia is small, and the cooling and heating time is fast. When the hot end has good heat dissipation and the cold end is empty, the cooling plate can attain the maximum temperature difference in less than one minute.
- The reverse use of semiconductor refrigeration fins is thermoelectric power generation. Semiconductor refrigeration fins are generally suitable for power generation in the middle and low temperature areas.
Energy-Efficient TEC1-26306 24V 6A 50mm Thermoelectric Module Description
Thermoelectric Cooling Plate Semiconductor Cooler Heatsink TEC1‑26306 50 x 50mm 24V 6A
Item Type: Thermoelectric Cooling PlateModel: TEC1-26306
Material: Ceramic
Rated Voltage: DC24V
Maximum Voltage: DC30V (Th=30)
Maximum Current: 6A (U=30V, Th=30)
Maximum Temperature Difference: 66 (Qc=0,Th=30)
Maximum Cooling Capacity: 107W (T=0,Th=30)
Internal Resistance: 3.7-4.3Ω
Lead Specification: 20AWG, L=150mm
Packaging Process: 704 silicone rubber sealing
Assembly Pressure: 6kg
Working Temperature: -50~+80
Storage Temperature: -40~+60
Application Range:
1. Applications In High-tech Fields: Satellites, semiconductor lasers, infrared thermal imaging, infrared detectors, optoelectronic devices, etc.
2. Home Appliance Applications: Dehumidifiers, portable heating and cooling boxes, hot and cold water dispensers, cool helmets, cold drink cups, beverage wine coolers, etc.
3. Application In Electronic Technology: Cooling of electronic equipment, electronic components, computers, etc.
4. Industrial Applications: Automobile refrigerators, small air conditioners, dehumidifiers, thermostats, petroleum testing instruments, etc.
5. Agricultural And Biological Applications: Physical cooling pads, semiconductor physiological slices, vaccine preservation, etc.
