Engine Manual Start Controller Diesel Generator

Engine Manual Start Controller Diesel Generator Description

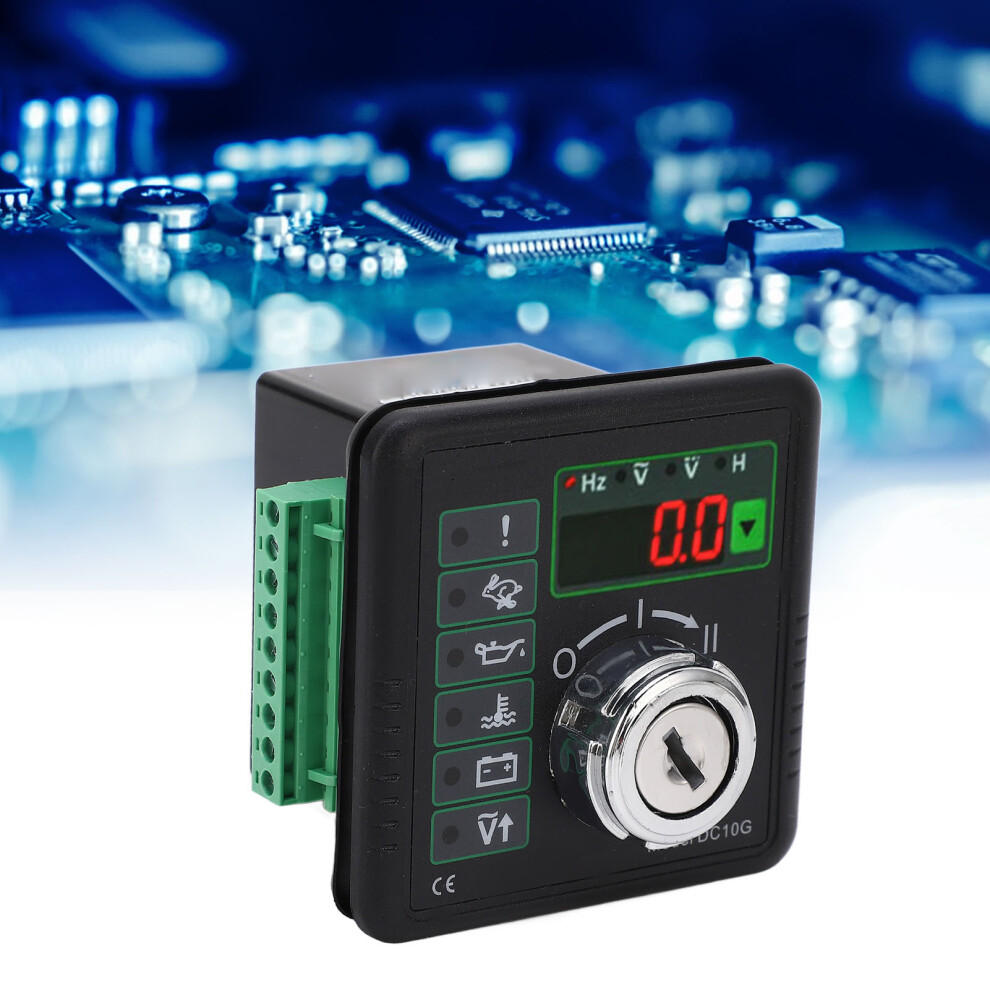

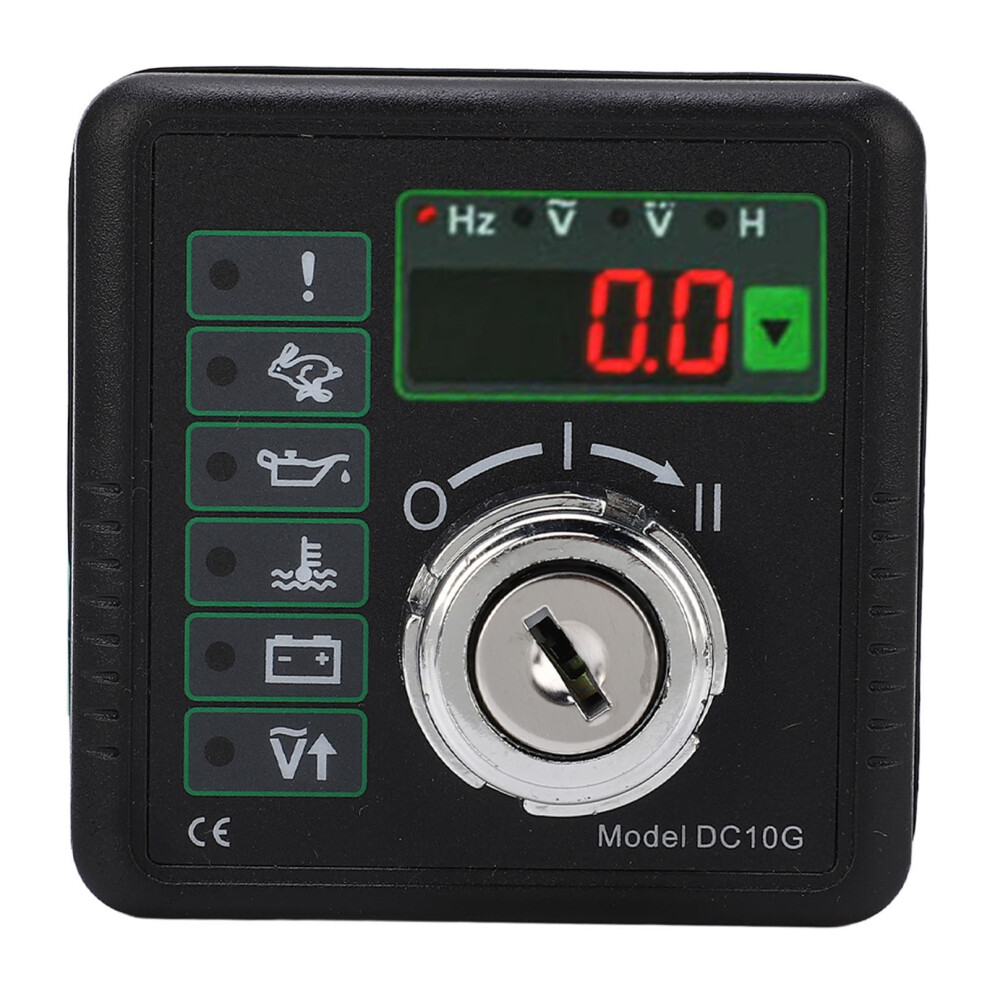

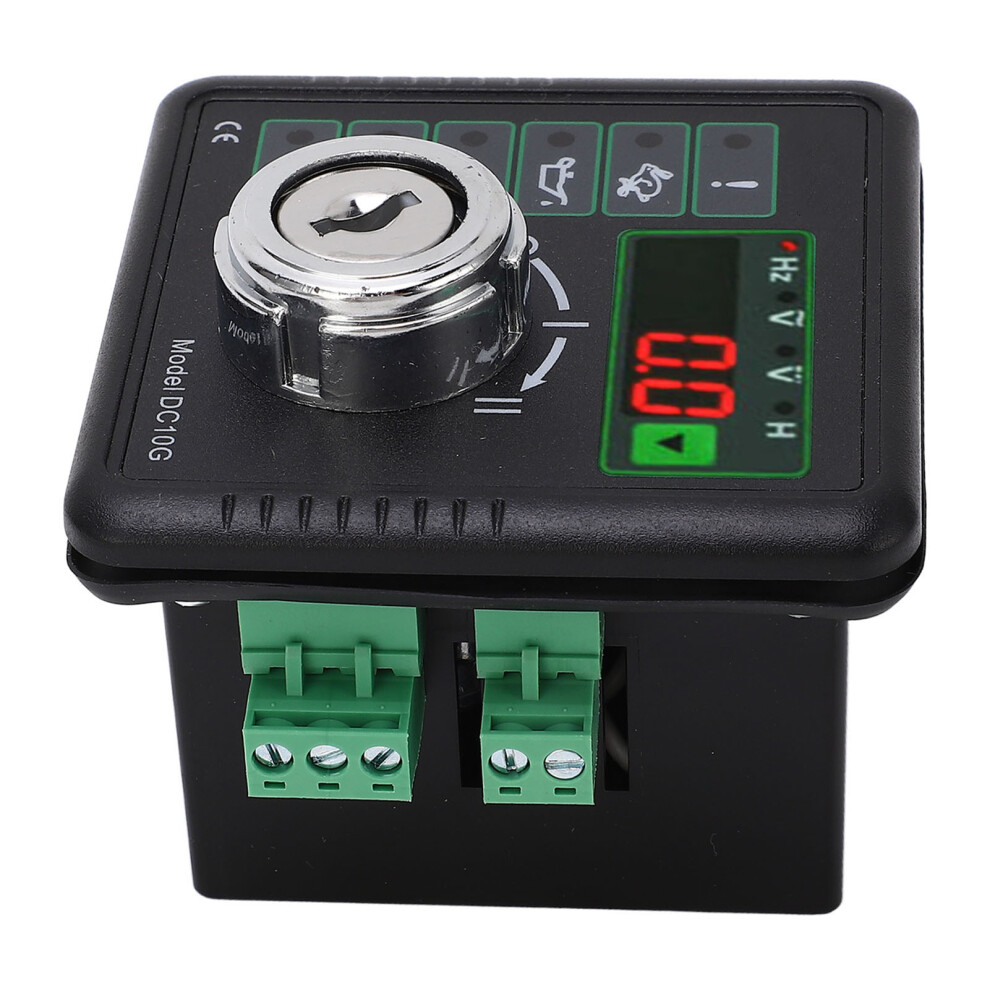

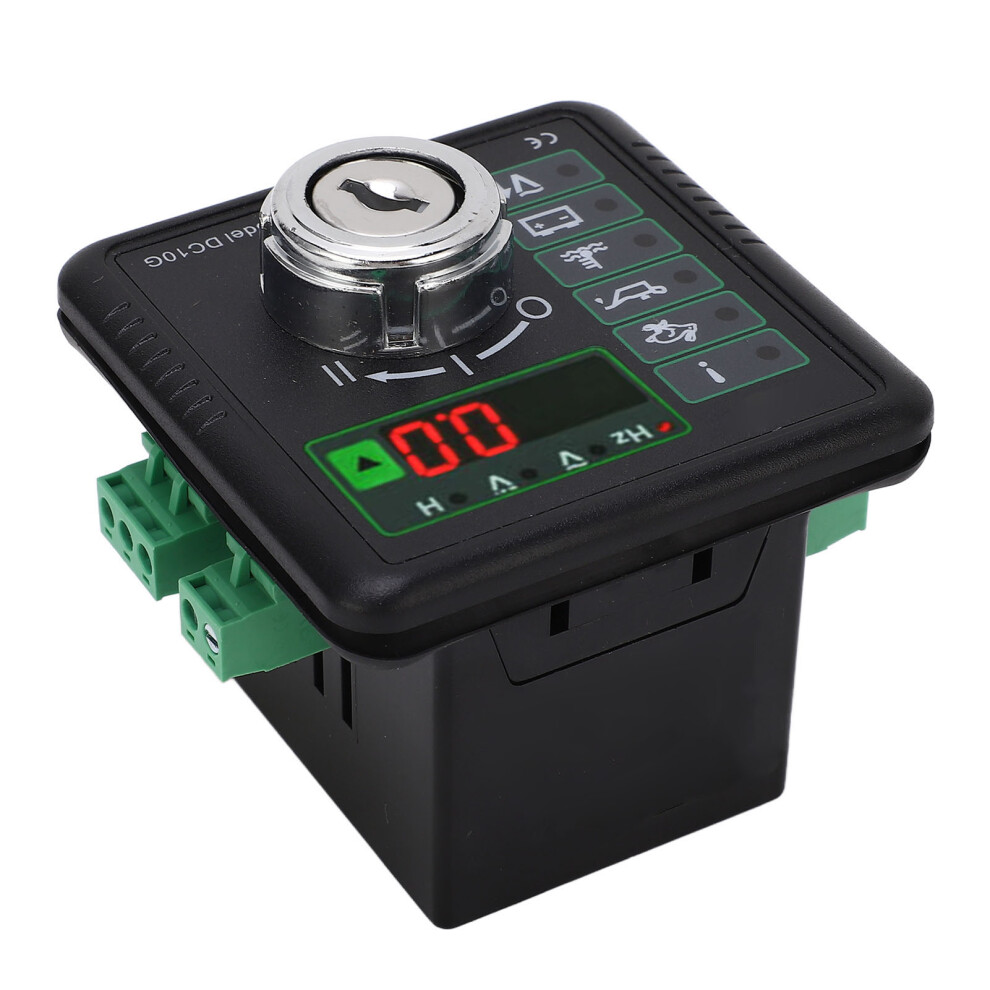

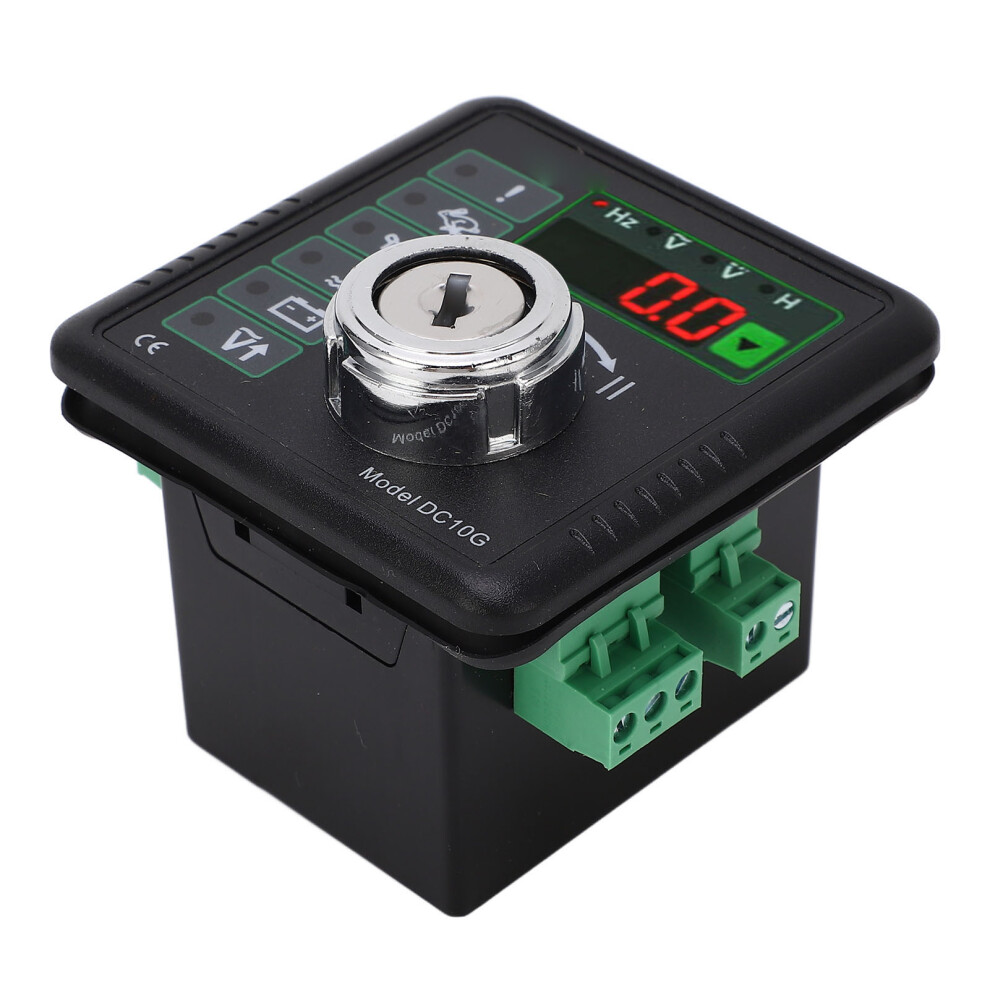

Engine Manual Start Controller Diesel Generator Control Module with Voltage Accumulation Time Display DC10G 15‑300VAC

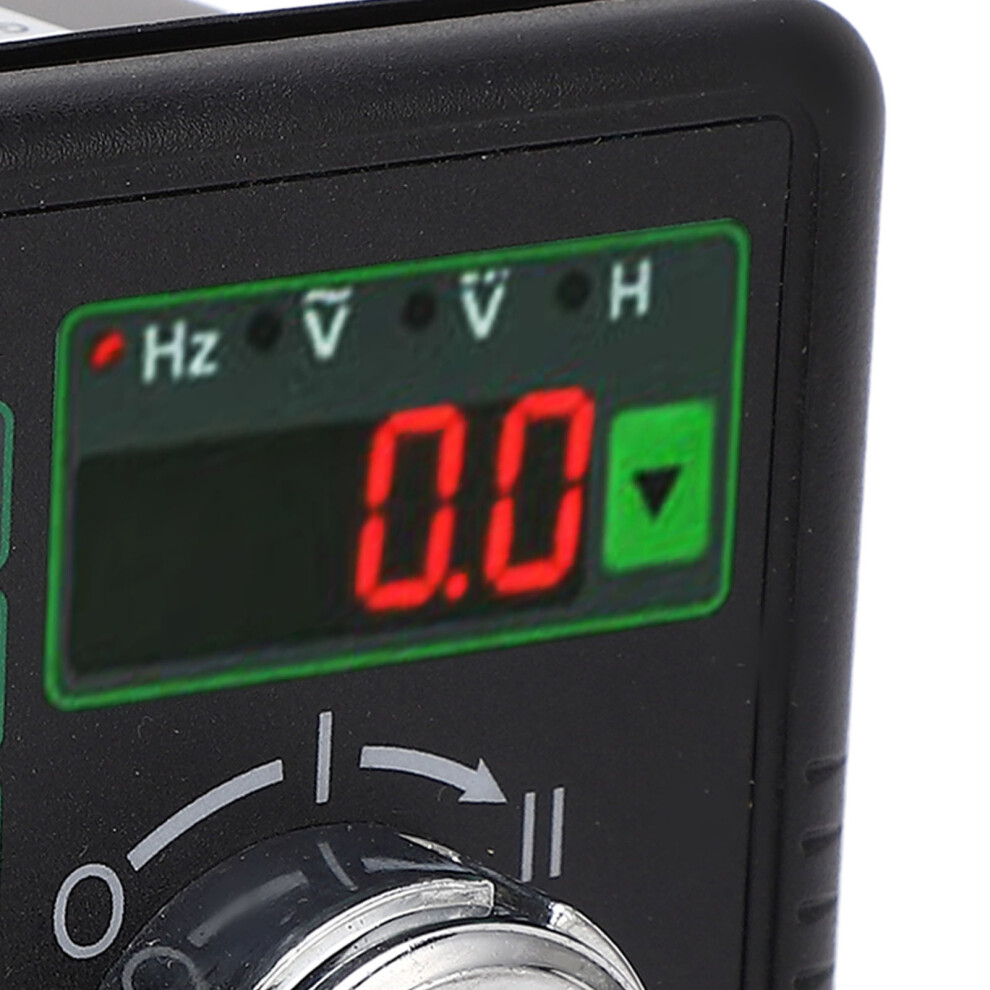

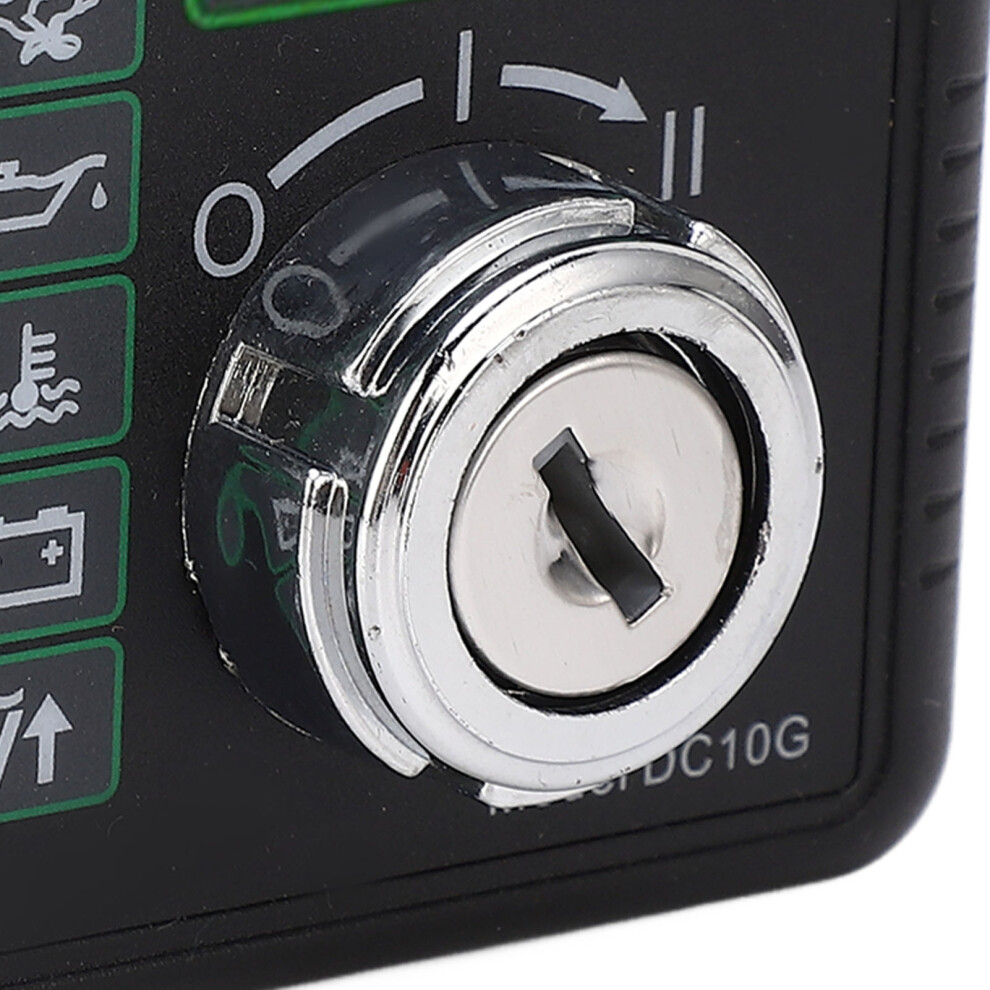

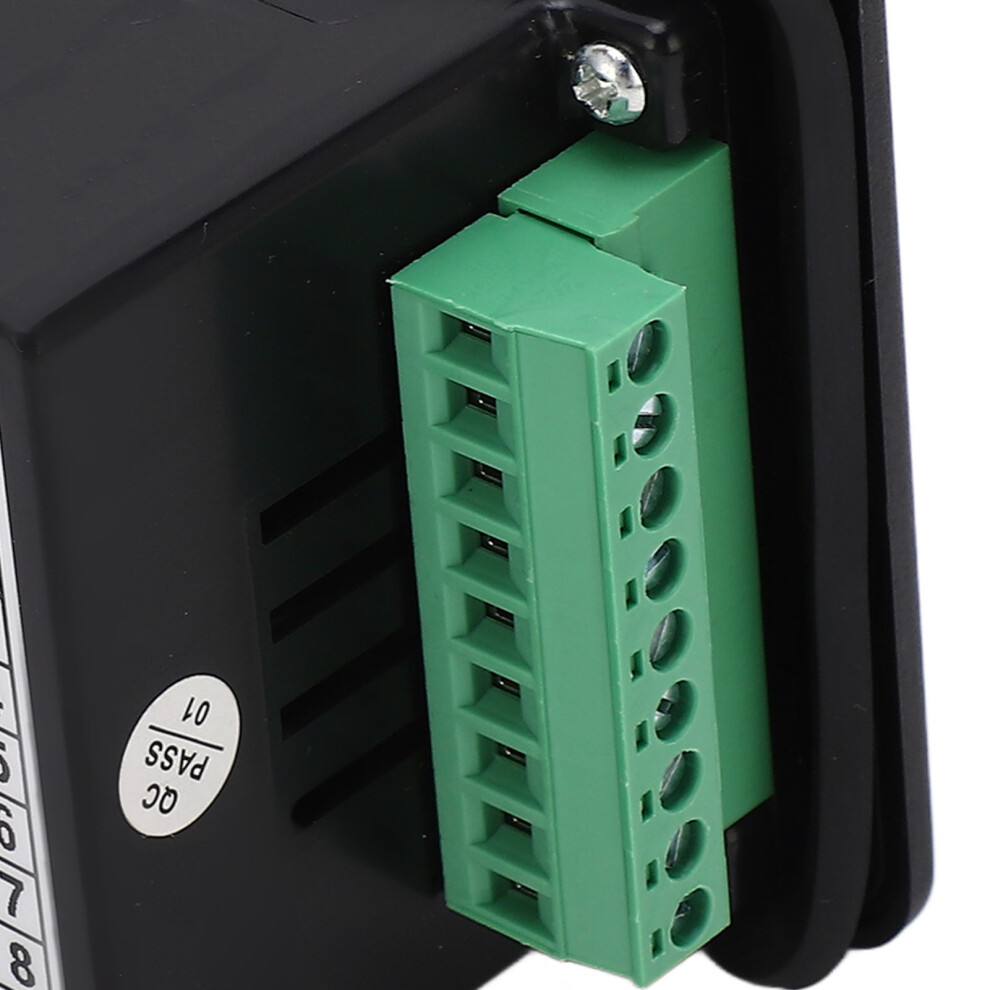

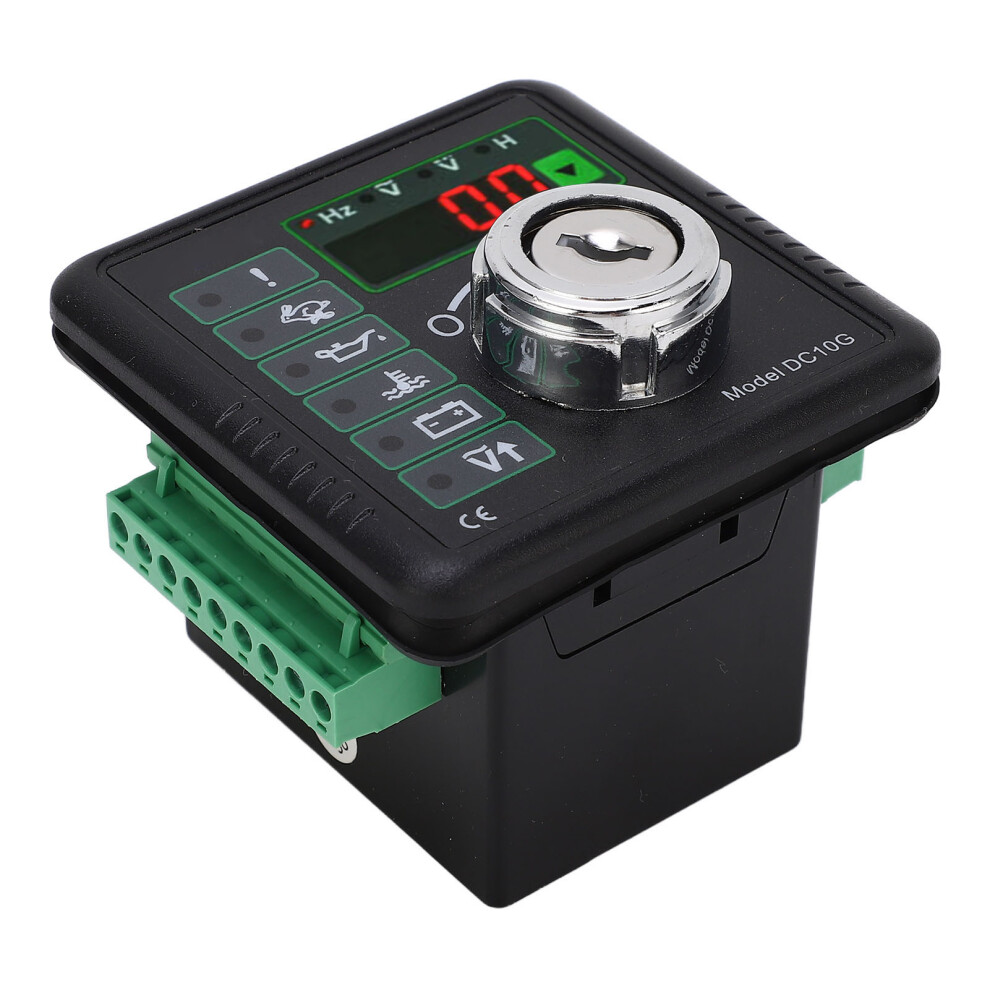

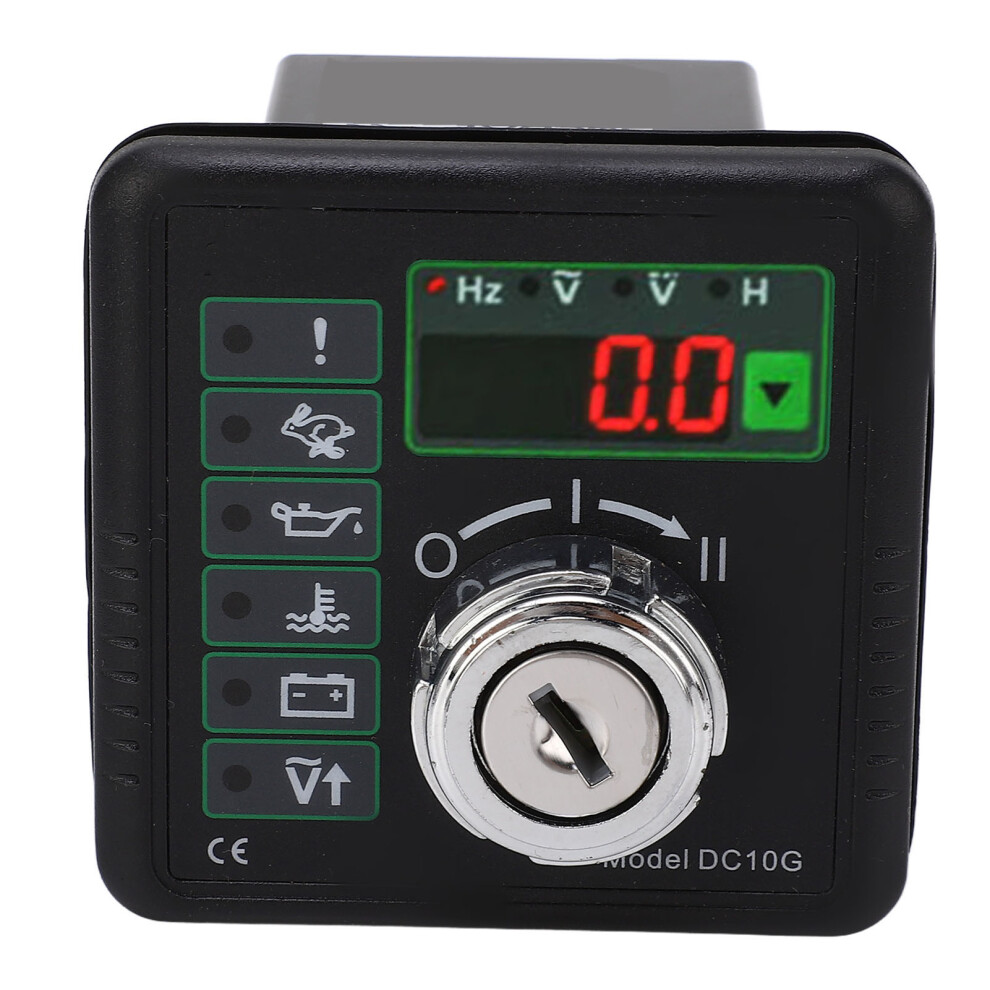

1、MULTIPLE FEATURES: The DC10G is a controller for manual engine start stop. The 4 digit LED digital tube displays the frequency, voltage, battery voltage and accumulated working time of the generator set. Has a variety of parking protection and alarm indicating functions, which can conveniently monitor the working state of the generator set 2、COMPUTER CONTROL: The controller can be connected to the computer through the data line, and the controller parameters can be set through the software, which is convenient to match more specifications of the generator set 3、FLEXIBLE AND SWITCHABLE: Using 32 bit imported high performance single chip microcomputer control; 4 digit digital tube display screen, can be switched automatically or manually 4、PARAMETERS CAN BE SET: Using the car starting key, durable; With the parameter setting function, you can set parameters through the computer connection 5、ALARM PROTECTION FUNCTIONS: Standard waterproof ring, the installation of the rear panel with non splash function; All connections are completed through European terminal, the equipment assembly, wiring, maintenance, replacement is very easy and convenient



Item Type: Engine Manual Start Controller Model: DC10G Power Input: 8-33VDC Power Consumption: Maximum 2W Power Input: 15-300VAC, 50/60Hz Speed Input: Freq 300Hz ~ 10kHz Oil Valve Output: Maximum 16A Motor Output: Maximum 10A Excitation Output: Maximum 80mA Alarm Output: Maximum 16A Operating Temperature: -30-75 Storage Temperature: -40-85 Features: The DC10G is a controller for manual engine start stop. The 4 digit LED digital tube displays the frequency, voltage, battery voltage and accumulated working time of the generator set. It has a variety of parking protection and alarm indicating functions, which can conveniently monitor the working state of the generator set. The controller can be connected to the computer through the data line, and the controller parameters can be set through the software, which is convenient to match more specifications of the generator set

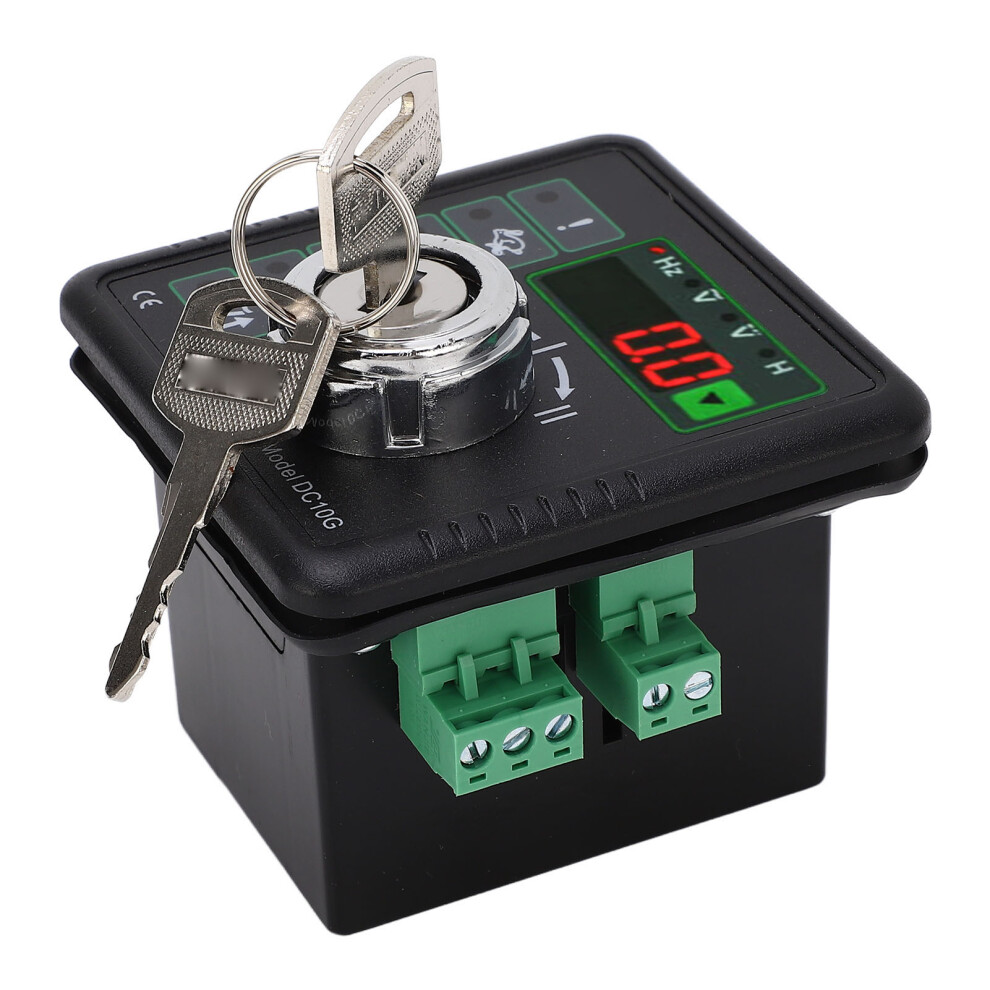

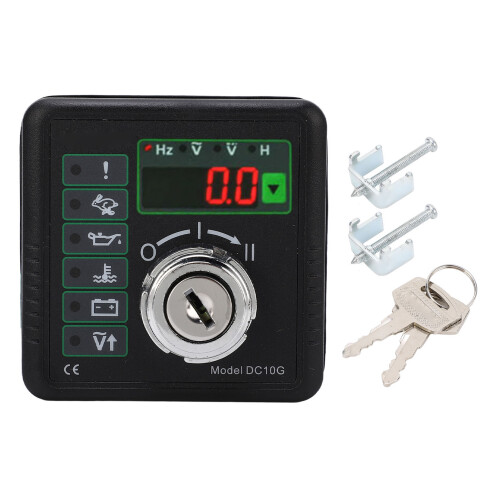

1 x Controller 2 x Key 2 x Set Screw 1 x User Manual
