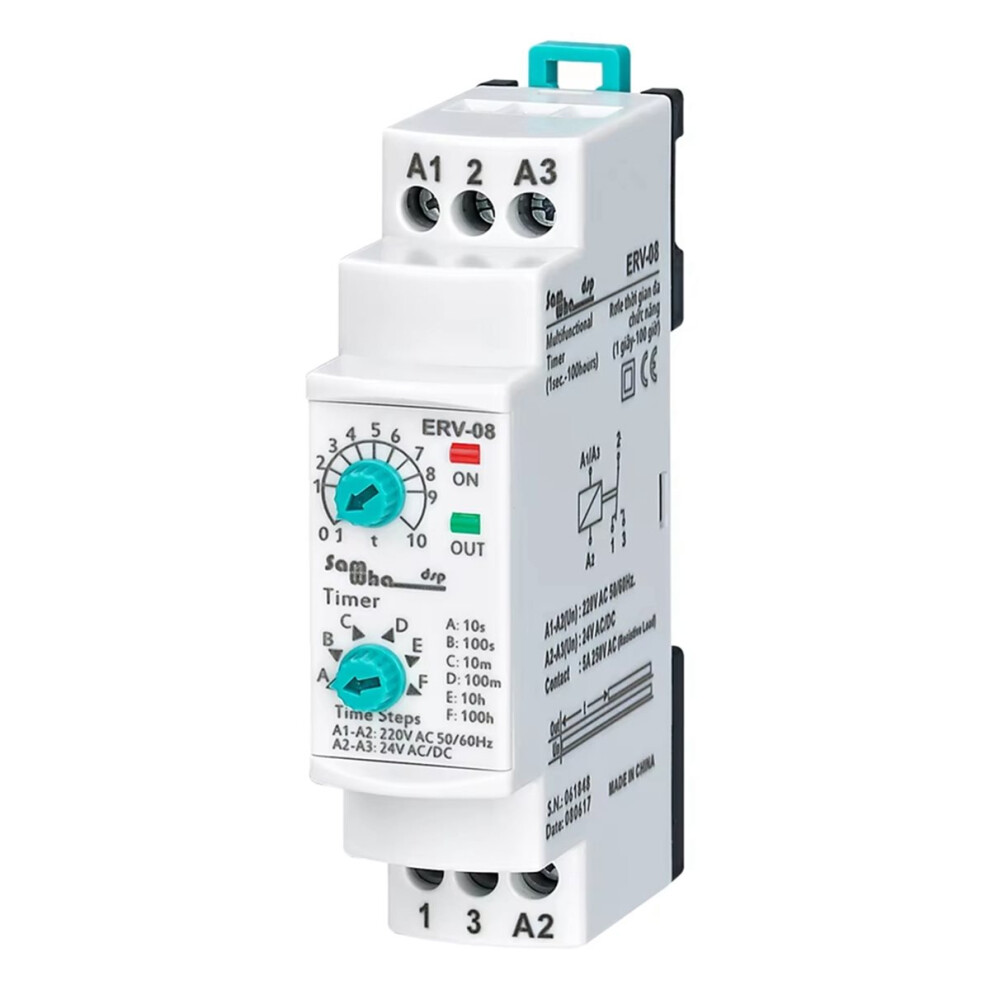

ERV-08 on Delay Multifunctional Time Relay Electronic Adjustable (0,1Sec.-100 Hours)for All Areas Requiring Time Control

ERV-08 on Delay Multifunctional Time Relay Electronic Adjustable (0,1Sec.-100 Hours)for All Areas Requiring Time Control Description

ERV-08 timer relays are used in all fields (industry, house, plant etc.) need controlls related to the time.
Operating Voltage(Un): 150V-260V AC/24VDC
Operating Frequency: 50/60 Hz
Operating Power: Less than 4VA
Operating Temperature: -20 - +55

Time(t): 10sec, 100sec, 10min, 100min, 10hr and 100hours
Display: On led and Out led
Connection Type: Terminal connection
Weight: Max.120gr
Contact:5A/250V AC (Resistive Load)
Mounting: Vertical assembled in the panel or assembled on the din rail
Operating Altitude: Less than 2000meter
Color:White
Material:ABS

Package Contents:
1 * ERV-08 timer relays

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
