ESP32-P4 WIFI6 Development Board Based on and ESP32-C6 B

ESP32-P4 WIFI6 Development Board Based on and ESP32-C6 B Description

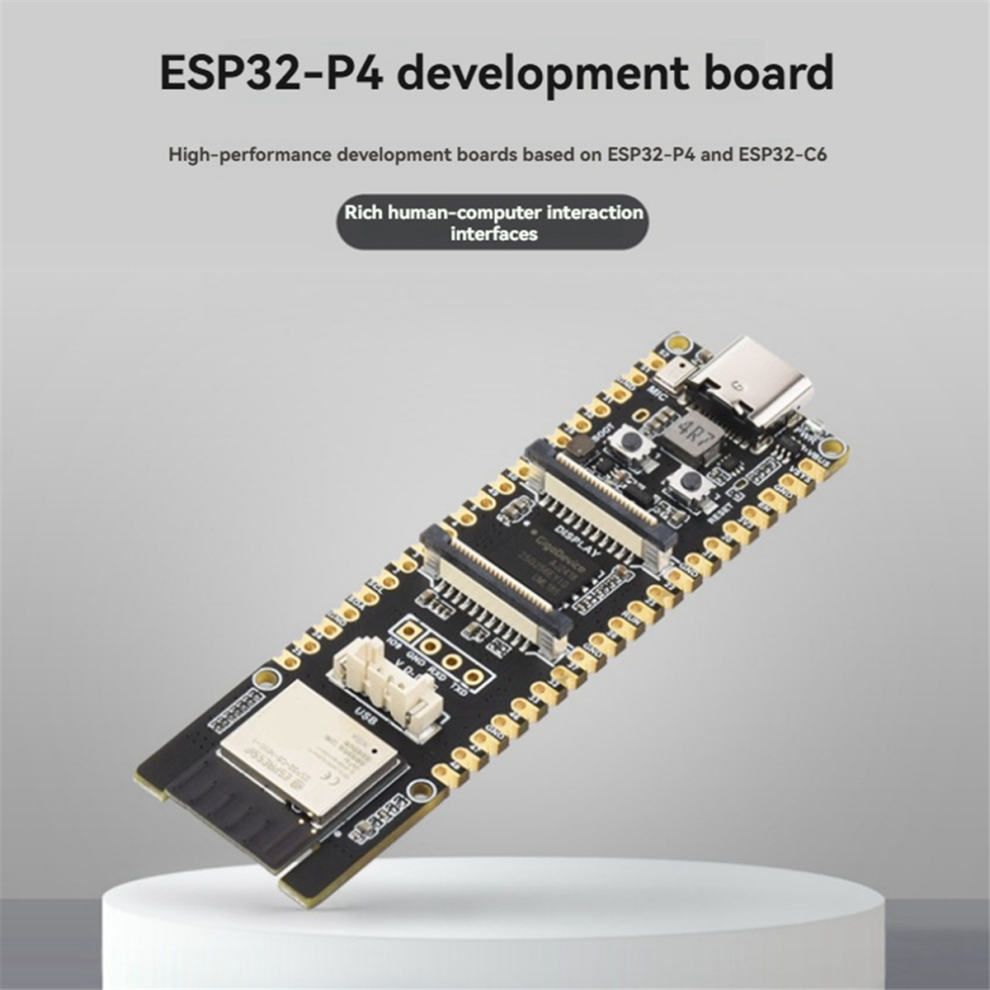

This product is a multimedia development board based on ESP32-P4, and integrates ESP32-C6, supporting Wi-Fi 6 and BLE 5 wireless connections.
It provides a wealth of human-computer interaction interfaces, including MIPI- (integrated image signal processor ISP), MIPI-, SPI, I2S, I2C, LED PWM, MCPWM, , ADC, UART and TWAI, etc.
In addition, it supports USB OTG 2.0 HS and has an onboard 40PIN GPIO expansion interface, which is compatible with some FOR HAT expansion boards to achieve application adaptation.
ESP32-P4 uses a 400MHz dual-core RISC-V processor to support up to 32MB PSRAM, and has peripherals such as USB 2.0, MIPI- / and 264 encoding to meet the needs of low-cost, high-performance and low-power multimedia development.
ESP32-P4-WIFI6 is designed for high-performance and high-security applications to meet the needs of embedded systems in human-computer interaction, edge computing and IO expansion.

Powerful image and voice processing capabilities, image and voice processing interfaces include JPEG codec
Pixel processing accelerator (), image signal processor (ISP), H264 video encoder.

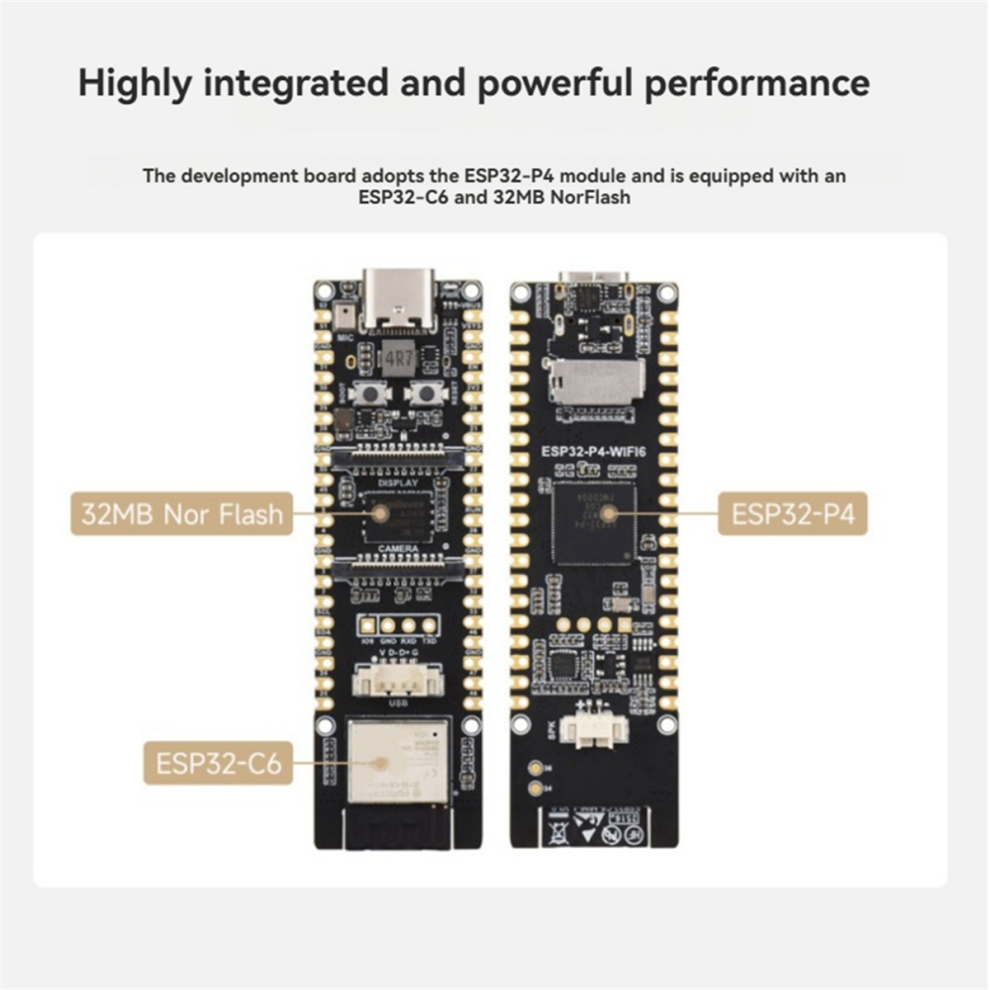

32MB PSRAM is stacked inside the chip package, and 32MB Nor Flash is integrated externally.

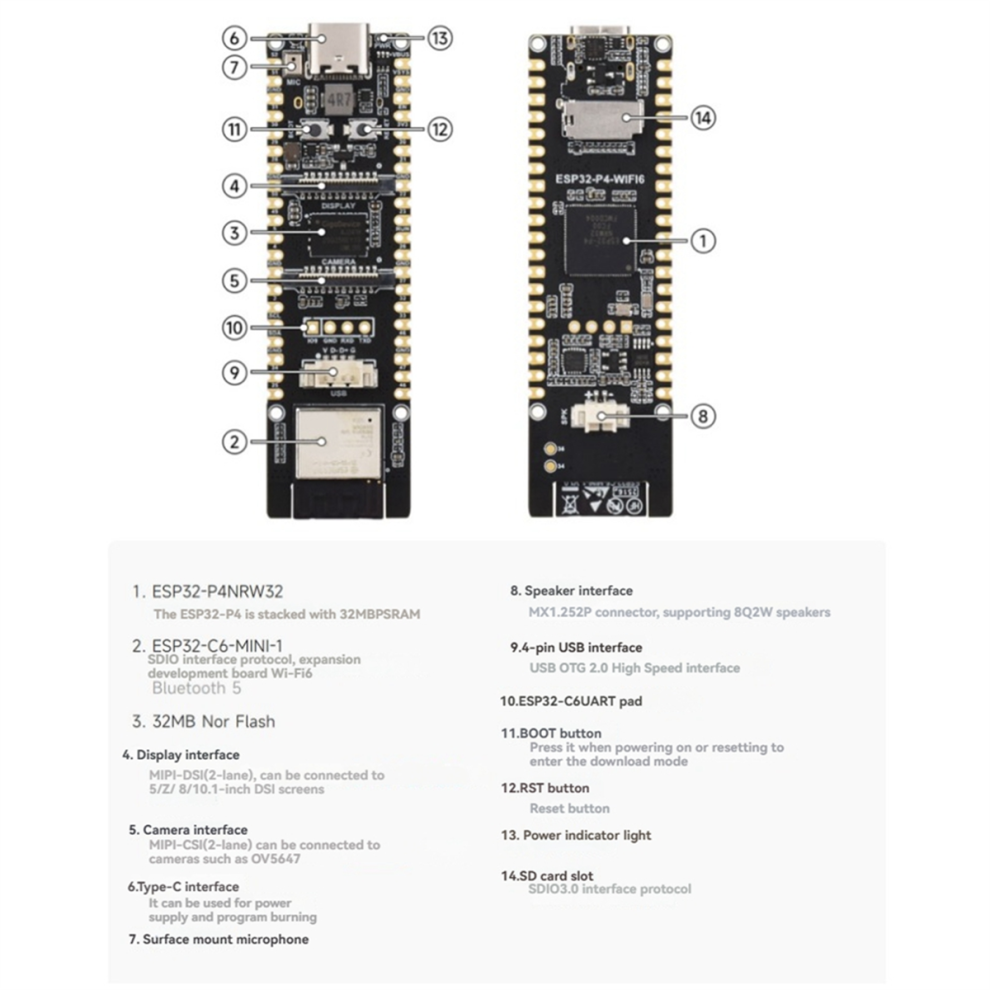

Common peripheral interfaces such as MIPI-, MIPI-, USB 2.0 OTG, SDIO 3.0 SD card slot, microphone and speaker terminals are brought out on the board.

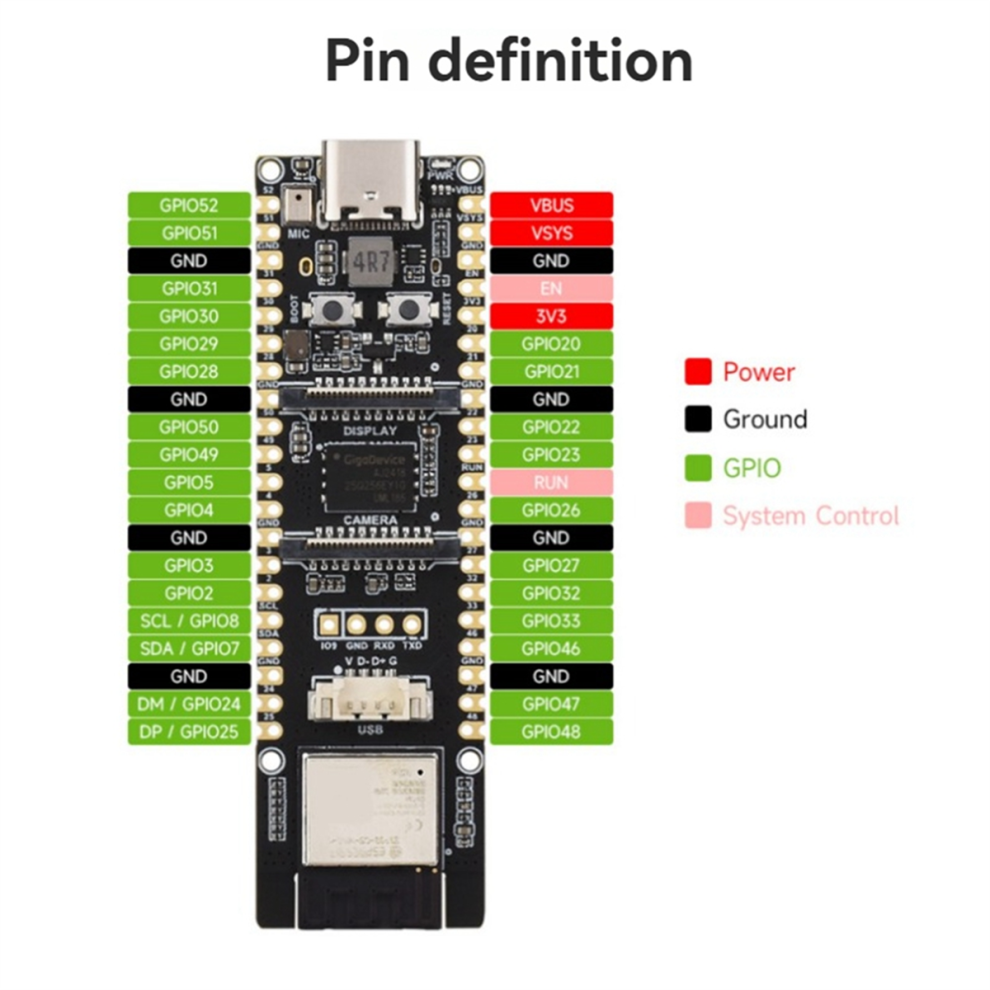

2x20 pin headers are brought out on the board, and 27 remaining programmable GPIOs are brought out.
Security mechanism: secure boot, Flash encryption, hardware encryption accelerator and hardware random number generator. It also supports hardware access protection, which can realize access rights management () and permission separation.

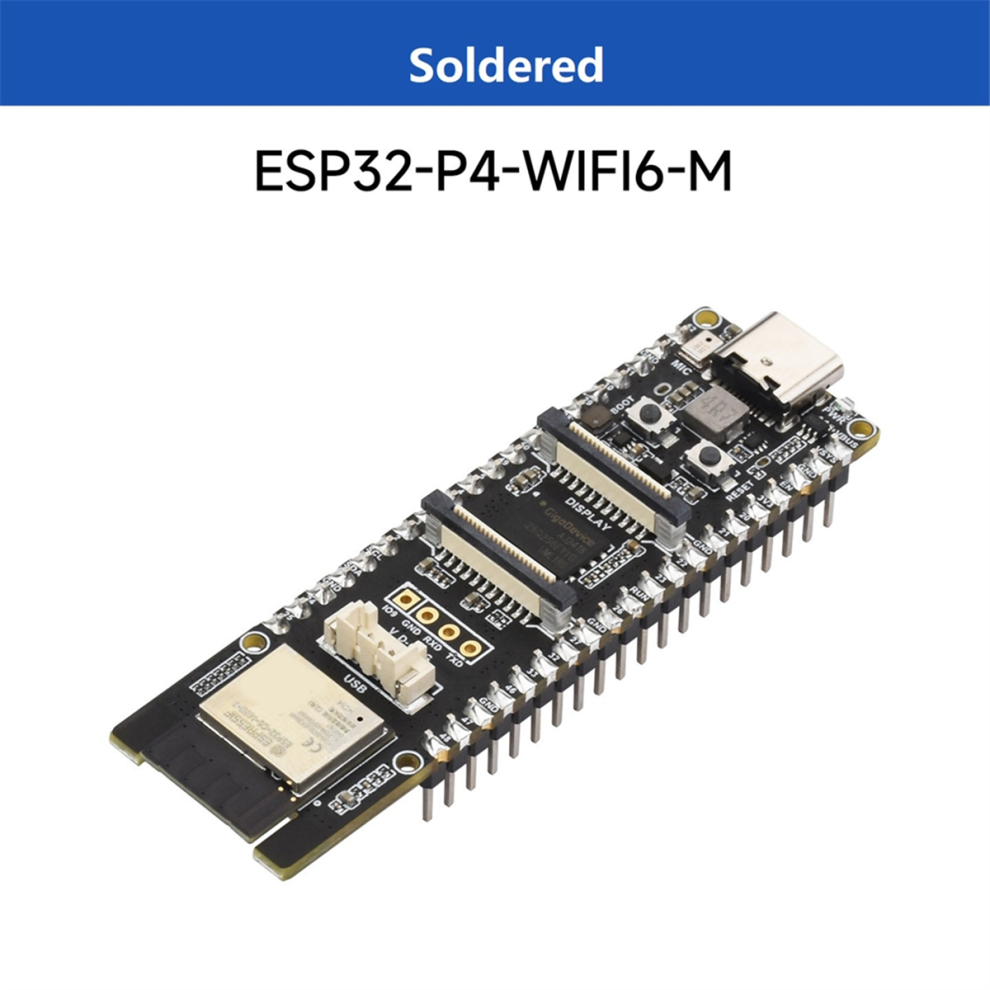

Specifications: B:Soldered pin headers
Color: Black
Material: PCB

Package Contents:
1 x Development Board

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
