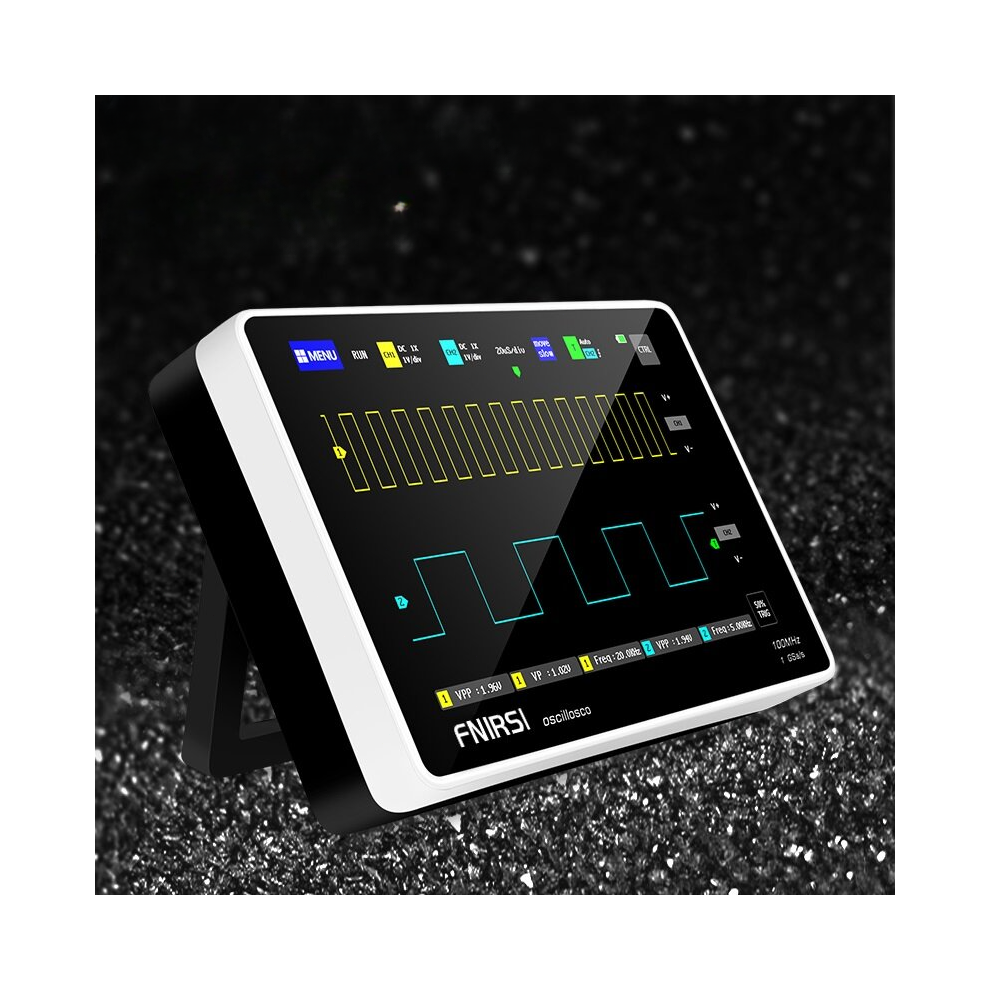

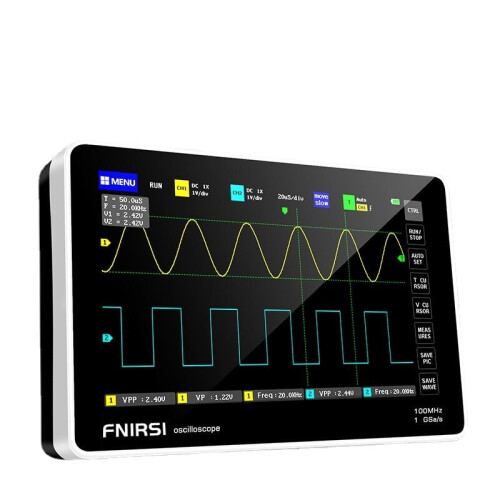

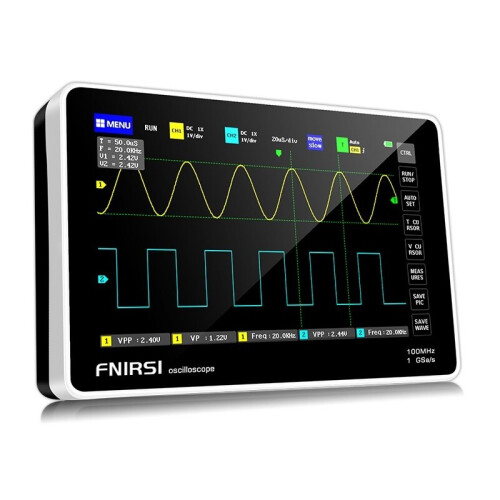

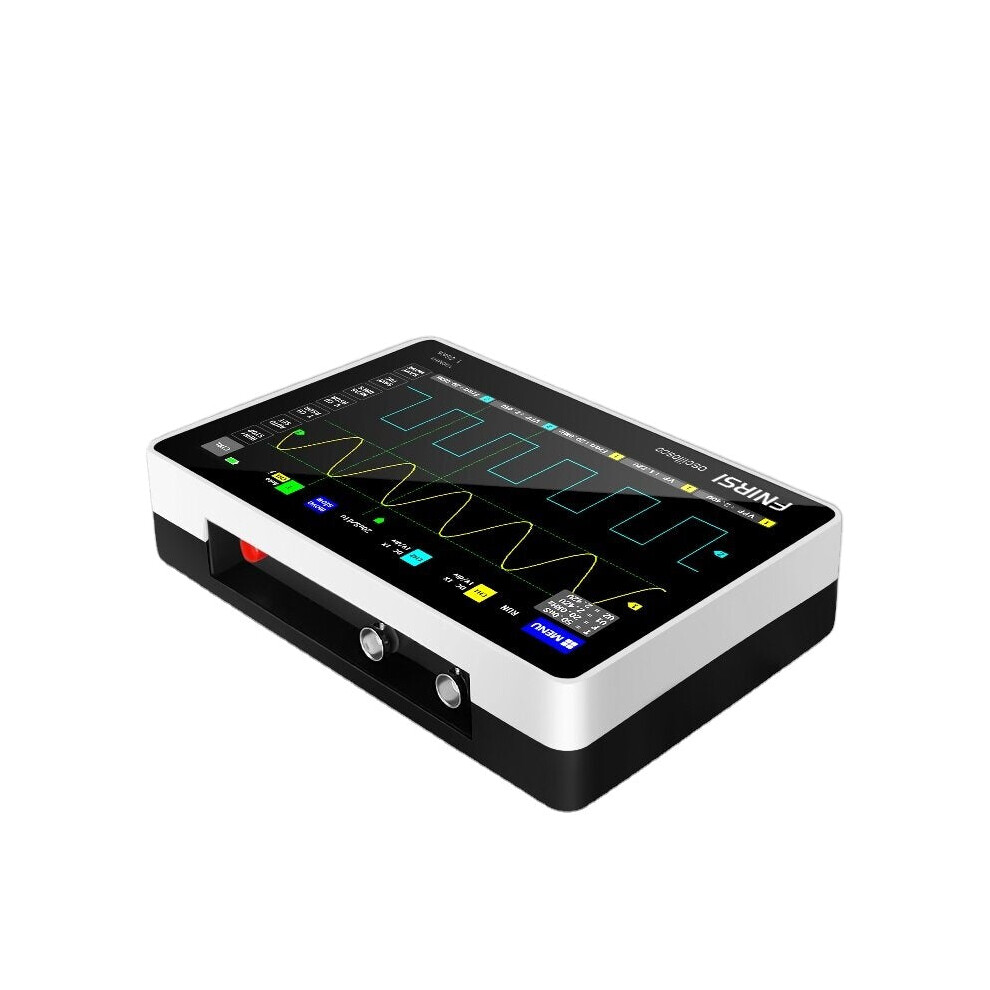

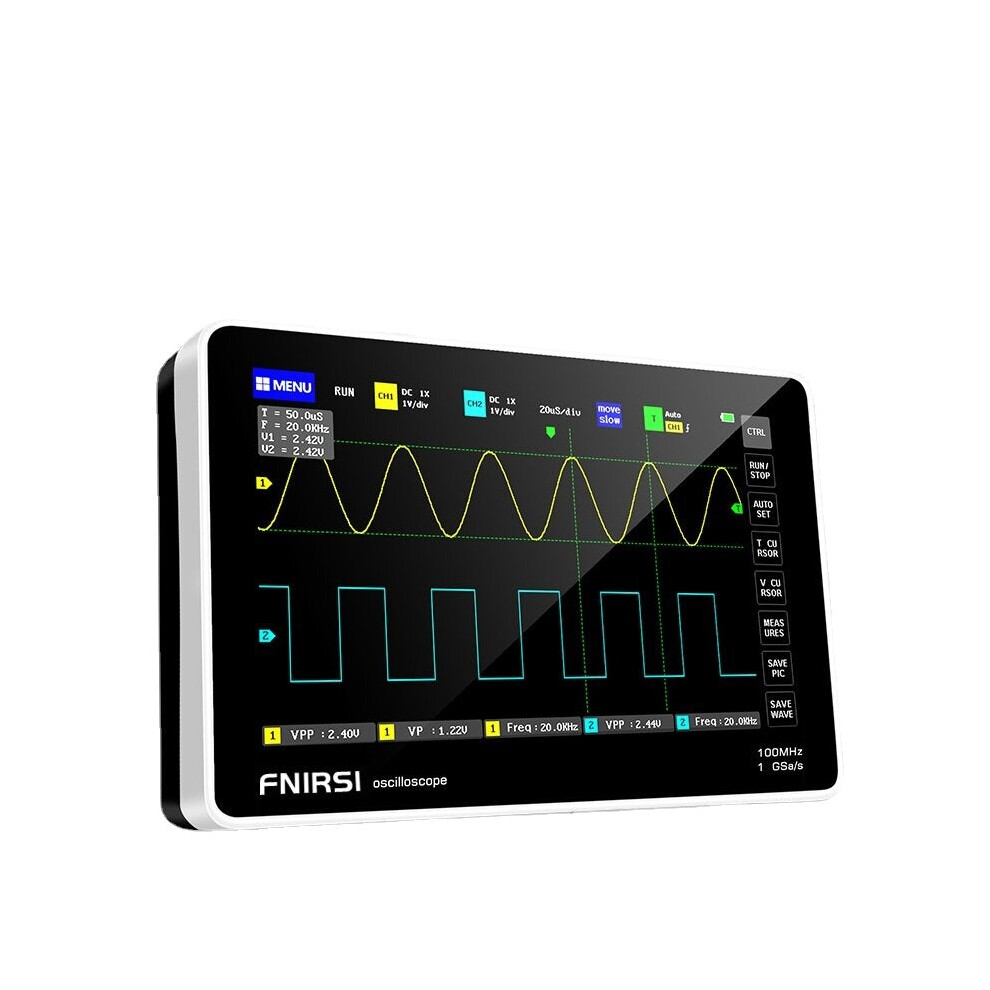

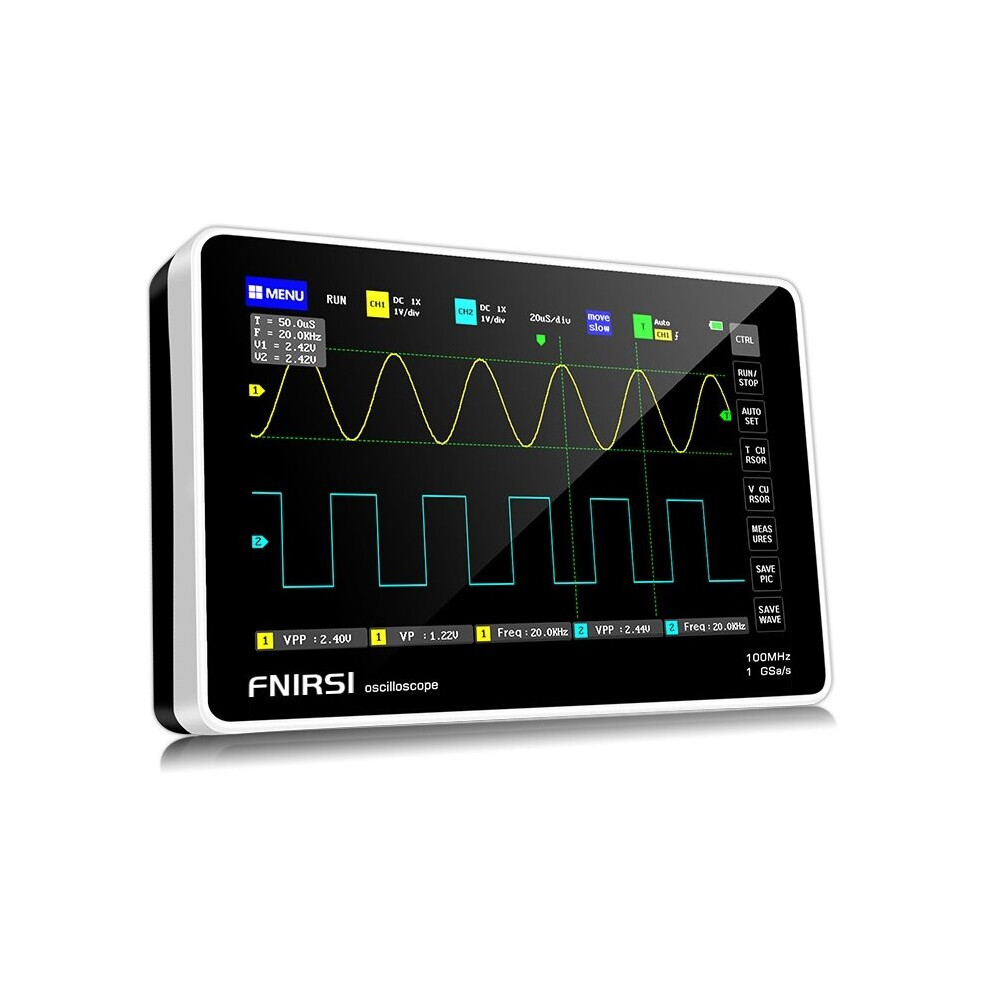

(EU Plug) 7-inch Digital Tablet Oscilloscope 100M Bandwidth 1GS/s Sampling Rate 800x480 Resolution Touch Screen

(EU Plug) 7-inch Digital Tablet Oscilloscope 100M Bandwidth 1GS/s Sampling Rate 800x480 Resolution Touch Screen Description

Description:
Itis a full-featured, highly practical, cost-effective dual-channel flat-panel oscilloscope launched by FNIRSI for the maintenance and R & D industry; this oscilloscope has a real-time sampling rate of 1GSa / s and an analog bandwidth of 100MHz * 2 . With complete trigger function (single / normal / automatic), it can be used freely for periodic analog signals or non-periodic digital signals; the built-in high-voltage protection module can tolerate a continuous voltage of up to 400V.

Features:
1Intelligent anti-burn1X Can withstand up to 400V withstand voltage.
2100MHz analog bandwidth @ 1GSa/s sampling rate (1X = 5MHz10X = 100MHz).
3Fully fit 7 inch 800 * 480 resolution color TFT LCD display with bright colors and high contrast.
4Capacitive touch screen, the same as the touch mode of modern mobile, is not a resistive touch screen with ancient nail operation.
5High measurement voltage range, 1X can measure 0 ~ 40 V, 10X can measure 0 ~ 400V100X can measure 0 ~ 4000V.
6Up to 12 parameters measurement: VPP, VP, Vmax,V min, Vavg, Vrms, Frequent, Duty+,Duty-, Time+, Time-, Period.
7Cursor measurement function, it is convenient to manually measure the period and frequency and voltage.
8Complete triggering function (single, normal, automatic).
9At any time, the waveform display (suspendfunction) is frozen.
10Equipped with high efficiency One-button AUTO.
11One-button waveform storage and screenshot.
12Built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data.
13Powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page turning, deletion and waveform zooming in, zooming out, moving, etc.
14Equipped with a USB interface, which can be connected to a computer to share its screenshots with the computer, which is convenient for secondary analysis.
15Lissajous figures graphic display function can be used to determine the amplitude, frequency, and phase contrast of two groups of signals.
16FFT display function, can analyze the spectral characteristics of the signal.
17Built in 6000mAh rechargeable lithium batteryFully charged for 4 hours of continuous use at the highest screen brightness.
18Memory compression technology, waveform refresh screen does not flicker.
19Screen brightness adjustment.
20Background grid brightness adjustment.
21Ultra thin, easy to carry.

Specification:
Analog bandwidth: 100MHz * 2;
Number of channels: 2 channels;
Maximum real time sampling rate: 1GSa/s;
Vertical sensitivity: 50 mV/div ~ 500 V/div;
Horizontal time base range: 50S/div ~ 10nS/div;
Maximum test voltage: 40 V (1X probe), 400 V (10X probe);
Storage depth: 240Kbit;
Input resistance: 1M;
ADC precision: 8bits;
Coupling mode: AC/DC;
Trigger mode: Single, Normal, Auto;
Trigger edge: Rising edge/Falling edge;
External trigger voltage 0 40 V;
Display: 7 inch - 800*480;
Operating: Capacitive touch screen + gesture;
Extension portsUSB picture export;
Power supply: 6000 mAh lithium battery;
Size: 184mm x 124mm x 50mm;
Total weight: 650g.

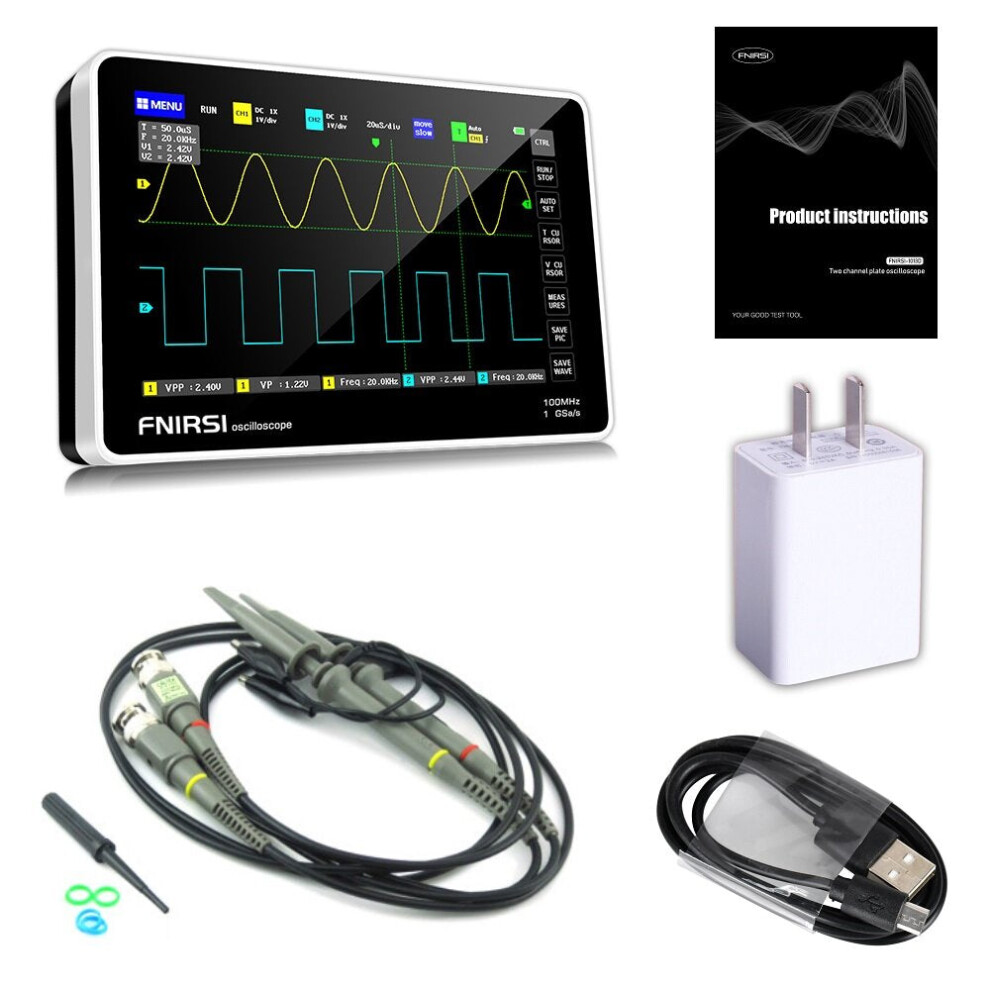

Package Includes:
1 x 1013D Oscilloscope;
2 x Matching 100MHz Probe (1X and 10X);
1 x 5V/2A Charger (Include USB data line);
1 x User Manual (English).
