Fast Heating Soldering Station Universal Iron Tip BC2

Fast Heating Soldering Station Universal Iron Tip BC2 Description

1. Support PD/QC fast charging input and have protocol adaptive matching function, support PD 100W output at most, can heat up to 450 degrees in 5 seconds, and also support DC power supply (self-provided adapter cable is required).
2. Adopt PID temperature control system, add current sampling circuit, more precise control, and PID parameters are adjustable.
3. Support power regulation/voltage regulation function, and stronger compatibility with chargers.
4. Add rich interface animations, more beautiful.
5. Support automatic sleep/one-key violent heating/common soldering iron head management/power-on password/undervoltage protection and other functions.

Overview:

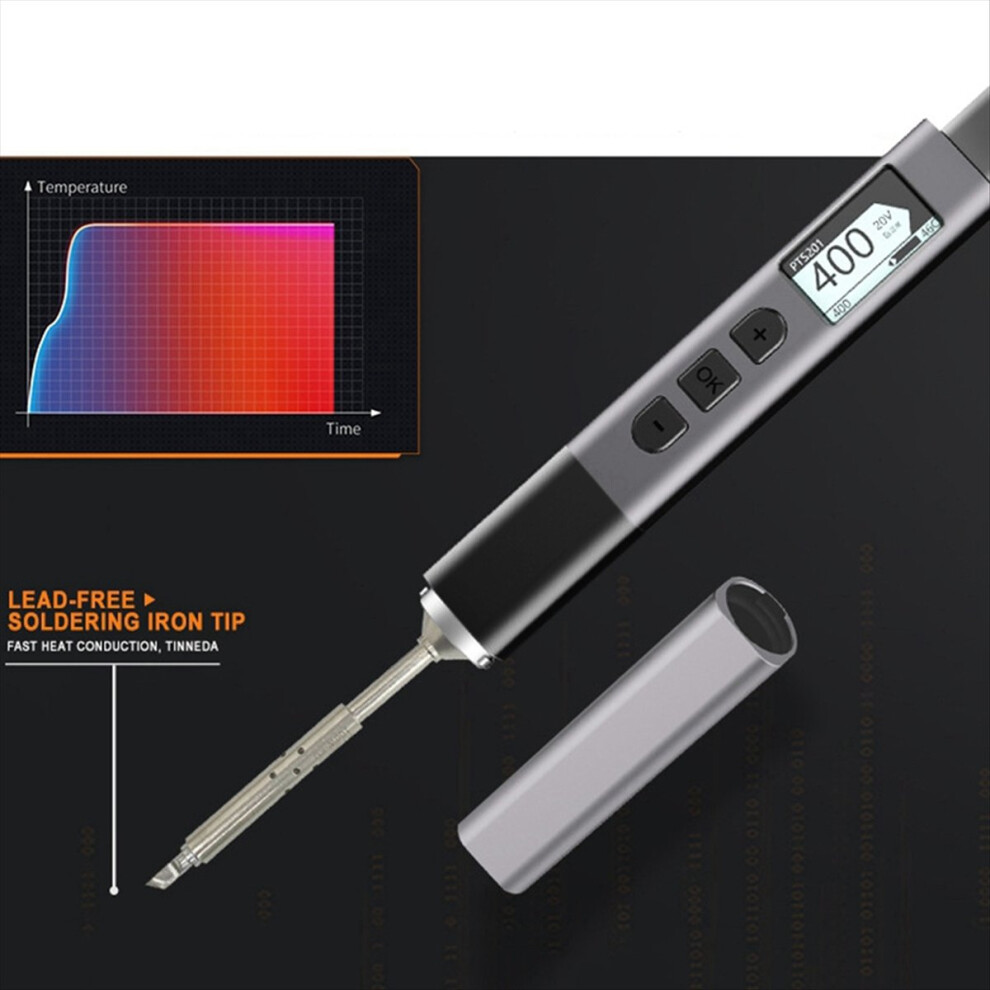

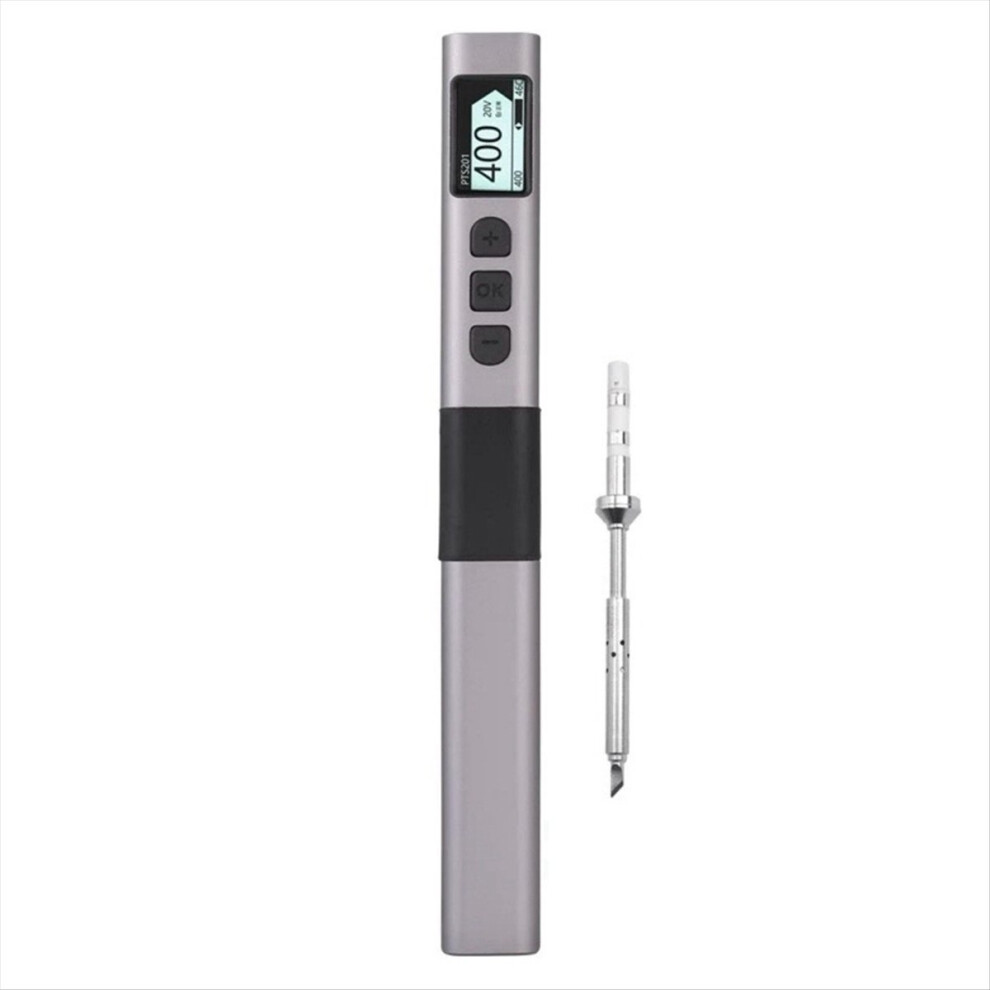

This PTS201 soldering iron is an upgraded version of the PTS200 soldering iron. The software system and functions have been fully upgraded. The maximum working power can reach 100W, the temperature control range is 50-450C, and it takes only 5 seconds to heat from room temperature to 450C. It is an indispensable tool for your work.
Parameters:
Screen: OLED
Interface: USB-C
Power: PD 100W max
Temperature control range: 50-450C
Maximum operating temperature: 40C
Resistance of soldering iron tip to ground: Less than 4Ω
Working voltage: 9-20V
Colour:As Shown
Material:Plastic + Metal
Specification:BC2
The actual product may have slight color difference or difference, which not affect the use

Package Contents:
1 x PTS201 soldering iron host
1 x heating core

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
