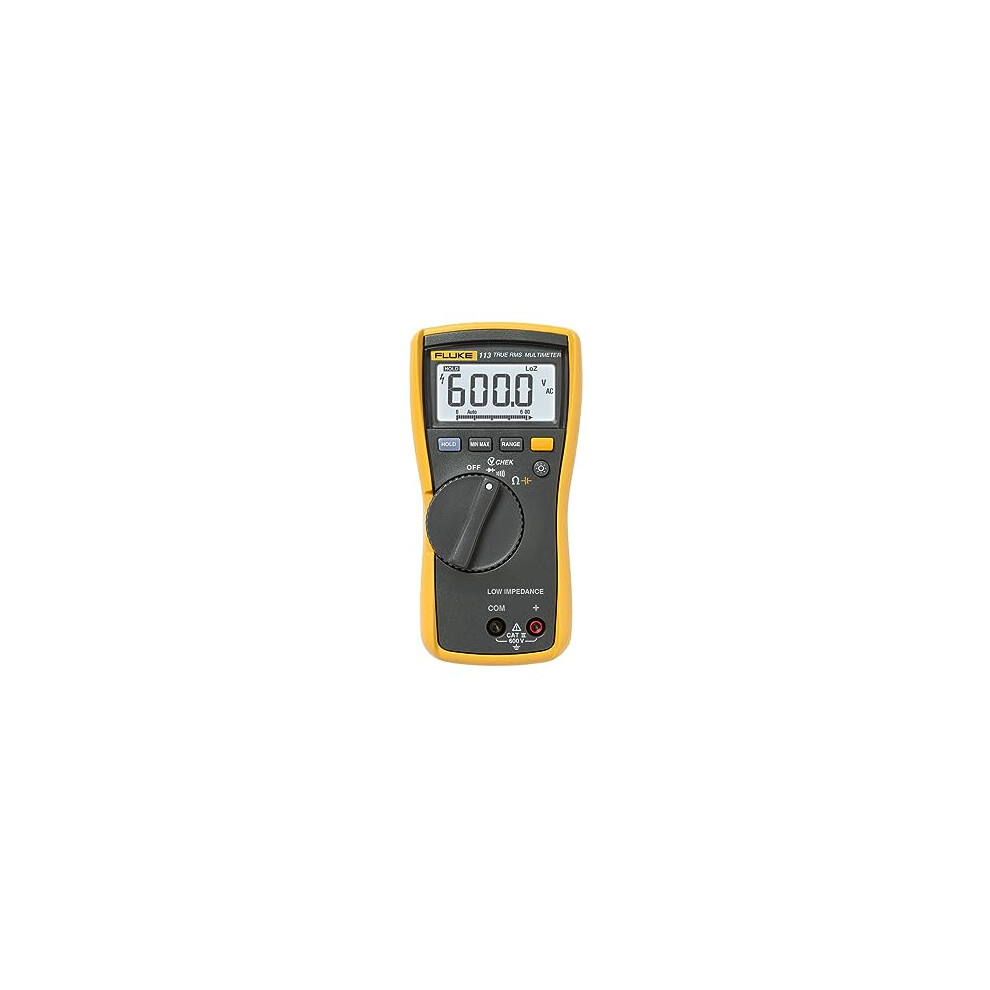

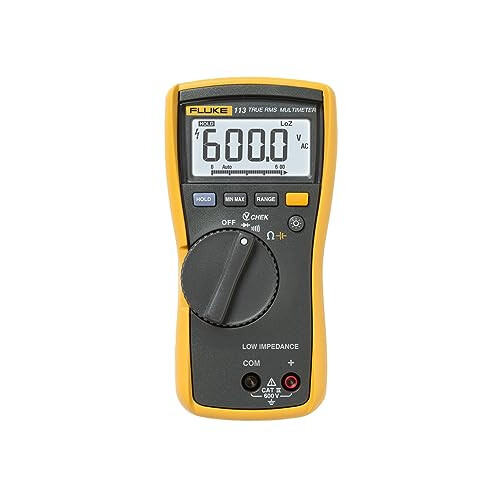

Fluke 113 True-RMS Utility Multimeter

Fluke 113 True-RMS Utility Multimeter Description

The Fluke 113 True-RMS Utility Multimeter is a digital multimeter (also known as a multitester) that measures AcDc voltage to 600V resistance to 60 kiloohms and capacitance to 9 999 microfarads The meter has a diode check for testing general-purpose germanium silicon and power diodes and a continuity beeper which provides audible detection of resistance by turning on at less than 25 ohms and off at 250 ohms It is also able to simultaneously check for voltage and continuity This true RMS meter provides accurate readings when measuring linear or nonlinear loads where the current or voltage has a sinusoidal or non-sinusoidal waveform and has both manual- and auto-ranging capabilities for user flexibility A MaxMin function records signal fluctuations and a hold function freezes measurements on the display The 6000-count resolution 3-12 digit digital display is backlit for readability in low-light conditions The meter is safety rated for category III to 600V and category IV to 300V It uses a 9V battery (installed) with a battery life of approximately 300 hours without backlight and has a sleep mode to maximize battery life The meter measures 658 x 335 x 181 inches (H x W x D) and weighs 13 oz 404 g (H is height the vertical distance from the lowest to highest point W is width the horizontal distance from left to right D is depth the horizontal distance from front to back) This meter includes a holster with built-in probe holders for convenient storage Multimeters are electrical test meters that measure multiple properties of an electrical circuit such as current voltage resistance capacitance and continuity Available in handheld or benchtop models multimeters diagnose electrical problems in electrical equipment wiring and power supplies A variety of probes clamps and leads can be used to connect the meter to a circuit or device Multimeters display information either in analog or digital form Factors that influence meter choice include the electrical properties to be measured the anticipated range of results and the desired level of protection against transient voltage Safety ratings are based on International Electro technical commission (IEc) standards for low-voltage test equipment IEc 61010 delineates four overvoltage installation categories In general a meter with a category IV rating will provide more protection against transient voltages than a meter with a lower category rating Fluke corporation manufactures electrical testing tools and software for industrial and commercial applications
