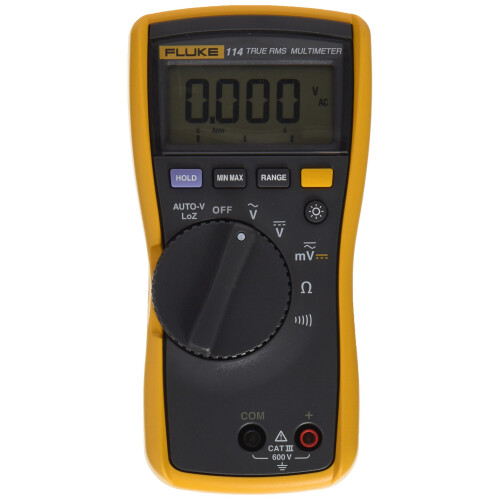

FLUKE FL114 114 Digital Multimeter Fluke

FLUKE FL114 114 Digital Multimeter Fluke Description

FLUKE FL114 114 Digital Multimeter Fluke

• Voltage Testers
• Large white LED backlight to work in poorly lit areas
• Resistance and continuity
• Min/Max/Average to record signal fluctuations

Designed by electricians. Engineered by Fluke

Designed for easy one-hand operation, the Fluke 114 True RMS digital multimeter is the perfect troubleshooting tool for go/no go testing. Its AutoVolt capability automatically switches to measure AC or DC voltage, whichever is present. The LoZ function helps identify so-called ghost voltage and prevent false readings.

The Fluke 114 displays true-rms voltage and current readings with 6000 count resolution, and tests frequency, continuity and resistance. A large white LED backlight aids work in poorly lit areas. Its easy-open battery access door makes battery changes easy.

Fluke 114 multimeters are independently tested for safe use in CAT III 600V environments.

- AutoVolt automatic ac/dc voltage selection
- Low input impedance helps prevent false readings due to ghost voltage
- Work in poorly lit areas with the Large white LED backlit display
- Resistance and continuity
- Record signal fluctuations using Min/Max/Average
- Integral holster with probe holders for easy storage
- Auto and Manual ranging
- CAT III 600 V safety rated
- Optional TPAK magnetic hanger allows the user hands-free flexibility

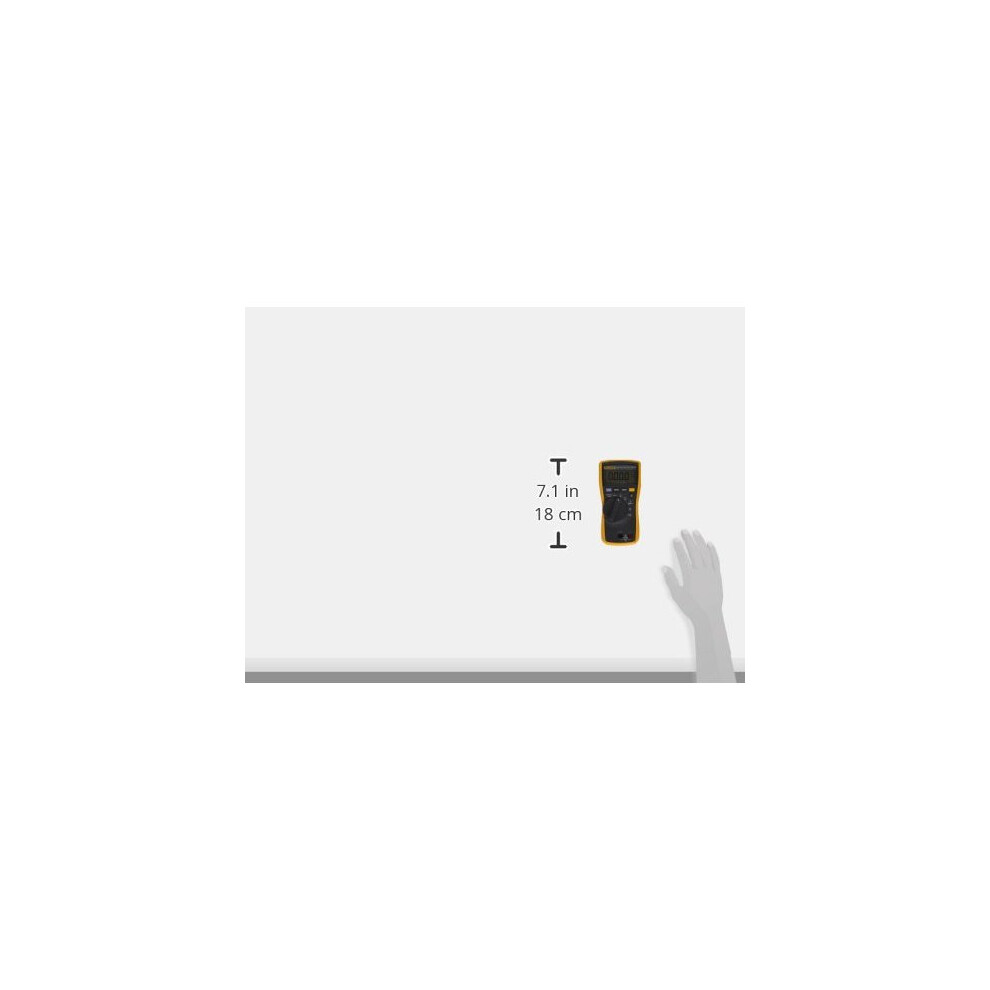

Weight & dimensions

-Width: 84 mm
-Depth: 46 mm
-Height: 167 mm
-Weight: 550 g

Power

-Battery type: 9V
-Number of batteries supported: 1
-Battery voltage: 9 V

Technical details

-DC voltage range: 0.0001 - 600 V
-AC voltage range: 0.0001 - 600 V
-Resolution (DC voltage): 0.0001 mV
-Resolution (AC voltage): 0.0001 mV
-Resistance range: 1 - 600
-Resistance resolution: 1
-Frequency range: 0.005 - 50 kHz
-Temperature measurement range: -40 - 400 °C
-Basic accuracy (AC voltage): 2.0% + 3 (500 Hz to 1 kHz)
-Basic accuracy (DC voltage): 1.0% + 3 (DC, 45 Hz to 500 Hz)
-Continuity check: Y
