For Banana Pi -R4-NIC-BE14 Wifi7 Module Accessorie

For Banana Pi -R4-NIC-BE14 Wifi7 Module Accessorie Description

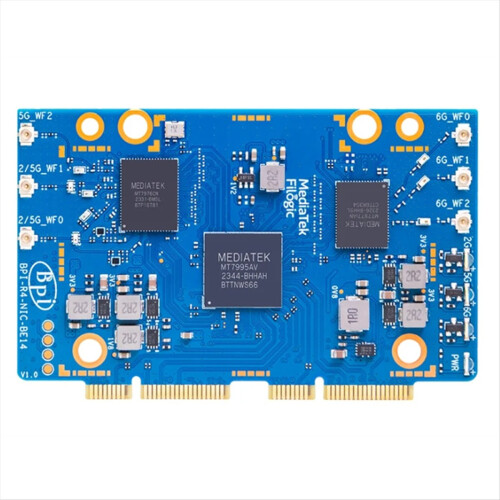

-R4-NIC-BE14 is a 51x82mm WiFi7 module with for MT7995AV supports Wi-Fi7 technology and feature IEEE802.11a/b/g/ac/ax/be compliant,2.4GHz 2x2, 5GHz 3x3 3ss, and 6GHz 3x3 3ss BE13500 Wi-Fi subsystem. The MT7995AV offers feature-rich wireless connectivity at high standards and delivers reliable, cost-effective throughput from an extended distance.
Platform: For MT7995AV chipset. 32-bit RISC-V MCU for Wi-Fi protocols and Wi-Fi offload. Embedded and ROM. UART interface with hardware flow control. 2 PCIe 3.0 Interface, 2-

WLAN:
IEEE 802.11 a/b/g/ac/ax/be compliant
Frequency band 2.4GHz
Bandwidth: 20 and 40MHz
2T2R
Frequency band 5GHz
Bandwidth: 20, 40,80, and 160MHz
3T3R 3ss
Frequency band 6GHz
Bandwidth: 20, 40,80,160 and 320MHz
3T3R 3ss
Tr-Band Triple Concurrent (TBTC)
PHY rate: up to 13700 Mbps/9500 Mbps
-MIMO TX and RX
-OFDMA TX and RX
STBC, LDPC, TX beamformer and RX beamformee
mode, mixed mode, and legacy mode
Security: WFA WPA, WPA2, WPA3 personal, WPS2.0
: WFA WMM and WMM-PS
How to use:
You can insert the -R4-NIC into CN12 and CN14 at the bottom of -R4-Main, and then fix it with two M2 screws.
The -R4-NIC module requires 12V power supply, so the power supply on the -R4-Main must be turned on before powering on (SW4 is turned to the "ON" position, and the 12V LED lights up when power on).
Tips: The 12V power supply be supplied to the -R4-NIC through PIN6/28/48 of the miniPCI socket. When plugging in other modules, be sure to turn off SW4 if you cannot confirm whether the module can withstand 12V.
Note:The labels are slightly different, which does not affect the use.
Colour:Blue
Material:Plastic

Package Contents:
1 * -R4-NIC-4 Development Board

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
