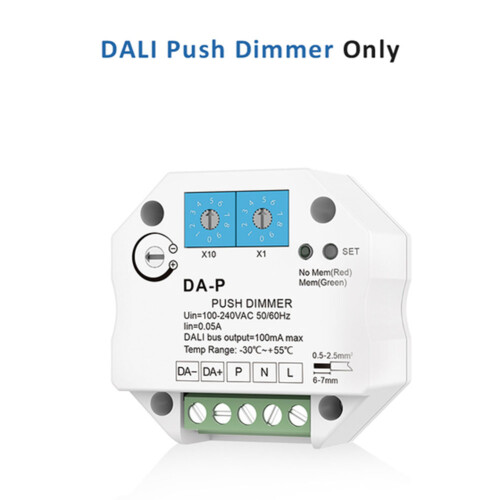

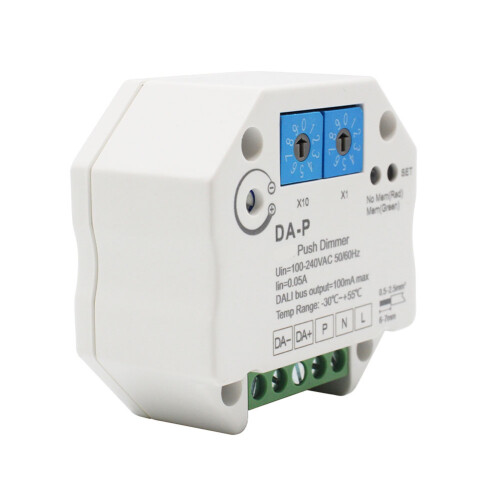

For DALI Push LED Dimmer 110v 220v 240v with Memory Function for DALI Driver or Ballasts Dimming Speed Adjustable Dimmer

For DALI Push LED Dimmer 110v 220v 240v with Memory Function for DALI Driver or Ballasts Dimming Speed Adjustable Dimmer Description

Small Dimmer for DALI Drivers or Ballasts.
Unidirectional and broadcasting communication.
Control by conventional push-button, with or without memory:Short press: turn /off light.Long press: dimming /down.
Dimming speed adjustable by rotary knob.

for DALI address setting
1. Address value = Left rotary value x 10 + right rotary value.
For example : Left rotary value is 5, right rotary value is 4, Address value = 5 x 10 + 4 = 54.
2. Unicast mode : Address value 0-63 corresponds to DALI addresses 00-63.
Group mode : Address values 70-85 correspond to DALI groupings 0-15.
Broadcast mode : Left rotary value is 9.
PUSH dimming speed setting
1. The closer the arrow is to "+", the faster the PUSH dimming speed will be.
2. The closer the arrow is to "-", the slower the PUSH dimming speed will be.
Memory function setting
Short press the "SET" button to the memory function.
1. Without memory: LED indicator is red, PUSH dimming and then power again, light returns to maximum brightness.
2. With memory: LED indicator is green, PUSH dimming and then power again, light restores the last brightness.
Factory default: Without memory
Push-button function
Short press:Turn / off light.
Long press :Dimming /down
Safety & Warnings
DO NOT install with power applied to device.
DO NOT expose the device to moisture.
Colour:White
Material:plastic

Package Contents:
1 x LED Dimmer(Due to different product batches, the appearance may vary, which does not affect the use)
