For Lithium Battery Active Balancer 12-16S 5A with Swich

For Lithium Battery Active Balancer 12-16S 5A with Swich Description

Working voltage: 2.7V-4.5V
Working principle, the capacitor fit transfers the charge mover, the equalization board is connected to the battery, and the equalization is started. The new ultra-low internal resistance MOS, 2OZ copper thickness PCB

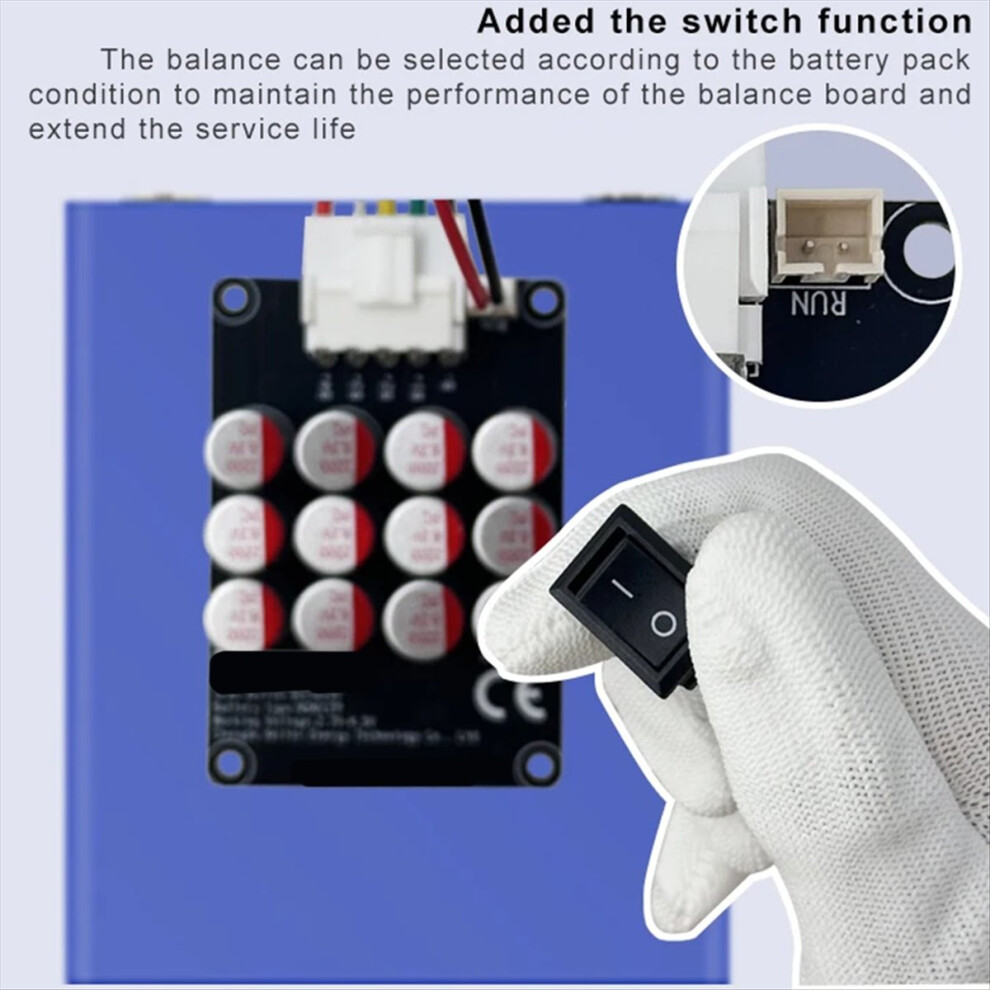

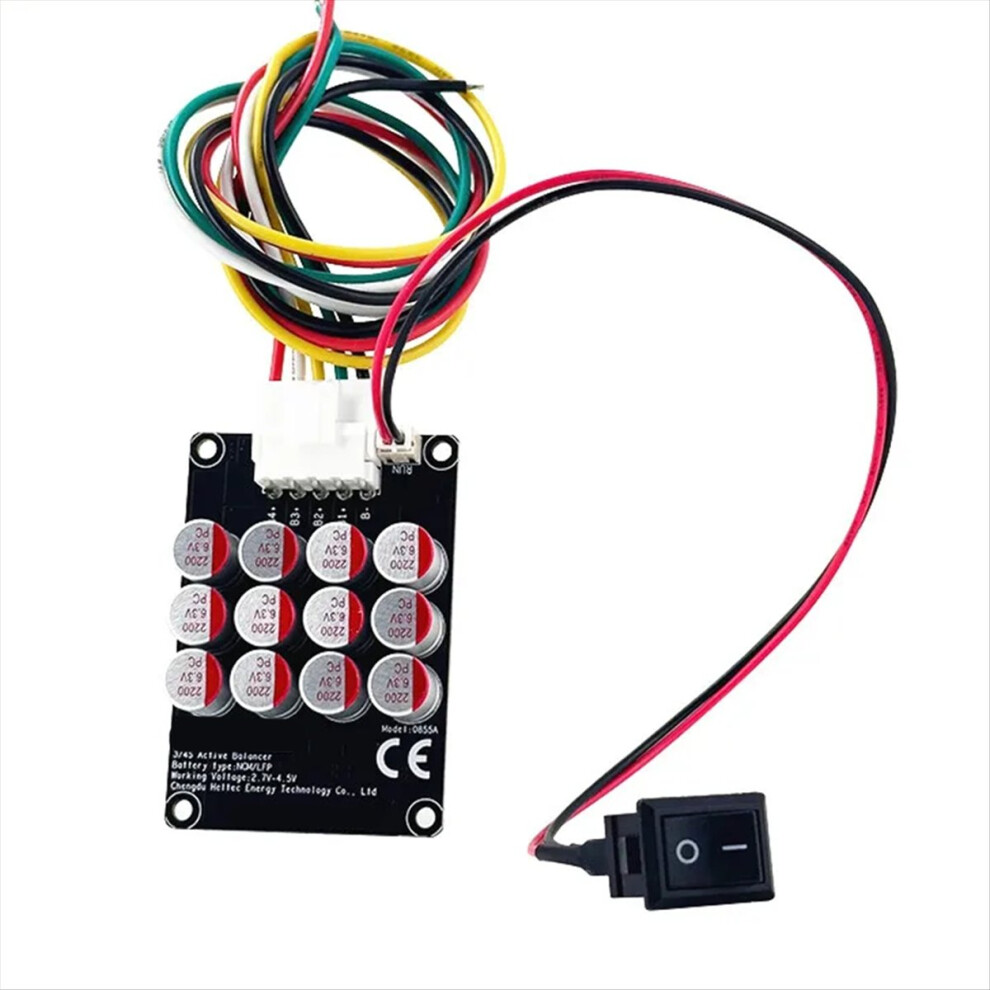

Equilibrium current 0-5.5A, the more balanced the battery, the smaller the current, with manual sleep switch, sleep current mode is less than 0.1mA, the balance voltage accuracy is within 5mv!
The quiescent current is about 12 mA. It is recommended that the battery capacity is 60-300AH.
With under-voltage sleep protection, the voltage stop automatically when the voltage is lower than 3.0V, and the standby power consumption is less than 0.1mA.

Suitable for ternary lithium, lithium iron phosphate, lithium titanate.
The words on the product due to different product batches, but it not affect the use.
Specifications:12-16S
Color:As Shown
Material:PC

Package Contents:

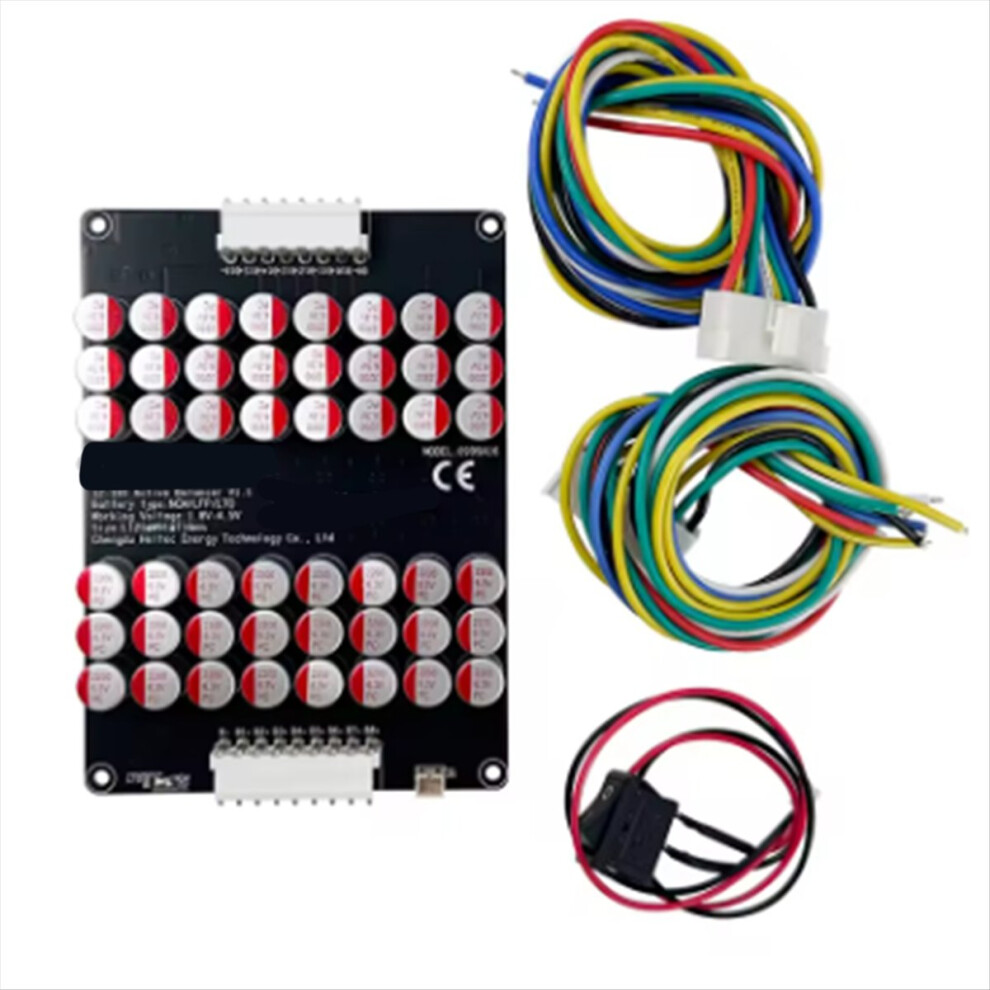

1 * Lithium Battery Active balancer

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
