For Nanopi NEOAir Development Board 512Mb RAM Wifi

For Nanopi NEOAir Development Board 512Mb RAM Wifi Description

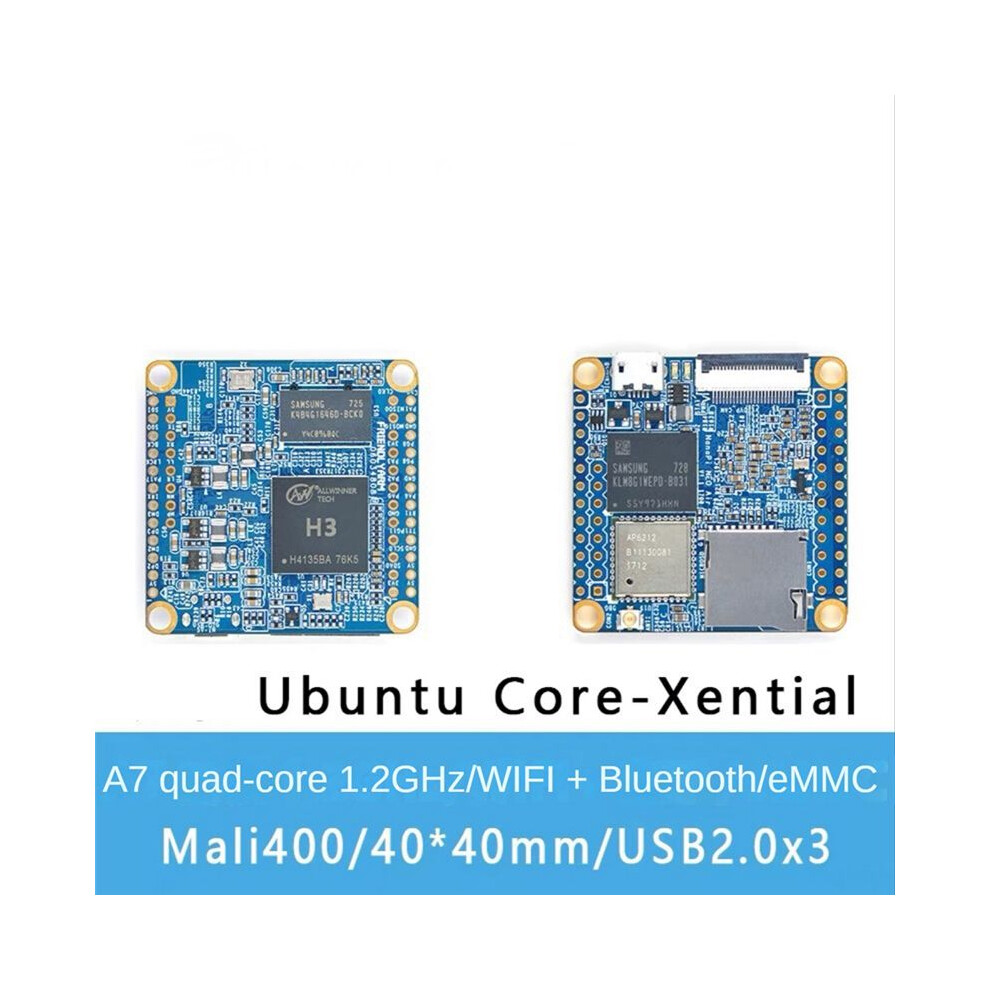

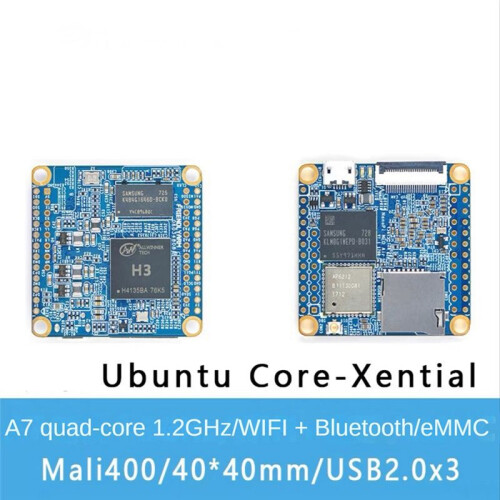

CPUModel: Allwinner H3; Number of Cores: Quad-core; Frequency: 4*-A7 Up to 1.2GHz; MemoryRAM: 512MB; StorageeMMC: 8GB
MicroSD Slot: MicroSD*1 for external storage up to 128GB; Connectivity WiFi: 802.11b/g; Bluetooth: 4.0 dual mode; Antenna*1: IPX Connector

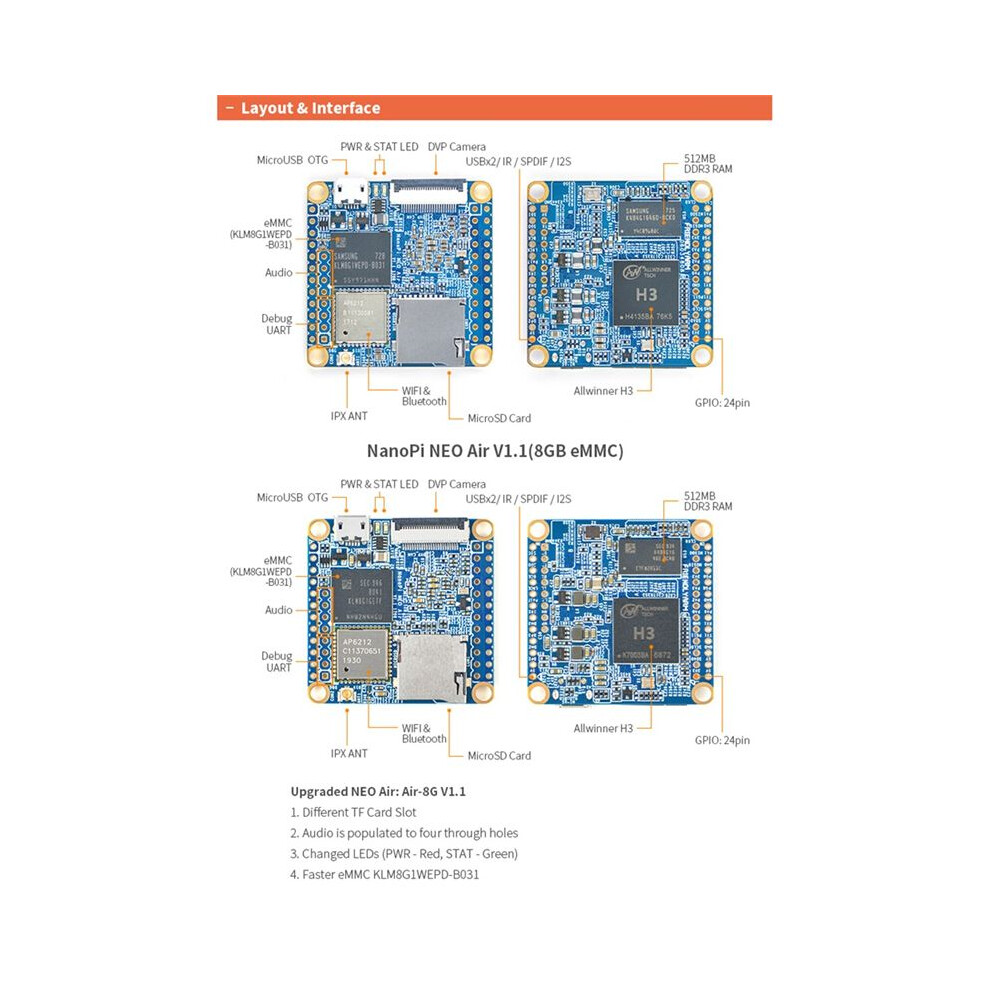

Audio Audio input/output Port: 2.0mm pitch 4-pin header; Video Camera: 0.5mm pitch 24 pin FPC seat; USB MicroUSB*1: MicroUSB 2.0, OTG & Power In, Type A; USB Host: 2.54mm pin*2

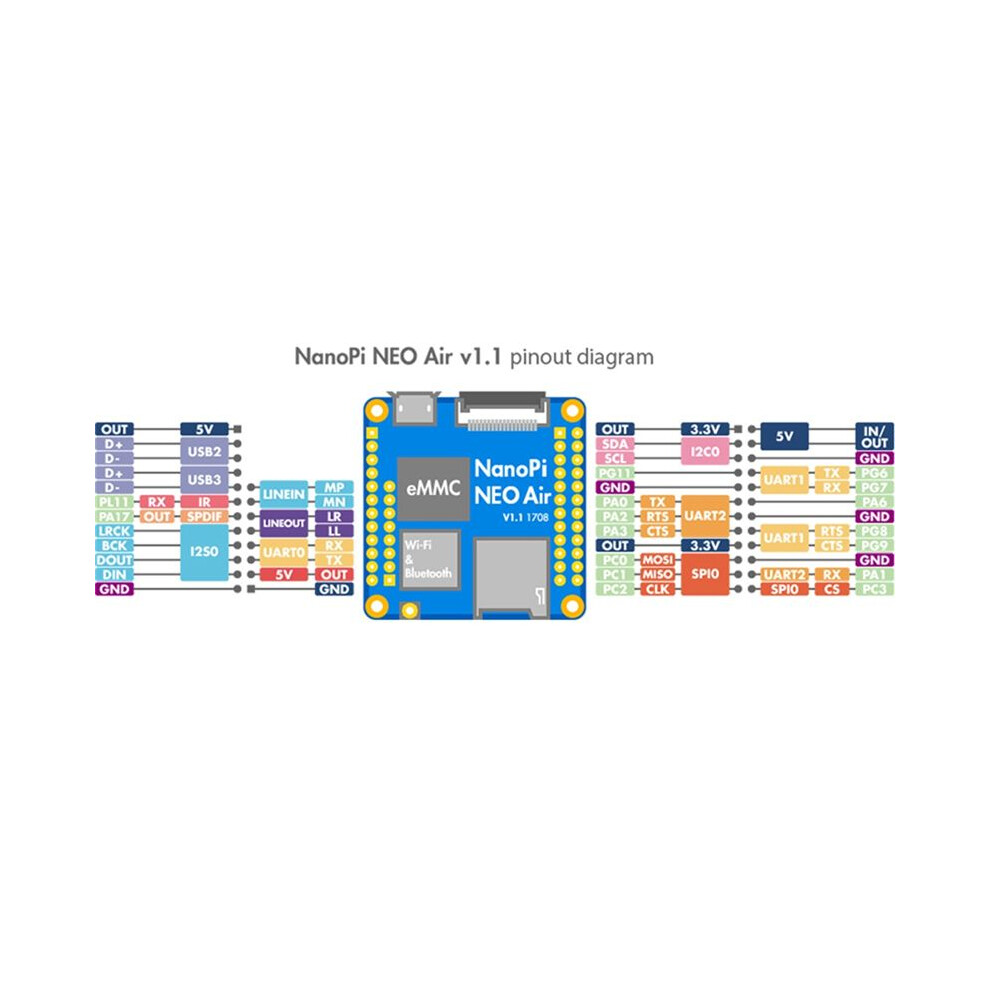

Pin-header GPIO1: 2.54mm spacing 24pin,It includes UART,SPI,I2C,GPIO; GPIO2: 2.54mm spacing 12pin,It includes USBx2,IR,SPDIF,I2S; Serial Debug Port: 2.54mm pitch 4-pin-header; Audio input/output Port: 2.0mm pitch 4-pin header
LED Power LED(Red)*1; STAT LED(Green)*1; Others Working Temperature: -20 to 70; Power DC 5V/2A; OS Support: FriendlyCore 16.04(based on UbuntuCore-16.04); FriendlyCore (Base on 20.04)

version Linux-4.14-
U-boot-2017.11
uboot supports fastboot to update uboot
FriendlyCore
rpi-monitor: check system status and information
npi-config: system configuration utility for setting passwords, language, timezone, hostname, SSH and auto-login, and enabling/disabling i2c, spi, serial and PWM
NetworkManager: manage network
software utility: RPi.GPIO_NP to access GPIO pins
welcome window with basic system information and status
auto-login with user account "pi" with access to npi-config
on first system boot file system be automatically extended
supports file system auto check and repair on system boot
supports 's NanoHat-PCM5102A
supports 's Matrix_-_2.8_SPI_Key_TFT
supports file transfer with Bluetooth
supports BakeBit modules
supports dynamic frequency scaling and voltage regulation
OLED supports 's OLED module
Eflashersupports flashing OS image to eMMC
Debian for NAS Dock supports 's NAS Dock
Model Number: For NanoPi NEO Air
Name: For NanoPi NEO Air Evelopment Board
Type: Development Board
color:Blue
Material:PCB

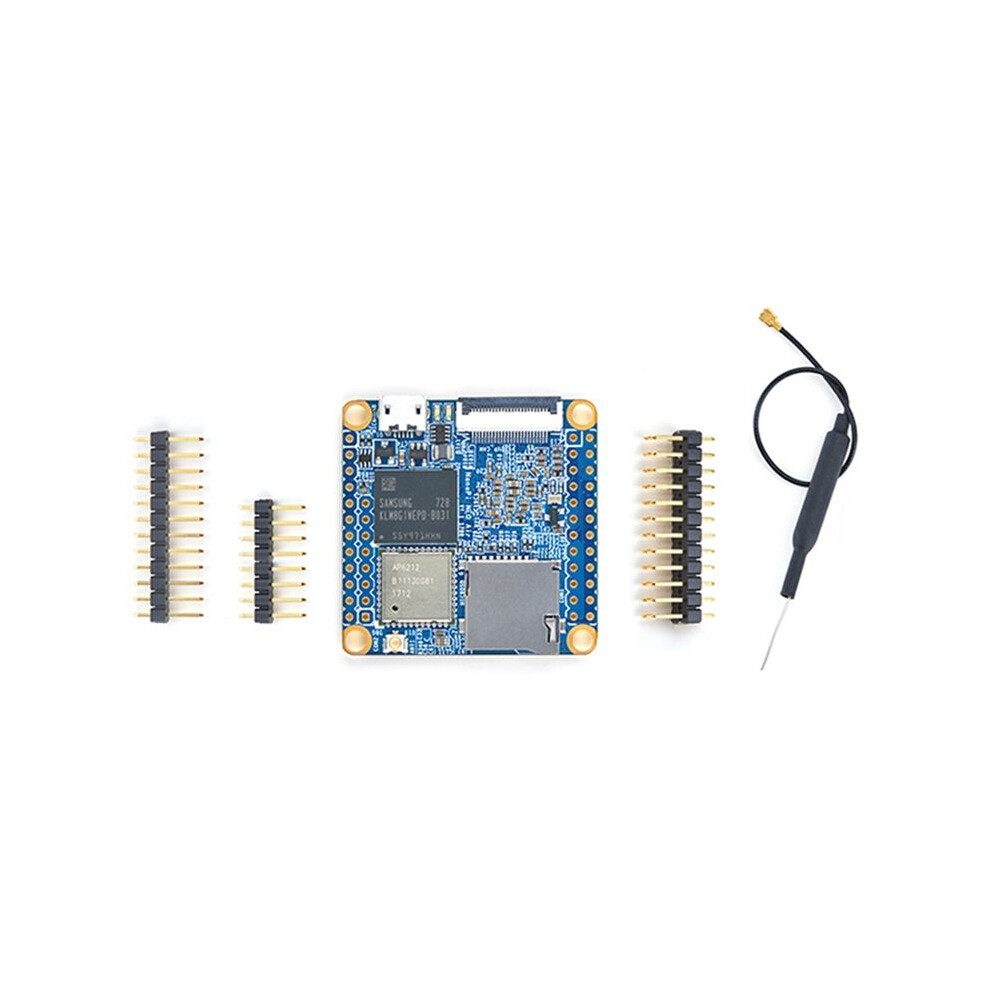

Package Contents:
1 x Development Board
1 x 12x2pin double row of pins
1 x 12pin single row of pins
1 x 8pin single row of pins

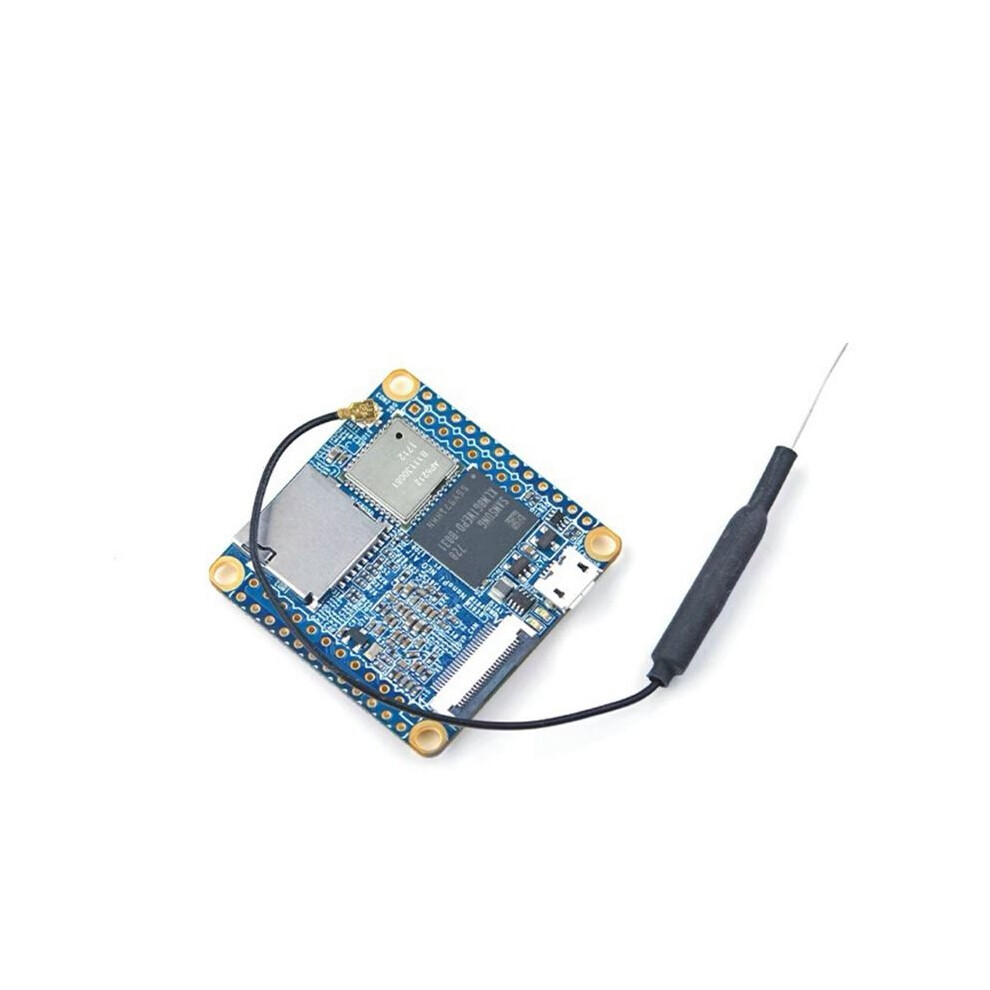

1 x Antenna

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
