FPV Antenna -Country Fixed-Wing 5.8G Array Flat Receiving HighGain 14dBi Directional for RC Drone,B

FPV Antenna -Country Fixed-Wing 5.8G Array Flat Receiving HighGain 14dBi Directional for RC Drone,B Description

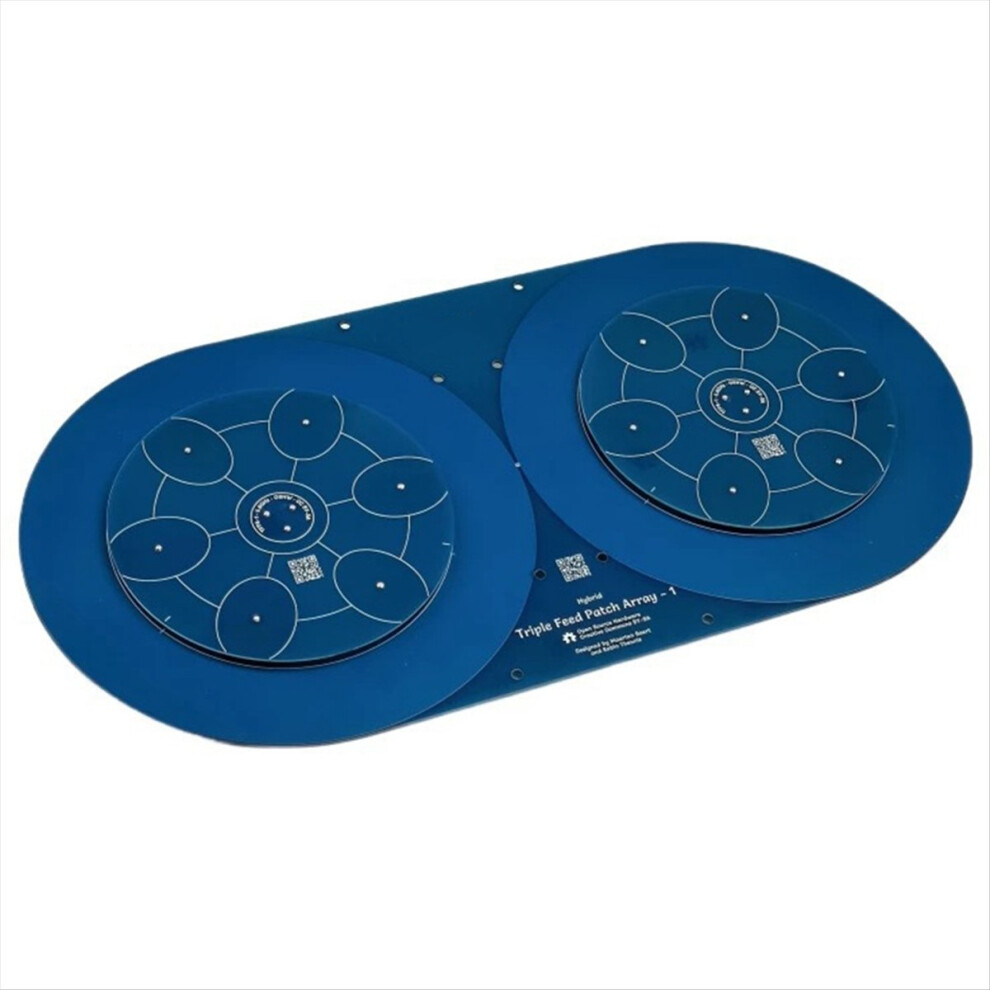

The array flat panel 5.8G receiving antenna is a directional circularly polarized antenna based on advanced array technology. It adopts a glass array design and uses an array of multiple coupled patches to achieve significantly higher gain.
Although its relatively narrow beamwidth may not be suitable for general FPV applications, this antenna performs very well in long-distance flights of -country and fixed-wing aircraft, especially in open and unobstructed outdoor environments, it can provide excellent signal reception and stability, ensuring the reliability of long-distance flight.
In addition, the antenna also has good radiation efficiency and very good ratio, as well as extremely low side lobes, ensuring that the energy is concentrated in the main lobe, further improving the long-distance performance.

High gain (14.0 dBi measured)
Directional circular polarization
Wide bandwidth (950 MHz measured)
Good signal matching
Excellent ratio
High radiation efficiency
Low side lobes
Designed for long-distance navigation
Glass array
Main applications:
FPV Drone long-distance flight
Fixed-wing aircraft long-distance flight
More application scenarios:
Fixed-point video transmission
Long-distance data transmission
Ground station receiving antenna
FPV racing in specific environments
Dimensions:300 x 150 mm
Weight:148.5g
Center frequency:
Simulation: 5.8 GHz
Measured: 5.8 GHz + 100 MHz
Bandwidth:
Simulation: 660 MHz (5.47-6.13 GHz)
Measured: 950 MHz 100 MHz(Feed network loss increases bandwidth)
Matching:
Simulation: S11 Less than -30 dB, VSWR Less than 1.065
Measured: S11 Less than -20 dB, VSWR Less than 1.22(At center frequency)
ratio:
Simulation: 1.05 (0.38 dB)
Measured: 1.10 (0.83 dB)(Average over beam width)
Antenna gain:
Simulation: 14.4 dBi
Measured: 14.0 dBi
Half power beamwidth
Simulation: 30
Measured: 30(Horizontal and vertical)
Radiation efficiency:
Simulation: 75%
Measured: 74%
Specifications:B: Inner Hole
Color:Blue
Material:ABS

Package Contents:
1 * 5.8G 14DBI FPV Antenna

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
