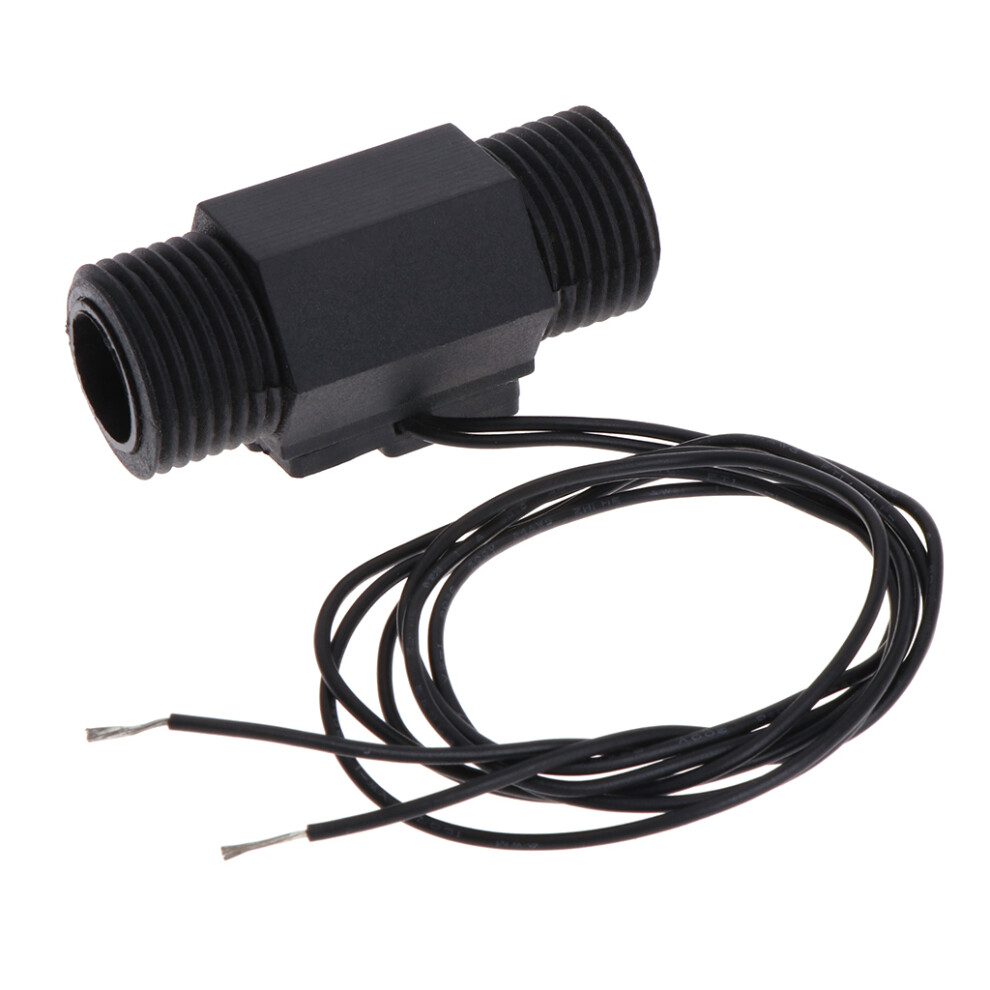

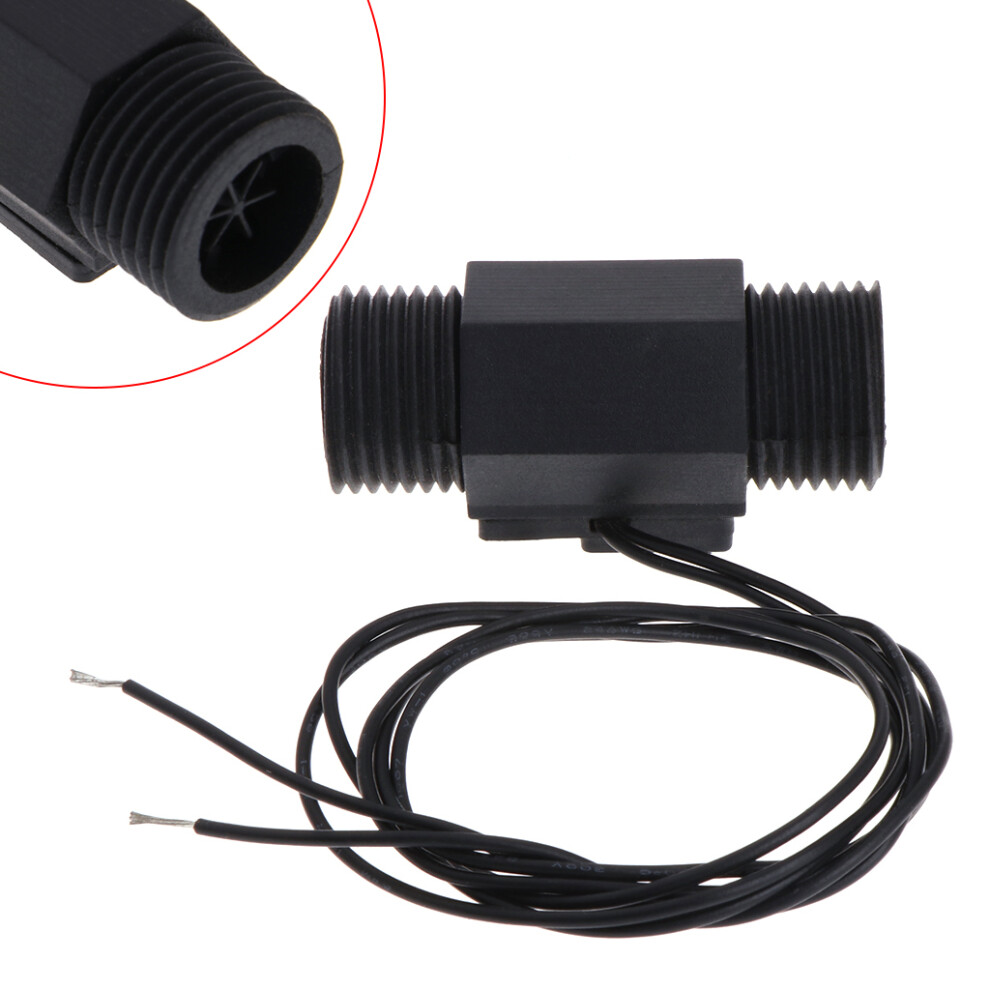

FS-131 Magnetic Water Flow Switch Water Sensor Protect-Black

FS-131 Magnetic Water Flow Switch Water Sensor Protect-Black Description

Features:
1. Magnetic water flow switch
2. Low cost flow switch.
3. Long life, excellent performance flow sensor.
4. No Standby power requirement.
5. Excellent performance.

Description:
Suitable ambient temperature 1C
Suitable working temperature 100C
Minimum starting flow 0.75L/min
The maximum flow rate 5L/min
Rated working pressure 0.65Mpa
The maximum pressure of the for shell 1.5Mpa
Signal output load DC24V/1A, AC36V/1A or AC220V/0.1A
Adaptation scope and conditions:
(1) The ambient temperature is not lower than 0C. Do not beat the for shell. Keep away from magnetic objects.
(2) The output of the signal is a switch, so the connection method of the control object must also be a switch control relationship.
(3) The power of the control object must not be greater than the signal load capacity.
(4) This device is a water medium control device and cannot be used for other media control.

Package include:
1 * Plastic Water Flow Sensor Switch
