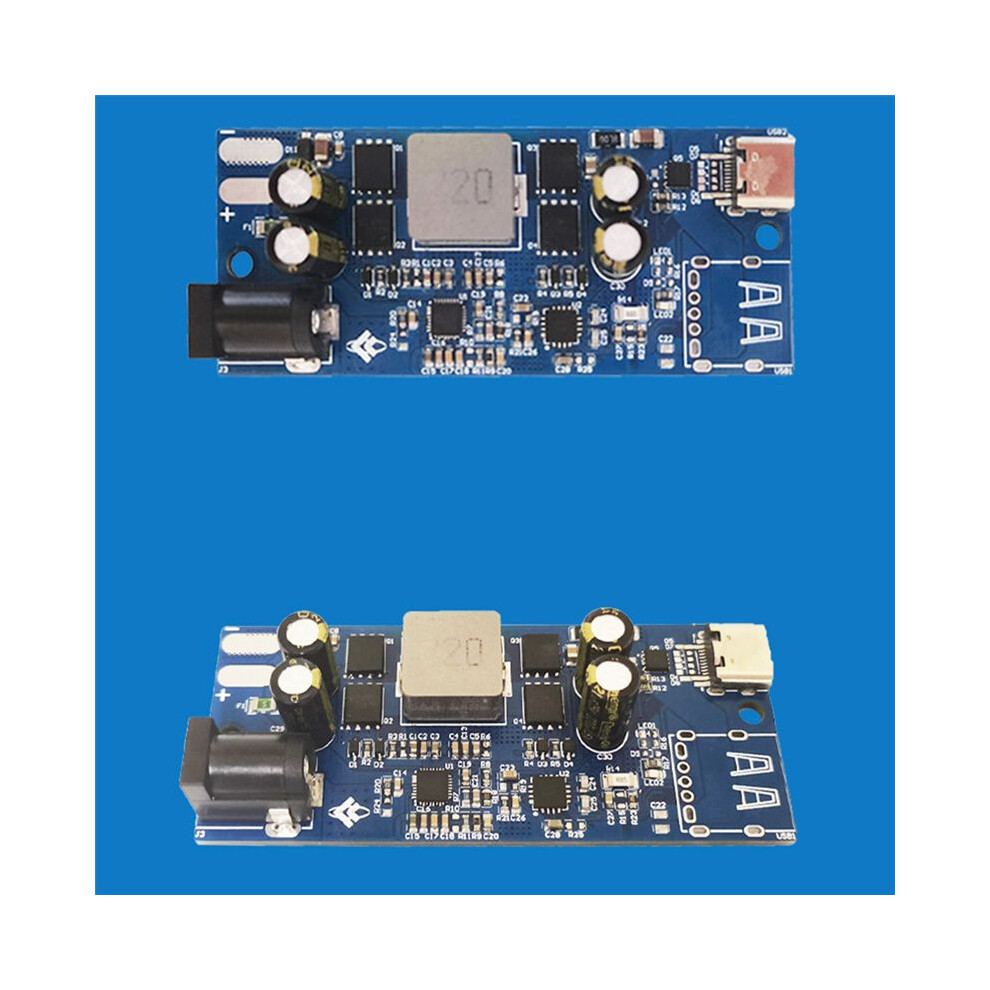

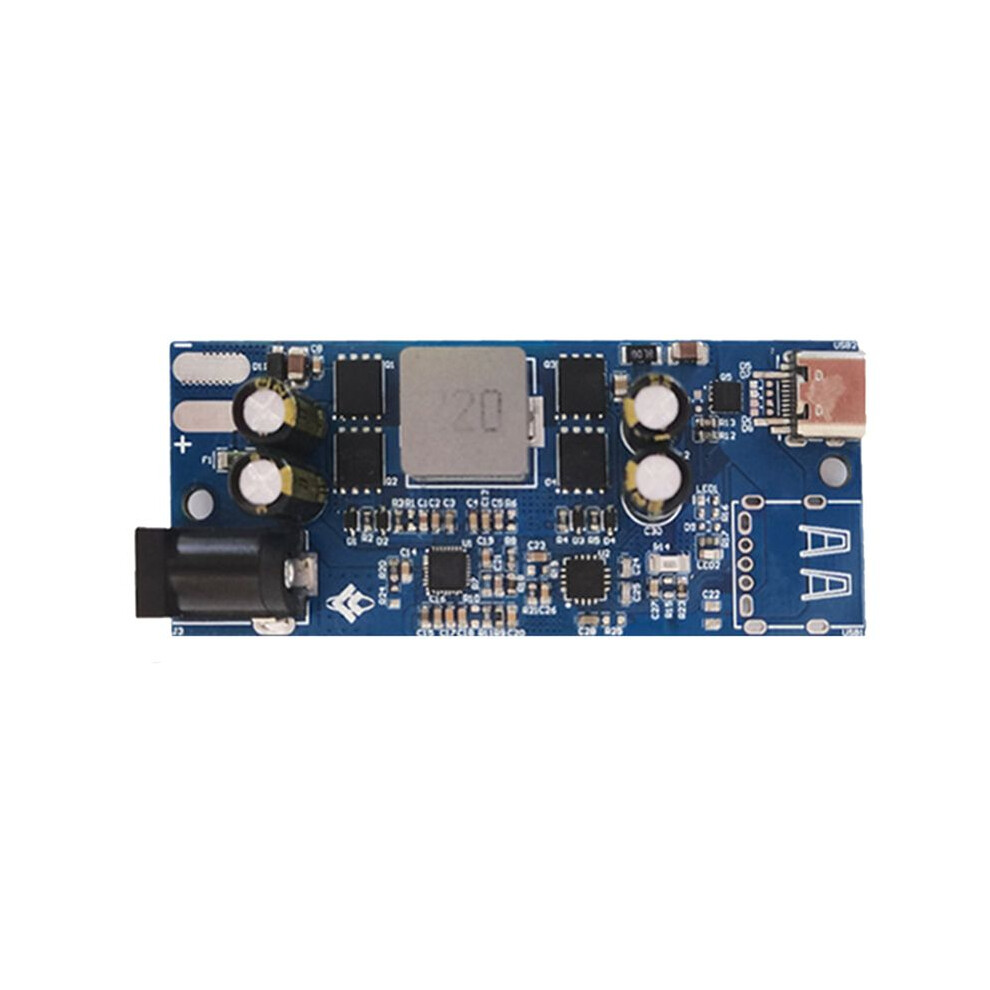

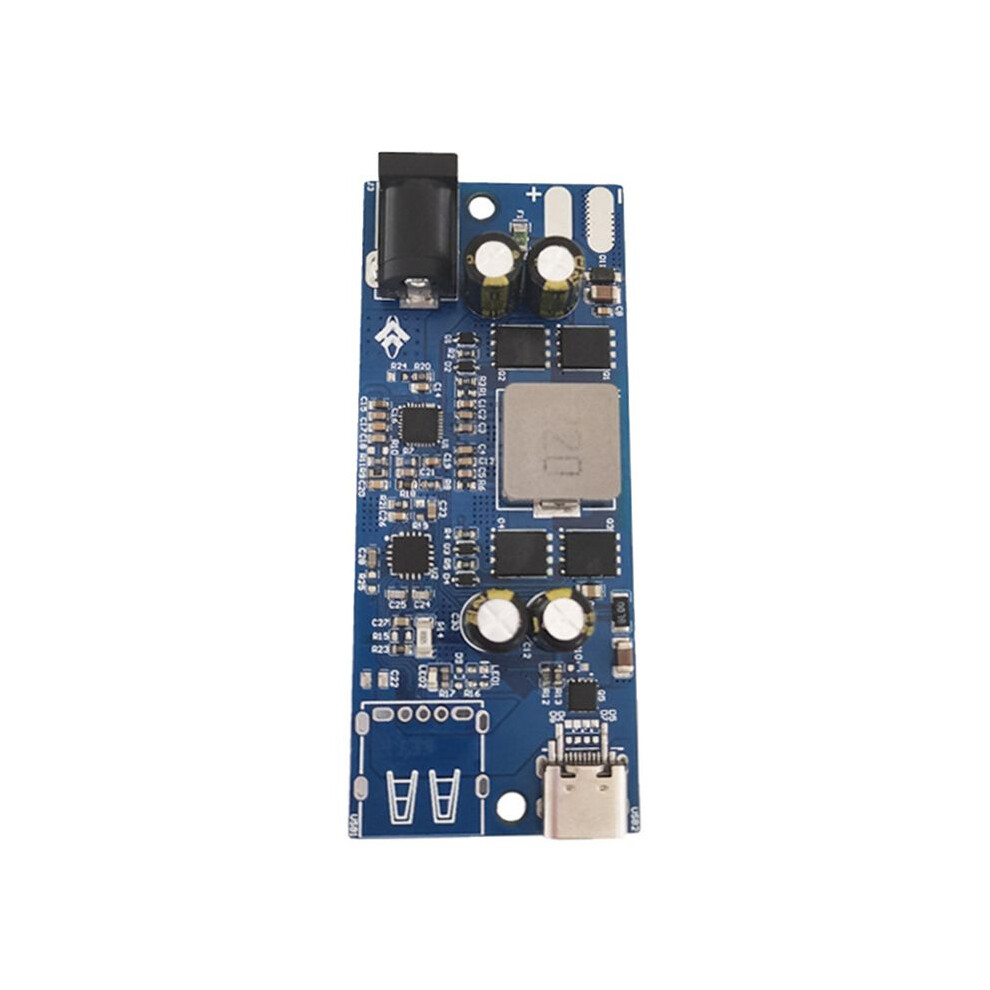

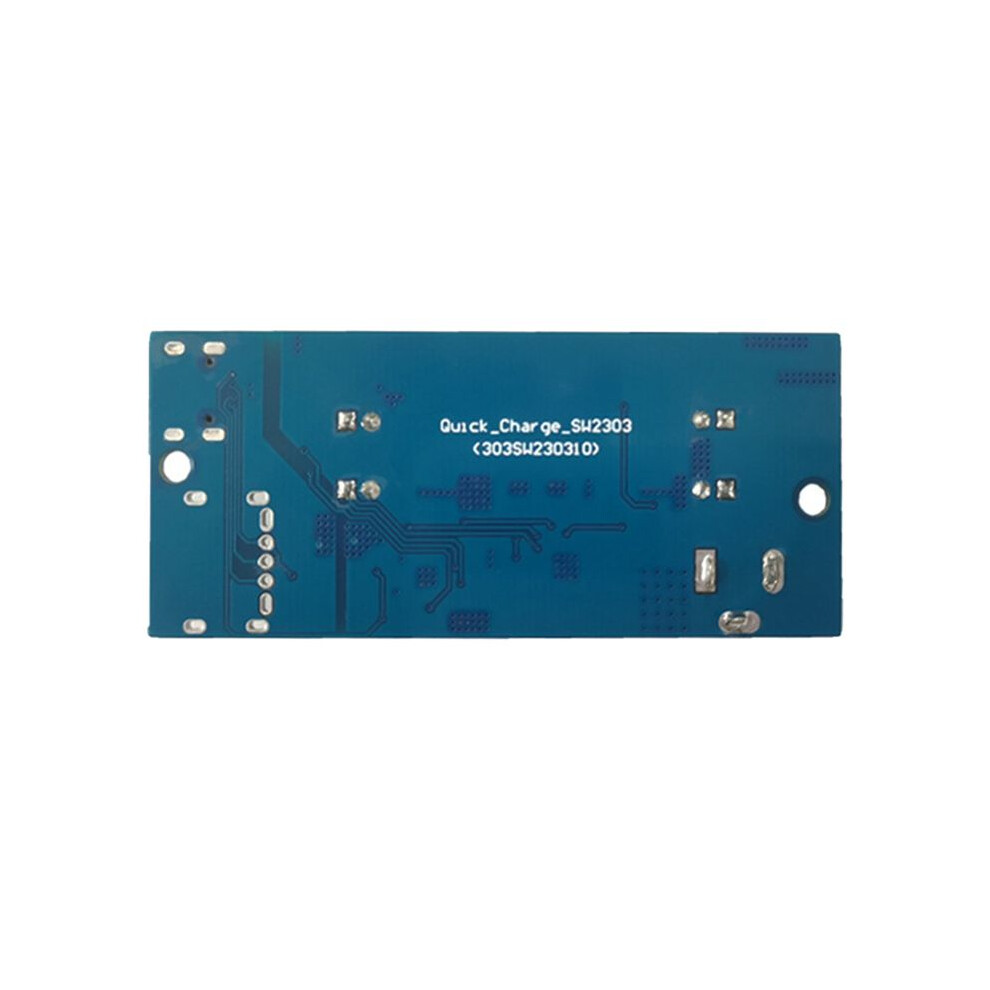

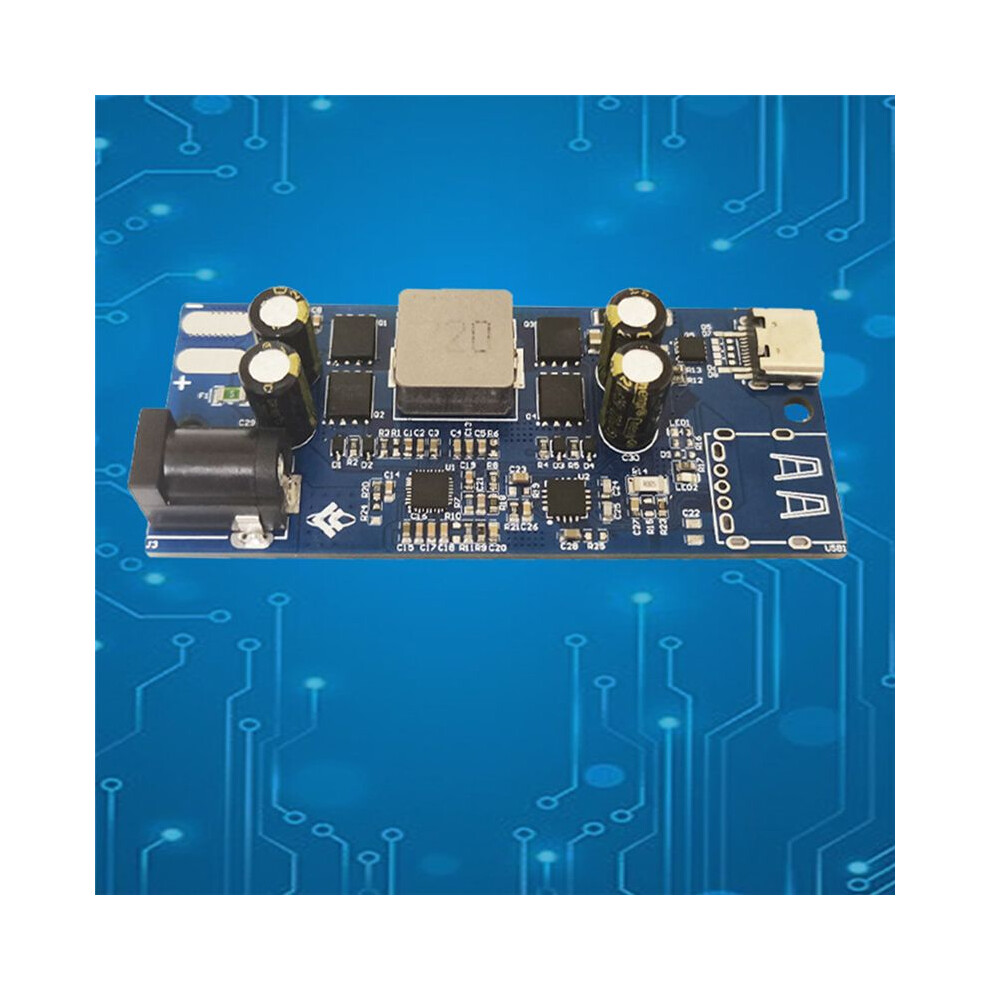

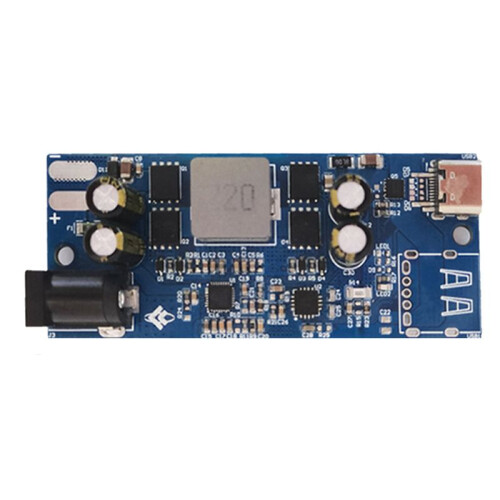

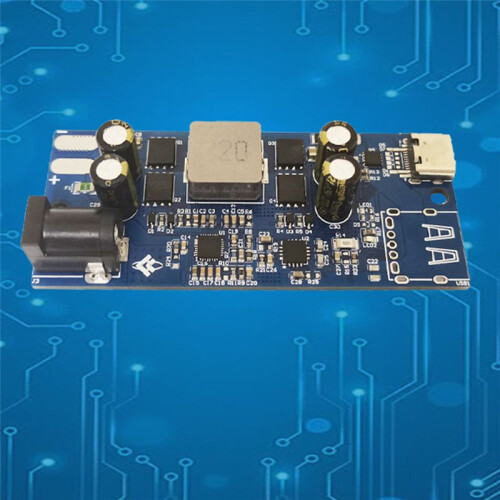

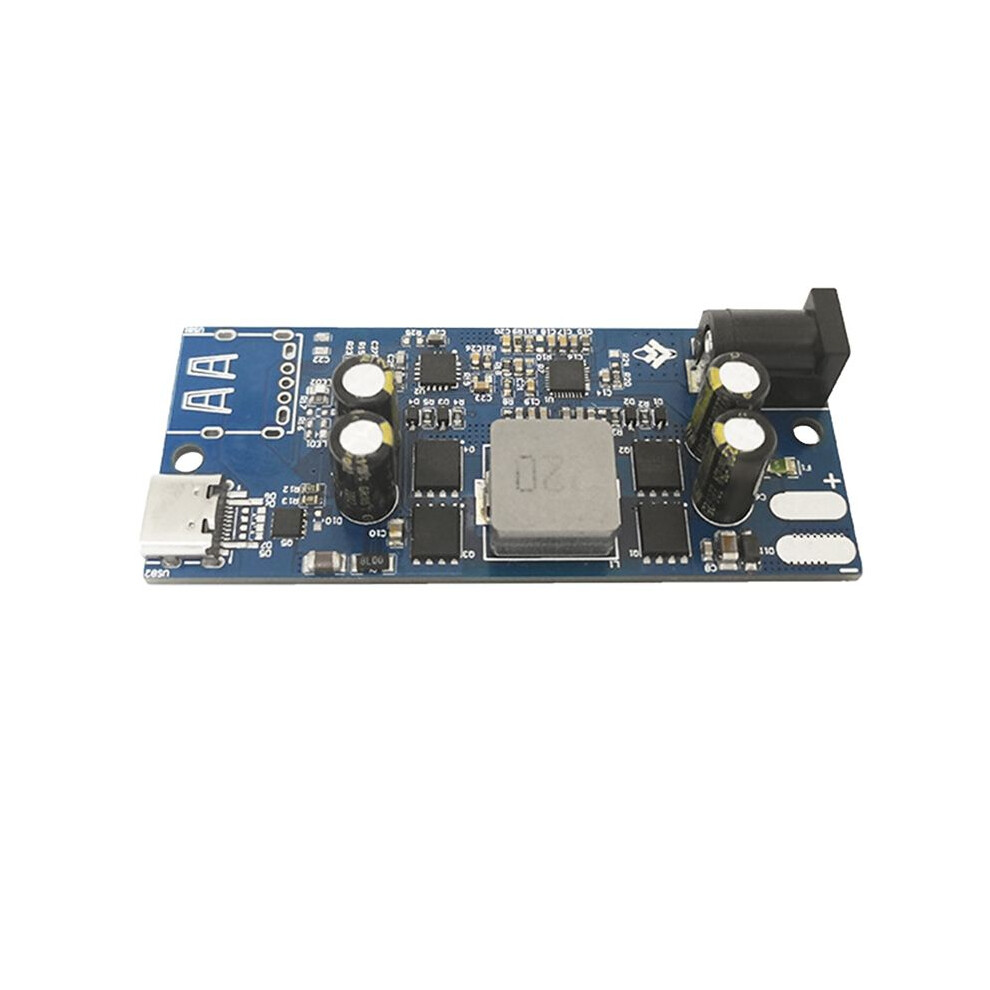

Full Protocol Fast Charging Module SW2303 PL5501 Type-C 100W Buck-Boost Multifunction PD QC Fast Charging Module

Full Protocol Fast Charging Module SW2303 PL5501 Type-C 100W Buck-Boost Multifunction PD QC Fast Charging Module Description

1: Support mainstream fast charging protocols such as PD.QC.FCP, high and low voltage SCP.AFC.SFCP and PE;
2: DC line input or battery input can be used;
3: Support most mobile phones;
4: The module belongs to the buck-boost fast charge;
5: The maximum support power is 100W;

Output port:Type-c
Recommended power supply:24V 150W
SW2303 is a highly integrated Type-C port/Type-A port fast charging protocol chip that supports mainstream fast charging protocols such as PD.QC, FCP, high and low voltage SCP.AFC, SFCP and PE.
Sw2303+PL5501 can fast charge up and down, Type-C port output; the module can be used with a 3-24 volt power adapter for fast charging of daily mobile phones, and can also be powered by batteries, solar panels, DC wind turbines, etc., one machine for dual purposes.
A good helper in outdoor/vehicle/long-term power outages and other occasions, this is an ordinary hand Machine chargers and power banks can't do it.
Tip:
If the 100W module is not plugged into the mobile phone, it must be 100W charging power. The specific power is determined by the fast charging protocol, or it may be determined by the power supply. Some manufacturers such as hw, xm equipment will detect whether it is the charging equipment, if it is not-original chip or charging head, it cannot reach the highest charging power. The data fast charging cable used by the device is also important.
Colour:As Shown
Material:plastic
Size:Board size:73x31mm

Package Contents:
1 * fast charging module
