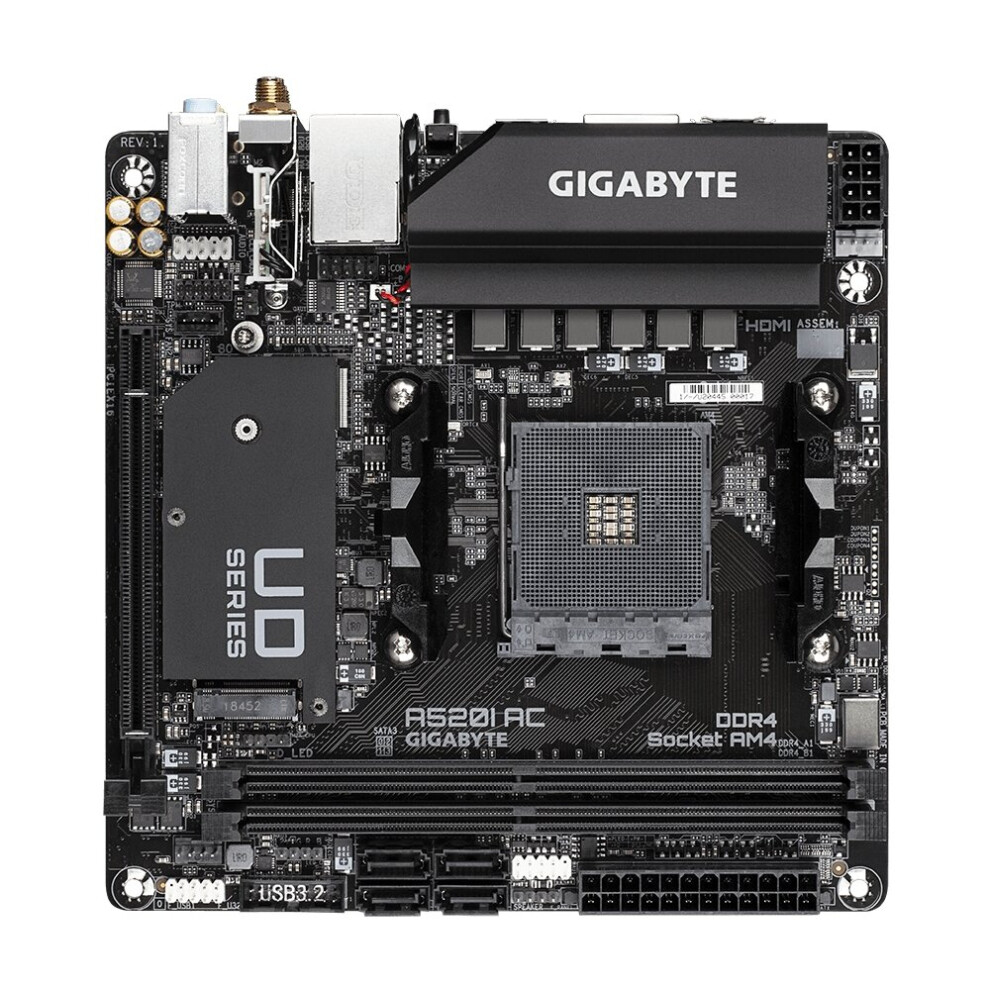

Gigabyte A520I AC motherboard AMD A520 Socket AM4 mini ITX
Brand Gigabyte
New
Hurry only 1 left
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 130,000 Trustpilot reviews and an 'Excellent' rating
£138.58
FREE Delivery
1%
Earn £1.39 instantly
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Mon 10th - Wed 12th Aug
Sold by: Proud Marketplace LTD, there is 1 other seller
Returns: 30 days
180-day payment protection
You might also like
Description & Details
Gigabyte A520I AC motherboard AMD A520 Socket AM4 mini ITX Description
Mini-ITX, AMD A520 chipset, Socket AM4, 2xDDR4 DIMM slots, 7.1ch audio, Gigabit LAN, Wi-Fi, Bluetooth
Details
| OPC | P6YRZKN |
|---|---|
| Brand | |
| Codes | 4719331809867 (EAN) |
| MPN | A520I AC |
| Links | AM4 Motherboards |
| Gigabyte Motherboards |
External product information
Disclaimer: The information below is provided by various external sources and should be used as a guide only.
Detailed Product Information
Packaging content
| Bundled software | Norton® Internet Security (OEM version), Realtek® 8118 Gaming LAN Bandwidth Control Utility |
|---|---|
| Batteries included | Yes |
Network
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
|---|---|
| Bluetooth version | 4.2 |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
Battery
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
|---|---|
| Battery type | CR2032 |
| Number of battery cells | 1 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
Features
| Motherboard chipset | AMD A520 |
|---|---|
| Motherboard form factor | mini ITX |
| Product colour | Black |
| Audio output channels | 7.1 channels |
| PC health monitoring | Fan, Temperature, Voltage |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | AMD |
| Component for | PC |
| Audio chip | Realtek ALC887 |
Packaging data
| Package weight | 800 g |
|---|---|
| Package depth | 189 mm |
| Package height | 78 mm |
| Package width | 222 mm |
Processor
| Processor manufacturer | AMD |
|---|---|
| Compatible processor series | AMD Ryzen 3000 Series |
| Processor socket | Socket AM4 |
| Supported processor sockets | Socket AM4 |
| Maximum internal memory supported by processor | 64 GB |
BIOS
| BIOS memory size | 128 Mbit |
|---|---|
| BIOS type | UEFI AMI |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
Memory
| Maximum internal memory | 64 GB |
|---|---|
| ECC | Yes |
| Non-ECC | Yes |
| Supported memory clock speeds | 2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4866,5000,5100,5200 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Unbuffered memory | Yes |
| Memory slots type | DIMM |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB |
| Number of memory slots | 2 |
| Supported memory clock speed (max) | 5300 MHz |
| ECC сompatibility | ECC & Non-ECC |
Weight & dimensions
| Height | 35 mm |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
Storage controllers
| RAID levels | 0, 1, 10 |
|---|---|
| Number of HDDs supported | 4 |
| RAID support | Yes |
| Number of storage drives supported | 5 |
| Supported storage drive interfaces | M.2, SATA III |
Graphics
| Maximum resolution | 5120 x 2880 pixels |
|---|---|
| Parallel processing technology support | Not supported |
| DirectX version | 12.0 |
| HDCP | Yes |
| On-board graphics card | No |
| Number of displays supported | 3 |
Rear panel I/O ports
| USB 2.0 ports quantity | 2 |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 3 |
| WiFi-AP antenna jack | 2 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
Internal I/O
| USB 2.0 connectors | 1 |
|---|---|
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| Power fan connector | Yes |
| TPM connector | Yes |
| EPS power connector (8-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Serial port headers | 1 |
| Audio connector | Yes |
| Total number of SATA connectors | 4 |
| Front panel connector | Yes |
| RGB LED pin header | Yes |
Expansion slots
| PCI Express x16 slots | 1 |
|---|---|
| Number of M.2 (M) slots | 1 |
Logistics data
| Products per shipping (inner) case | 1 pc(s) |
|---|---|
| Harmonized System (HS) code | 84733020 |
Technical details
| Warranty period | 3 year(s) |
|---|
