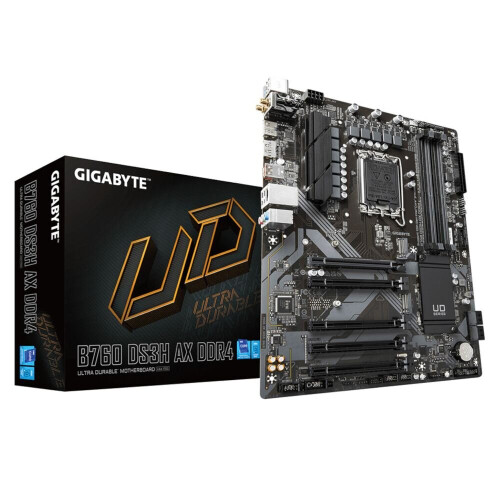

GIGABYTE Mainboard B760 DS3H AX DDR4 - ATX - Socket Intel 1700 - Intel B760
Brand Gigabyte
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 128,000 Trustpilot reviews and an 'Excellent' rating
£221.36
FREE Delivery
1%
Earn £2.21 instantly
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Sat 11th - Mon 13th Jul
Returns: 30 days
180-day payment protection
Most Popular in Motherboards
Description & Details
GIGABYTE Mainboard B760 DS3H AX DDR4 - ATX - Socket Intel 1700 - Intel B760 Description
GIGABYTE Mainboard B760 DS3H AX DDR4 - ATX - Socket Intel 1700 - Intel B760
Details
| OPC | PBBFBF7 |
|---|---|
| Brand | |
| Codes | 4719331850999 (EAN) |
| Links | Gigabyte Motherboards |
External product information
Disclaimer: The information below is provided by various external sources and should be used as a guide only.
Detailed Product Information
Packaging content
| Bundled software | Norton Internet Security |
|---|---|
| Cables included | SATA |
| Batteries included | Yes |
Network
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
|---|---|
| Bluetooth version | 5.2 |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller model | RZ608 |
Battery
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
|---|---|
| Battery type | CR2032 |
| Number of battery cells | 1 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
Features
| Motherboard chipset | Intel B760 Express |
|---|---|
| Motherboard form factor | ATX |
| Product colour | Brown |
| Audio output channels | 7.1 channels |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | Intel |
| Component for | PC |
Packaging data
| Package weight | 1.49 kg |
|---|---|
| Package depth | 270 mm |
| Package height | 80 mm |
| Package width | 335 mm |
Processor
| Processor manufacturer | Intel |
|---|---|
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| Maximum internal memory supported by processor | 128 GB |
BIOS
| BIOS memory size | 128 Mbit |
|---|---|
| BIOS type | UEFI AMI |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
Rear panel I/O ports
| PS/2 ports quantity | 1 |
|---|---|
| USB connector type | USB Type-A, USB Type-C |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| WiFi-AP antenna jack | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
Memory
| Maximum internal memory | 128 GB |
|---|---|
| ECC | Yes |
| Non-ECC | Yes |
| Supported memory clock speeds | 2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Unbuffered memory | Yes |
| Memory slots type | DIMM |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 5333 MHz |
| ECC сompatibility | ECC & Non-ECC |
Weight & dimensions
| Height | 35 mm |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Storage controllers
| RAID levels | 0, 1, 5, 10 |
|---|---|
| Number of HDDs supported | 4 |
| RAID support | Yes |
| Number of storage drives supported | 6 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
Graphics
| Maximum resolution | 4096 x 2304 pixels |
|---|---|
| Parallel processing technology support | Not supported |
| DirectX version | 12.0 |
| HDCP | Yes |
Internal I/O
| USB 2.0 connectors | 2 |
|---|---|
| S/PDIF out connector | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| TPM connector | Yes |
| EPS power connector (8-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Serial port headers | 1 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
Expansion slots
| PCI Express x16 slots | 5 |
|---|---|
| Number of M.2 (M) slots | 2 |
| 1st M.2 largest key size | 22110 |
| 2nd M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 highest PCI Express generation | 4.0 |
Logistics data
| Products per shipping (inner) case | 1 pc(s) |
|---|
Technical details
| Warranty period | 3 year(s) |
|---|
