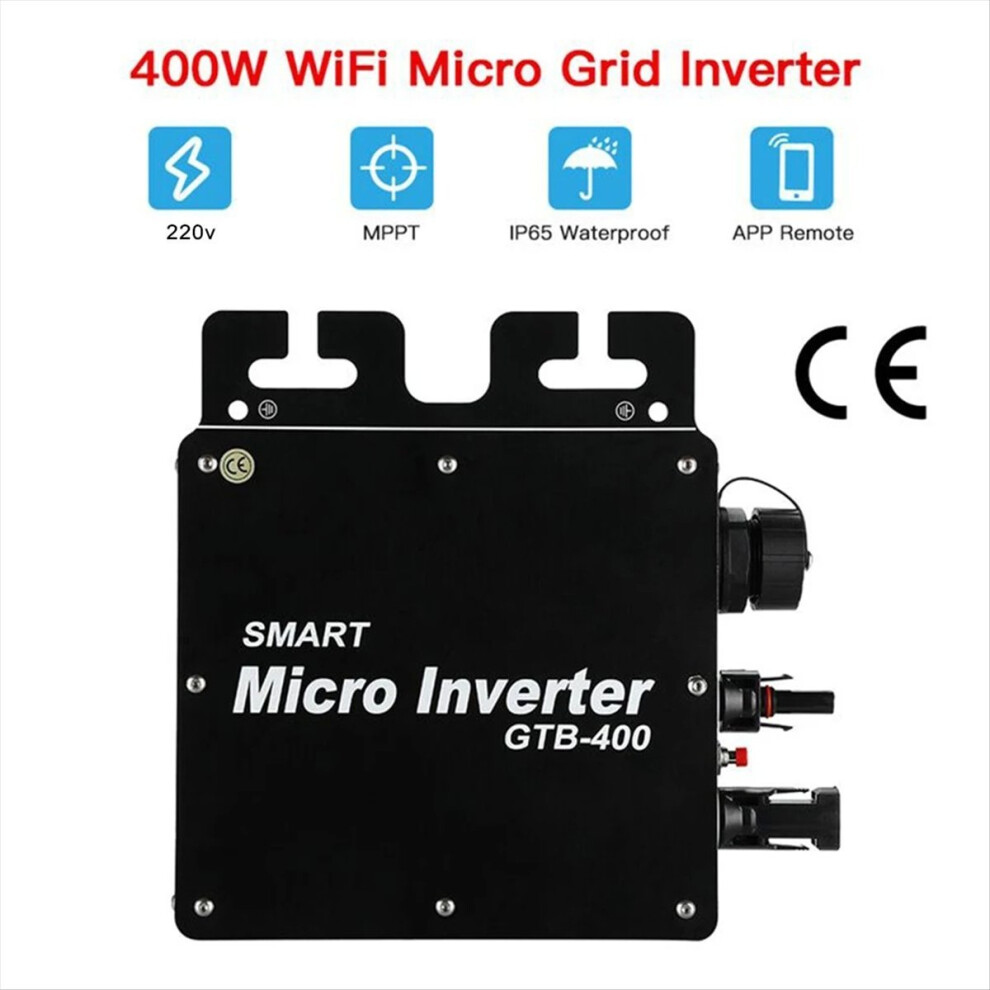

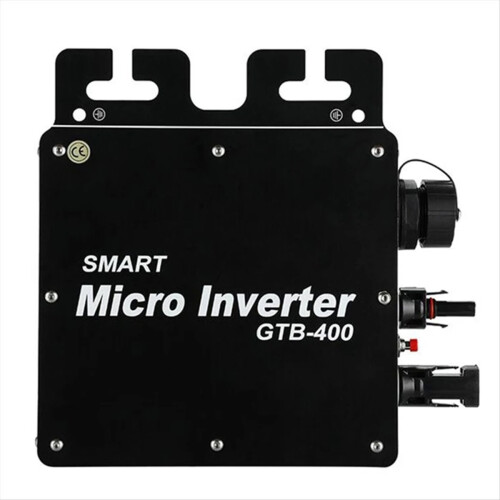

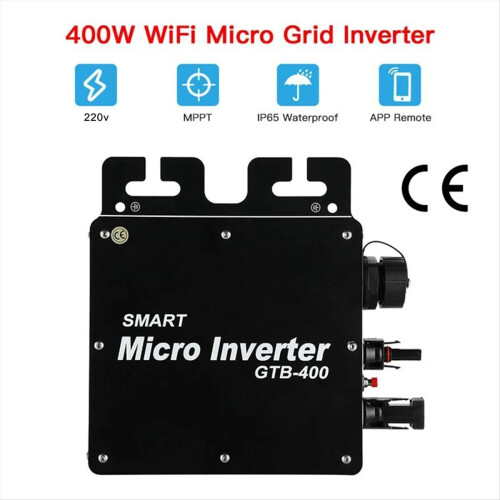

Grid Tie Solar Inverter 400W Intelligent Microinve

Grid Tie Solar Inverter 400W Intelligent Microinve Description

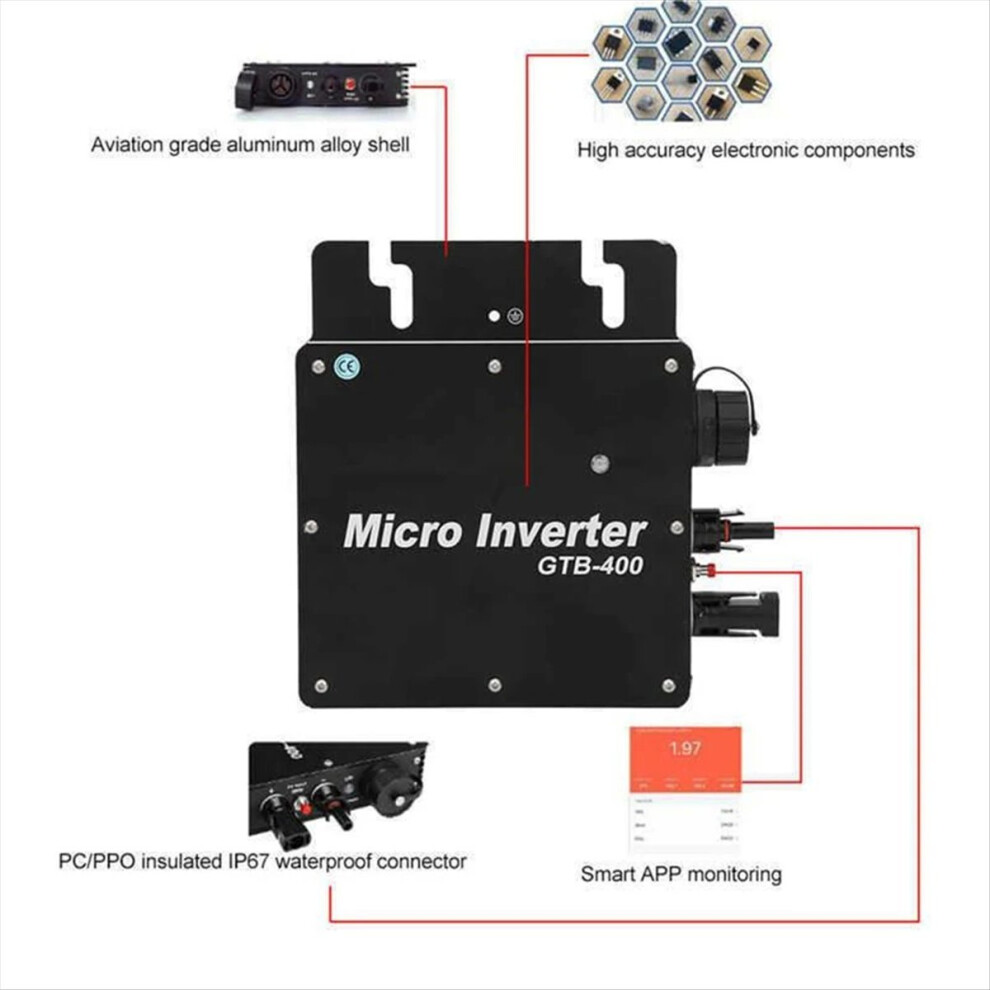

IMI series inverter Using IP65 waterproof streamline design which effectively prevent rainwater on the erosion, built-in high-performance maximum power point tracking MPPT function better to track changes in the solar luminosity and control different output power, effectively capture and collect sunlight AC electric power transmission using the reverse transmission technology.

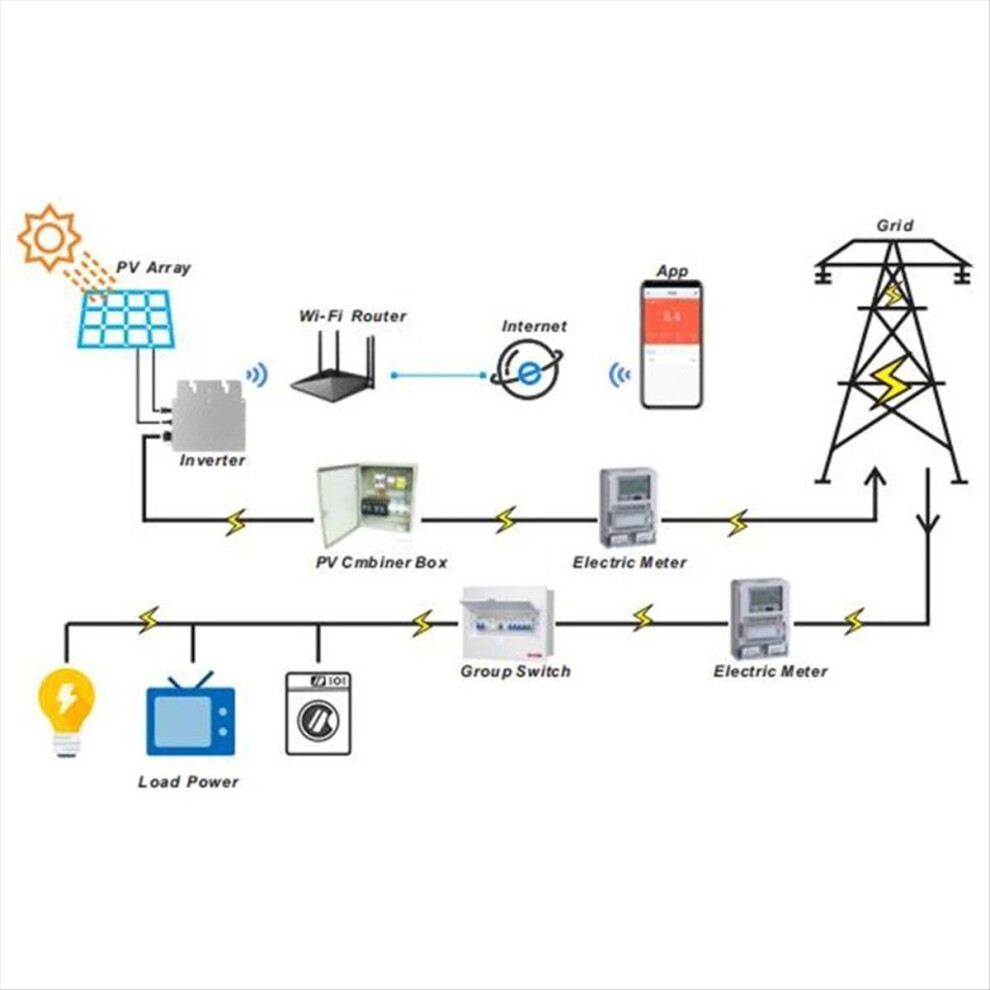

The inverter output power can provide load priority use, extra electricity to the grid, efficient use of the inverter to the power emitted, electricity transmission rate of up to 99%.
The convenient way to directly scan the QR code to connect to is a major feature of it, allowing non-professional users to monitor the power generation system data in real time through a smartphone.
Color: Black
Material: metal+plastic

Input Voltage: 22-50VDC
Output Voltage: 230V(180-260VAC)
Model:400W
Input Data
Recommend PV:400W
-Stop voltage:22-50V
Reccommend PV Voc:33-50V
MPPT:23-50V
Maxi Input Current:13A
DC short current:20A
Output Data
Rated output current:@120VAC 3.3A;@230VAC 1.7A
Rated voltage:@120V(80-160VAC); @230V(180-260VAC)
Max units per branch:@120V: 3PCS;@230V:6PCS
Rrequency:50/60Hz(48-51Hz)
Output Efficiency
Static MPPT:0.995
Power factor: 99%
Max output:0.95
Self consumption:Less than 1W
:Less than 5%

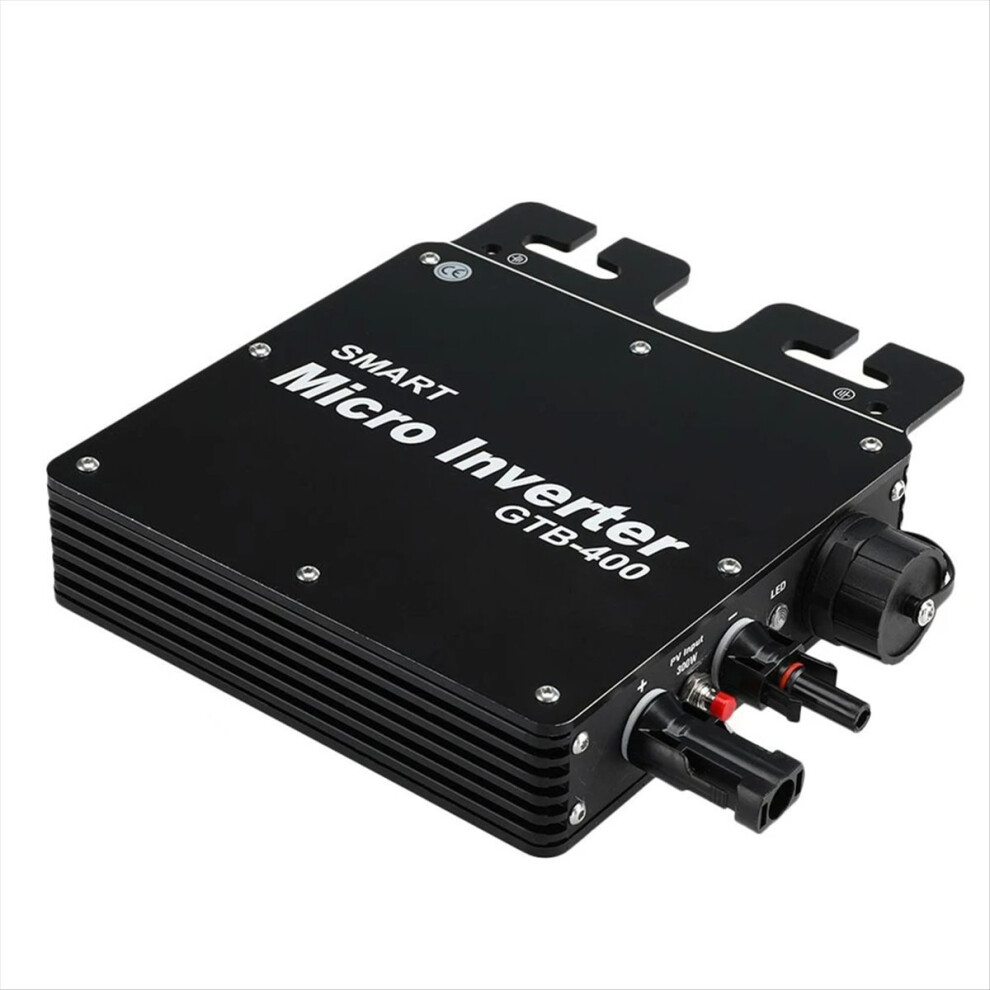

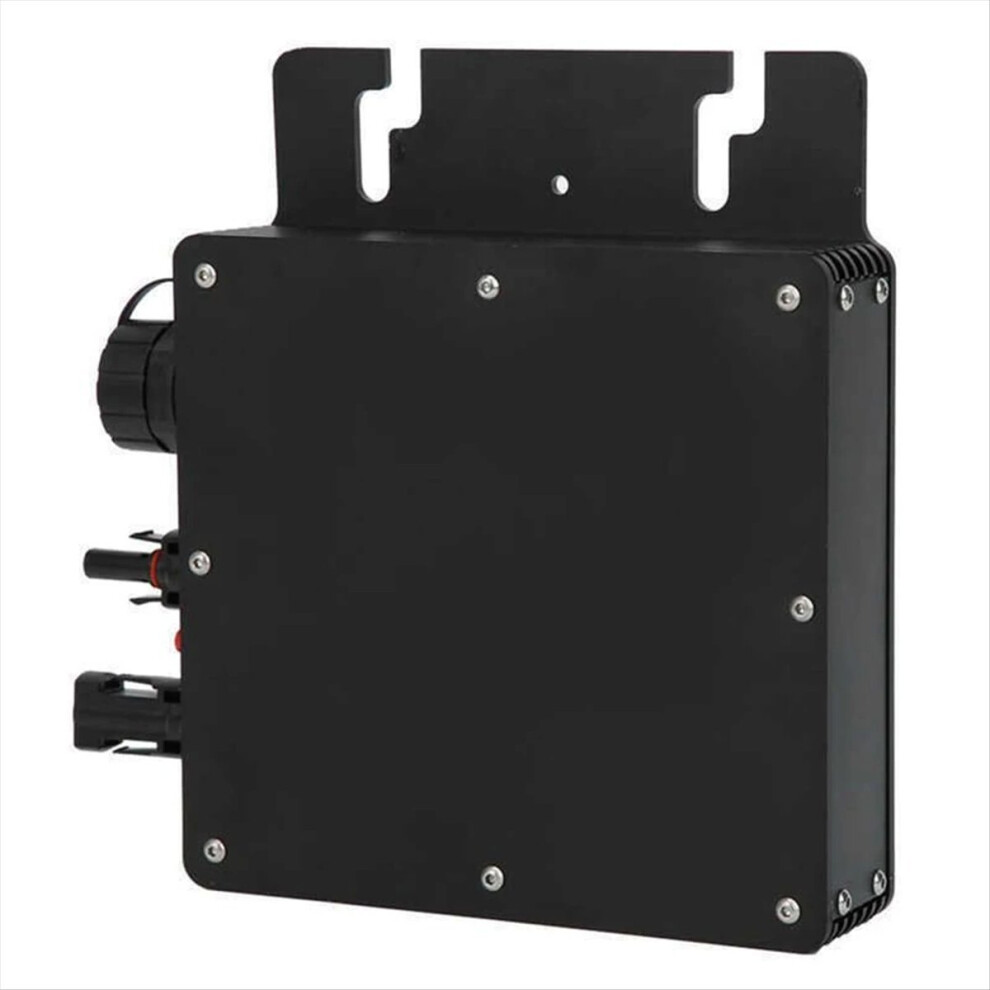

Exterior
Ambient temperature:- 40to +65
Operating temperature:- 40to +82(inverter inside)
Dimensions(LxWxH):253mmx200mmx40mm
Weight:1.5kg
Waterproof Rating:IP65
Cooling:Self-cooling
Feature
Power transmission mode:Reverse transfer, load priority
Communication:WIFI(QR code scanning, automatic matching internet)
Monitoring System: free
Electromagnetic compatibility:EN50081.part1EN50082.part1
Grid disturbance:EN61000-3-2 Safety EN62109
Grid detection:DIN VDE 1026 UL1741

Package Contents:
1 x Grid Tie Solar Inverter

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
