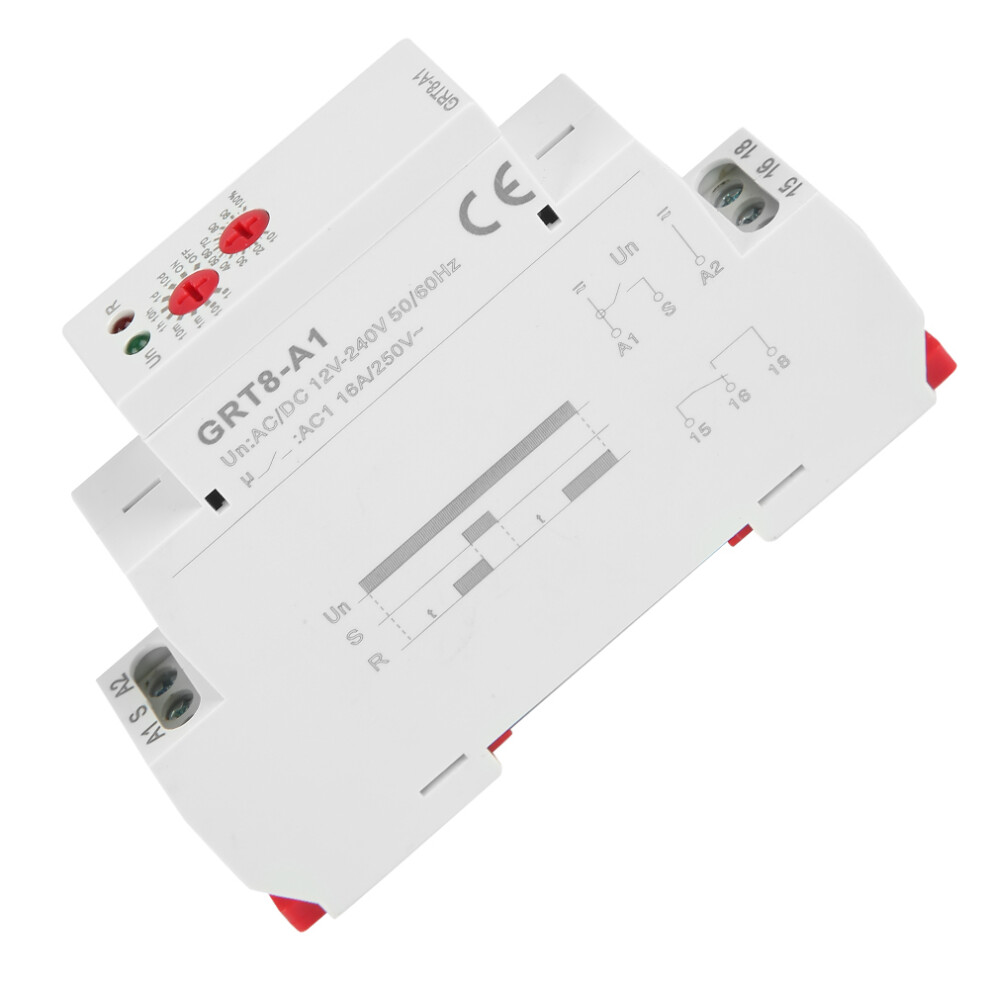

GRT8-A1 Mini Power Delay Relay DIN Rail AC/DC 12V-240V Time Delay Module

GRT8-A1 Mini Power Delay Relay DIN Rail AC/DC 12V-240V Time Delay Module Description

GRT8-A1 Mini Power On Delay Time Relay DIN Rail Type AC/DC 12V~240V

Features:


1. This is a single function power-on delay relay and time delay can be set by panel knob.


2. Super wide time delay range, 0.1s - 10days (10 kinds of settings).



4. Relay working status is indicated by LED indicators.


5. With super small volume, this relay can be mounted on 35mm DIN rail.





Specification:


Function: Delay ON



Power terminal: A1-A2


Power consumption: AC 0.09-3VA/DC 0.05-1.7W


Setting method: knob


Power indicator: Green LED


Delay range: 0.1s-10 days, normally open, normally closed


Setting accuracy: 10%


Output contact: 1 x SPDT, 16A/AC1, 250VAC/24VDC


Minimum switching power: 500mW


Output relay indication: red LED


Mechanical life: 1x107


Reset time: Max 200ms


Working temperature: -20~55


Mounting method: 35mm DIN rail


Mounting altitude: 2000m


Weight: Approx. 75g/2.6oz





Package list:


1 * On Delay Time Relay
