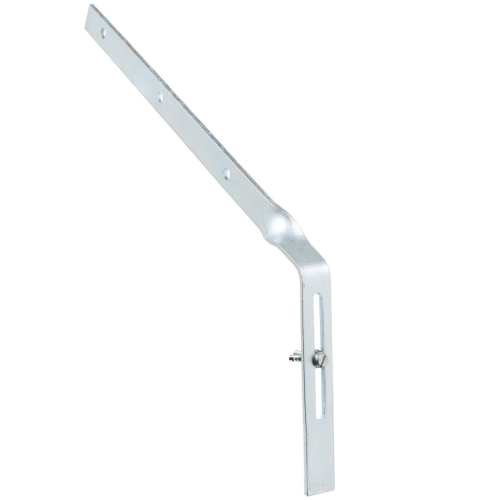

Gutter Side Rafter Bracket Universal Galvanised Steel Fascia Support Fixing (300mm)

Gutter Side Rafter Bracket Universal Galvanised Steel Fascia Support Fixing (300mm) Description

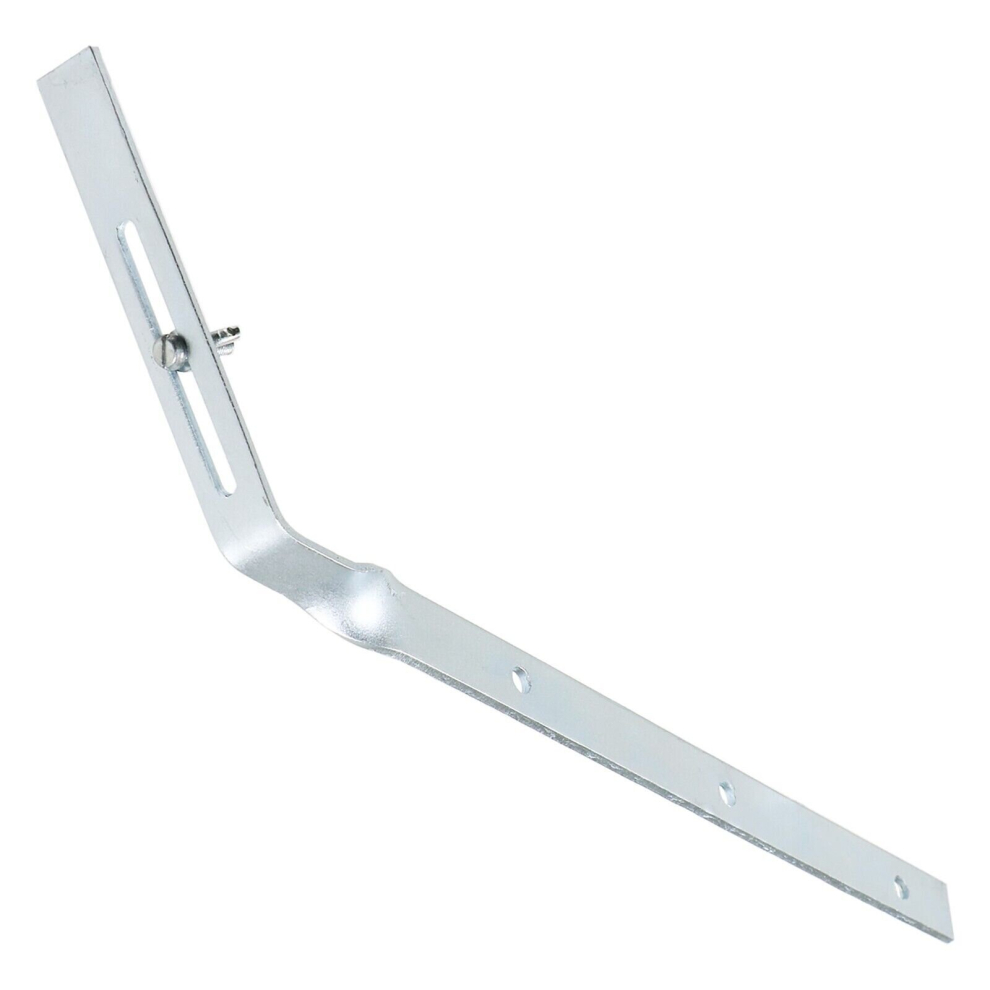

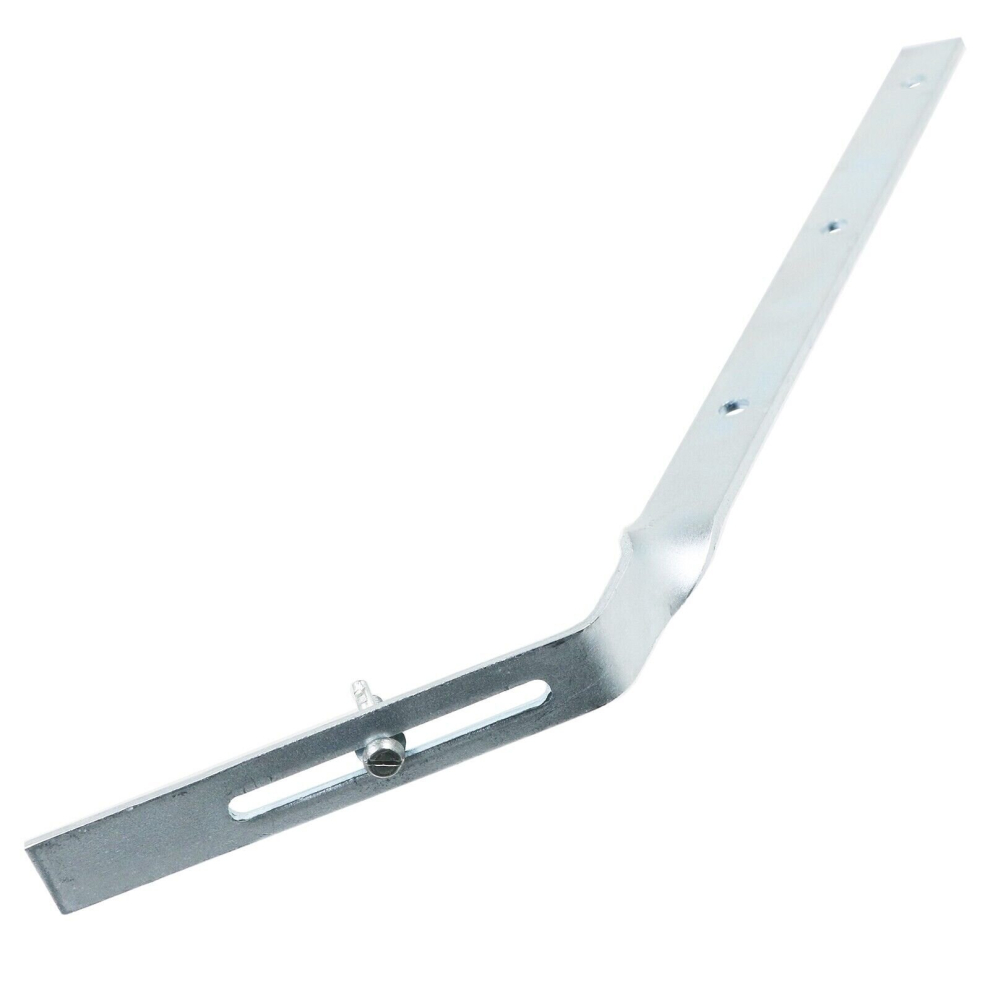

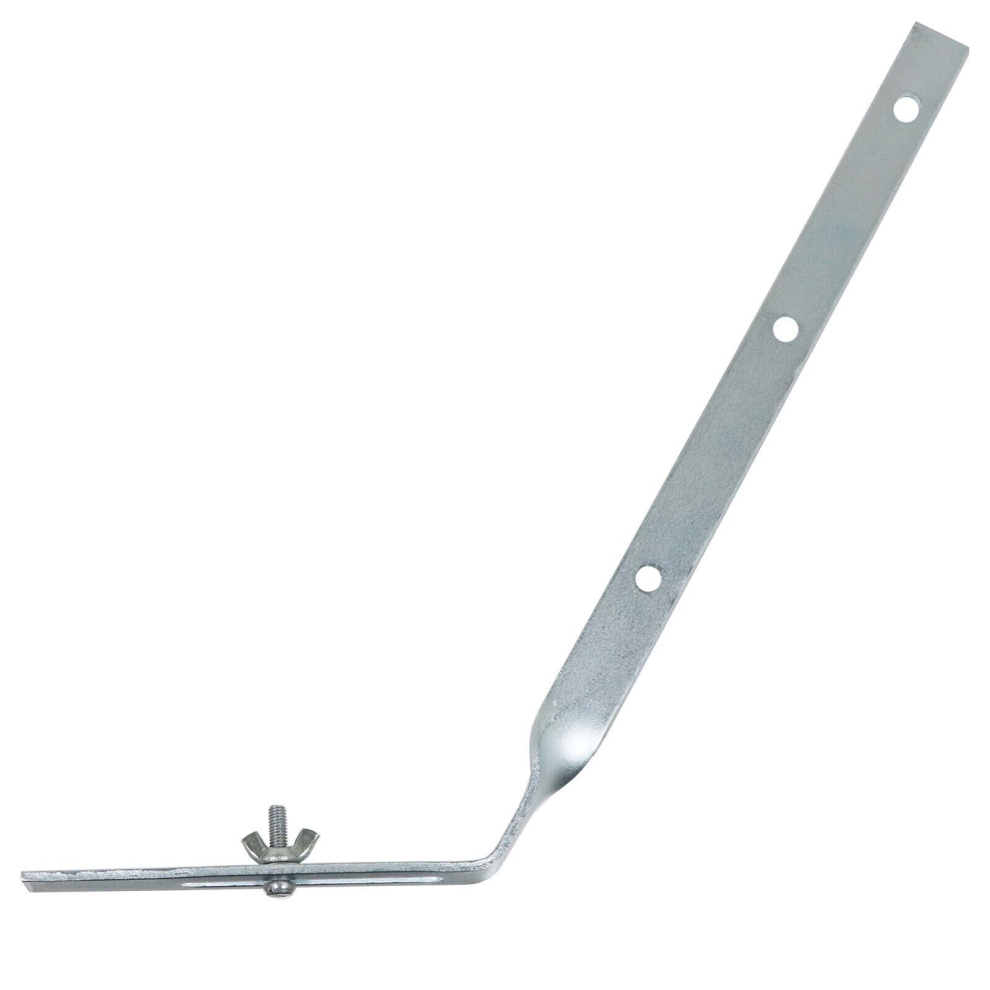

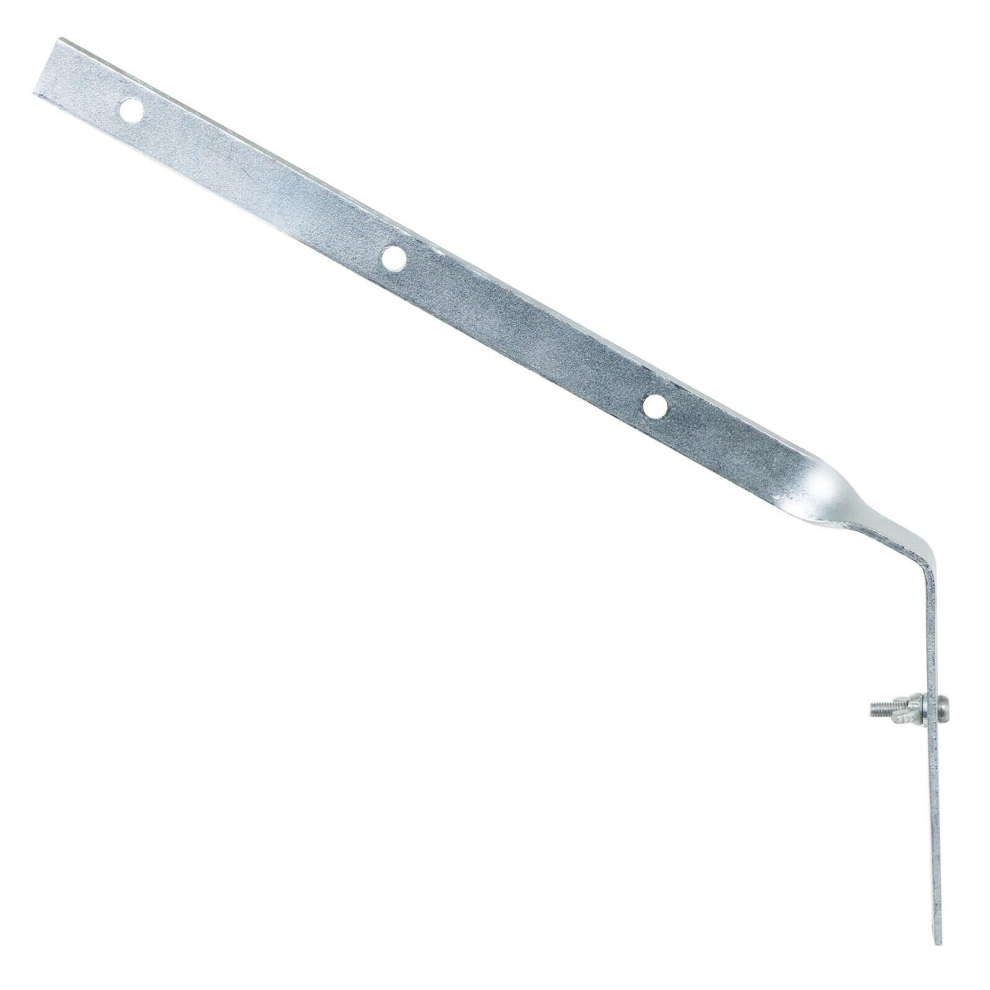

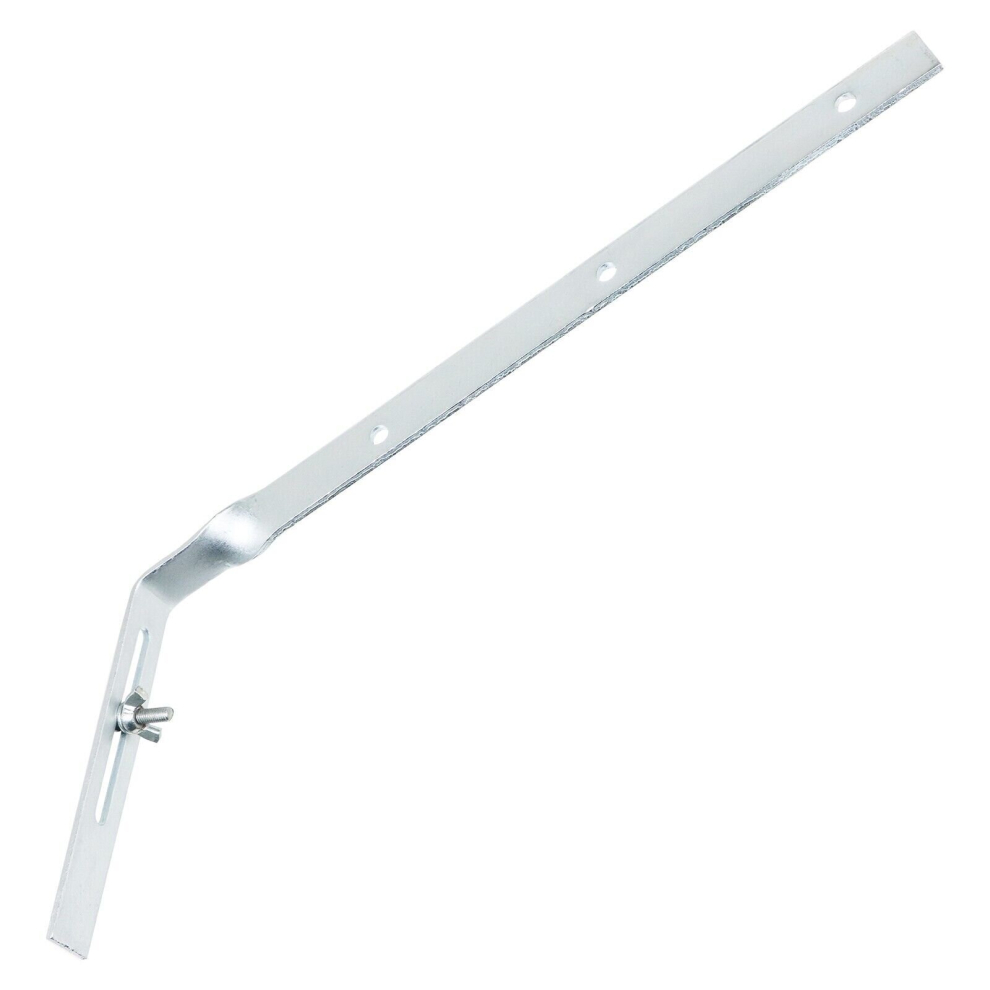

Universal Galvanised Steel Side Fix Gutter Rafter Bracket (300mm)

Brand new, premium quality universal side fix gutter rafter bracket. These brackets are commonly used on properties with overhanging tiles and exposed joists and can be used with round, square and deep flow systems. The fall of the guttering can be adjusted via the bracket making installation easier. Made with galvanised steel - ensuring rust / weather / corrosion resistance and long life. Includes screw, nut and washer for easy installation.

Kit Contains:
1 x Side Fix Rafter Bracket
1 x Screw

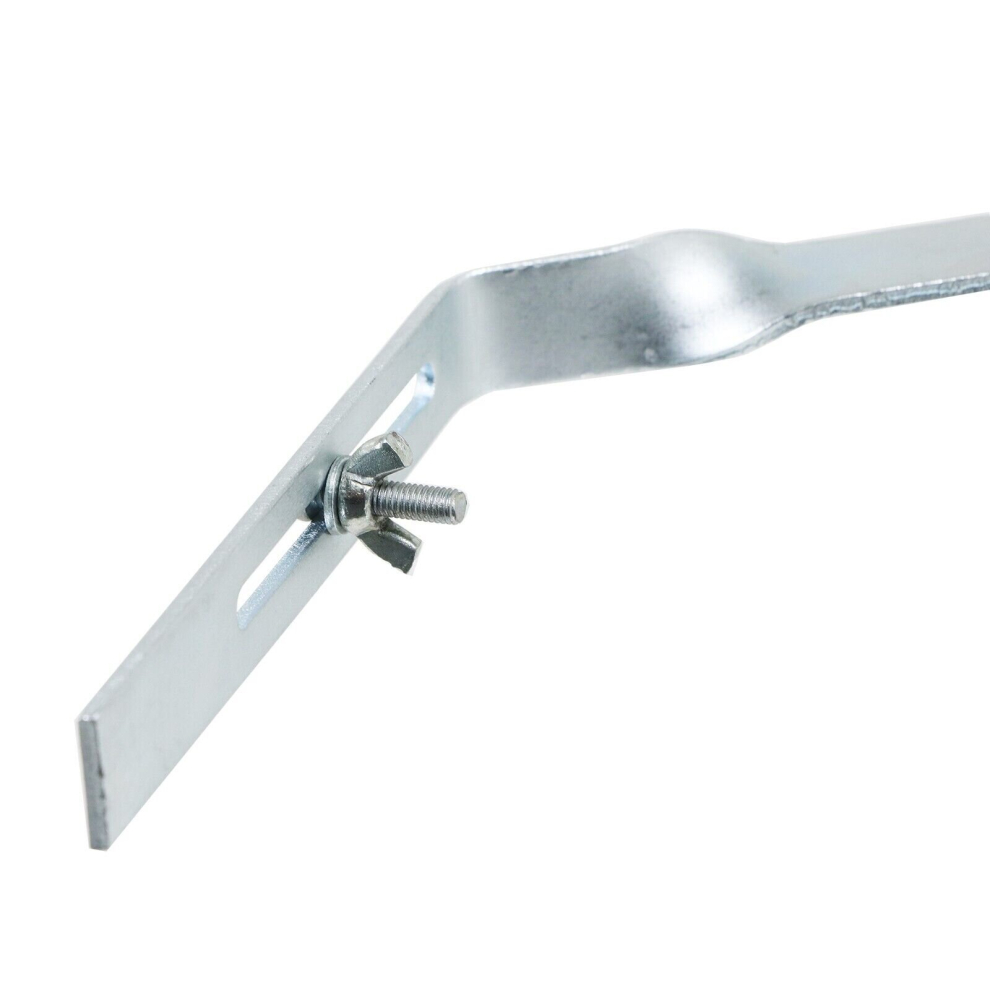

1 x Nut and Washer

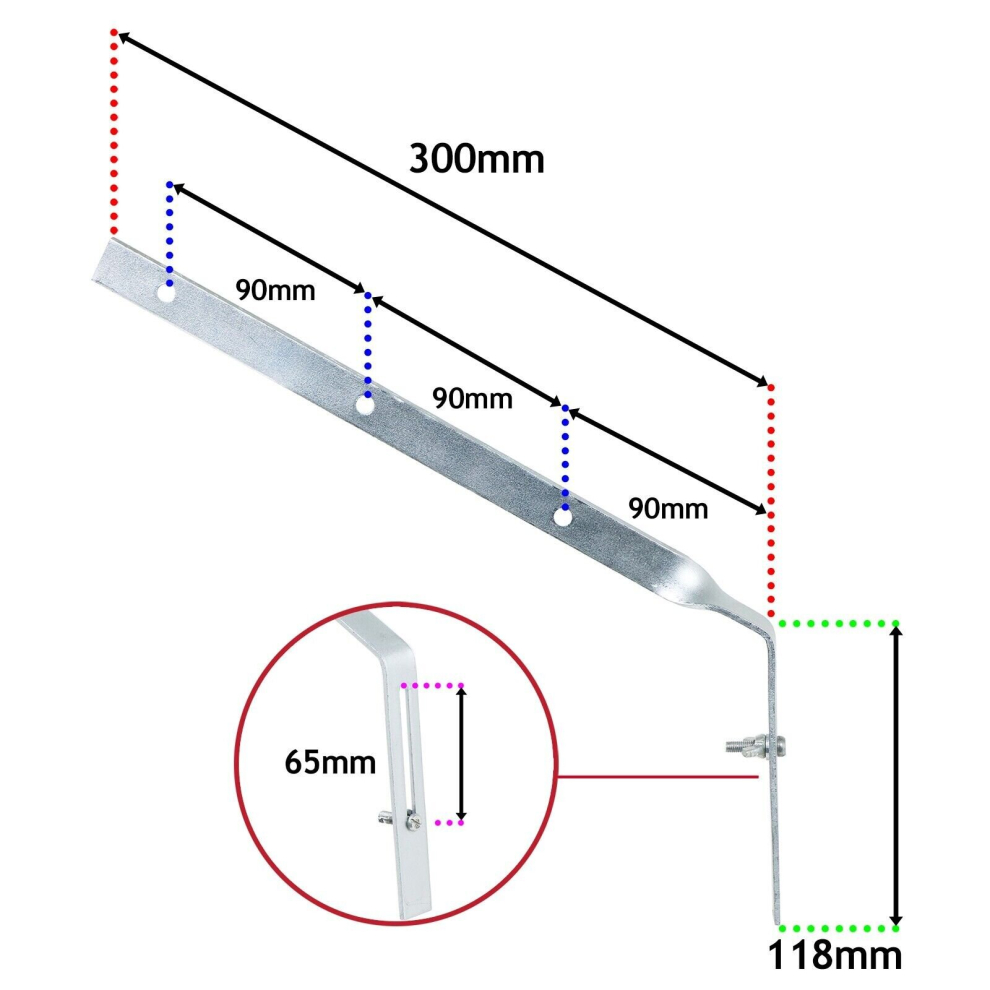

Specifications:
Arm Length: 300mm
Front Height: 118mm
Front Opening: 65mm

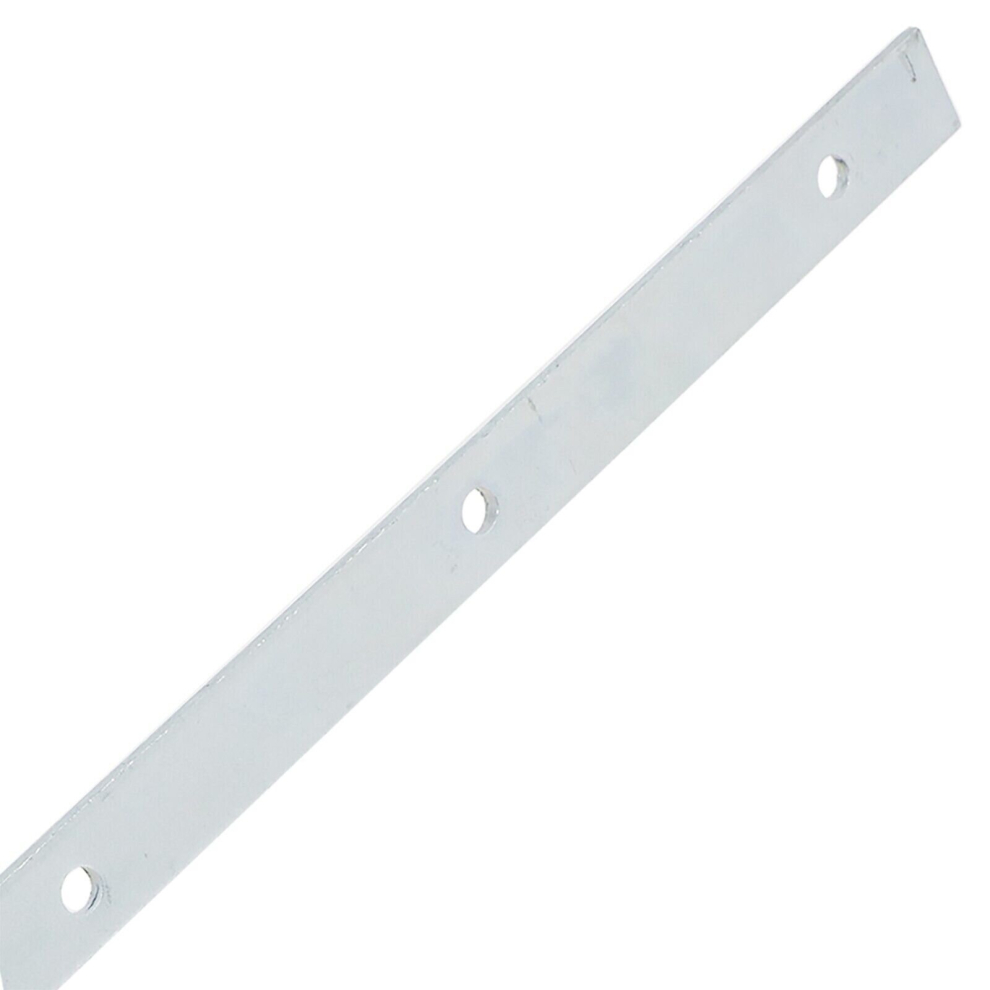

Mounting Hole Distance: 90mm
Material: Galvanised Steel
Standard: BS EN 12200 / BS EN 607
Colour: Silver
Heavy Duty
Weather Resistant
Rust Resistant
Corrosion Resistant

Installation:
This side rafter bracket is generally used on properties where there is no fascia board at the eaves (often referred to as open eaves).

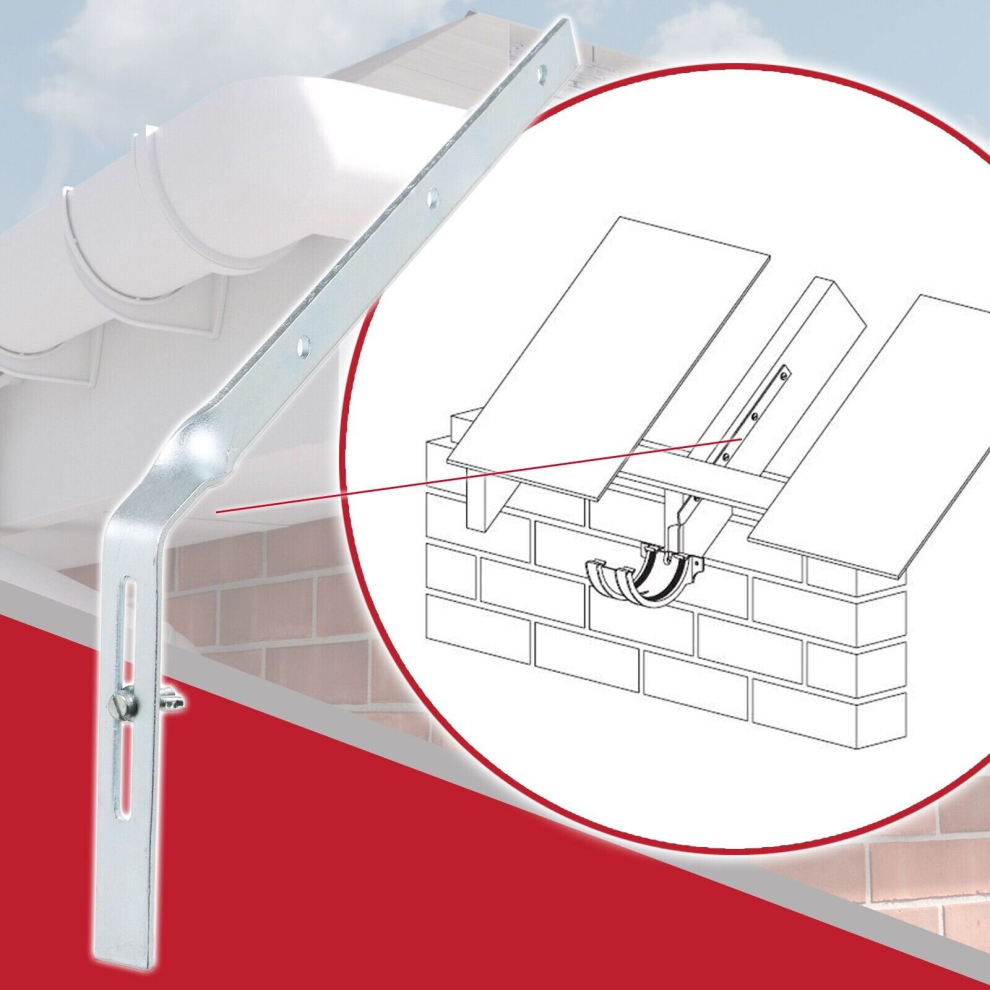

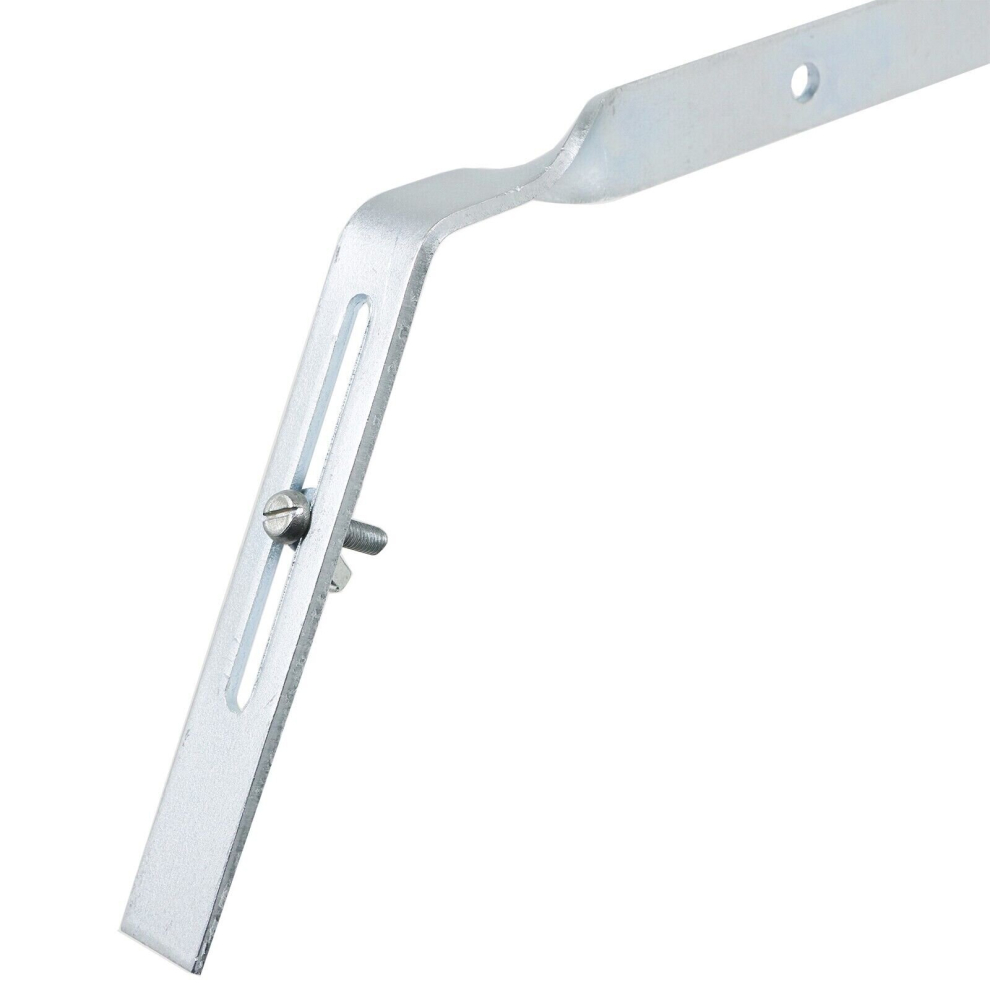

The rafter bracket is screwed onto the side of the foot of the rafter at the eaves. A standard fascia bracket is then attached to the vertical section of the rafter arm using the small nut and bolt supplied.

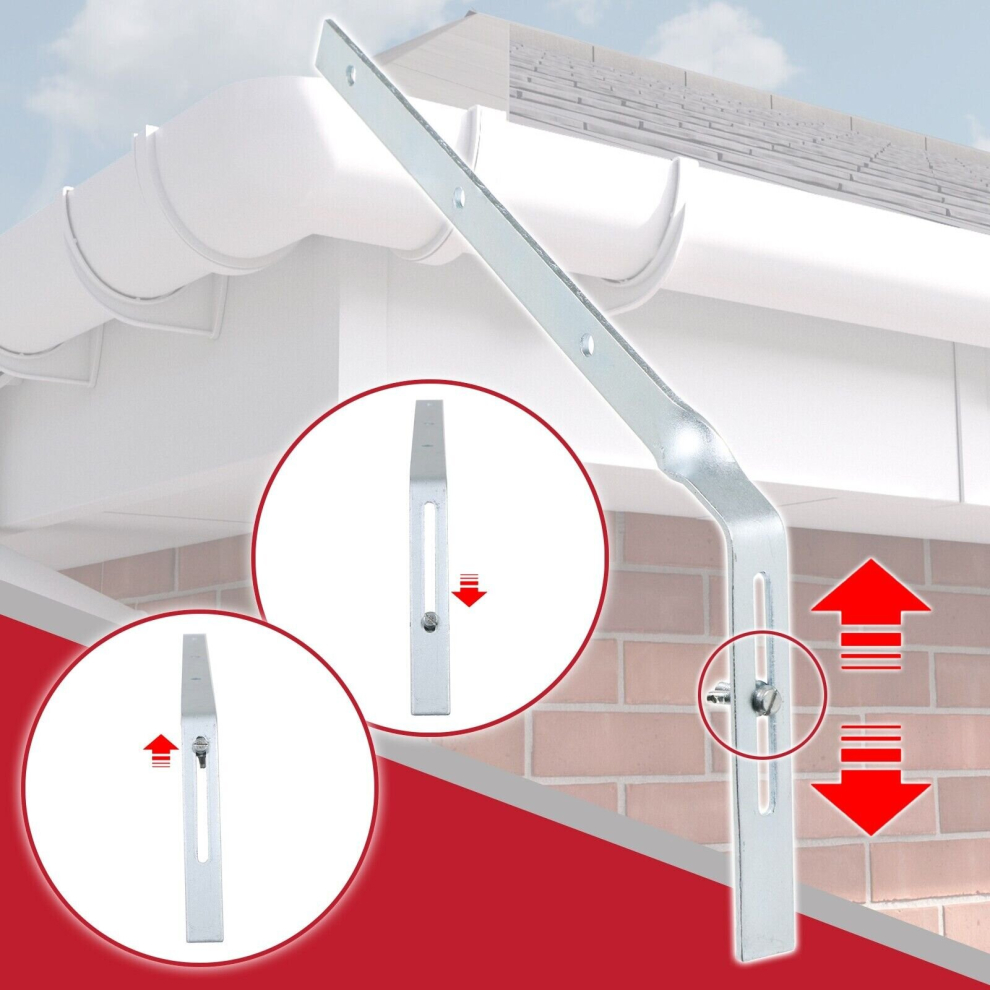

The fascia bracket can then be adjusted up or down to ensure that the correct fall is achieved on the gutter.
