Household Digital Pid Temperature Controller Thermostat for Heating Cooling Instrument Relay/Voltag

Household Digital Pid Temperature Controller Thermostat for Heating Cooling Instrument Relay/Voltag Description

Household Digital Pid Temperature Controller Thermostat for Heating Cooling Instrument Relay/Voltag
Description: Power Supply:AC100-240V 50/60HZ; Temperature setting range: -50 ~ +999 /F; Input themocouple:(K,J,E,N)4 types of thermocouples input by customers selected at panel
Usage in hearing or cooling control; Display:Two lines,Three digits in Celsius() Fahrenheit (F)(User can select it); Display resolution:1C/1F; Control precision: 0.5%FS; Control mode:PID,ON/OFF (On/Off Control when P=0)

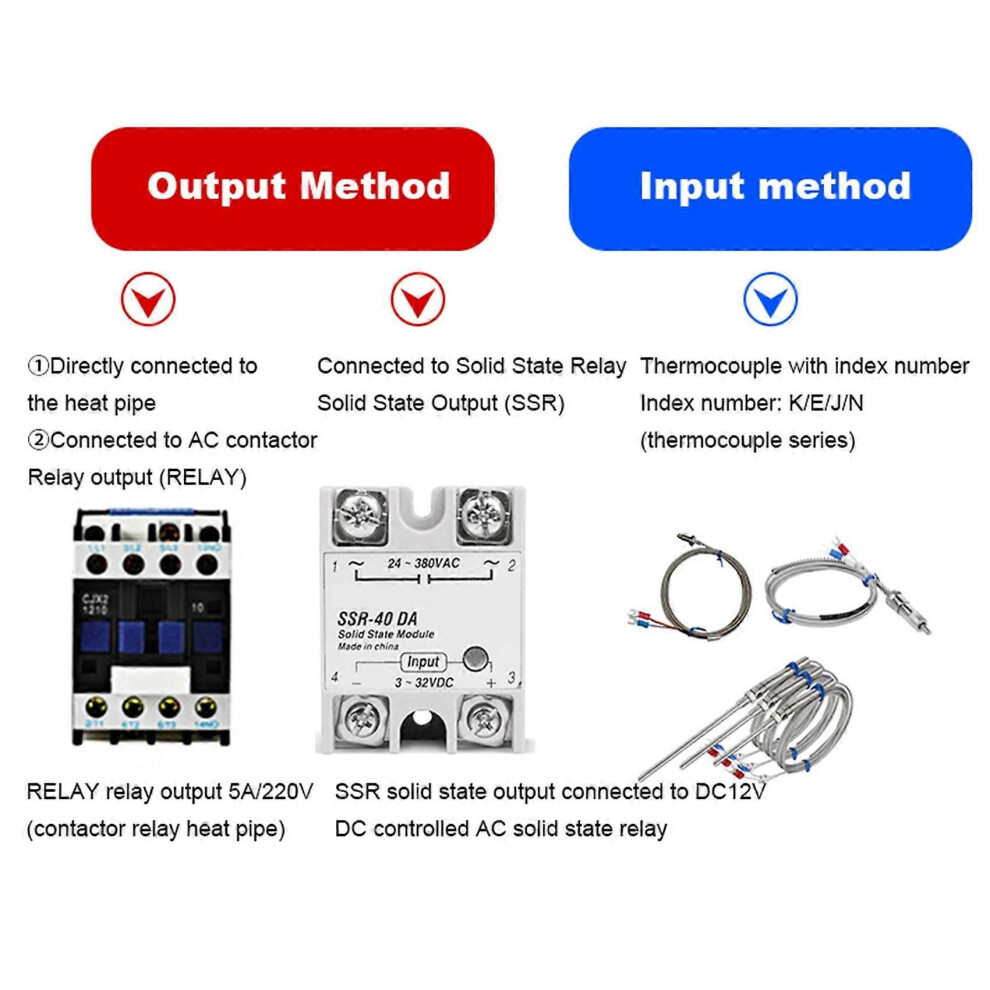

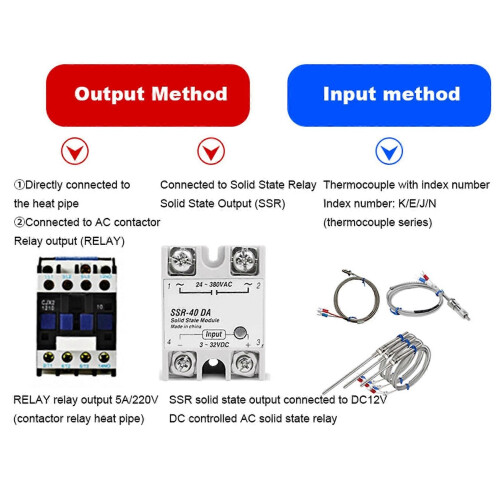

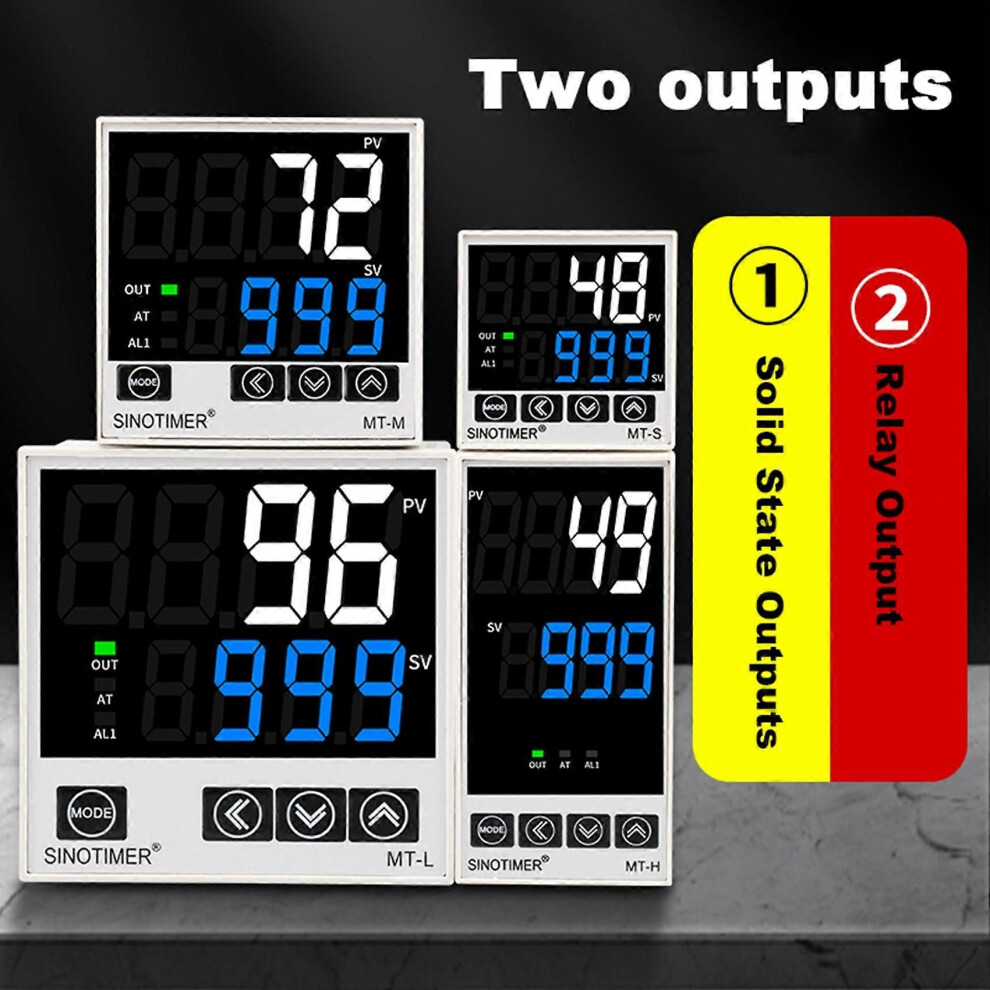

Output Output:One group control control output,It supports the following 2 ouput methods for users to use by themselves. (Relay contacts 3A @250VAC or Voltage impulse output 12VDC for external SSR)
Contact capacity 250V AC 3A (resistive load); Alarm:One alarm,6 kinds of alarm mode:high deviation/low deviation/process value alarm; Power consumption10VA
Ambition temperature:0-50C,30-85%RH,no corrosive gas

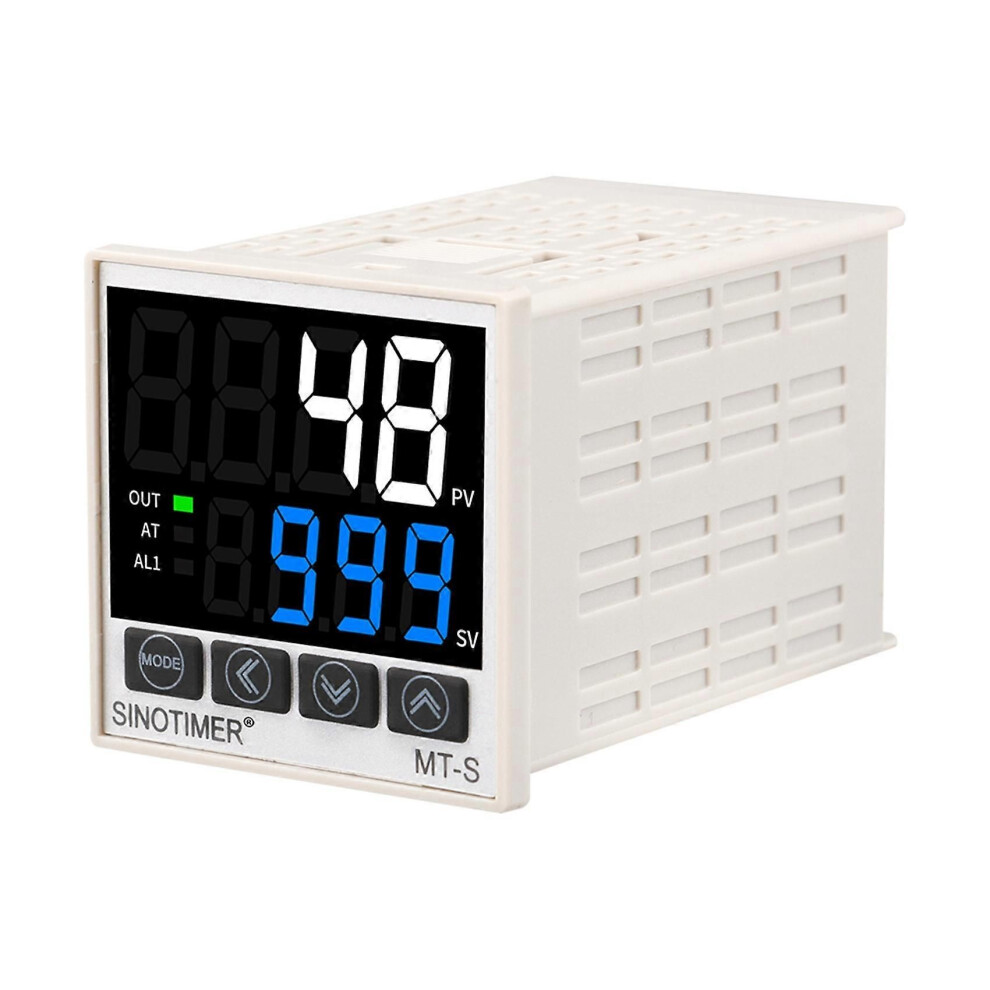

Panel name and its fuctions:
PV:Measureed value/various parameter symbols
SV: Set value/various parameter set values
Out: output indicator lamp
AT:PID automatic indicator lamp
AL1:Alarm indicator lamp
:Increase numbers
: Decrease numbers
:Shift KEY
MODE:Used for paramter calling up and set value registration

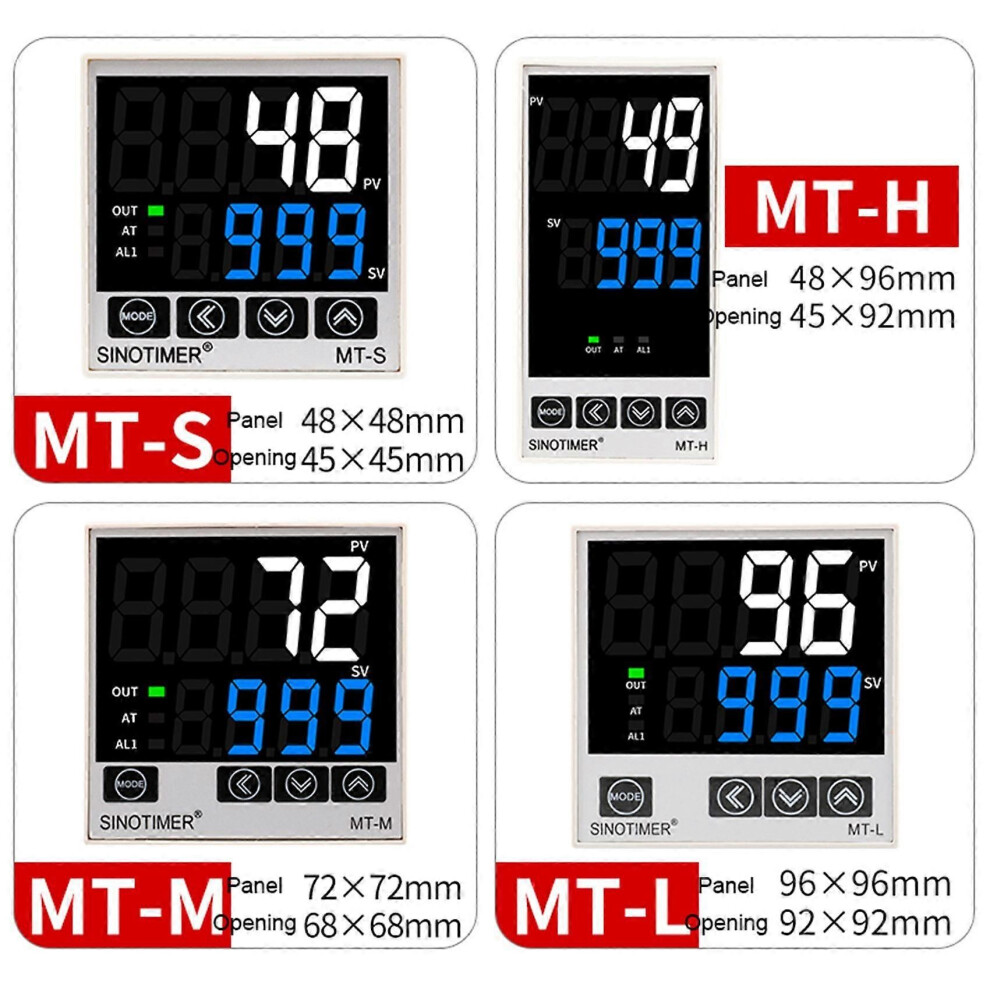

Item size:
(S type) 48 x 48mm
(M type) 72 x 72mm
(L type) 96 x 96mm
(H type) 48 x 96mm
Installation Hole Size:
45 x 45mm (S type)
68 x 68mm (M type)
92 x 92mm (L type)
45 x 92mm(H type)
Material: plastic
colour: As shown
Package Contents:
1 x Digital Pid Temperature Controller
1 x English manual
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
