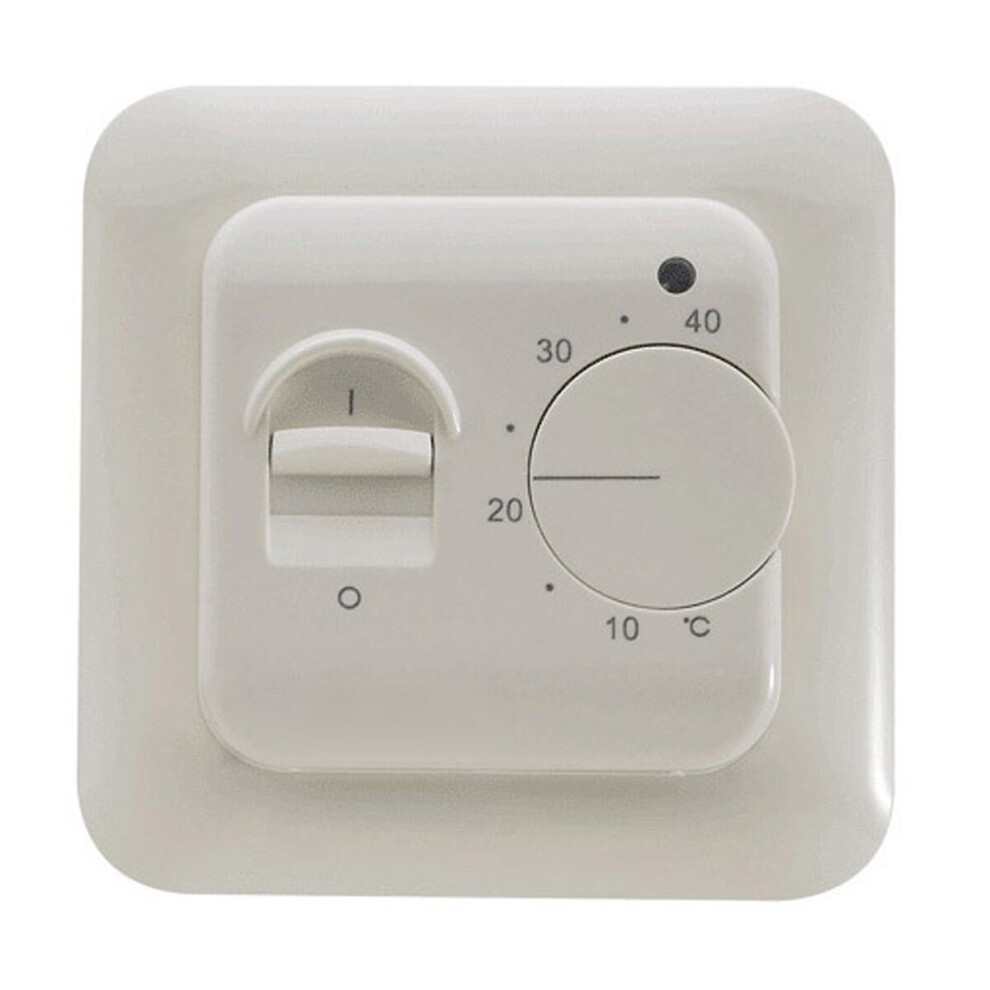

Manual Underfloor Heating Thermostat with Floor Sensor 16a

Manual Underfloor Heating Thermostat with Floor Sensor 16a Description

Description

This Thermostat is used for 2-position control with on/off output the control the temperature by means of an NTC sensor placed externally.

The thermostat acquires the room temperature with its floor sensor, and the heating contact will close when the room temperature falls below the selected setpoint.

Application

For the control of warm-water (floor) heating systems and direct electric heating systems used in Commercial buildings, Residential buildings, Light industrial buildings…

Ideal for intermittent use. These thermostats work particularly well in mild weather where heating is often not fully required.

 Features

• LED indicator is light when heating is on
• With manual switch and knob for easy operation
• On/off control output for heating device
• Full Installation and Operation Instructions Included
• Max switch rating of 16A but is is good practice to restrict load to 10-12A

Technical Specification

• Voltage: AC230V
• Power consumption: 5W
• Setting range: 4℃～45℃
• Switching differential: ±0.5K
• Ambient temperature: -5℃～50℃
• Protective housing: IP20
• Housing material: self-extinguishing PC

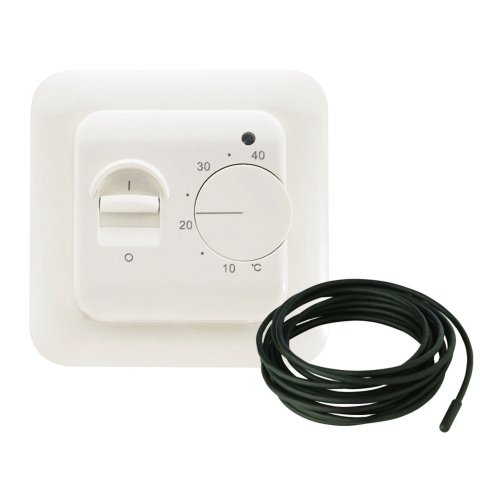

• Floor sensor: rubber-thermoplastic NTC sensor, cable length is 3m

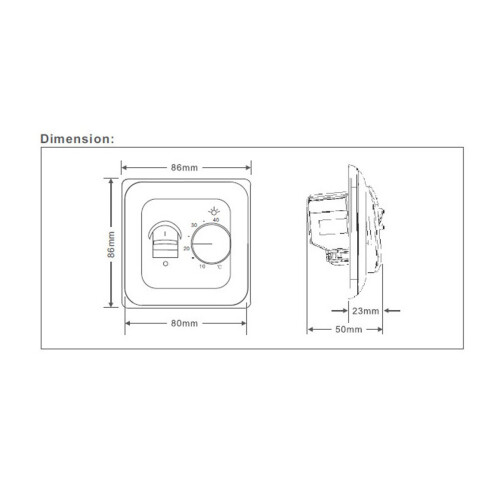

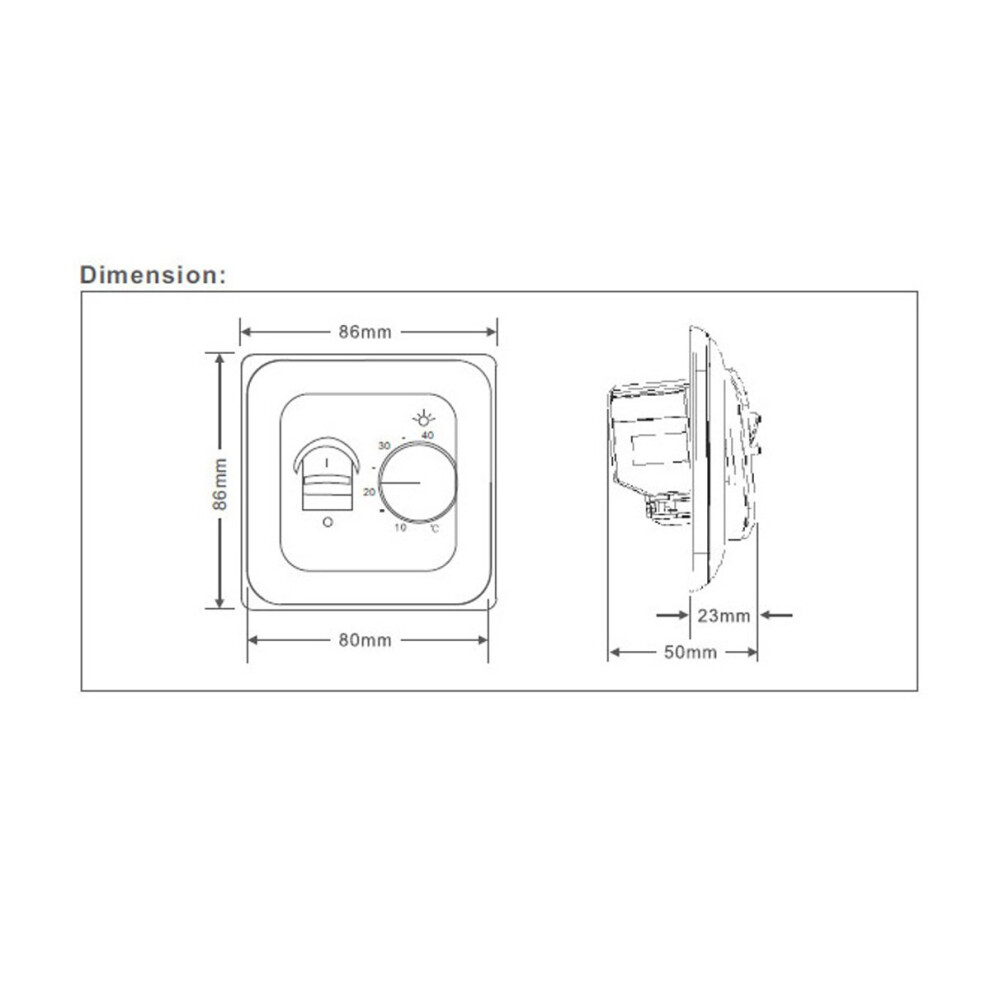

• 86 x 86mm, will fit into a standard single switch backbox 35mm deep.
• Certification CE
