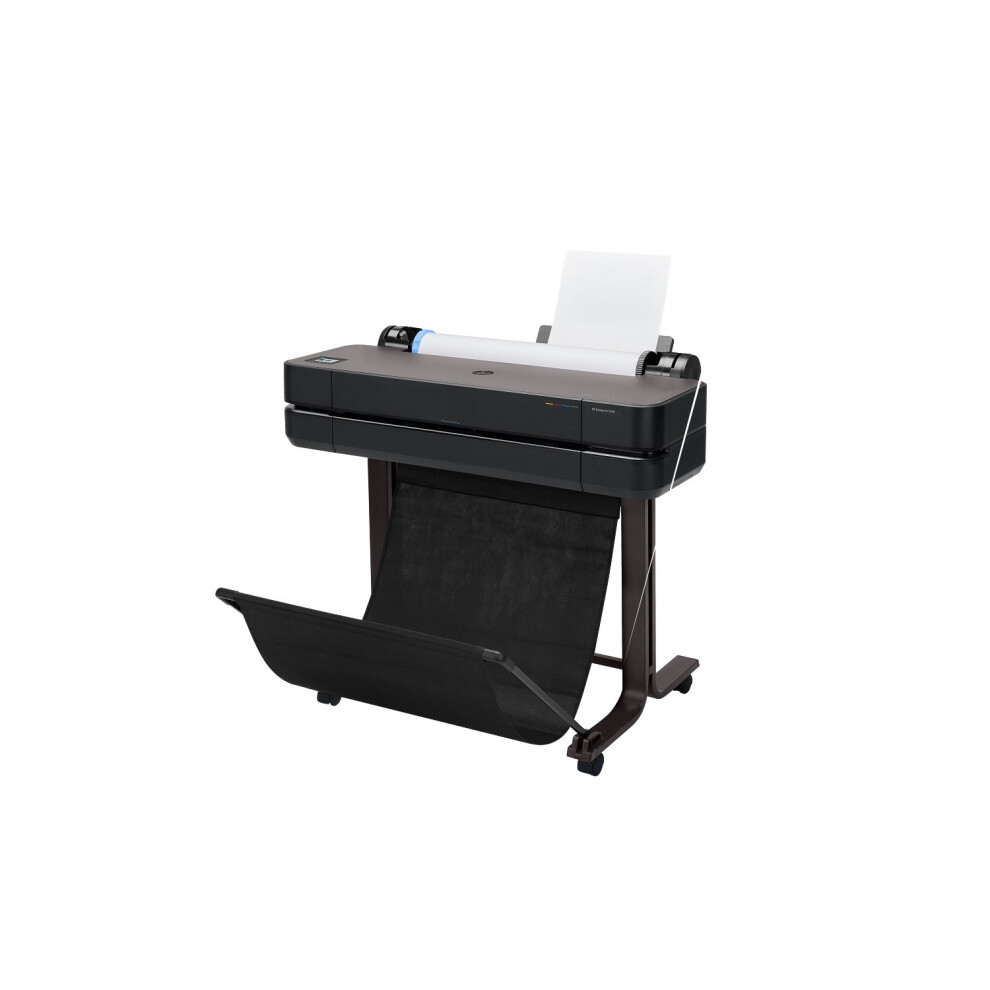

HP DesignJet T630 24" / A1 large format plotter printer 2025 edition (5HB09D)

HP DesignJet T630 24" / A1 large format plotter printer 2025 edition (5HB09D) Description

Focus on the project, not your plotter. This printer delivers incredible ease of use with HP Click Print solutions.[2] It's responsibly designed to help you save energy[4] and reduce plastics use[7]. Plus, it's compact and adaptable-to fit the way you work. Powered by Frooition

• Laptops
• Desktops
• Monitors
• Printers
• Ink, Toner & Paper
• Accessories

Expert service direct from HP HP DesignJet T630 24" / A1 large format plotter printer 2025 edition (5HB09D) Item Description Focus on the project, not your plotter. This printer delivers incredible ease of use with HP Click Print solutions.[2] It's responsibly designed to help you save energy[4] and reduce plastics use[7]. Plus, it's compact and adaptable-to fit the way you work. HP DesignJet T630 24" / A1 large format plotter printer 2025 edition (5HB09D)

Overview

Functions: Print

Connectivity, standard: Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct

Dimensions (W x D x H): 1013 x 605 x 932 mm

Package dimensions (W x D x H): 1155 x 575 x 475 mm

Media sizes standard (metric rolls): 279 to 610 mm

Model size: 610 mm

Internal Storage: None

Ink drop: 5.5 pl (C, M, Y); 12 pl (K)

Ink types: Dye-based (C, M, Y); pigment-based (K)

Line accuracy: 0.1%[3]

Theoretical minimum line width: 0.02 mm

Finished output handling: Sheet feed, roll feed, automatic sheet feeder, media bin, automatic horizontal cutter

Roll external diameter: 100 mm

Roll maximum input: 1

Roll maximum weight: 4.1 kg

Media sizes, custom: Auto sheet feeder: 210 x 279 to 330 x 482 mm; manual feed: 210 x 279 to 610 x 1897 mm

Media sizes supported: Auto sheet feeder: A4, A3; manual feed: A4, A3, A2, A1

Media thickness: Up to 11.8 mil

Media thickness maximum (metric): Up to 0.3 mm

Media types: Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)

Media weight, recommended: 60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (auto sheet feeder)

Media width, maximum: 610 mm

Memory: 1 GB

Print multi-size files in one click: Yes

Maximum optical density (black): 8 L* min/2.10 D[4]

High capacity of page yield (colour): 20 ml of ink yields 101 A1 pages, taking into account maintenance routines[2]

Playbook TS icon connectivity: TS icon dimensions AiO: TS icon display AiO: consumption: <35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (off)

Power: Input voltage (auto ranging): 100-240 V (10%), 50/60 Hz (3 Hz), 1200 mA max

Supported Primary Applications: Line drawings; Presentations; Renderings

Print Cartridges/Bottle, Number: 4 (C, M, Y, K) cartridges

Print Cartridge/Bottle, Color(s): Cyan, magenta, yellow, black

Print cartridge/bottle volume: 80 ml (K); 38 ml (K); 29 ml (C, M, Y) per cartridge

Printer drivers included: Raster driver for macOS and Windows, HP-GL/2 driver for Windows, HP Click Driver for Windows 11

Print head nozzles: 1376

Print heads: 1 (cyan, magenta, yellow, black)

Print languages: HP-GL/2, HP-RTL, CALS G4, JPEG, URF

Non-printable area (cut-sheet): 5 x 5 x 5 x 17 mm (manual feed); 5 x 5 x 5 x 5 mm (input tray)

Non-printable area (roll media): 5 x 5 x 5 x 5 mm

Printing path: HP Click App, HP Click Driver, HP app, Windows and MacOS printer drivers, HP-GL/2 driver for Windows, Apple AirPrint, Android Default Print Service, Printing support for ChromeOS, Email printing

Print quality color (best): Up to 2400 x 1200 optimised dpi

Print speed: 30 sec/page on A1, 76 A1 prints per hour[1]

Print technology: HP Thermal Inkjet

Product disclaimer: This printer is intended to work only with cartridges that have a new or reused HP chip, and it uses dynamic security measures to block cartridges using a non-HP chip. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. A reused HP chip enables the use of reused, remanufactured, and refilled cartridges. More at:

More at: safety: ; media: Q1396A HP Universal Bond Paper (FSC certified)[5] (recyclable)[6] 610 mm x 45.7 m;C6019B HP Coated Paper (FSC certified)[5] (recyclable)[6] 610 mm x 45.7 m;C6029C HP Heavyweight Coated Paper (FSC certified)[5] (recyclable)[6] 610 mm x 30.5 m

Remote print enabled: Yes

Security features: HP Wolf Essential Security: Secure boot with HW root of trust; Firmware Code Signature Validation; Automatic FW Updates; HTTPS Redirect enabled by default; SNMPv1/2 read-only by default; SNMPv3 disabled by default; Write-protected memory; HP Cartridge Security; Unique password; Disable USB ports; TLS 1.2; 802.1x; IPv4 & IPv6 Compatibility; CA/JD Compatibility

Software included: HP Click App for Windows and macOS, HP Click Driver for Windows 11, HP app for Windows, macOS, Android and iOS

Weight: 28.9 kg

Package weight: 38 kg

What's in the box: HP DesignJet T630 24-in Printer, printer stand, automatic sheet feeder, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord

Manufacturer Warranty: One-year limited hardware warranty
