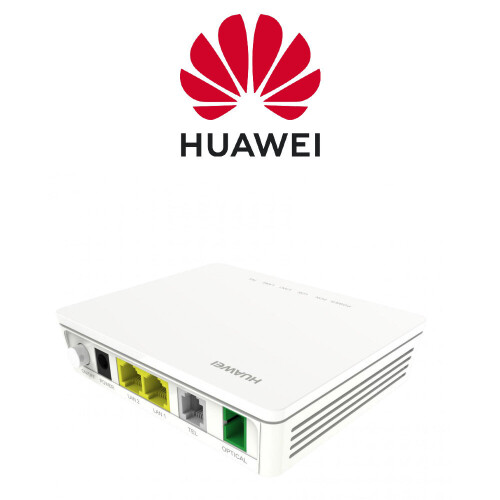

HUAWEI Broadband Network Terminal EchoLife EG8120L

HUAWEI Broadband Network Terminal EchoLife EG8120L Description

HUAWEI Broadband Network Terminal EchoLife EG8120L

The EchoLife EG8120L is an intelligent routing-type ONT that provides one GE port, one POTS port, and one FE port. The EG8120L features high-performance service forwarding capabilities to ensure excellent experiences with VoIP, Internet, and HD video services. Therefore, the EG8120L provides a perfect terminal solution and future-oriented service-supporting capabilities for networks.

Features

• UK Standard Adapter English
• Intelligent routing-type ONT
• features high-performance service forwarding capabilities.
• Ports: 1 telephony + 1 GE + 1 FE port
• Plug-and-play (PnP) function: Internet and IPTV services can be implemented with a simple click on the NMS and no on-site configuration is required.
• Remote diagnosis: the remote fault location is implemented through the precise positioning feeder and connection cables and the identification of software and hardware problems.
• High-speed transmission: transmission at GE line speed.

Specifications

Operating Temperature 0°C to +40°C
Operating Humidity 5% RH to 95% RH (non-condensing)
Power Adapter Input 100V to 240V AC, 50/60 Hz
System Power Supply 11V to 14V DC, 1A
Static Power Consumption 3.8W
Maximum Power Consumption 4.9W
Ports 1 POTS + 1 GE + 1 FE
Indicators POWER/PON/LOS/LAN/TEL
Dimensions (H x W x D) 30 mm x 115 mm x 94 mm
Weight About 155g

Includes

1 X Echolife Terminal
1 X Power supply unit
1 X Ethernet (Phone line) cord
