Humidifier Module DIY Kit Nebulizing Control Board Ultrasonic Nebulizer Mist Driver Circuit Board 6 Nozzle

Humidifier Module DIY Kit Nebulizing Control Board Ultrasonic Nebulizer Mist Driver Circuit Board 6 Nozzle Description

1. Using 1.2MM FR-4 material, the circuit board is designed reasonably and has a long service life.
2. with strong versatility, high fog output, stable performance, simple use, and easy to get started with.
3. Six nozzles support six , dynamic , single and multiple modes.
4. The module set is ready to use and comes with a bracket and cotton swab for easy assembly.
5. which atomizes water into delicate water molecules through micropores, dispersing them into the air.

Name:Six Atomization Driving Plate
Power Plug:TYPE-C Interface
Rated Voltage:DC5V (Power Supply)
Rated Current:300MA (Minimum 2A)
Power:2.5-3W
Atomization Frequency:108KHZ 2KHZ
Name:Six Tablets
Drive Voltage:5V
Resonant Frequency:108-110KHZ 5
Rated Power:2W
Punch Count:1100
Aperture:4-5UM
Wire Terminal:PH2.0
Notes:The printed words on the PCB appearance from batch to batch, but it does not affect the use.

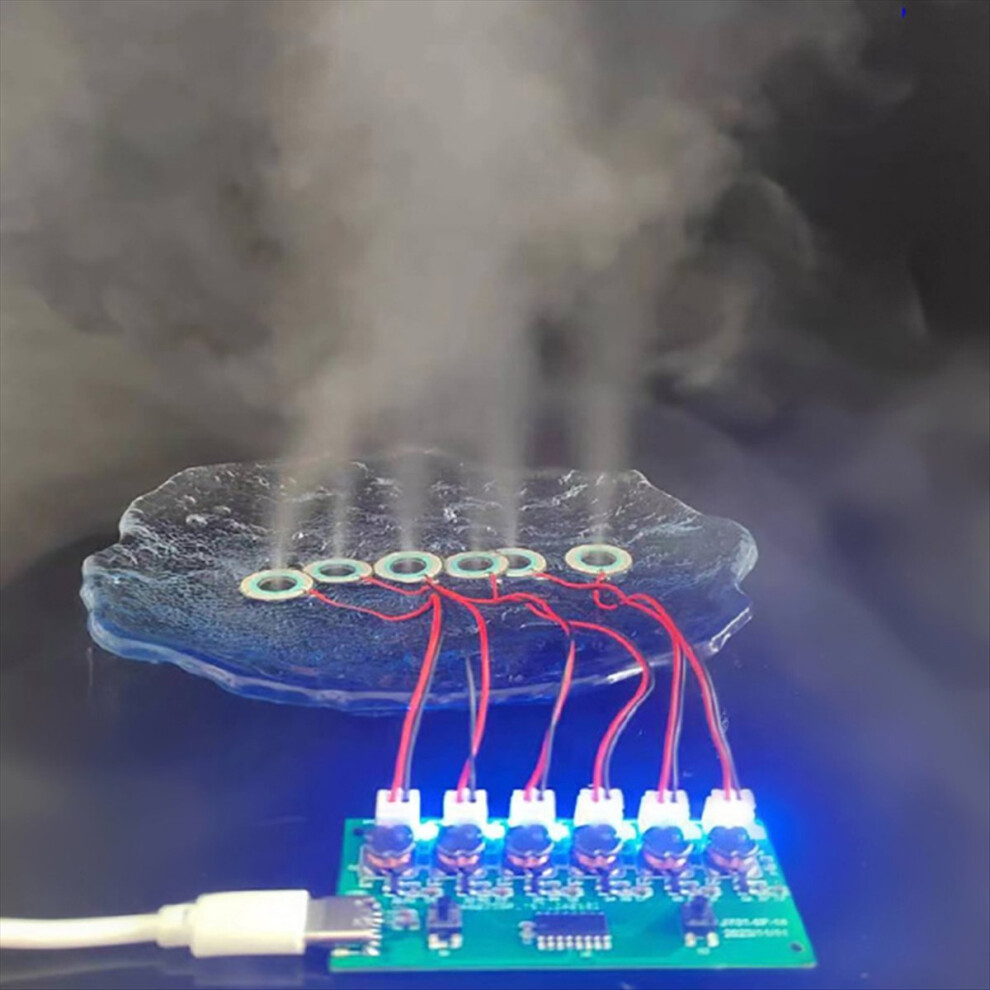

How to Use It
1. Charge it with an USB power cord.
2. Place the atomizer on a shallow or sponge in water. Note that the welding of the atomizer plate upwards.
3. the key to it. Then Enjoy Your Soft Moist Air.
Note: Due to different production batches, the product appearance, color, and printing , but it not affect the use.
Colour:As Shown
Material:PCB

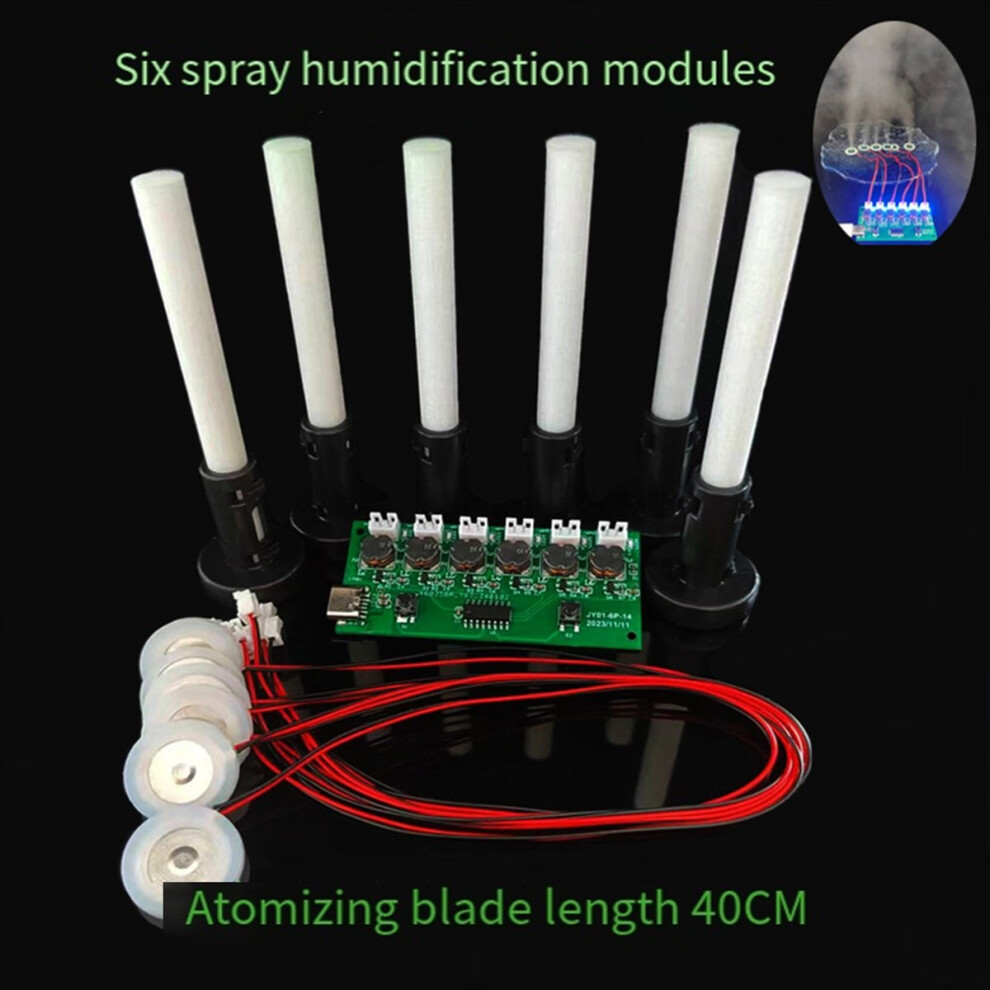

Package Contents:
1 x Module
6 x Cotton Swab

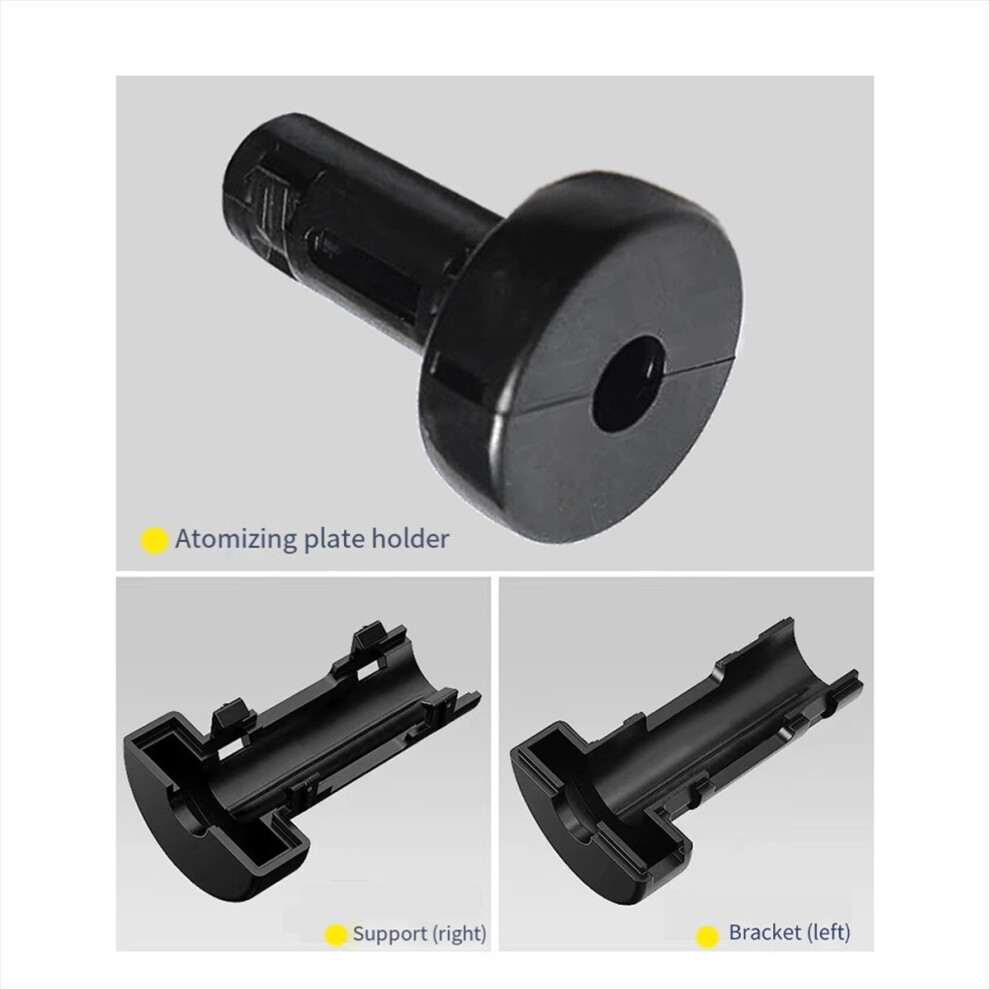

6 x Bracket
6 x Atomization Plate

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
