Infinite Cycle Relay Module ON/OFF Adjustable Timer 1W

Infinite Cycle Relay Module ON/OFF Adjustable Timer 1W Description

Infinite Cycle Relay Module ON OFF Relay AC Adjustable Delay Timer Module
Item Type: Relay Module
Power Consumption: <1.0W
Life: 100,000 operations

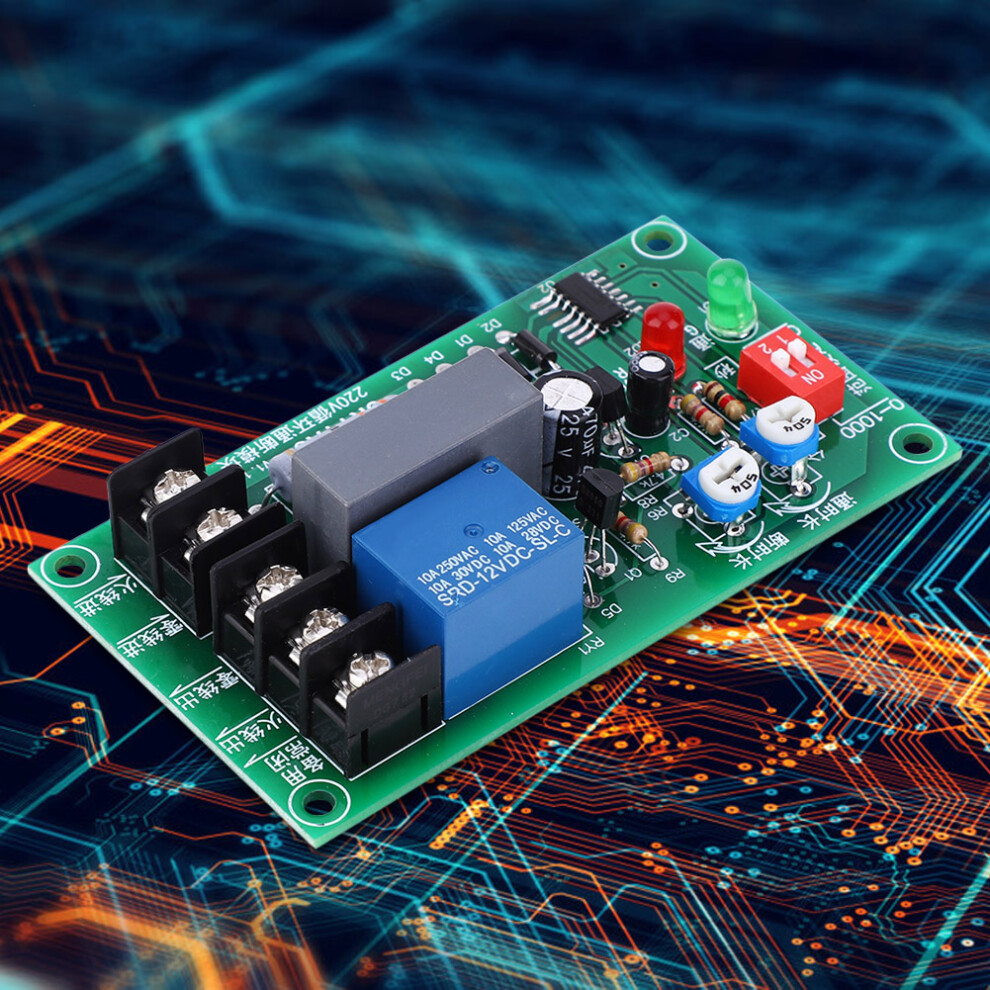

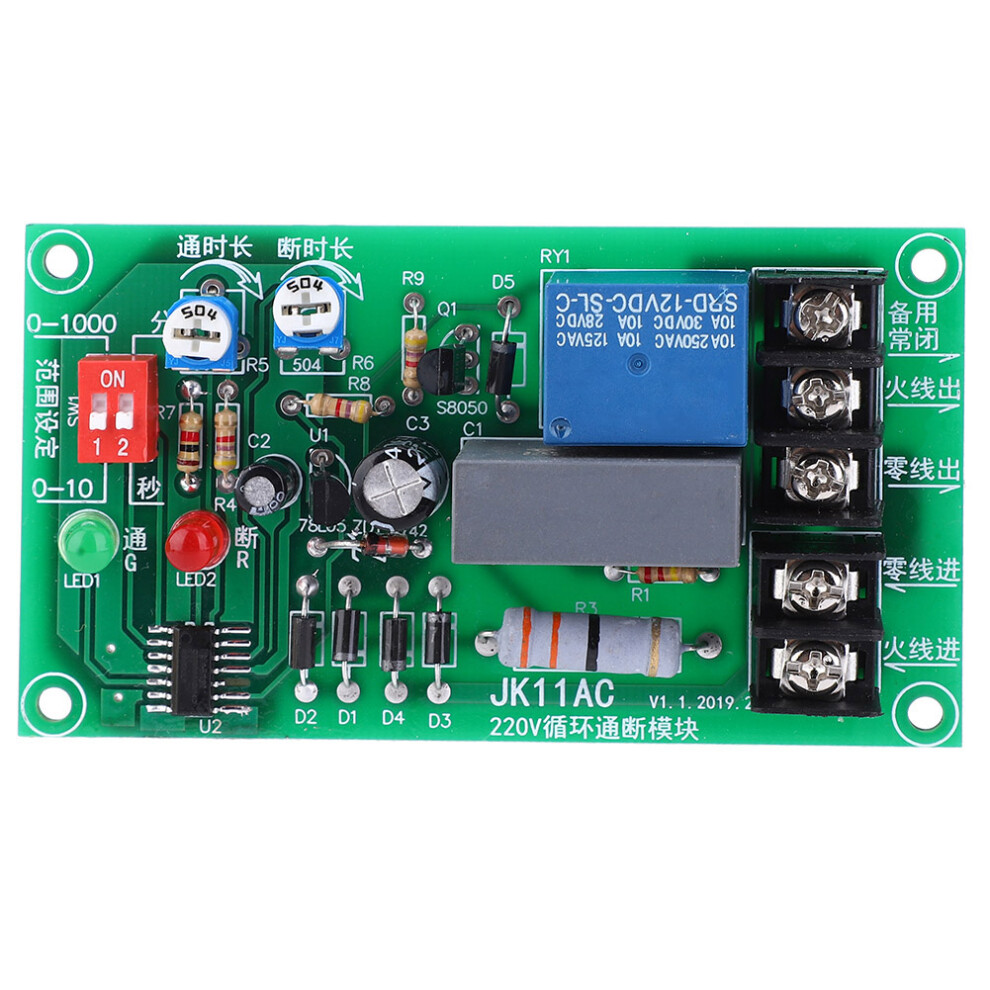

Wiring Terminal:
<--Live wire into the mains L line (Live wire) input
<--Neutral wire into the mains N line (Neutral wire) input
-->N line is connected to load N line, most appliances do not need to strictly distinguish LN line
-->The live wire is connected to the load L wire. Most appliances do not need to strictly distinguish the LN wire.
-->Normally closed end of the L wire output of the live wire normally closed terminal, generally need not be connected.
Instructions:
Time can be set under power on and power off

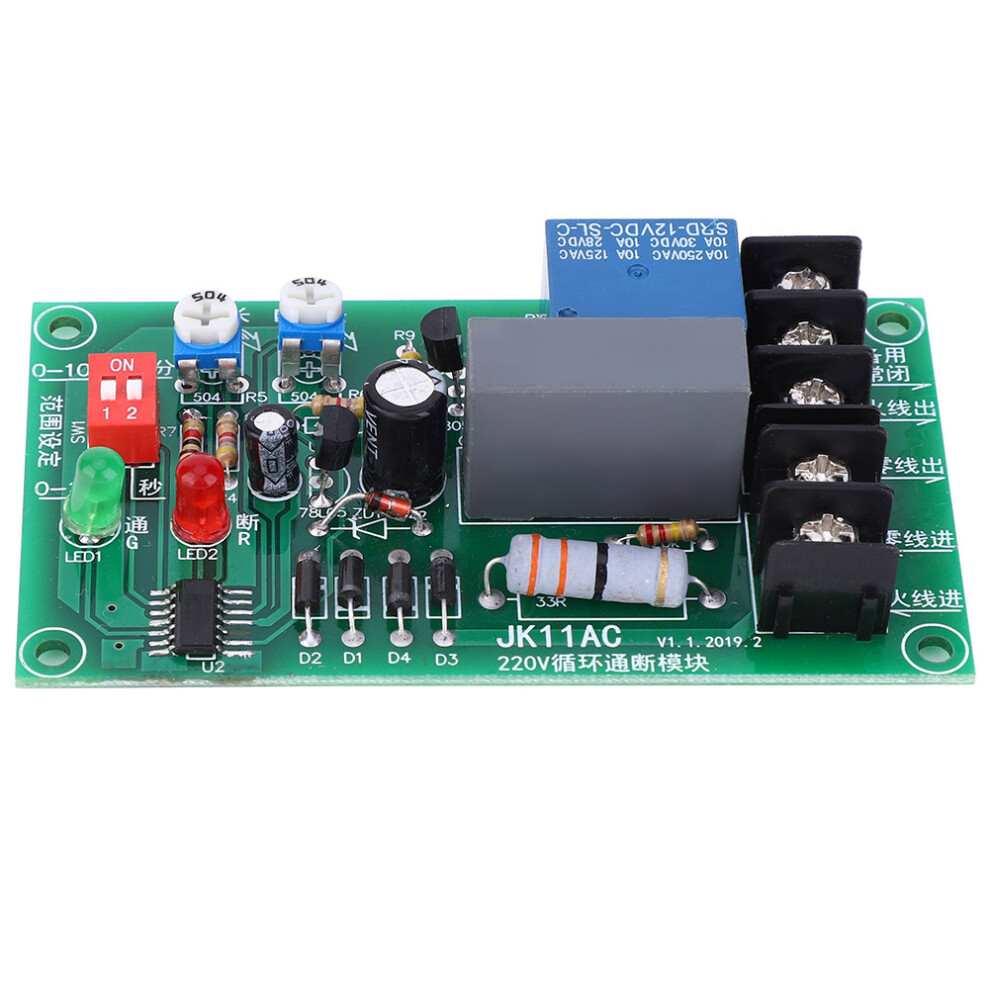

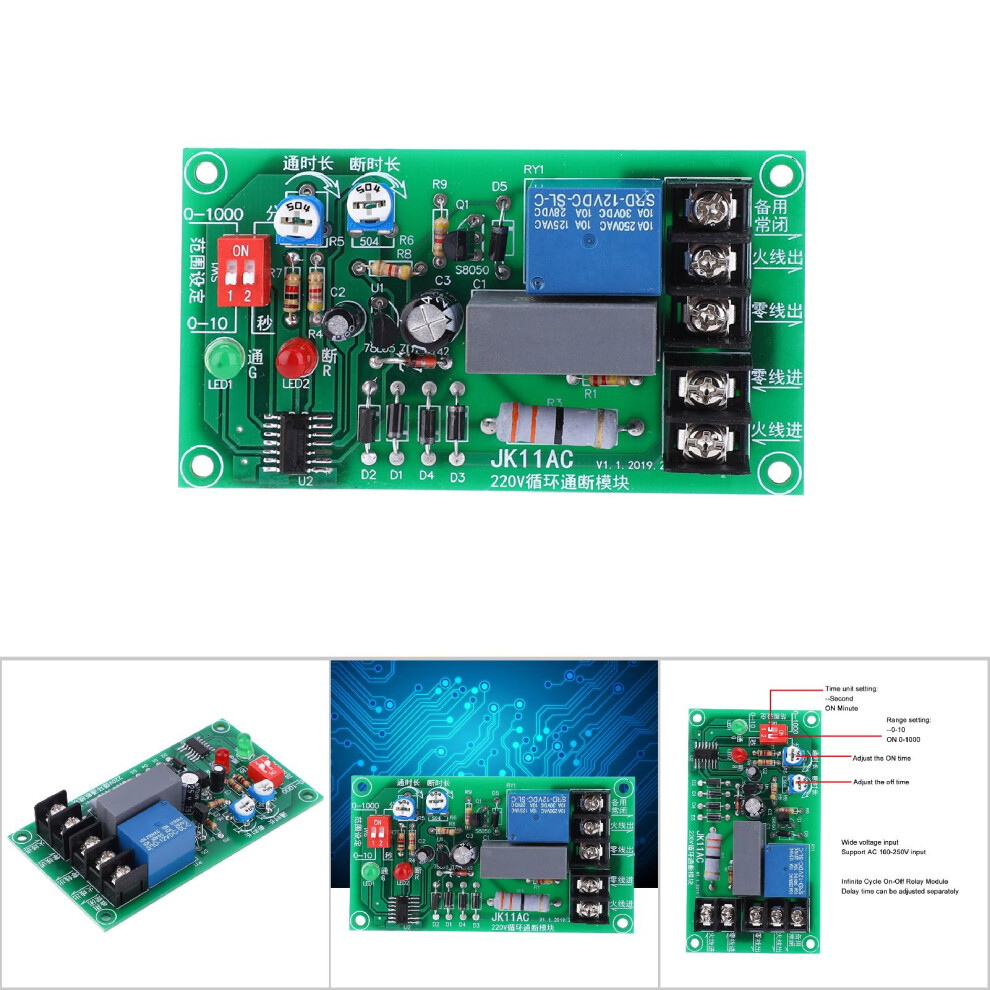

First determine the range and unit of the delay. The two DIP switches control the on-time and off-time at the same time. They are shared.
The first bit of the DIP switch is used to set the adjustment range. The OFF position is 0-10 and the ON position is 0-1000.
The second bit of the DIP switch is used to set the time unit. The OFF position is seconds and the ON position is minutes.
