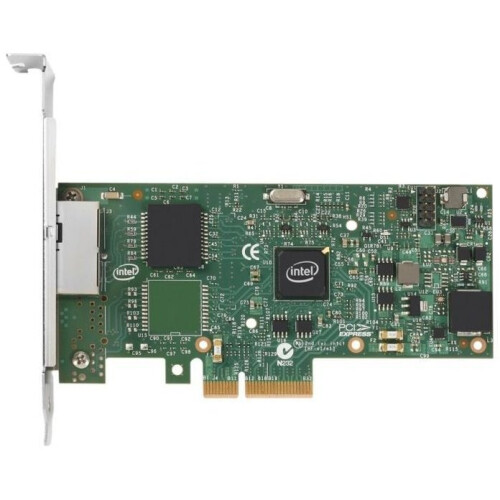

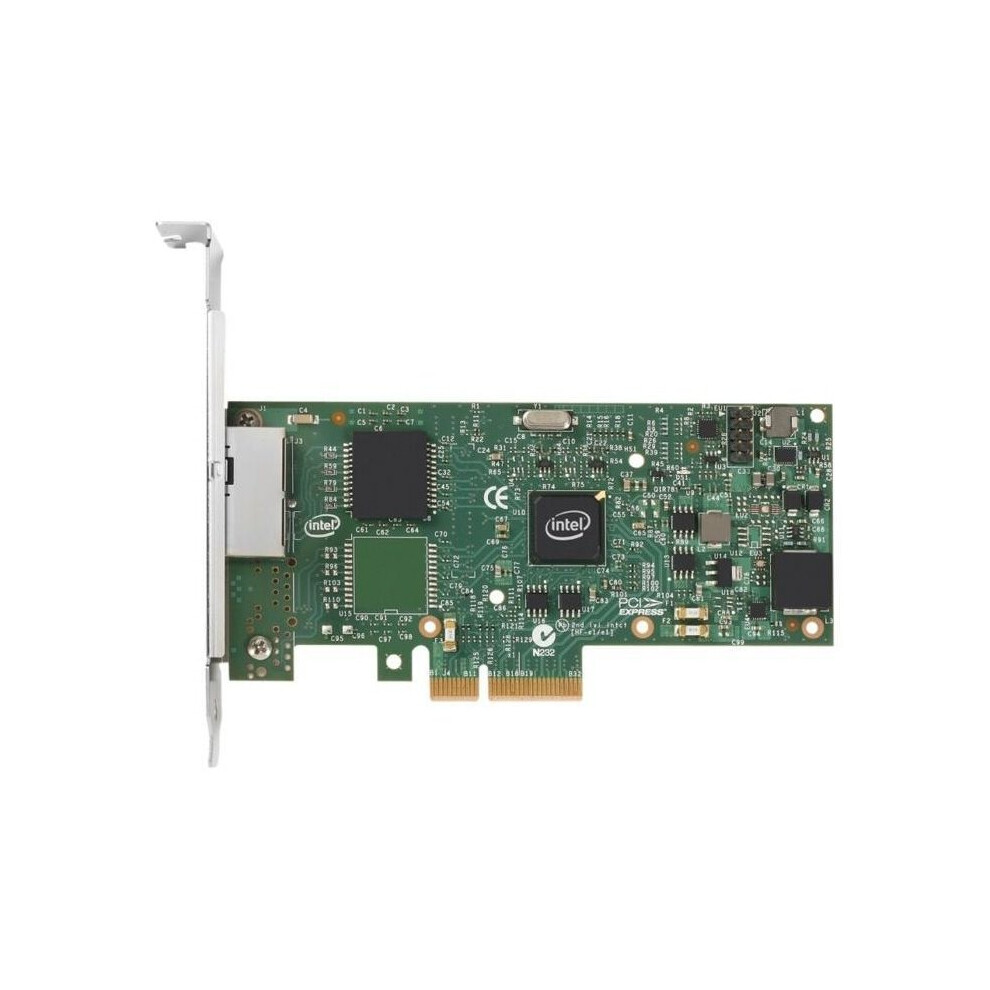

Intel I350-T2V2 Internal Ethernet 1000Mbit/s networking card
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 135,000 Trustpilot reviews and an 'Excellent' rating
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Tue 13th - Mon 19th Oct
Returns: 30 days
180-day payment protection
You might also like
Intel I350-T2V2 Internal Ethernet 1000Mbit/s networking card Description
Based on the new Intel Ethernet Controller I350 series, the Intel Ethernet Server Adapter I350 represents the next step in the GbE networking evolution for the enterprise and data center. It introduces new levels of performance through industry-leading enhancements for both virtualized and Internet small computer system interface (iSCSI) unified networking environments. This new family of adapters also includes new power management technologies such as Energy-Efficient Ethernet (EEE) and direct memory access coalescing (DMAC).
Ports & interfaces Internal Yes Ethernet LAN (RJ-45) ports 2 Interface Ethernet Host interface PCI-E Connectivity technology Wired Bandwidth Full duplex Yes Data transfer rate (max) 1000 Mbit/s Networking Chipset Intel I350 Ethernet LAN Yes Cabling technology 10/100/1000BaseT(X) Networking standards IEEE 802.1as,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z Maximum operating distance 100 m LAN controller Intel I350 Ethernet LAN data rates 10,100,1000 Mbit/s Technical details Interface type PCIe v2.1 (5.0GT/s) Storage-over-ethernet Yes PCI-SIG* SR-IOV Capable Yes PCI Card form factor Full-height (low-profile) On-chip QoS and Traffic Management Yes iWARP/RDMA No Intelligent Offloads No Intel Virtualization Technology for Connectivity (VT-c) Yes Intel Virtual Machine Device Queues (VMDq) Yes Intel Flexible Port Partitioning Yes Intel Ethernet Power Management Yes Thermal Design Power (TDP) 4.4 W Product type 13 Halogen free No Status Launched Power Power consumption (typical) 5 W Protocols Supported network protocols TCP, UDP, IP Design PCI Card form factor Full-height (low-profile) Product family Intel Gigabit server adapter Product series Intel I350 Product codename Powerville Performance Ethernet adapter ARK ID 84804 Storage-over-ethernet Yes PCI-SIG* SR-IOV Capable Yes On-chip QoS and Traffic Management Yes iWARP/RDMA No Intelligent Offloads No Intel Virtual Machine Device Queues (VMDq) Yes Intel Flexible Port Partitioning Yes Intel Ethernet Power Management Yes System requirements Compatibility Server Weight & dimensions Width 68.9 mm Depth 135.4 mm Operational conditions Operating temperature (T-T) 0 - 55 °C Storage temperature (T-T) -40 - 70 °C Storage relative humidity (H-H) 35 - 90% Other features Interface type PCIe v2.1 (5.0GT/s) Cable type Cat 5 up to 100m Intel Virtualization Technology for Connectivity (VT-c) Yes Compatible operating systems Windows Server 2012 R2*, Windows Server 2012*, Windows 8*, Windows Server 2008 R2*, Windows 7*, Windows Server 2008*, Windows Vista*, Windows Server 2003 R2*, Windows Server 2003*, Windows XP Professional, Linux* Stable Kernel version 3.x, 2.6,x, Red Hat Enterprise Linux* 5, 6, SUSE Linux Enterprise Server* 10, 11, FreeBSD 9*,, VMware ESX/ESXi*
Details
| OPC | P89GMR |
|---|---|
| Brand | |
| Codes | 5032037066105 (EAN) |
Detailed Product Information
| Connectivity Technology | Wired |
|---|---|
| Connectivity Technology | Wired |
| Connectivity Technology | Wired |
Networking Product Details
| Internal | Y |
|---|---|
| Device Interface | Ethernet |
| Internal | Y |
| Device Interface | Ethernet |
| Internal | Y |
| Device Interface | Ethernet |
Disclaimer: The information below is provided by various external sources and should be used as a guide only.
iWARP/RDMA
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.
PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
Intel® Ethernet Power Management
Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.
Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance
iWARP/RDMA
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.
PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
Intel® Ethernet Power Management
Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.
Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance
Alternative names:
- Intel I350T2V2BLK network card Internal Ethernet 1000 Mbit/s
- Intel I350T2V2BLK network card Internal Ethernet 1000 Mbit/s
Detailed Product Information
Other features
| Processor family | Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE) |
|---|
