Intel Wireless AC 9260 Single Pack Description

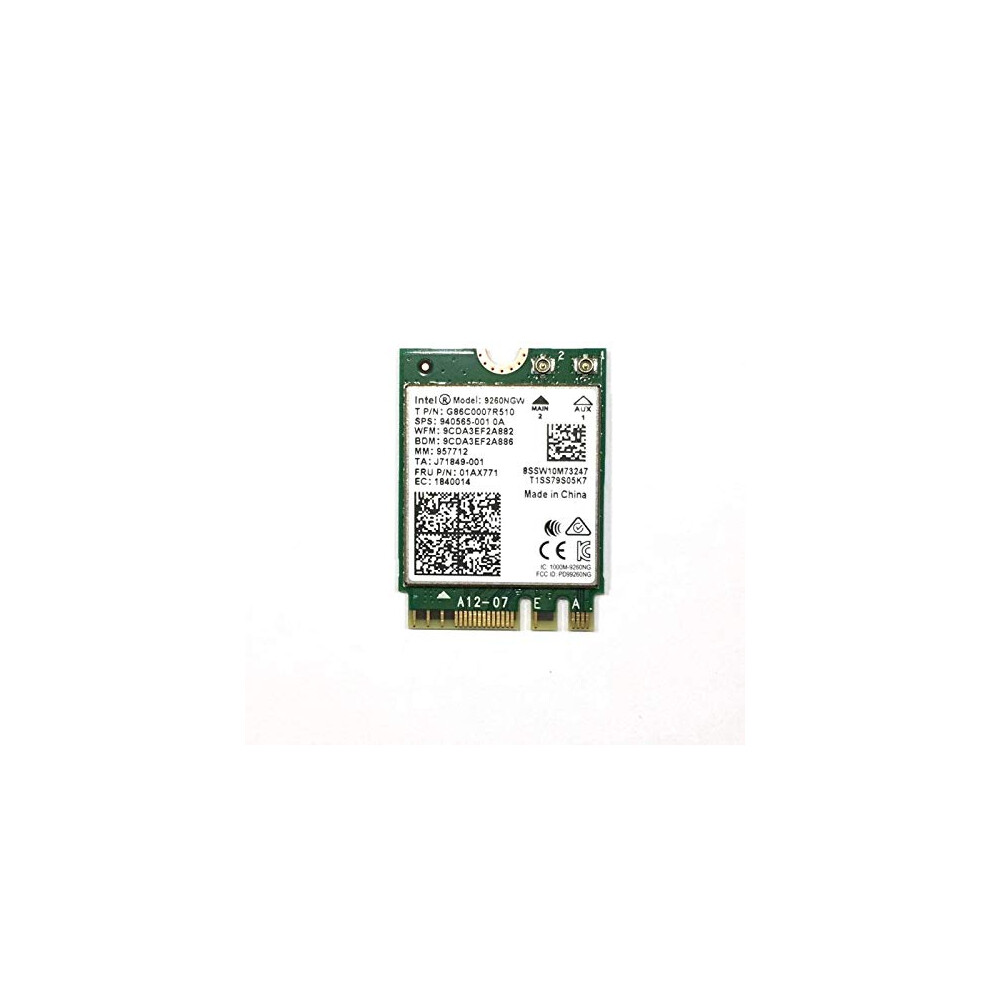

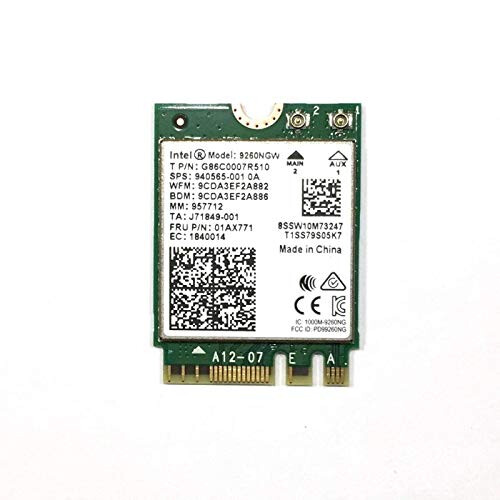

Intel Wireless AC 9260 Single Pack
Details
| OPC | PDTTDGY |
|---|---|
| Brand | |
| Codes | 0735858358248 (EAN) |
Disclaimer: The information below is provided by various external sources and should be used as a guide only.
Ultra Wi-Fi. Ultra Features. Ultra Connected Experience
The Intel® Wireless-AC 9260 adapter supports Bluetooth+ 5 and 2x2 802.11ac Wi-Fi including wave 2 features such as 160MHz channels, delivering up to 1.73Gbps1 and downlink MU-MIMO. These new features deliver a significant increase in user speeds in dense deployments, supporting fast downloads and long battery life compared to legacy 802.11ac devices. Combined with Intel® Core™ processors and exceptional Intel wireless innovations, the Intel® Wireless-AC 9260 can provide Gigabit download speed1 and dramatically improve your connected experience at home, work, or on the go.
Alternative names:
- Intel 9260.NGWG network card Internal WLAN 1730 Mbit/s
Detailed Product Information
Ports & interfaces
| Interface | WLAN |
|---|---|
| Connectivity technology | Wireless |
| Host interface | M.2 |
Design
| Internal | Yes |
|---|---|
| Certification | Wi-Fi, FIPS, FISMA |
| Safety | UL, C-UL, CB |
| Form factor | M.2 2230, M.2 1216 |
| Antenna type | 2x2 |
| Antenna | Yes |
| Antenna design | Internal |
Weight & dimensions
| Weight | 2.9 g |
|---|---|
| Height | 22 mm |
| Width | 30 mm |
| Depth | 2.4 mm |
Network
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
|---|---|
| Security algorithms | EAP-AKA, EAP-SIM, EAP-TLS, PEAP, TTLS, WPA, WPA2, WPA2-PSK |
| Maximum data transfer rate | 1730 Mbit/s |
| Bluetooth version | 5 |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.11w |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| WLAN data transfer rates supported | 1734 Mbit/s |
| Bandwidth (second) | 5 GHz |
| Bandwidth (first) | 2.4 GHz |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| MU-MIMO | Yes |
Operational conditions
| Operating relative humidity (H-H) | 50 - 90% |
|---|---|
| Operating temperature (T-T) | 0 - 80 °C |
Other features
| Interface type | Wi-Fi(PCIe), BT(USB) |
|---|---|
| Processor family | Intel Wireless-AC Products |
| Maximum operating temperature | 80 °C |
| Antennas quantity | 4 |
| Compliance | FIPS, FISMA |
| Supported Under vPro | Yes |
| Minimum operating temperature | 0 °C |
| Product type | Wireless |
| Status | Launched |
| Launch date | Q4'17 |
| Product brief URL | https://www.intel.com/content/www/us/en/wireless-products/dual-band-wireless-ac-9260-brief.html |
| Product series | Intel® Wireless Products |
| Product codename | Thunder Peak |
| Ethernet adapter ARK ID | 99445 |
| Export Control Classification Number (ECCN) | 5A992CN3 |
| Commodity Classification Automated Tracking System (CCATS) | G165483 |
System requirements
| Compatible operating systems | Windows 10, 64-bit*|Linux* |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64 |
| Linux operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
Logistics data
| Harmonized System (HS) code | 8517620090 |
|---|
