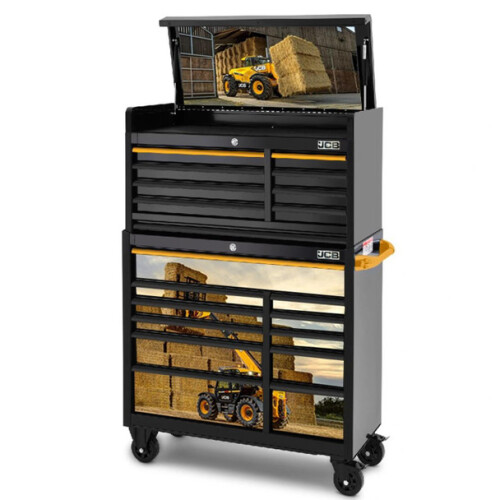

JCBTLHSTACK Roller Cabinet & Top Tool Chest Stack

JCBTLHSTACK Roller Cabinet & Top Tool Chest Stack Description

Our premium quality tool storage unit, which is 42 inches wide and 18 inches deep, combines an 11-drawer roller cabinet and 8-drawer top tool chest, creating even more space to store and protect your cherished tools.Thanks to the unit's modular design, the tool chest fits on top of the roller cabinet and is equipped with an extra-deep storage compartment, which opens on heavy-duty gas struts at the top of the unit.

KEY FEATURES:

• Iconic Design: Featuring a JCB Telehandler skin wrap.
• Patented technology to protect your tools: Raise Release Self-Latching Drawer Pulls stop the drawers from opening, even during transit!
• 19-drawer tool storage system: Includes an extra-wide and two extra-deep bottom drawers for longer and bulkier items.
• Premium quality, heavy-duty roller cabinet: Built using a rigid double-walled steel construction design complete with a rugged powder coated finish.
• High weight capacity: Cabinet is mounted upon a mixture of fixed/swivel 5” x 2” casters, while the drawers open across heavy-duty ball-bearing slides.
• Spacious top compartment: Opens on heavy-duty gas struts at the top of the unit to accommodate extra storage.
• Raise Release pull-out desk: Turn your tool storage system into a portable worktop designed to carry up to 45.36kg in weight.

SPECIFICATIONS:

Model JCBTLHSTACK

No. Of Drawers 19

Drawers Raise and Release Drawers

Drawer Dimensions for Top Chest (mm) Small Drawer x4 (300 x 414mm) | Mid Drawer x4 (596 x 414mm)

Drawer Dimensions for Roller Cabinet (mm) Top Drawer (953 x 414mm) | Mid Drawer x5 (596 x 414mm) | Small Drawer x5 (300 x 414mm)

Drawer Depths for Top Chest (mm) Shallow Drawer x8 (47mm)

Drawer Depths for Roller Cabinet (mm) Top Drawer (123mm) | Shallow Drawer x6 (47mm) | Mid Depth Drawer x2 (123mm) | Extra Large Drawer x2 (200mm)

Max Weight Load Per Drawer (kg) 45.36kg Single Slide and 90.72kg on Double Slides

Total Weight Load (kg) 1097.92

Drawer Slides Heavy Duty Roller Bearing

Locking Mechanism Tubular Lock With Coded Key

Castor Size (Inches) 5 x 2

Castor Lock Yes (On the Swivel Wheels)

Lining Material EVA & Foam Anti Slip Liner

Tool Stack Material Steel

Gross Weight (kg) 172.6

Net Weight (kg) 158.06

Fully Assembled Dimensions (H x W x L) (mm) 1600 x 465 x 1056

Packaging Dimensions (H x W x L) 1761 x 560 x 990

Warranty (Years) 10 Year Box Chassis & 3 year on other parts
