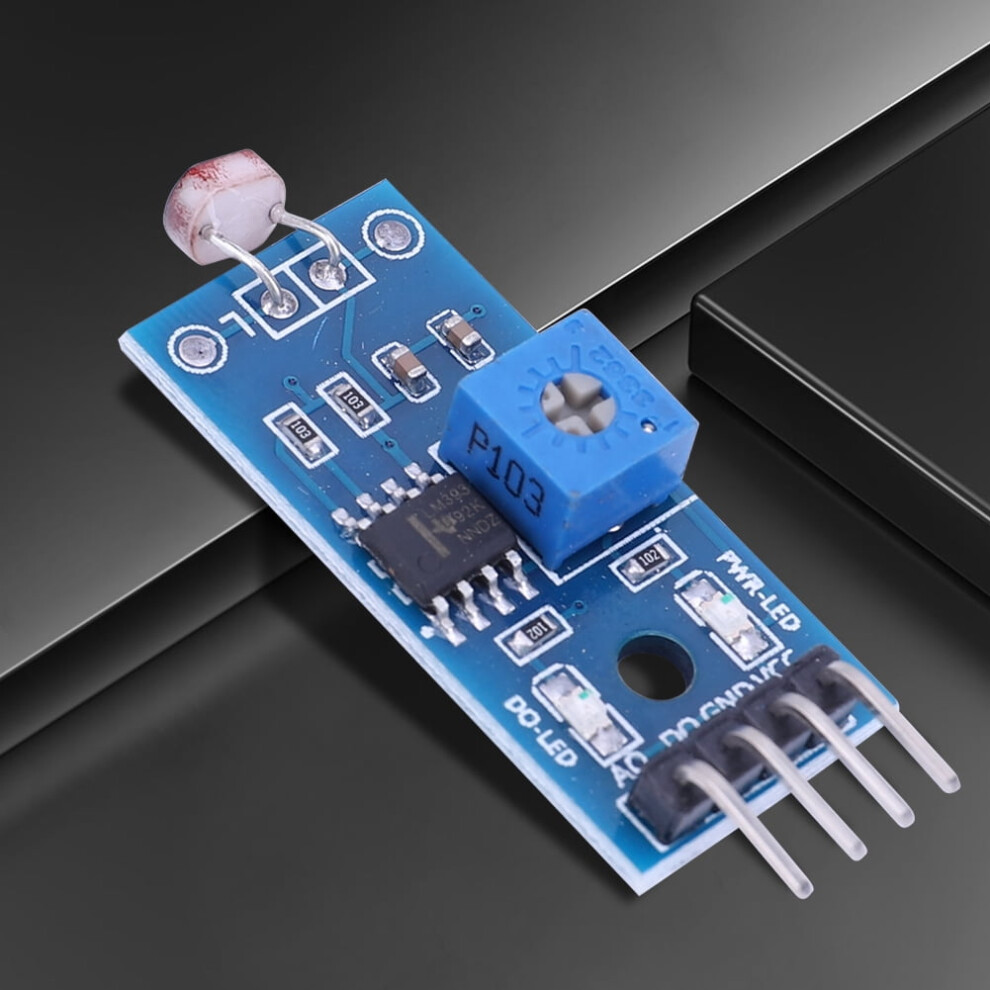

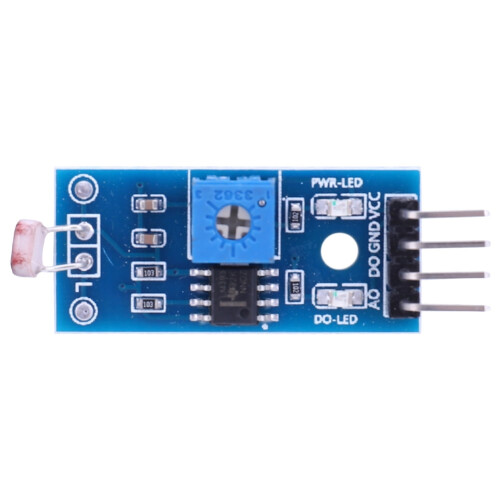

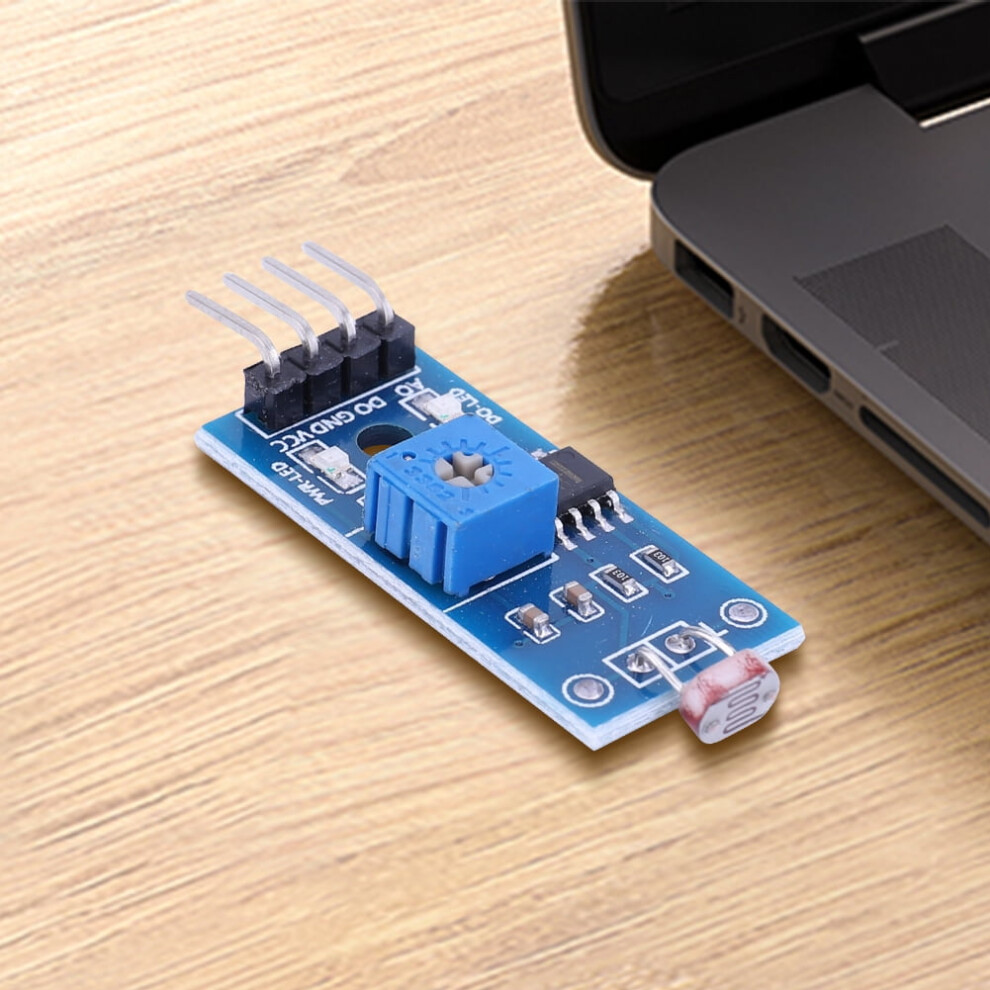

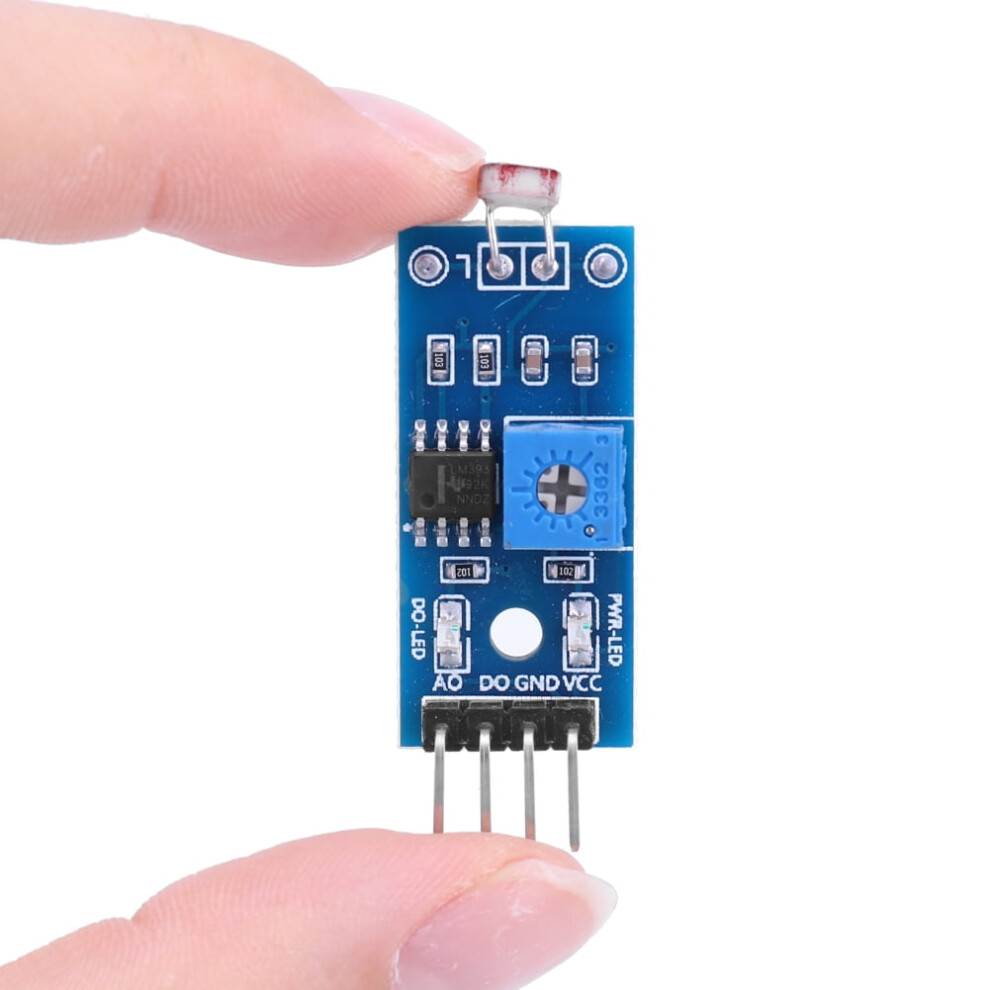

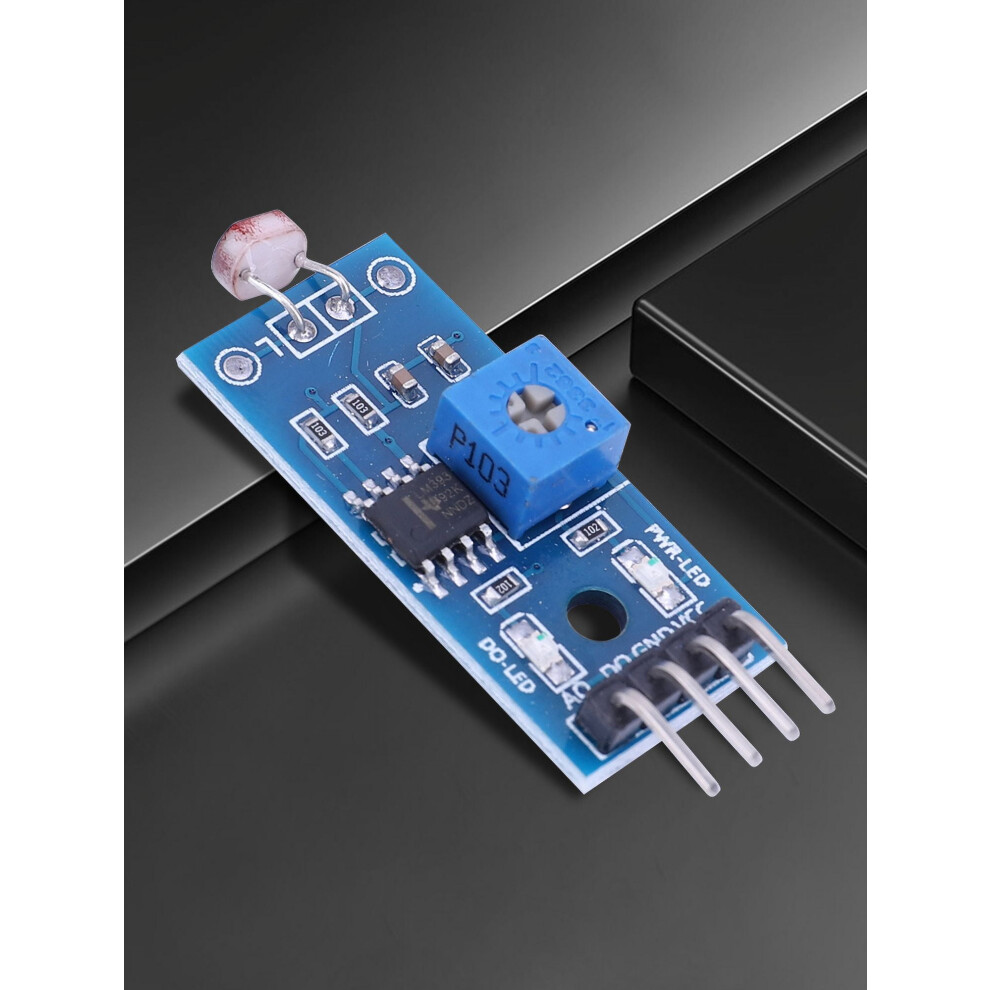

jixopn 4Pin Optical Sensitive Resistance Module 3.5V-5V LM393 Light Detection Sensitivity Light Sensor Module for Arduino DIY Kit

jixopn 4Pin Optical Sensitive Resistance Module 3.5V-5V LM393 Light Detection Sensitivity Light Sensor Module for Arduino DIY Kit Description

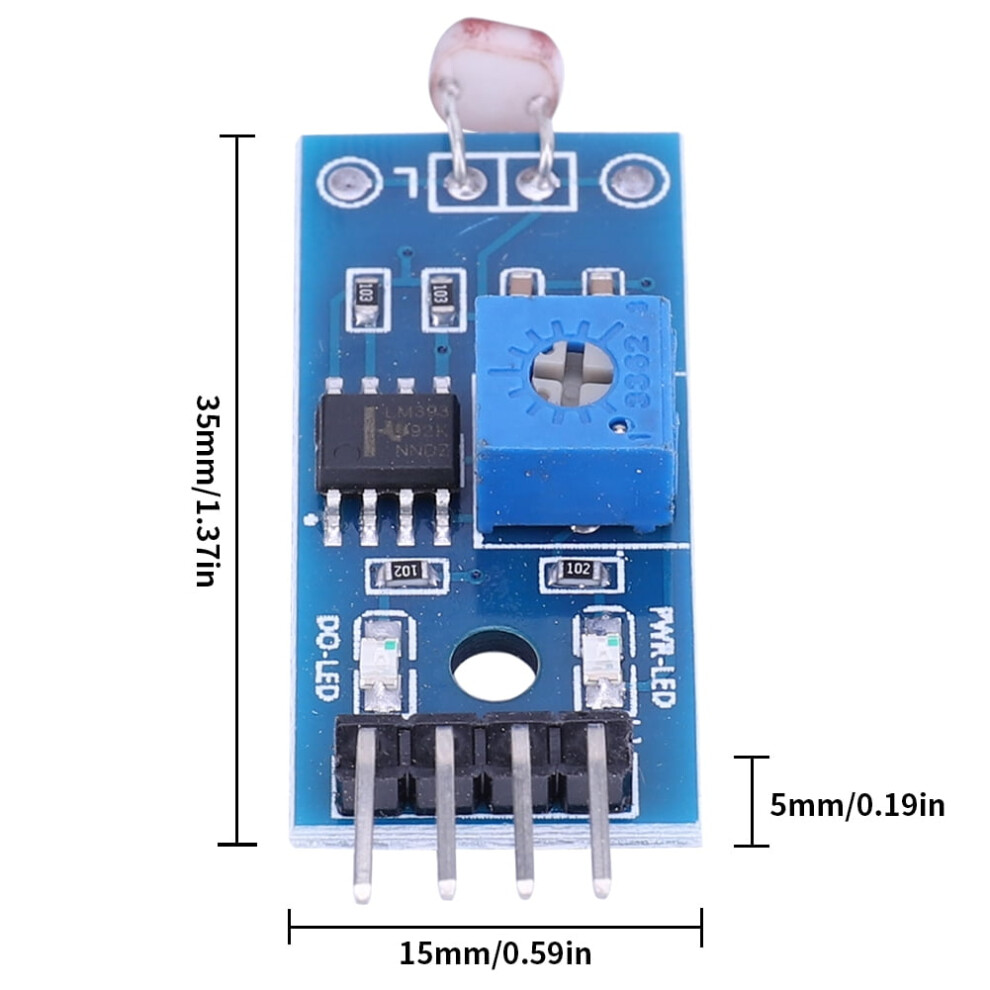

Specification: Origin: Mainland China Type: Module Condition: New Supply Voltage: 3.5-5 V Model Number: Optical Sensitive Resistance Module Output form: Digital switching display (0 and 1) Features: 1. with fixing bolt holes, easy to install 2. comparator output, clean signal, good waveform, strong driving capacity, suitable for more than 15ma 3. with adjustable potentiometer to adjust the brightness of the detection light 4. using wide voltage LM393 comparator Product size: 35 x 15 x 5mm/1.4 x 0.6 x 0.2inch Product description: 1. photoresistor module is most sensitive to ambient light, commonly used to detect the brightness of ambient lights around, or single-chip computer trigger relay module, etc.; 2; 2. The module outputs a high level at the DO terminal when the ambient light intensity does not reach the set threshold, and outputs a low level when the ambient light intensity exceeds the set threshold; 3. The DO output can be directly connected to the microcontroller, which detects the high and low level through the microcontroller, thus detecting the change of ambient light intensity; 4. The DO output can directly drive our relay module, which can form a light control switch. Product use: Light brightness detection, light brightness sensor, intelligent trolley light finding module Note: Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! Please allow 1-2cm measuring deviation due to manual measurement. Included: 1 x Optical Sensitive Resistance Module 1. with fixing bolt holes, easy to install 2. comparator output, clean signal, good waveform, strong driving capacity, suitable for more than 15ma 3. with adjustable potentiometer to adjust the brightness of the detection light 4. using wide voltage LM393 comparator Product size: 35 x 15 x 5mm/1.4 x 0.6 x 0.2inch
