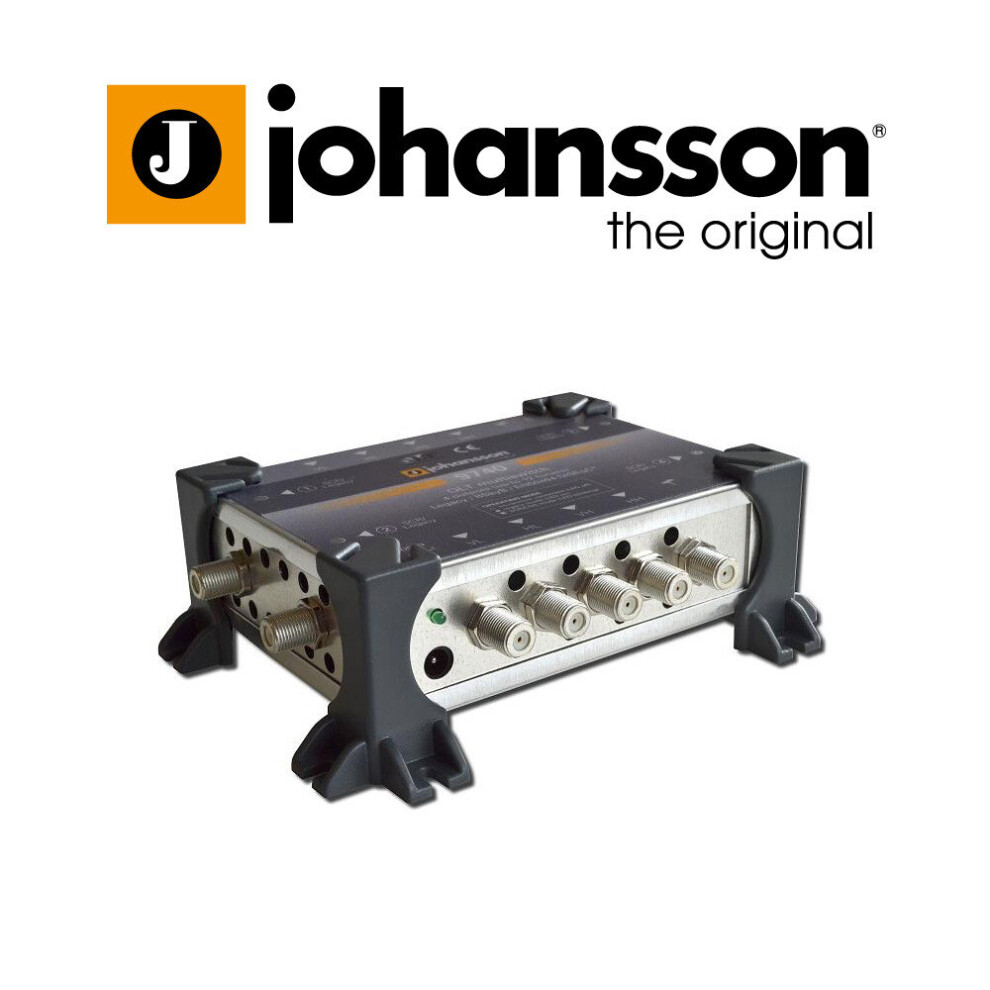

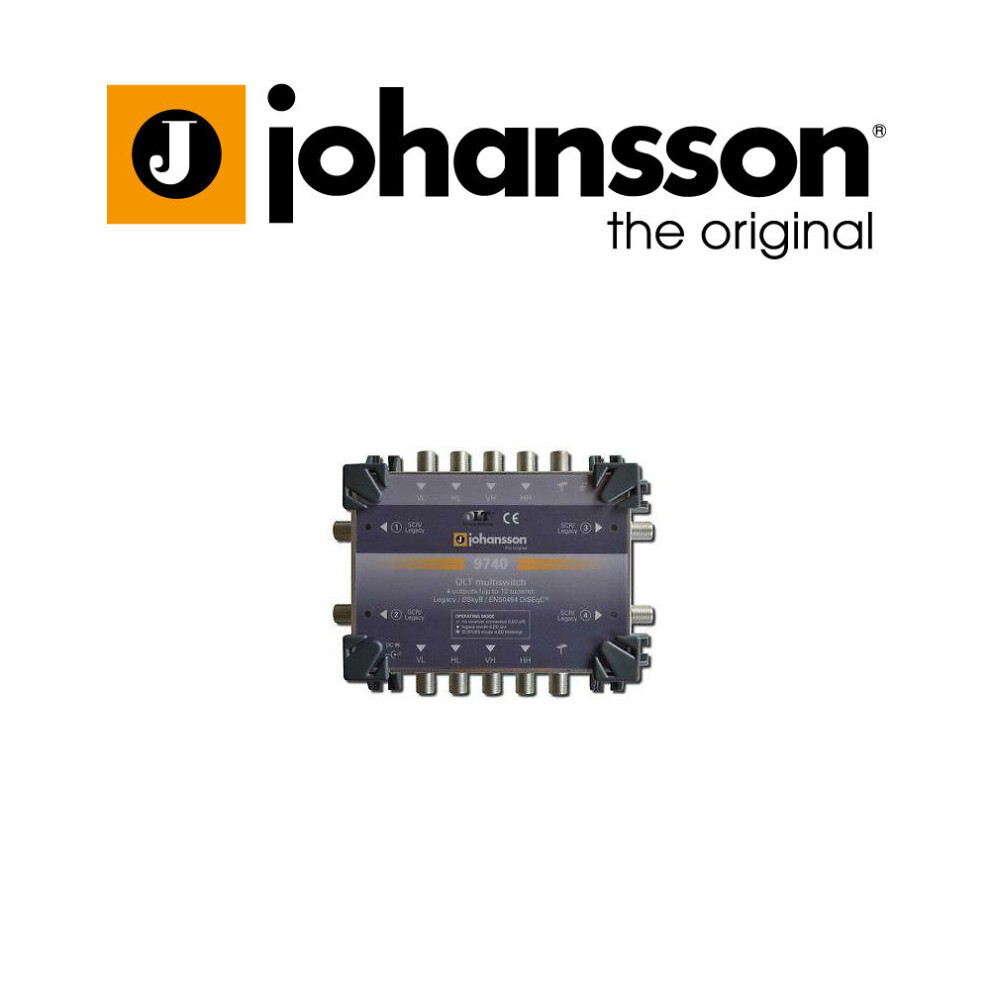

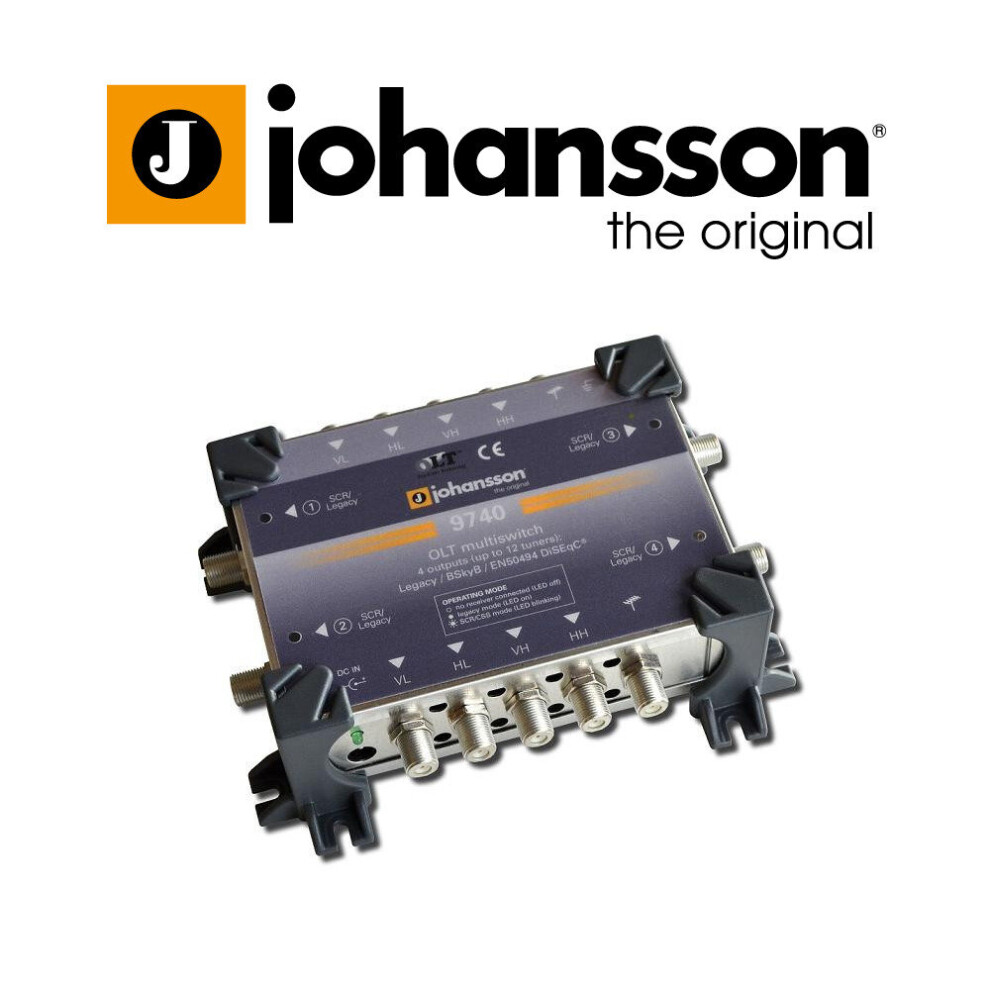

Johansson 9740 SCR 5 Inputs- 4 Outputs OLT Unicable Multiswitch
Brand Johansson
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 128,000 Trustpilot reviews and an 'Excellent' rating
£79.95
FREE Delivery
1%
Earn £0.80 instantly
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Fri 10th - Sat 11th Jul
Sold by: Creative Superstore
Returns: 30 days
180-day payment protection
Most Popular in TV Satellite Multiswitches
Description & Details
Summary
- 4 satellite inputs and LTE (4G) protected passive terrestrial input
- Wide range of satellite input levels: 60 to 91 dBμV
- High output power (AGC controlled)
- Supports auto-tuning of set-top boxes
- Low trunk-loss (ideal for cascading several multiswitches)
Johansson 9740 SCR 5 Inputs- 4 Outputs OLT Unicable Multiswitch Description
4 satellite + 1 terrestrial inputs, 4 satellite + 1 terrestrial trunk outputs, 4 outputs with 3 User Bands each: 1280/1382/1484 MHz
The device has 4 satellite inputs and an LTE-protected passive terrestrial input. The switch can distribute signals for 4 (legacy mode) up to 12 (SCR mode) receivers. By cascading several units, more receivers can be connected. Thanks to the legacy support, the multiswitch can be used even if no SCR set-top boxes are installed yet.
The wide range of satellite input levels (60 to 91 dBμV) ensures the multiswitch will work even under extreme conditions.
- 4 satellite inputs and LTE (4G) protected passive terrestrial input
- Wide range of satellite input levels: 60 to 91 dBμV
- High output power (AGC controlled)
- Supports auto-tuning of set-top boxes
- Low trunk-loss (ideal for cascading several multiswitches)
- Multistandard support: EN50494/BSkyB/Legacy (backwards compatible with old set-top boxes)
- DC input for LNB powering (ref 9933 / 9933UK)
Details:
- Model No: 9740
- Brand: Johansson
What's included:
- 1 x Johansson 9740 SCR 5 Inputs- 4 Outputs OLT Unicable Multiswitch
- 1 x Manual ( EN )
Technical Overview:
Inputs :
1 x Terrestrial
4 x Satellite
Outputs : 4 outputs (up to 12 tuners)
Frequency MHz :
Ter.: 5-790 (LTE protected)
SAT: 950-2150
SCR channels MHz : 1280/1382/1484
Supported standards : EN50494 / BSkyB / Legacy
Max. input level SAT : dBµV 91
Max. output level SAT : dBµV
SCR mode: 90
Legacy mode: 80
Trunk loss dB :
Ter.: 3*
SAT: 2
Return loss in/out: dB > 10
Tap loss (Terrestrial): dB typ. 24
LNB remote current: mA 500
STB current : mA 180
Operating temperature: °C -20 to +50
Dimensions : mm 122 x 158 x 50
Important note: When you set up this Multiswitch ensure you complete the Set Up procedure. Once channels 11 and 14 OR 14 and 11 have been set in the SCR mode on the set-top box, ensure you switch off the decoder at the mains, leave it for 5 minutes, plug it back into the mains, and leave for a further 5 minutes .
This item is recommended to be installed mainly by a Professional Engineer.
Details
| OPC | P7DM8ZG |
|---|---|
| Brand | Johansson |
Detailed Product Information
| Width | 122mm |
|---|---|
| Length | 158mm |
| Height | 50mm |
| Material | Metal |
| Weight | 0.3kg |
| Colour | Grey |
