Summary

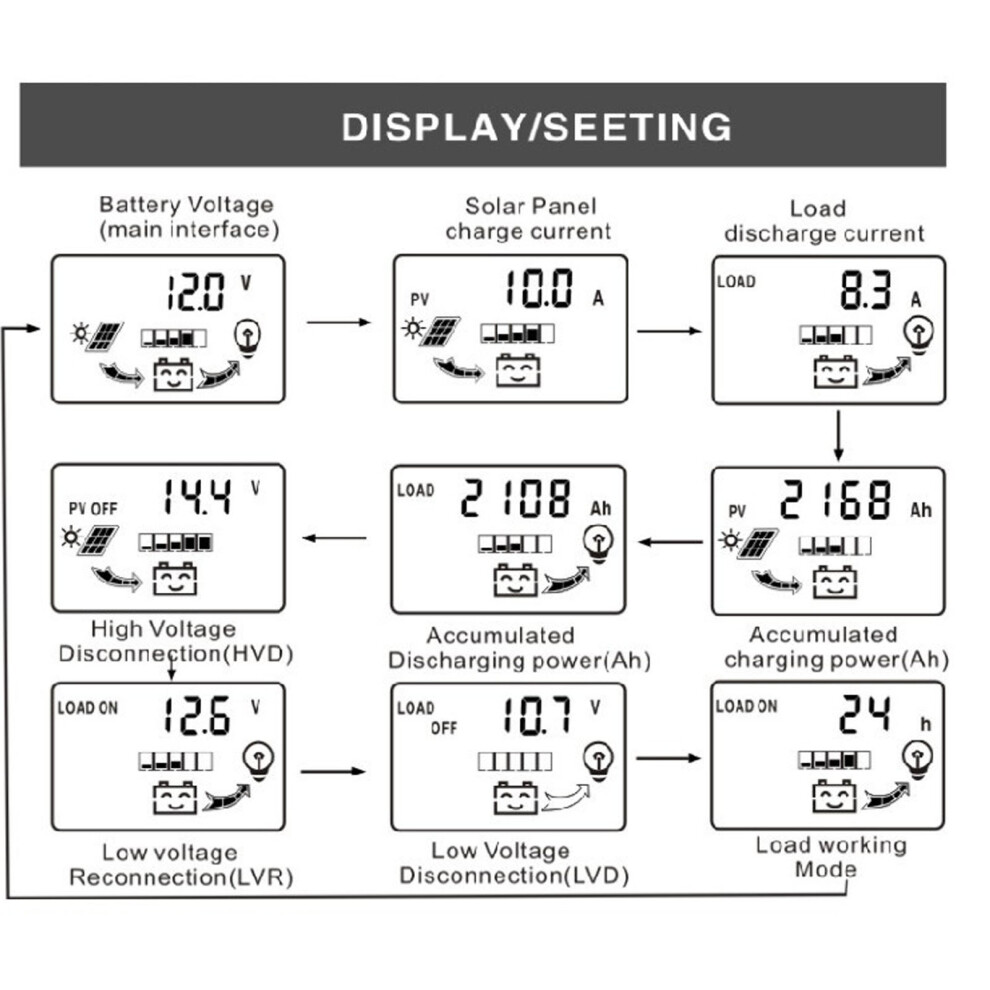

- 1、LCD Display: Display charging and discharging current; query of accumulated electricity generated and discharged; temperature display; optical control and delay control; the charging and discharging parameters are adjustable; with power off memory and other functions.
- 2、Dual USB Output: This photovoltaic power controller has dual USB output, maximum current up to
- 2.5A, supporting for iPhone charging. And it has complete three phase charging management.
- 3、Multiple Protections: Built in over current, short circuit protection, open circuit protection and reverse connection protection are all self recovery type, without damaging the controller.
- 4、Industrial Grade Control Chip: This solar panel regulator has industrial grade master control chip, and it has anti backflow circuit, ultra low heat.
K1688 30A PWM Solar Charge Controller Dual USB Description
The K1688 Solar Charge Controller is a PWM dual DC regulator with a black shell, designed for home solar panel systems. It features an LCD display for charging and discharging current, accumulated electricity queries, temperature display, and adjustable parameters with power-off memory. Dual USB outputs deliver up to 2.5A each, compatible with iPhone charging, and it includes complete three-phase charging management. Built-in protections such as over current, short circuit, open circuit, and reverse connection are self-recovery type. The industrial-grade control chip ensures anti-backflow circuitry and ultra-low heat. Please connect load polarity correctly as per the manual. Item type: Solar Charge Controller; Material: ABS; Gross Weight: 202g; Size: 12.5x10x3cm; Model: K1688; System Voltage: 12V/24V auto; Rated Discharge Current: 10A; Max PV Voltage: 23V (12V battery) / 46V (24V battery); Lifting Charge Voltage: 14.4V (12V) / 28.8V (24V); Float Charging Voltage: 13.7V adjustable (12V) / 27.4V adjustable (24V); Discharge Cut Off Voltage: 10.7V adjustable (12V) / 21.4V adjustable (24V); Discharge Recovery Voltage: 12.6V adjustable (12V) / 25.2V adjustable (24V); Charging Recovery Voltage: 13V (12V) / 26V (24V); Light Control Thresholds: 8V PV panel with delay (12V) / 16V PV panel with delay (24V); USB Output: 5V 2.5A max; Standby Current:
Details
| OPC | PV7FV6K |
|---|---|
| Codes | 7340572886279 (EAN) |
Product Data
Dimensions
| Height | 4cm |
|---|---|
| Width | 11.0cm |
