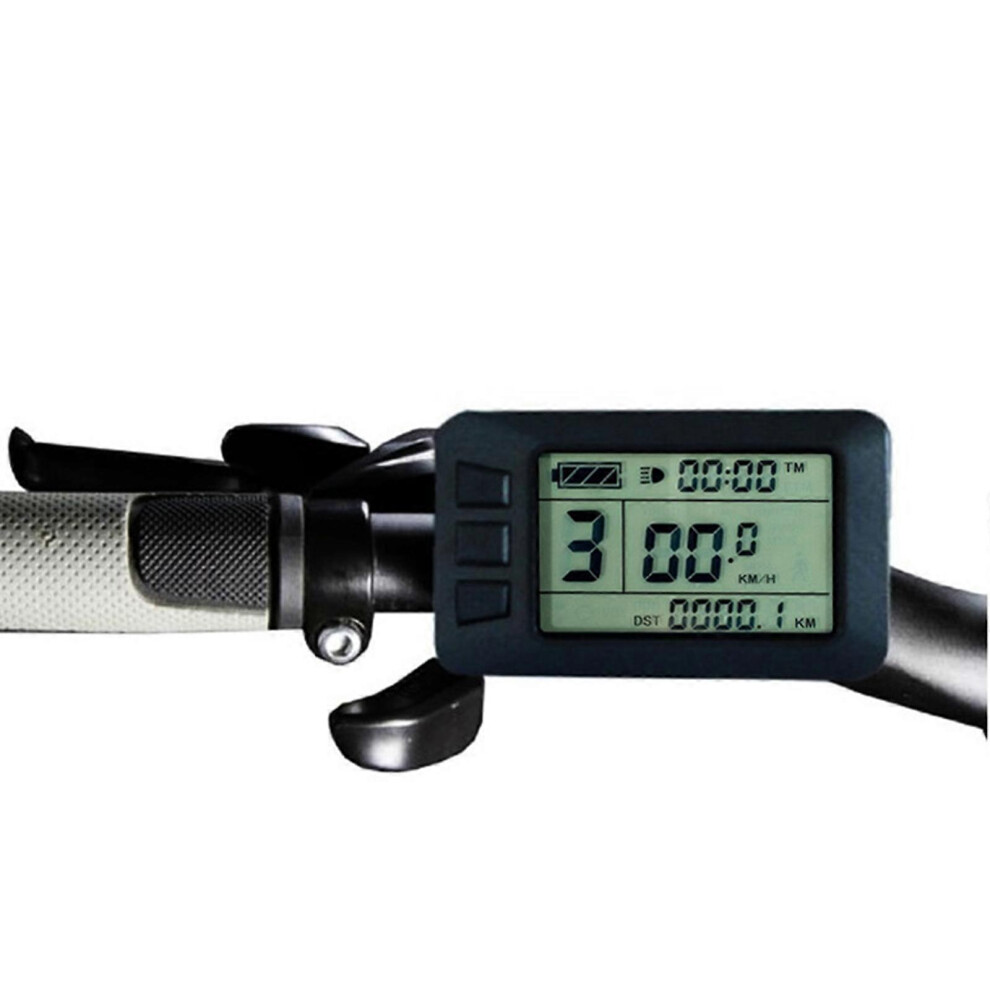

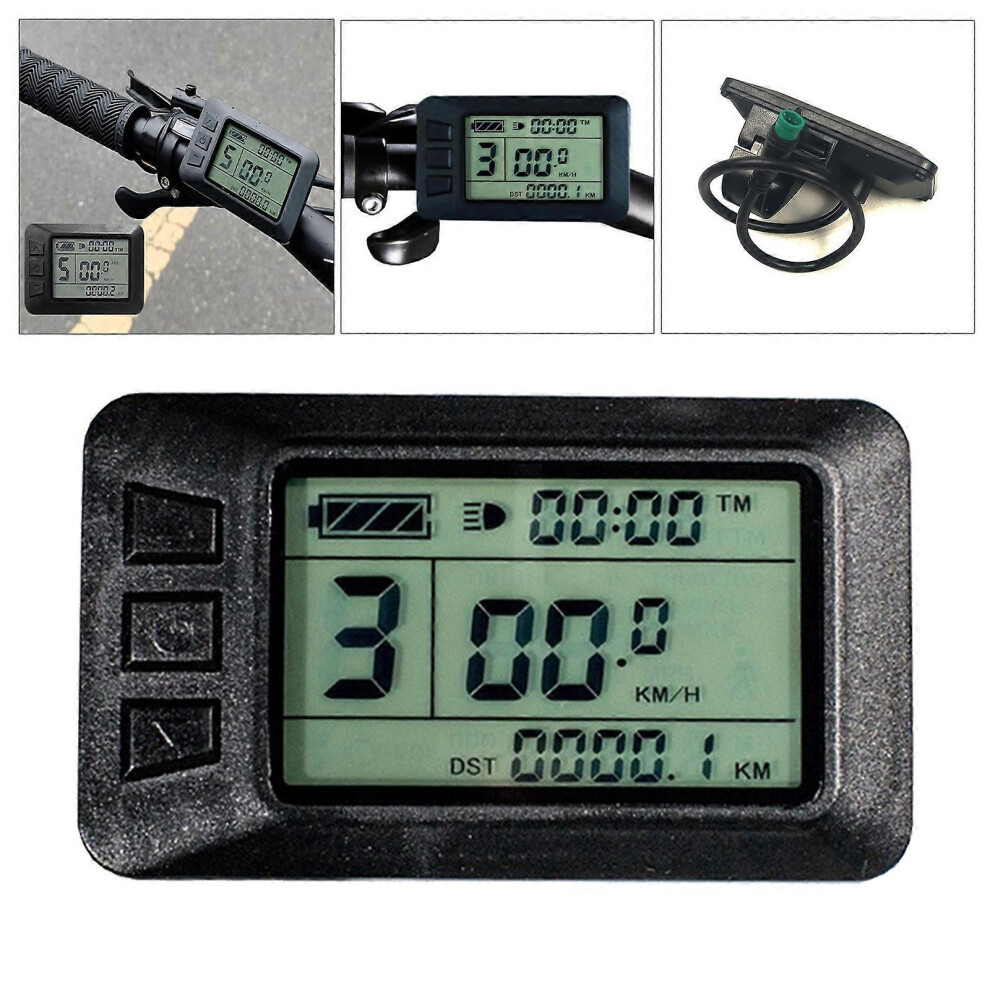

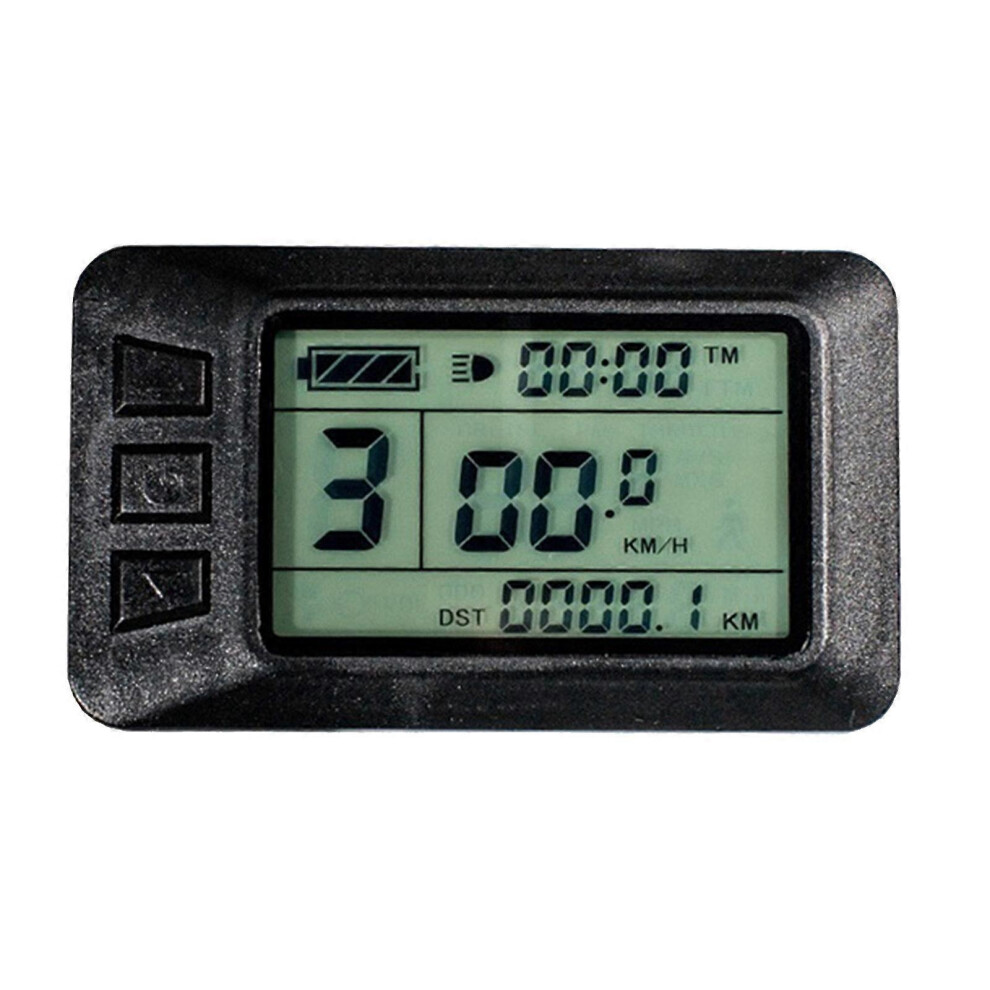

KT LCD7U Display Meter Control Panel 24V/36V/48V For E-bike Electric Bicycle

KT LCD7U Display Meter Control Panel 24V/36V/48V For E-bike Electric Bicycle Description

Please Note:
This KT LCD7U Display only compatible with Kunteng(KT) controller.They have same communication protocol.
Parameter
Type:KT-LCD7U Display
Voltage:24V,36V,48V
Color:Black
Weight:250g
Handlebar size for holding:22.2mm
Display Cable Length:WP connector ,about 15cm
USB waterproof connector :With USB function.5pin Waterproof connenctor.Wire length:about 150mm with connector .Cannot connected with controller directly.Depend on a 1in4 bus cable
Function
1.Trip time display (with displays of a single trip time (TM) and total trip time (TTM));
2.Trip speed display (with displays of real-time speed (KM/H or MPH) and a single maximum speed (MXS) and a single average speed (AVS));
3.Trip distance display (with displays of a single trip distance (DST) and total trip distance (ODO);
4.Display of turned on throttle (THROTTLE);
5.Display of power-assist startup (PAS);
6.Power-assist ratio (or throttle) gear (ASSIST) switch;
7.6KM/H power assistant push function;
8.Cruise function (CRUISE);
9.Bluetooth function ;
10.Battery capacity indicator ;
11.Real-time battery voltage (VOL) display;
12.Brake display ;
13.Turn on backlighting and lights ;
14.Data clearing;
15.Fault code display;
16.User parameter setting
17.24V, 36V, 48V supply voltage can automatic identification and be compatible.
Packing List
1.KT LCD7U display
1.Display manual
