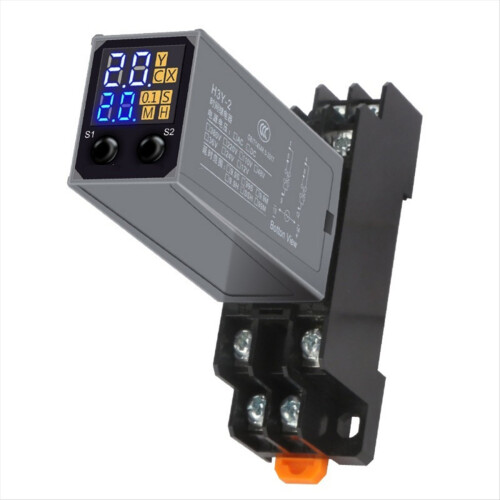

LCD Delay Relay Timer with Base Socket DC24V

LCD Delay Relay Timer with Base Socket DC24V Description

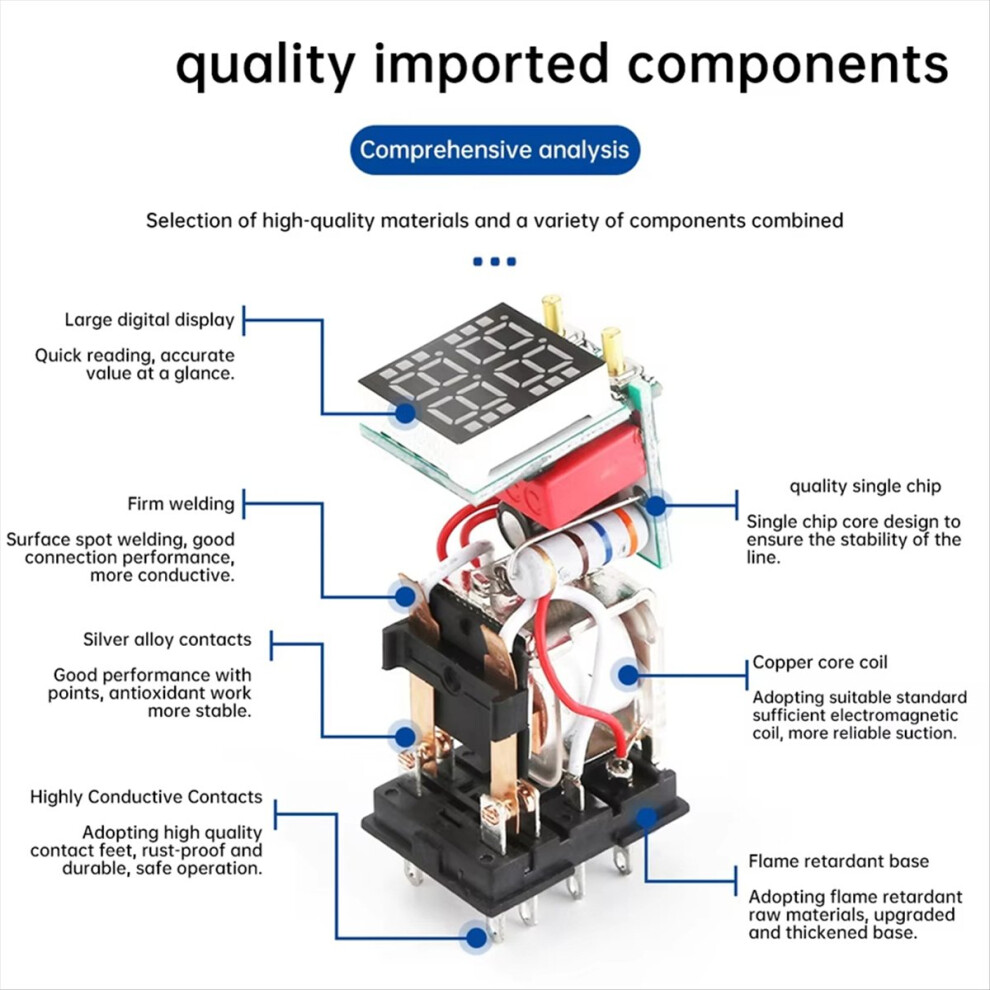

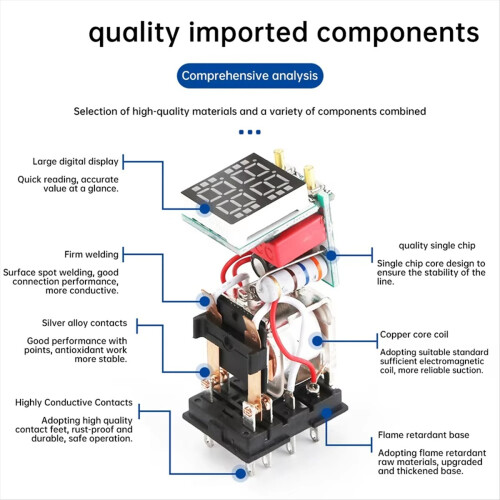

1.high-quality Material casing, fire and high temperature
2.Led high-definition screen, more intuitive digital display panel
3.Silver contacts, stable performance, oxidation resistance, and high work efficiency
4.Large capacity pins at the bottom, made of copper galvanized material, with high melting point, strong oxidation and resistance, and good conductivity
5.There are four delay modes: Power on delay mode, delay release mode, cycle delay mode, and cycle delay number setting

Product name: time relay (8 pins/2 open and 2 closed)
Voltage: DC24V
Time range: 0.1s-99h
Time error: 1%
Power consumption: max.1.5va
Environmental temperature: -25-75
Permissible voltage range: 90-110% of rated voltage

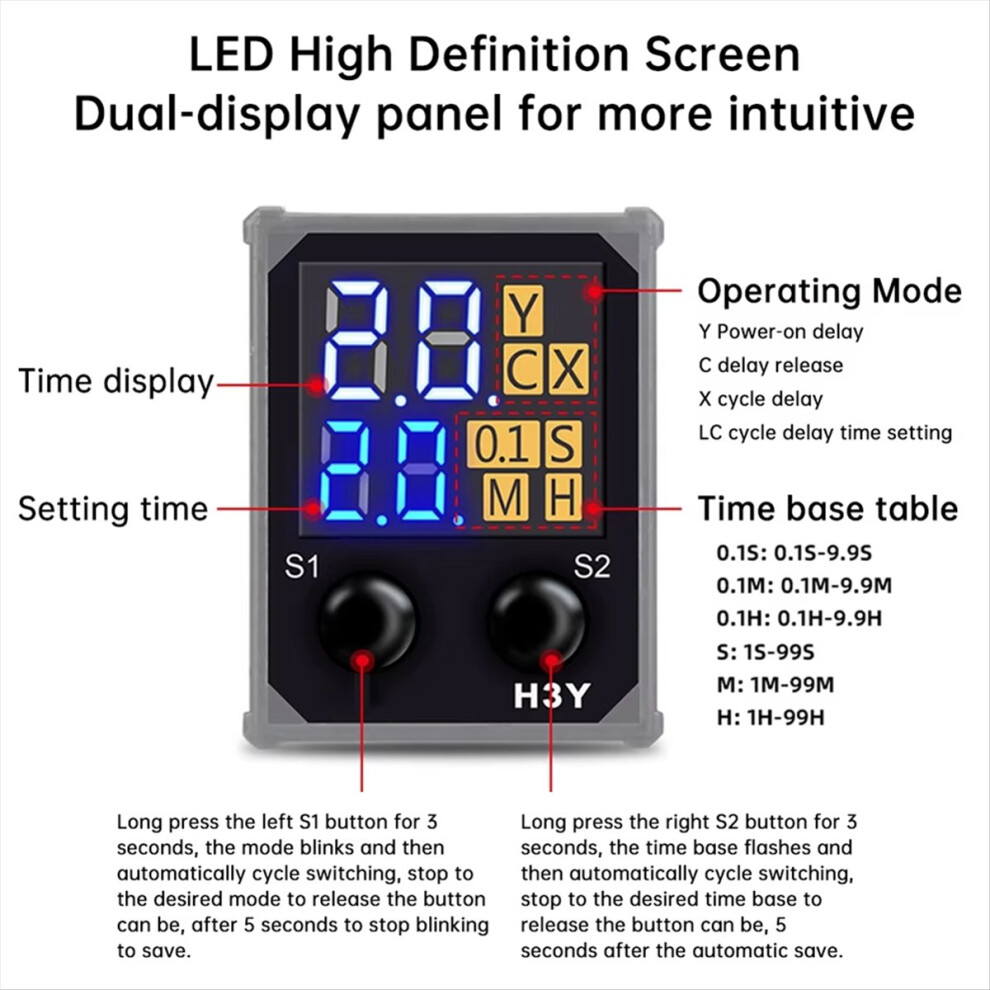

Working mode:
Y: power on delay
C: delayed release
X: loop delay
Lc: number of cycle delays
Mode setting: Long and hold the s1 button on the left for 3 seconds. After the mode flashes, it automatically cycle and switch. Stop at the desired mode and release the button. After 5 seconds, stop flashing and save
Time base setting: and hold the s2 button on the right for 3 seconds. After the time base flashes, it automatically cycle and switch. Stop at the desired mode and release the button. After 5 seconds, stop flashing and save
Number setting: the left button to switch modes
Colour:Grey+Black
Material:Plastic

Package Contents:
1 * Delay Relay

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
