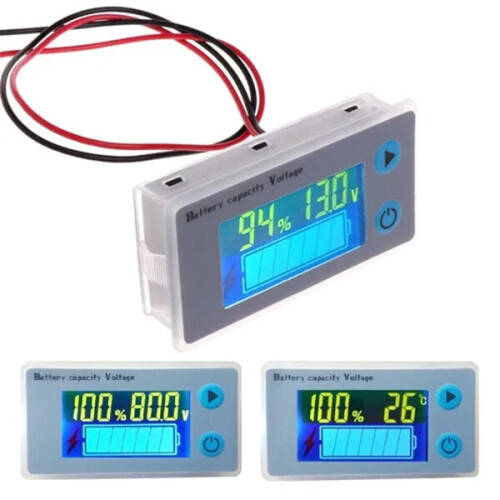

LCD Display Battery Capacity Indicator Digital Voltmeter Voltage Tester Monitor 10-100V

LCD Display Battery Capacity Indicator Digital Voltmeter Voltage Tester Monitor 10-100V Description

This product is a universal instrument, the color LCD screen, with low power consumption,

long time switch, can display the battery voltage, can be used in a variety of lighting conditions.

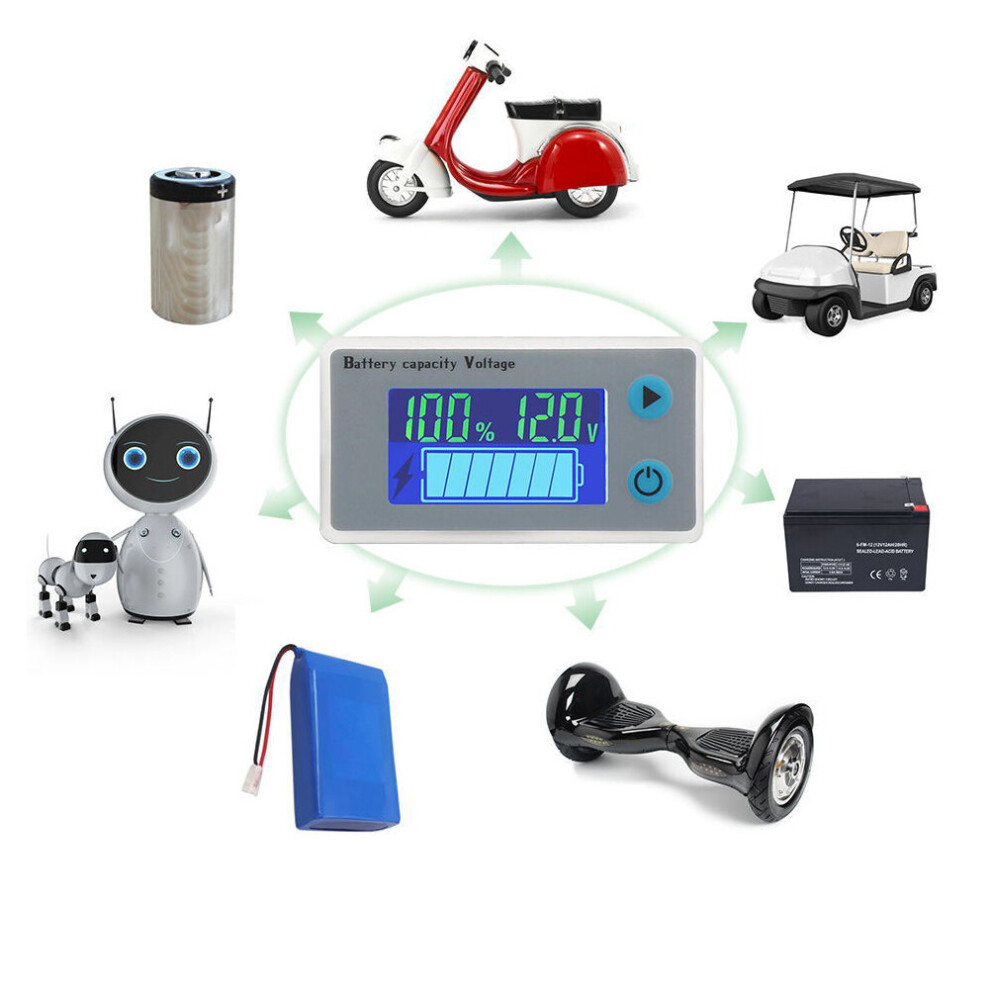

1. To customize the type of battery, suitable for lead-acid, lithium-ion batteries, lithium iron phosphate, metal hydride battery.

2. To display the percentage of remaining battery power,voltage, temperature value.

3. The 10~100V wide input voltage,reverse protection.

4. The product can go to sleep after 10 seconds.

5. The low power red mark flashes to remind.

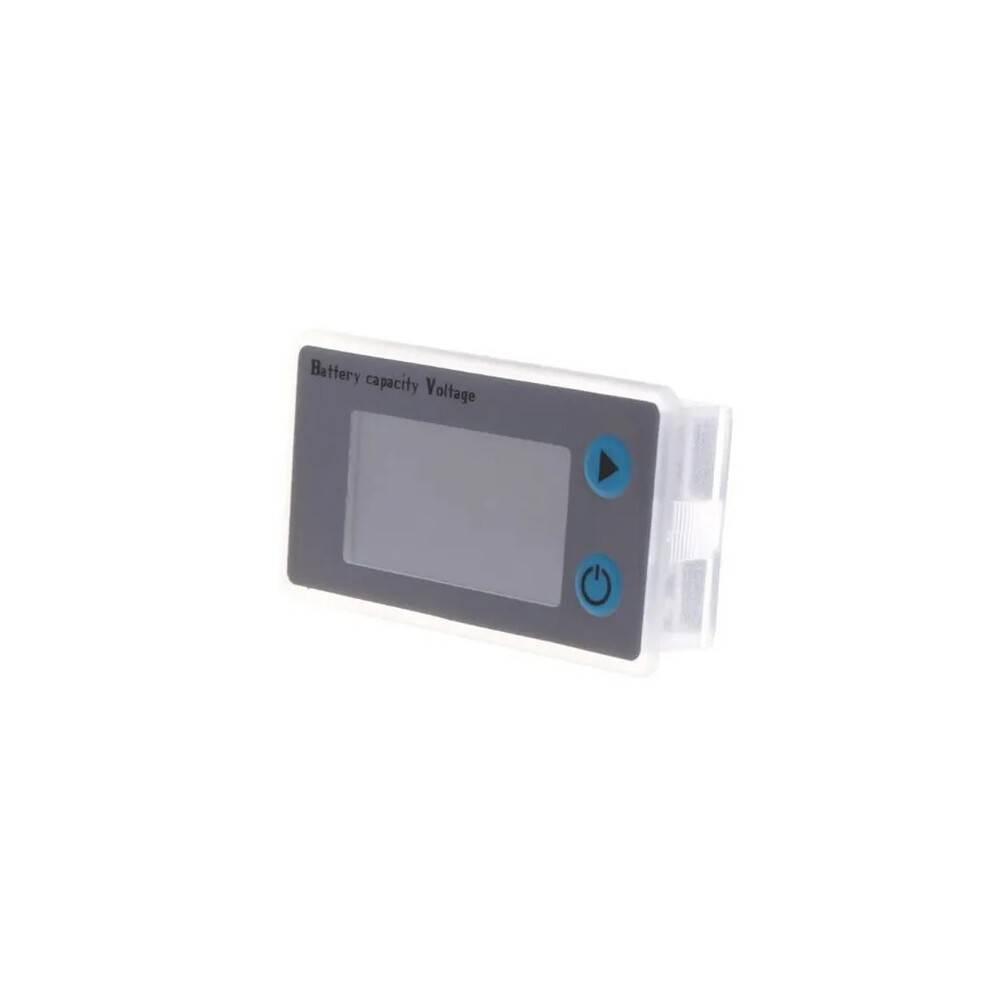

6. The installation is simple, with a buckle, without screws.

7. The open programming mode.

Parameter:

Product size: 61.5mm*33.5mm*13.5mm

Installation size: 58.5mm*28.5mm

Display size: 36mm*19.5mm

Working voltage: 10V-100V

Power waste: 5-6mA (LED ON)

Voltage accuracy: ±0.1(Typical),±0.5(Max)

Sleep power: 6-12uA (20V)

Working temperature: -10~55℃

Instruction:

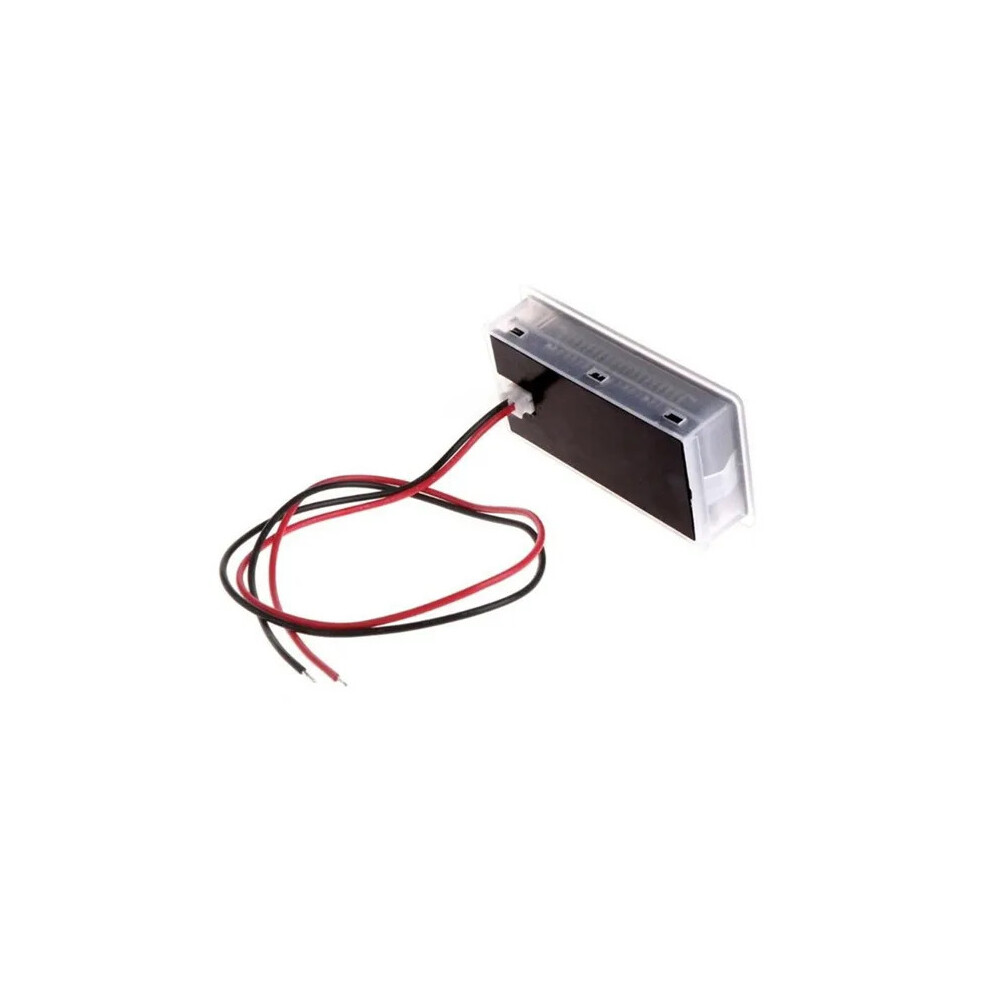

1. PH2.0 terminal products supporting the use of wire, connected to the circuit board face should plug back.

2. Red line to the positive terminal, black line to the negative terminal.

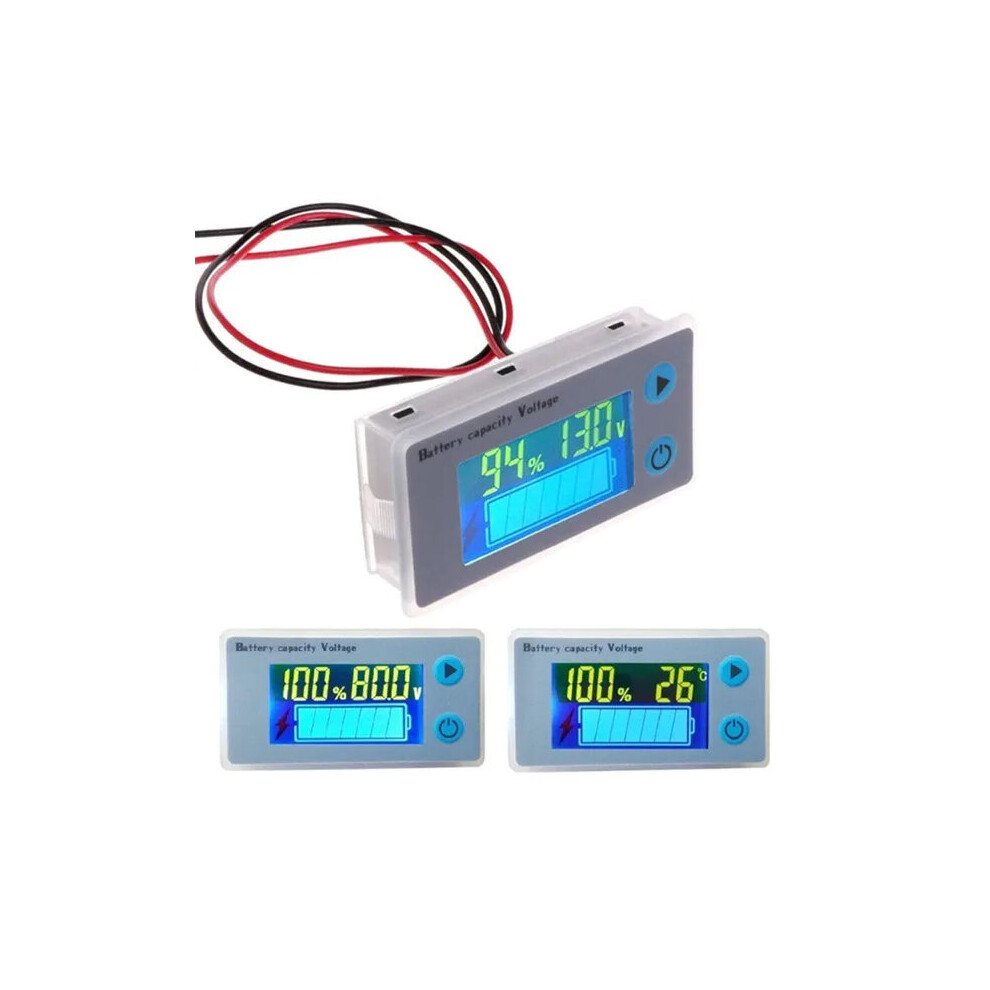

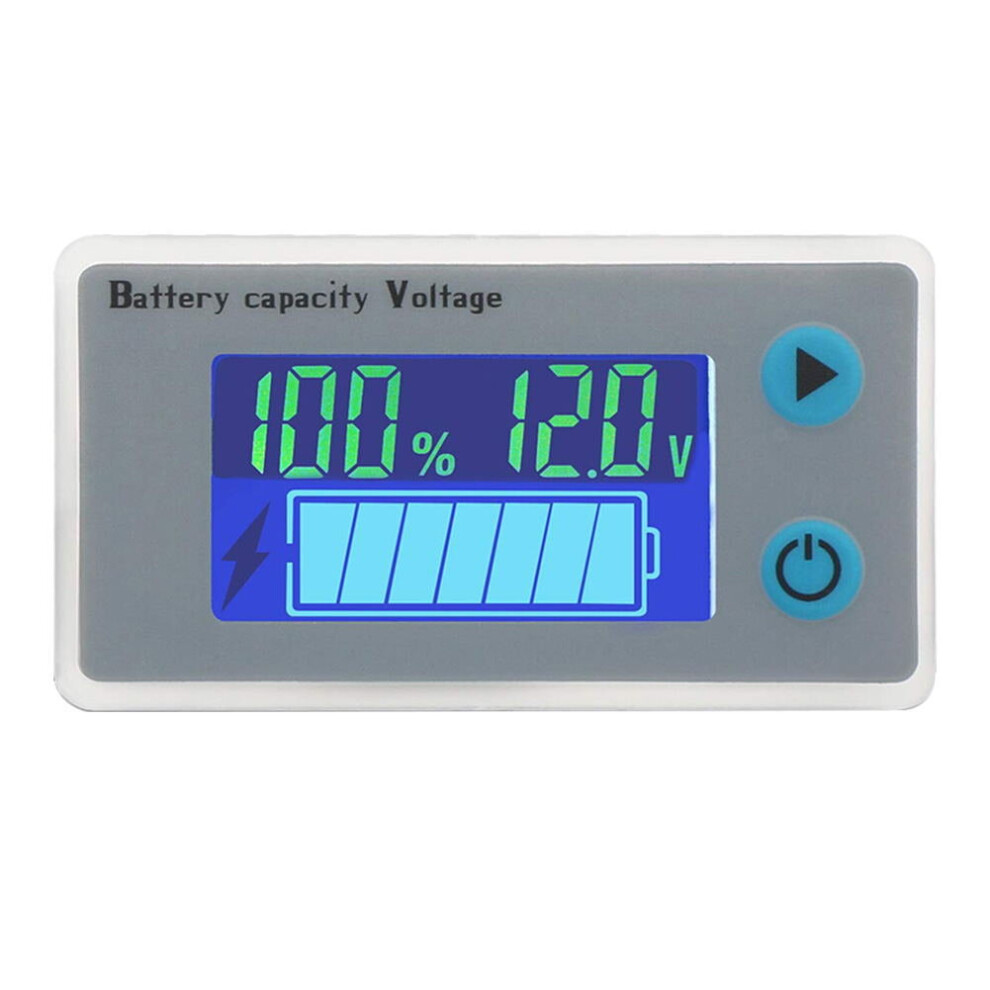

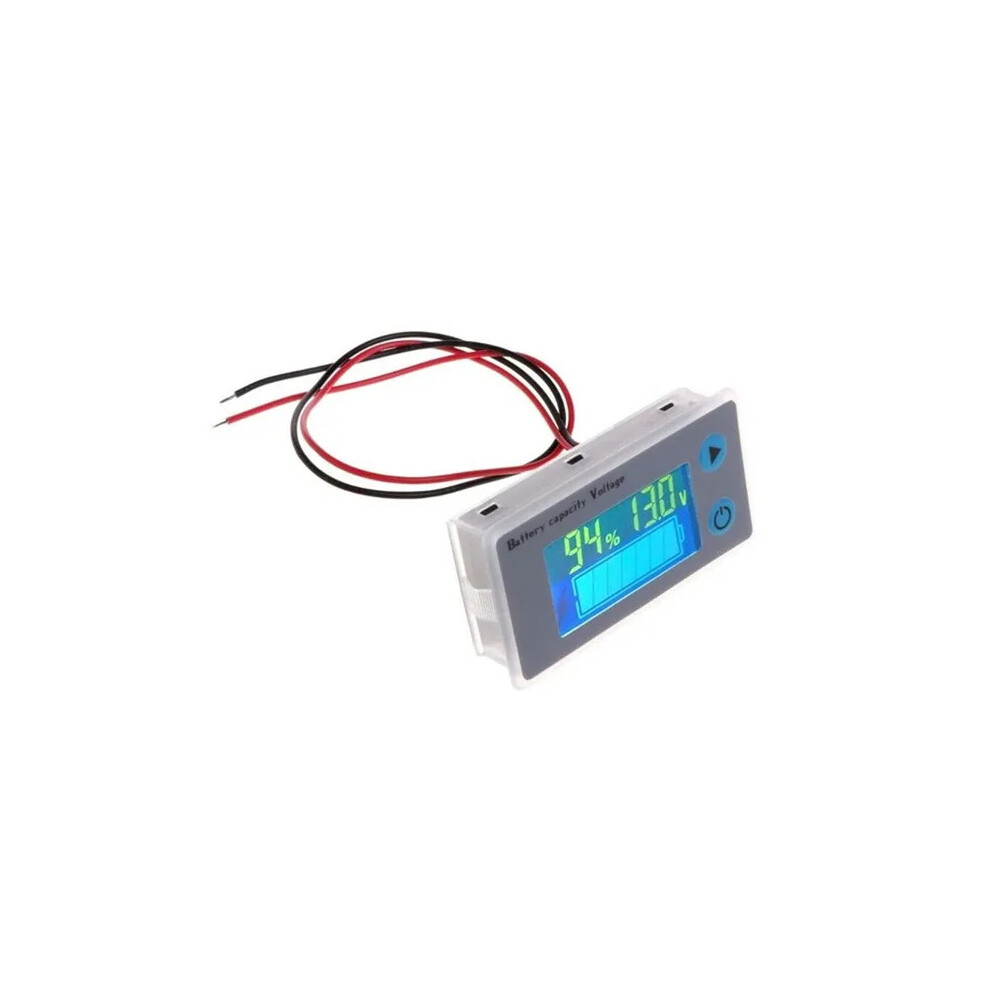

3. After the instrument is powered on , which shows the percentage of the battery power, the voltage value,and the symbols of the analog battery.

4. Press the button to turn off the instrument. In close mode, you can wake up the instrument by pressing any button.

5. Click the button , you can switch the voltage value and temperature value display.

6. The battery symbols on the display interface, from the right to the left, are 7 display boxes representing the pool power from low to high.

7. The voltage on the display interface is measured in real time, and the voltage value is displayed on 10-100V.

8. The percentage on the display interface is the percentage of the remaining battery power.

9. When the battery is connected to the charger or the discharge of the high current load, the display parameters will fluctuate.

10. The red lightning flashes the alarm when the battery is low.

11. If the battery specification is special, you can enter the set mode 3-- and reset the upper and lower limits of the measured battery voltage.

Package includes:

1 x Battery Capacity Voltage

1 x Wire

Tips:

The default setting is suitable for use in 12V lead acid batteries.
