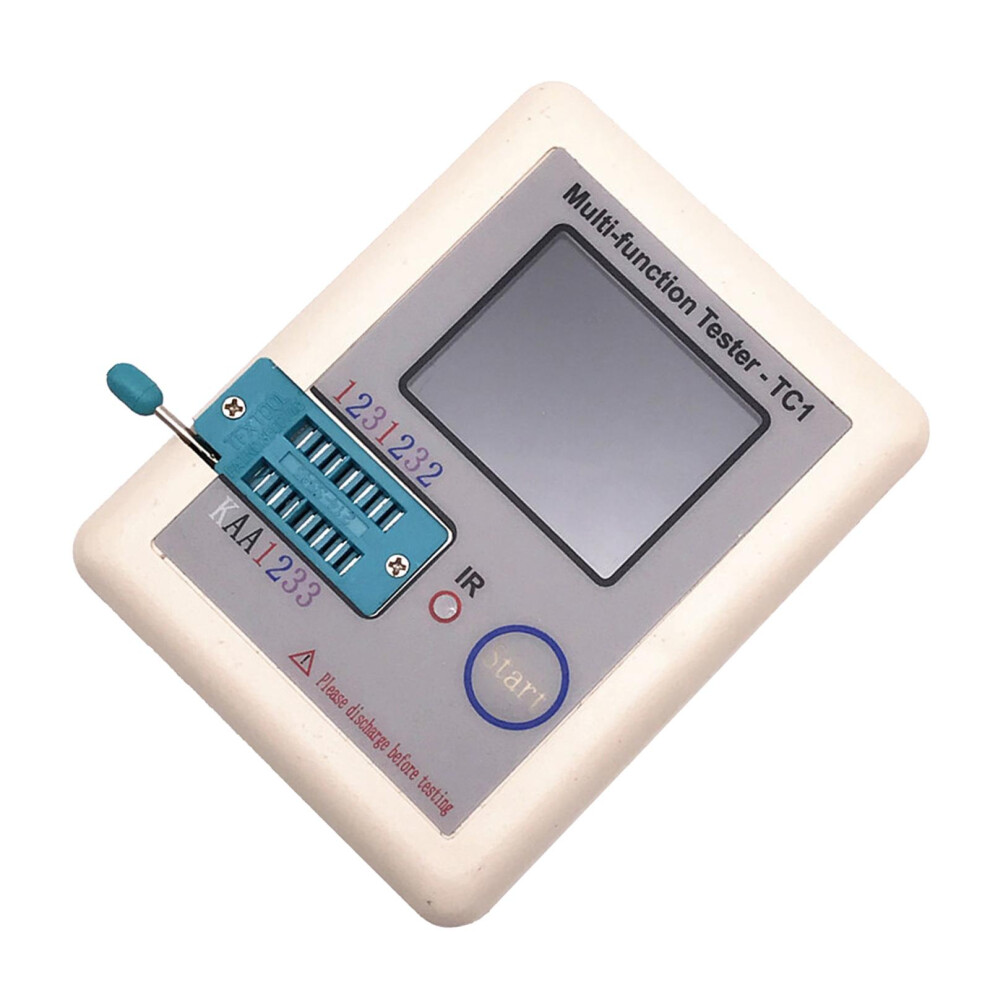

LCR-TC1 1.8" Transistor Tester Multifunctional TFT Transistor Tester

LCR-TC1 1.8" Transistor Tester Multifunctional TFT Transistor Tester Description

Description:

For detecting NPN and PNP transistor, capacitor, resistor, diode, triode, N-channel and P-channel MOSFET, IGBT, JFET, triac and battery, resistor and capacitor and other components, etc.
Put the pins of component in corresponding area, then dial the little handle and the detector will test it automatically, finally the results will display on the back light TFT screen clearly.
After detection, align the infrared remote control with the "IR" light, then press the button in the remote control, if the detector successfully decode it, it will display the data code and infrared wave form.
Easy and convenient to use and operate.
One key operation, Auto Power Off-One button operation, automatically detect and shutdown.

Specification:

Display:1.8 inchTFT Screen
Diode Range: < 4.5V
Zener Diode:Transistor Detect Area: 0.01-4.5V
Zener Diode Detect Area: 0.01-30V
Triac Range: IGT<6mA
Capacitance: 25pF-100mF
Resistor: 0.01-50MΩ
Inductance: 0.01mH-20H
Battery:0.1-4.5V
Power Mode: Rechargeable Lithium Battery ( INCLUDED)

Size Chart:

Size:Approx.9x7cm/3.54x2.76inch

Package Includes:

1 Piece Transistor Tester

Note:

Please allow 1-3mm measuring deviation due to manual measurement.
Due to the different monitor and light effect,the actual color of the item might be slightly different from the color showed on the pictures.
