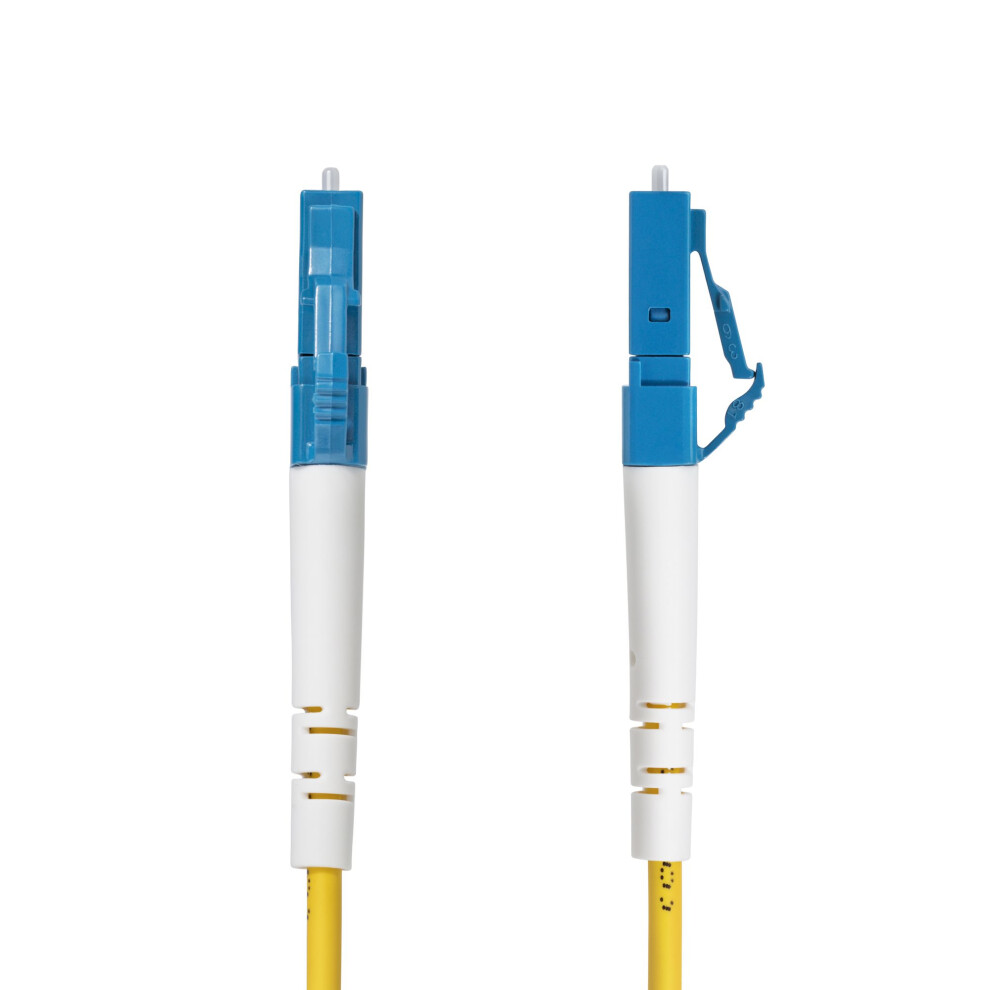

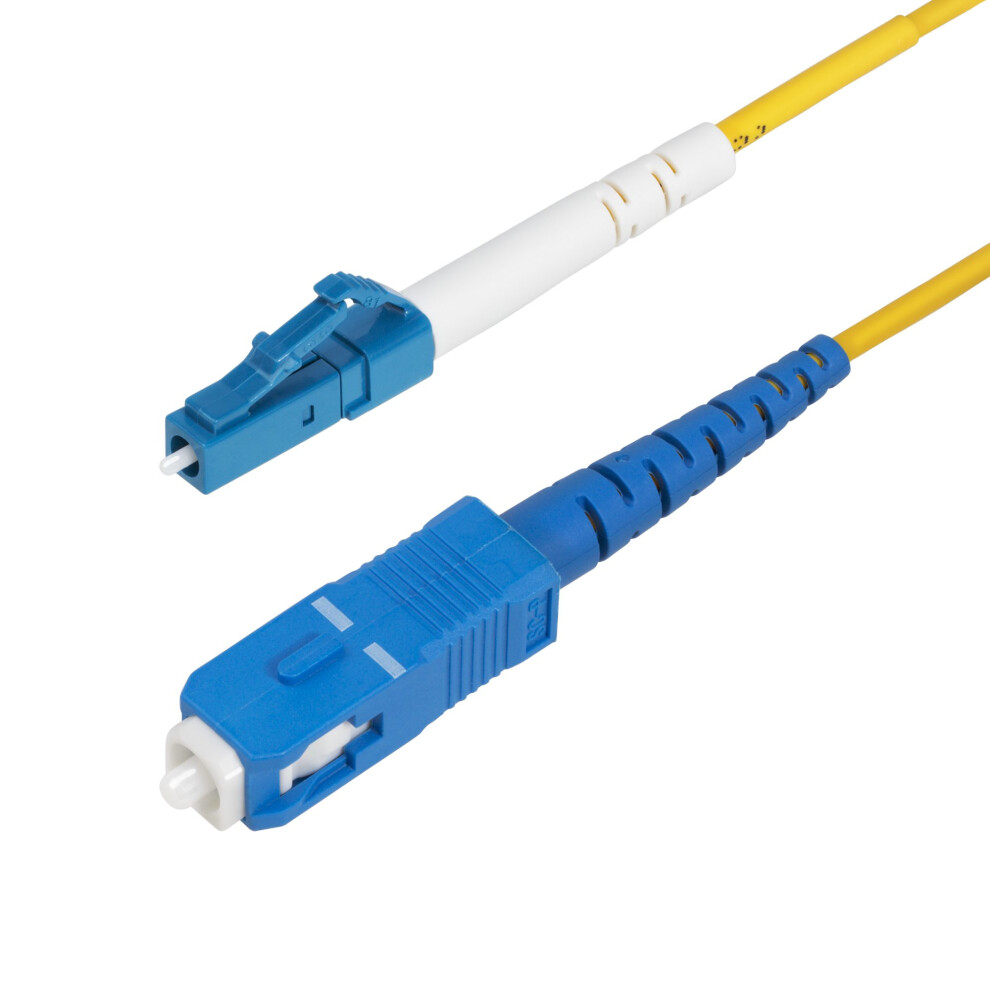

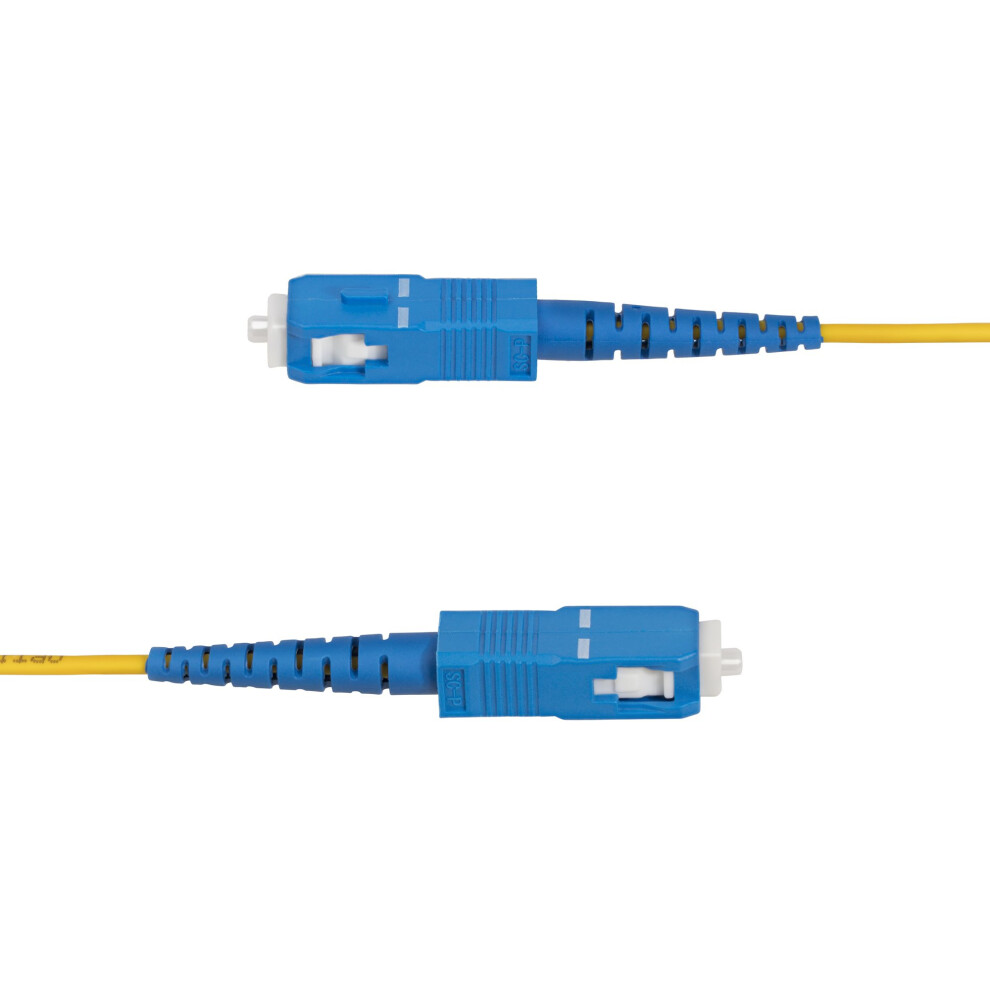

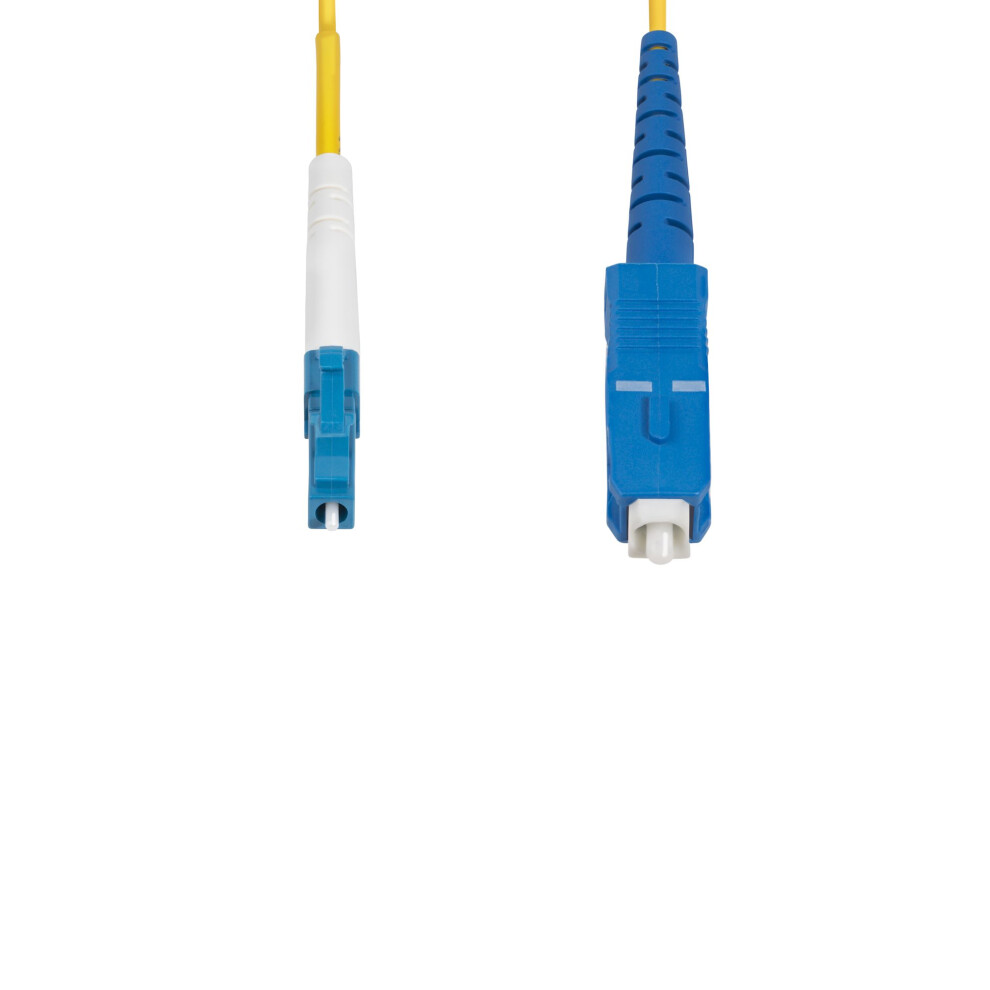

LC/SC SINGLE MODE FIBER CABLE
Brand StarTech.com
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 126,000 Trustpilot reviews and an 'Excellent' rating
£17.53
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Sat 20th - Fri 26th Jun
Returns: 30 days
180-day payment protection
Most Popular in Fibre Optic Cables
Description & Details
Summary
- SIMPLEX OS2 CABLE: Single Mode Simplex OS2 Fiber Cable is immune to EMI and optimized for 40G/100Gbps networks; Supports bi-directional (BiDi) transmission over a single fiber; Ideal for space-constrained installations requiring minimal fiber count
- QUALITY CONSTRUCTION: LC/SC-UPC ends for improved return loss over PC polish; Bend Insensitive fiber core housed in Aramid-reinforced jacket for a loaded bend radius of 10mm
- SAFETY AND RELIABILITY: Individually tested for guaranteed performance; Test report included; LSZH jacket emits low toxic fumes if combusted; Safe for enclosed/poorly ventilated spaces; Attenuation value under 0.35dB/km outperforms industry standards
- COMPATIBILITY: Simplex Single Mode Fiber Patch Cord supports 40G/100G networks; Backward compatible with OS1; High micro-bend resistance facilitates tight bends in complex installations; Ideal for point-to-point setups or single-fiber NICs and SFPs
- SPECS: 5 meter (16.4 foot); OS2 Single Mode; LC/SC (UPC) Simplex; 100Gbps; 9/125um; 1260-1625nm Laser Optimized; Insertion Loss: ≤0.3dB; Return Loss: ≥55dB; Cable OD: 2mm; Bend Radius: 10mm (0.39in) loaded/unloaded
LC/SC SINGLE MODE FIBER CABLE Description
LC/SC SINGLE MODE FIBER CABLE
Details
| OPC | PFY7RMD |
|---|---|
| Brand | |
| Codes | 0065030908405 (EAN) |
Detailed Product Information
| Connector 1 | LC |
|---|---|
| Connector 2 | SC |
| Connector 1 Gender | Male |
| Cable Length | 5 mm |
| Connector 2 Gender | Male |
External product information
Disclaimer: The information below is provided by various external sources and should be used as a guide only.
Detailed Product Information
Features
| Cable length | 5 m |
|---|---|
| Data transfer rate | 100 Gbit/s |
| Product colour | Yellow |
| Connector 1 | LC |
| Connector 2 | SC |
| Insertion loss | 0.3 dB |
| Fiber mode structure | Single-mode |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Jacket material | Low smoke zero halogen (LSZH), Polypropylene |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Return loss | 55 dB |
| Wavelengths supported | 1260,1280,1300,1310,1383,1490,1550,1590,1600,1625 nm |
| Fibre optic type | OS2 |
| Cable shape | Round |
| Connector polish type | UPC |
Packaging data
| Package depth | 200 mm |
|---|---|
| Package height | 2 mm |
| Package width | 220 mm |
Logistics data
| Master (outer) case height | 280 mm |
|---|---|
| Master (outer) case width | 380 mm |
| Master (outer) case length | 380 mm |
| Products per master (outer) case | 350 pc(s) |
Weight & dimensions
| Cable diameter | 2 mm |
|---|---|
| Bending radius | 1 cm |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Other features
| Attenuation (max) | 0.35 dB/km |
|---|
