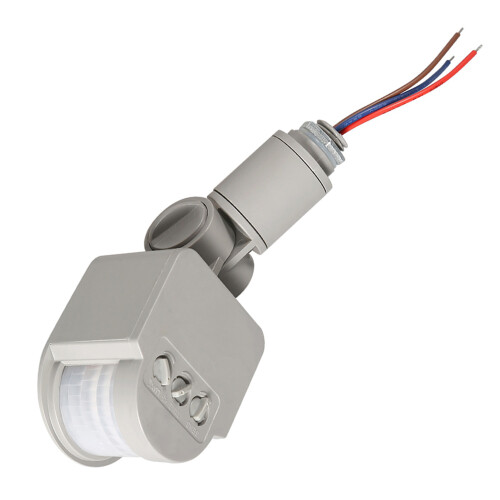

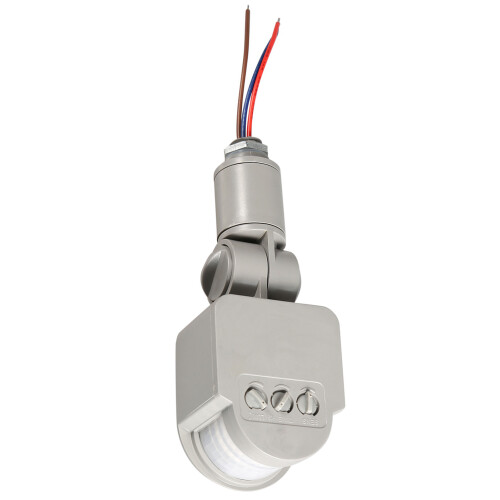

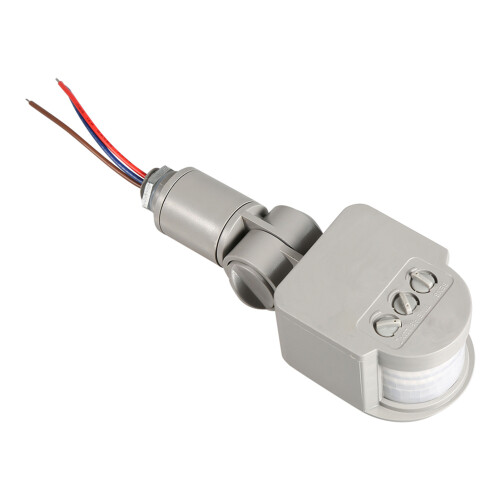

LED Outdoor 180 Degree Infrared PIR Motion Sensor Detector Wall Light Switch Gray

LED Outdoor 180 Degree Infrared PIR Motion Sensor Detector Wall Light Switch Gray Description

LED Outdoor 180 Degree Infrared PIR Motion Sensor Detector Wall Light Switch Gray
Description:
This
product is a new type of energy-saving lighting switch, it adopts high
sensitivity detector, integrate circuit and SMT, safe and practical.
Features:

Easy to install. Automatic, convenient, safe and practical.


Motion sensor can identify day and night automatically.


Wide Detection Range: Made up of up and down, left and right service field.


It
utilizes human motion infrared rays as control signal sources, when one
enters the detection field, it will start the controlled load at once.


Motion sensor turns lights ON automatically when motion is detected and OFF after a pre-selected time delay (5s to 6minutes).

Specifications:
Condition: New
Color: Gray
Material: ABS
Working Rotation: 180
Standard: LVD, EMC, CE, RoHS
IP Rating: Indoor application IP64
LUX Setting: 2-2000lux (adjustable)
Induction Lighting Time: 5s~6min adjustable time
Induction Distance: Approx.1-8M (stepless adjustment of the knob)
Load Power: 150 Watts
Wiring:
Brown - live wire
Blue - neutral wire
Red for the output wire
The blue wire is the common wire
Size: Approx. 25 x 5.8 x 9cm / 9.8 x 2.3 x 3.5in
Weight: Approx. 129g
Package Includes:
1 x motion sensor detector switch
Usage Notes:
1. The sensing distance of the product is 1-8M. The SENS knob can adjust the sensing distance. The larger the clockwise value is.
2. The TIME knob adjusts the length of the induction delay, the larger the clockwise value is.
Note:
1. Please allow 1-2mm error due to manual measurement. Thanks for your understanding.
2.
Monitors are not calibrated same, item color displayed in photos may be
showing slightly different from the real object. Please take the real
one as standard.
