LINKFLEX AD1 Microphone Preamp Amplifier XLR to 3.5mm Audio Adapter

LINKFLEX AD1 Microphone Preamp Amplifier XLR to 3.5mm Audio Adapter Description

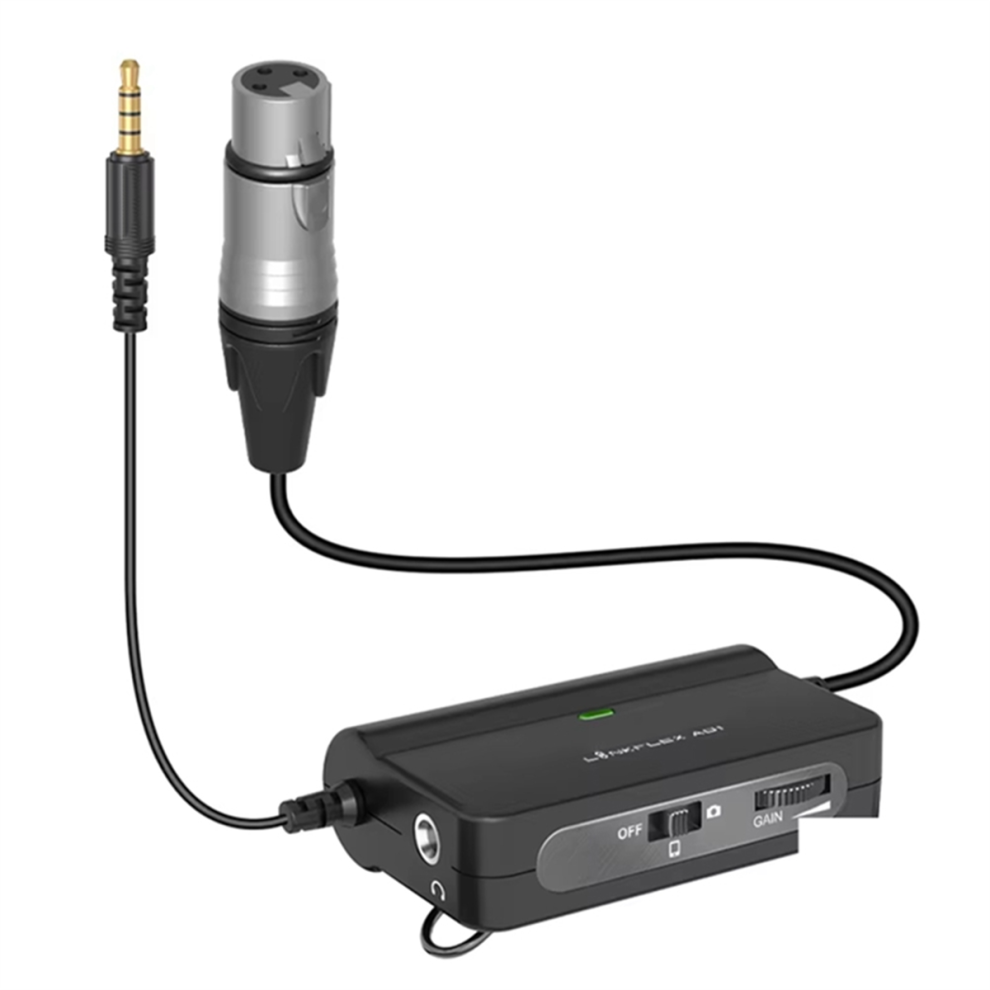

Description: LinkFlex AD1, a kind of preamp audio adapter with XLR-3.5mm interface, is capable of transferring the audio signal from XLR interface and output the sound after stepless gain adjustment through 3.5mm end. It can also accept to be monitored in the moment, and universal for both smartphone and camera as well.
XLR-3.5mm Audio Adapter Preamp
Universal for Smartphone & Camera
Stepless Gain Control
Real-time Audio Monitoring. LED Working Indicator

Notice:
1. The product supports all XLR dynamic and positive condenser mic, and not support passive condenser mic which need external phantom power.
2. The product is compatible with IOS and Andriod systems. When used with for and other new version with for interface jack,the audio cable adapter (3.5mm - for interface) is needed.
3. While used for smartphone, please set the smartphone to fly mode to avoid any interference.
4. While the microphone is used for IOS system phones, it supports both for audio recording mode and video recording mode.
5. While the microphone is used for Android System phones, it only supports phone's audio recording mode but not video mode, you should download 3rd party APP to use while in video mode.
Specification:
Output: 3 pin XLR interface
Input: 3.5mm connector
Gain Range: Maximum increase -10dB
Frequency Range: 20Hz - 20kHz 1dB
Distortion + Noise: Less than 0.02%, RL=2kΩ, f=20-20KHz, Vo=0.7Vrms
Battery: CR2032 3V
Working Temperature: 0 - +50
Storage Temperature: -20 - +60
Color:Black
Material:plastic

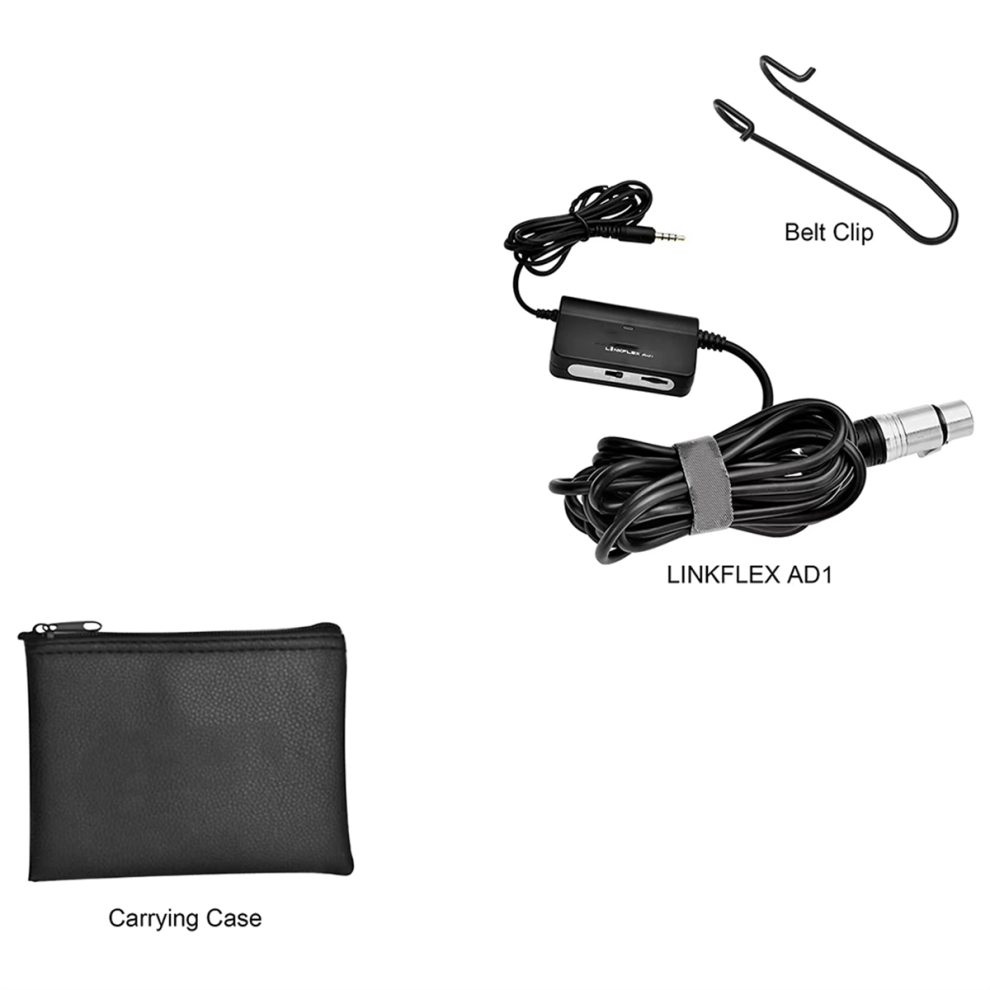

Package Contents:
1 * Adapter
1 * Storage bag
1 * English instruction manual

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
