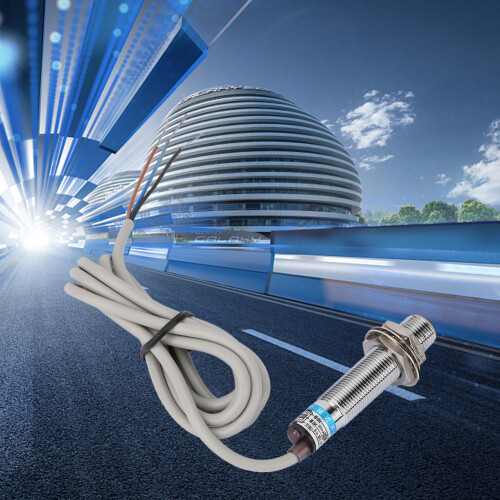

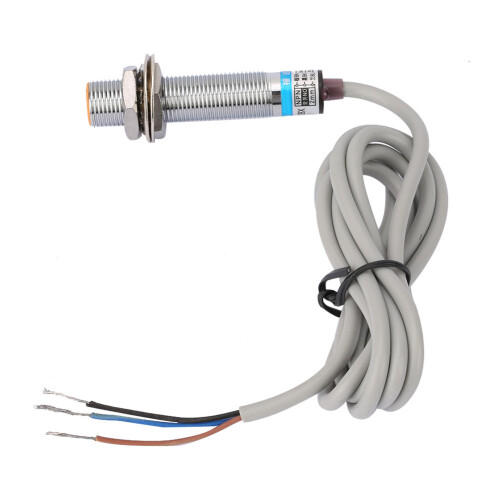

LJ12A3-2-Z/BX 2mm Proximity Sensor, Nickel 45g

LJ12A3-2-Z/BX 2mm Proximity Sensor, Nickel 45g Description

2mm Inductive Proximity Sensor Switch NPN Normally Open LJ12A3-2-Z/BX

Features:



This is a inductive proximity switch sensor with 2mm detection distance.


The switch stays open, and closes when it detects object in detection distance.


Quick response, high reliability, strong anti-interference capability.


Non-contact detection avoids the sensor and the target object from damages.


Widely used in automatic control industry for positioning control, counting, automatic protection and more.




















Specification:


Model: LJ12A3-2-Z/BX


Detection range: 2mm, 10%


Setting distance: 0-1.6mm


Hysteresis distance: <10% of detection distance


Detection object: Magnetic metal(The detection distance decreases when it is non-magnetic metal)


Standard detection object: Iron 12*12*1mm


Response frequency: DC: 0.5kHz, AC: 25Hz





Current consumption: N.P type: <13mA, D type: <0.8mA, A type: <1.7mA


Control output: N.P type: <300mA, D type: <200mA, A type: <400mA


Loop protection: N.P.D type: reverse connection protection, surge absorption, load short circuit protection; type A: surge absorption


Ambient temperature and humidity: -30~65, 35-95%RH


Temperature influence: Temperature range -30~65, at 23, 15% detection distance; Temperature range -25~60, at 23, 10% detection distance


Insulation impedance: >50MΩ (DC500 megohmmeter), between charging part and shell


Shell material: Nickel plated brass


Detection surface: ABS


Weight: 45g (approx.)





Package List:


1 x Proximity Switch
