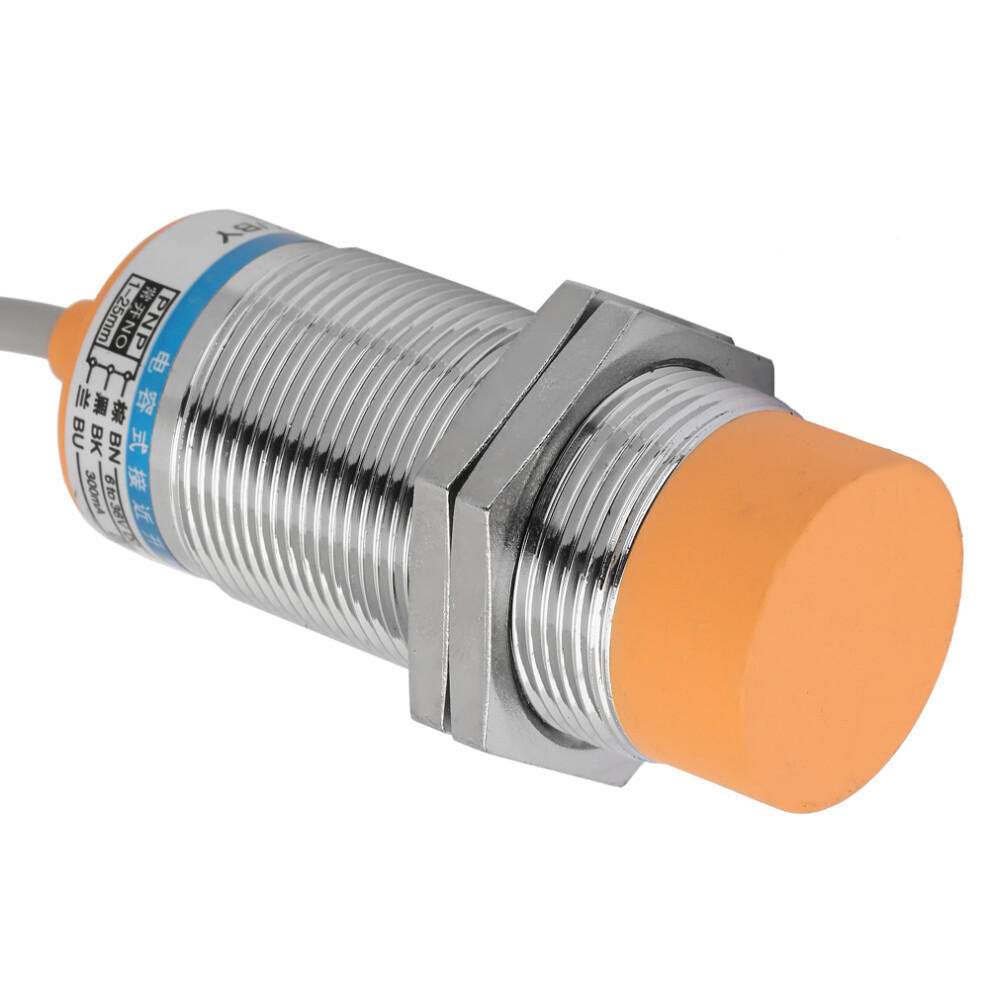

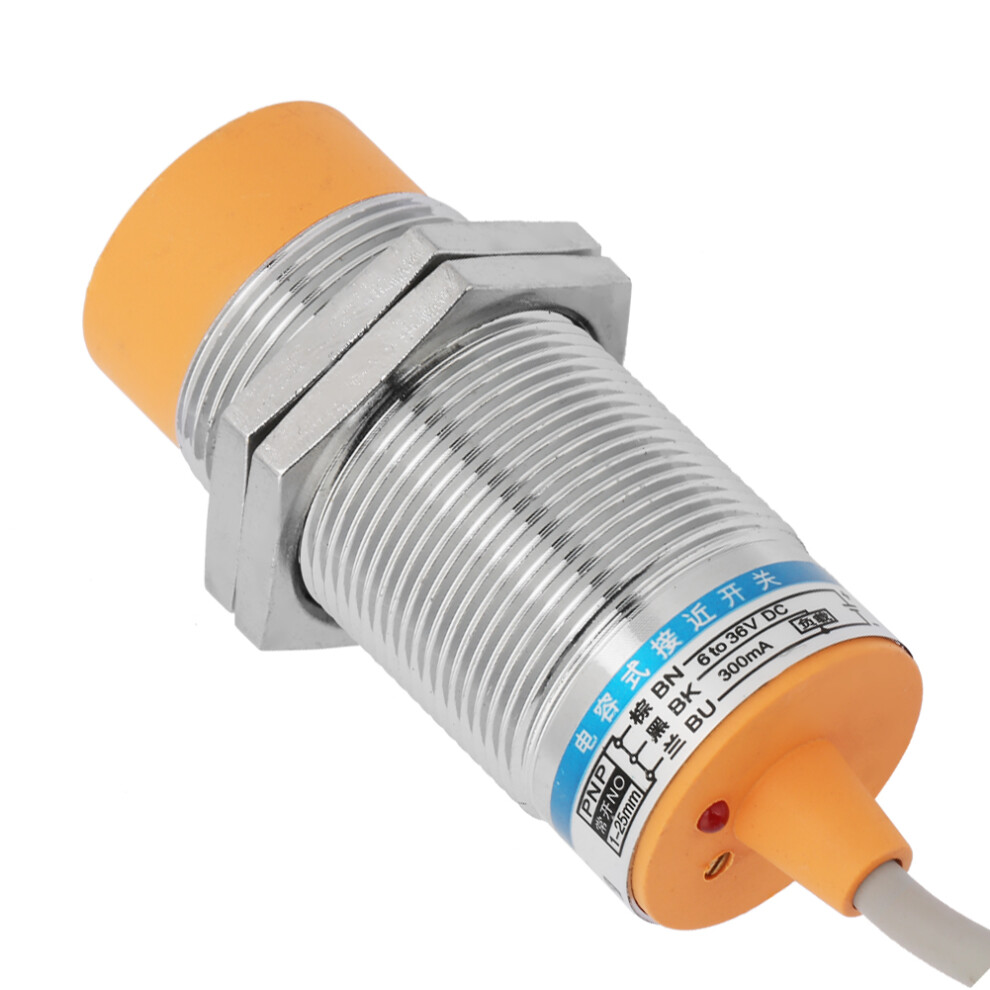

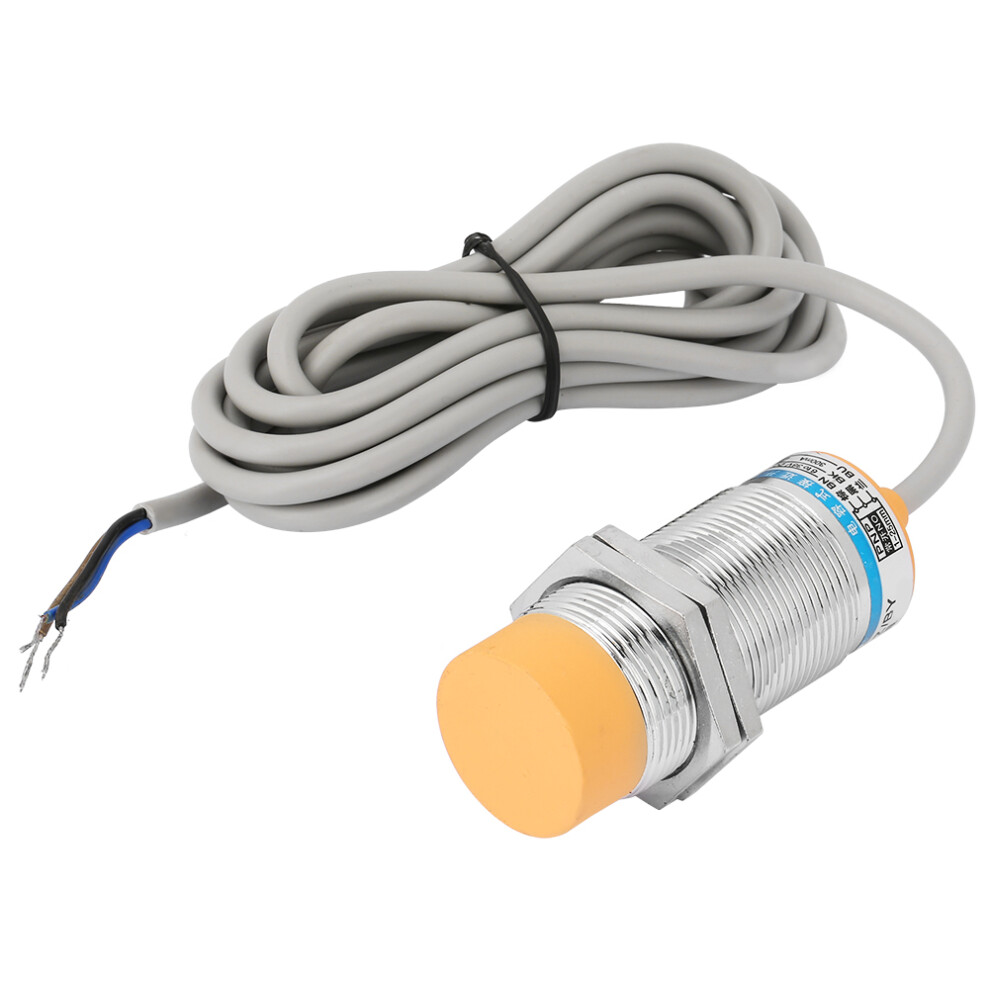

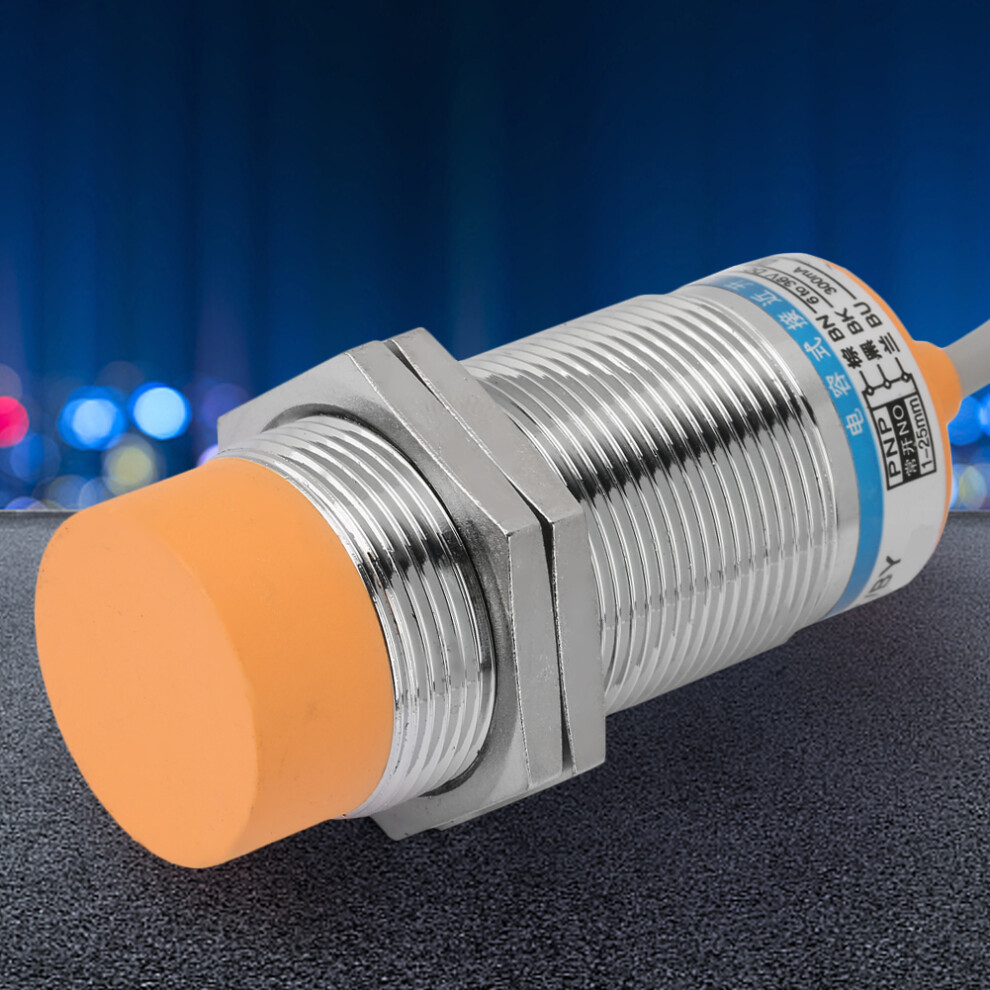

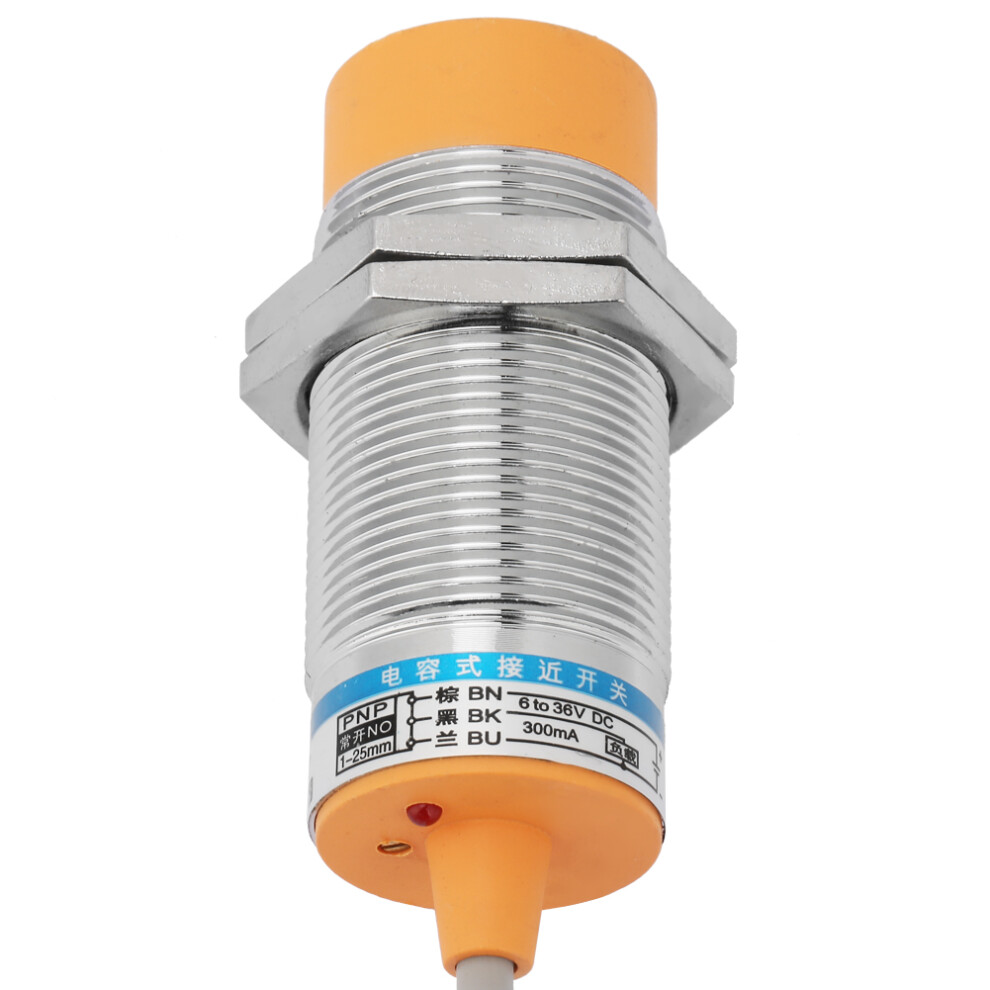

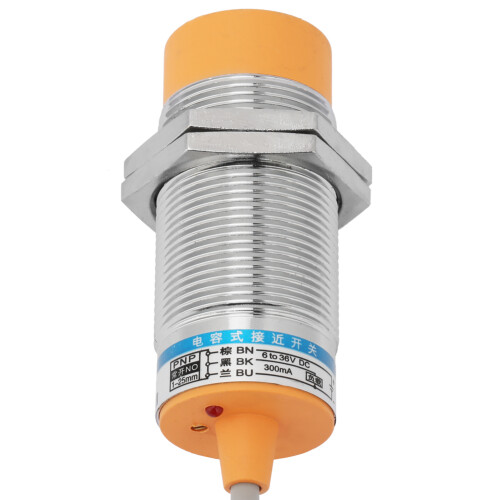

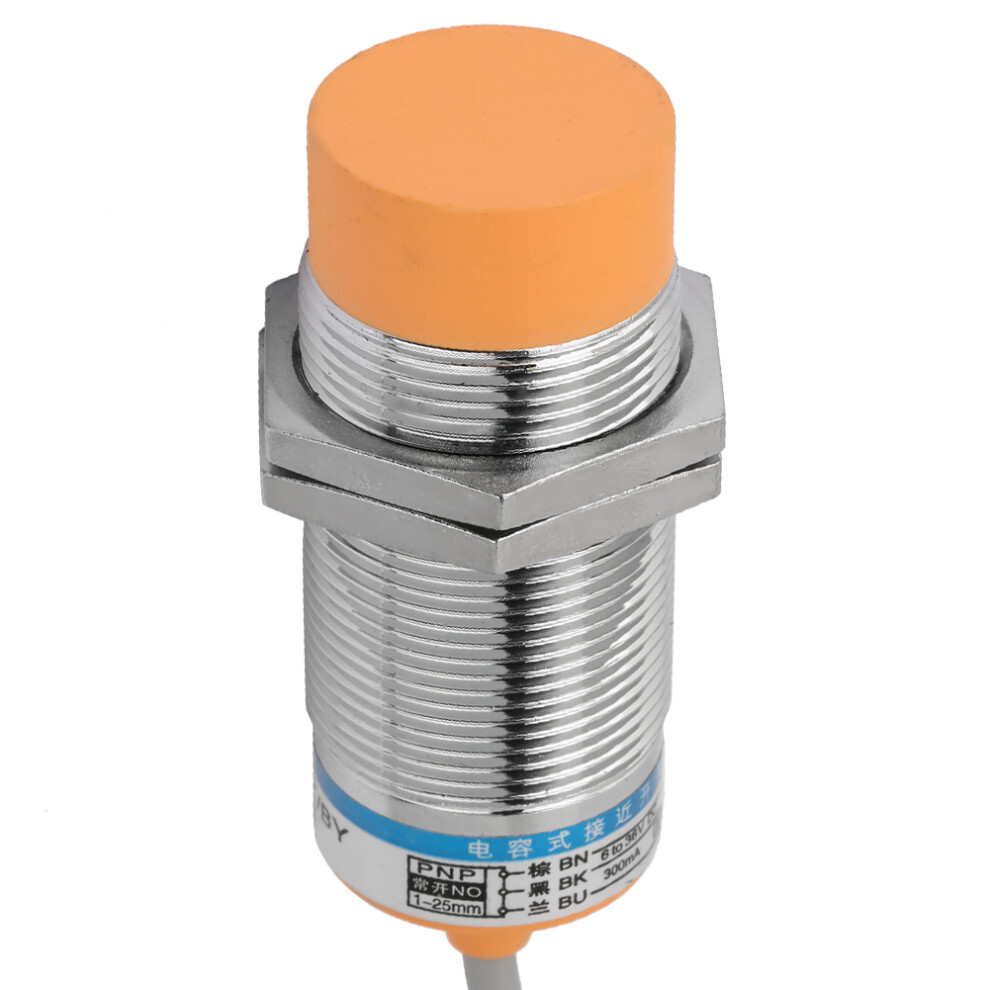

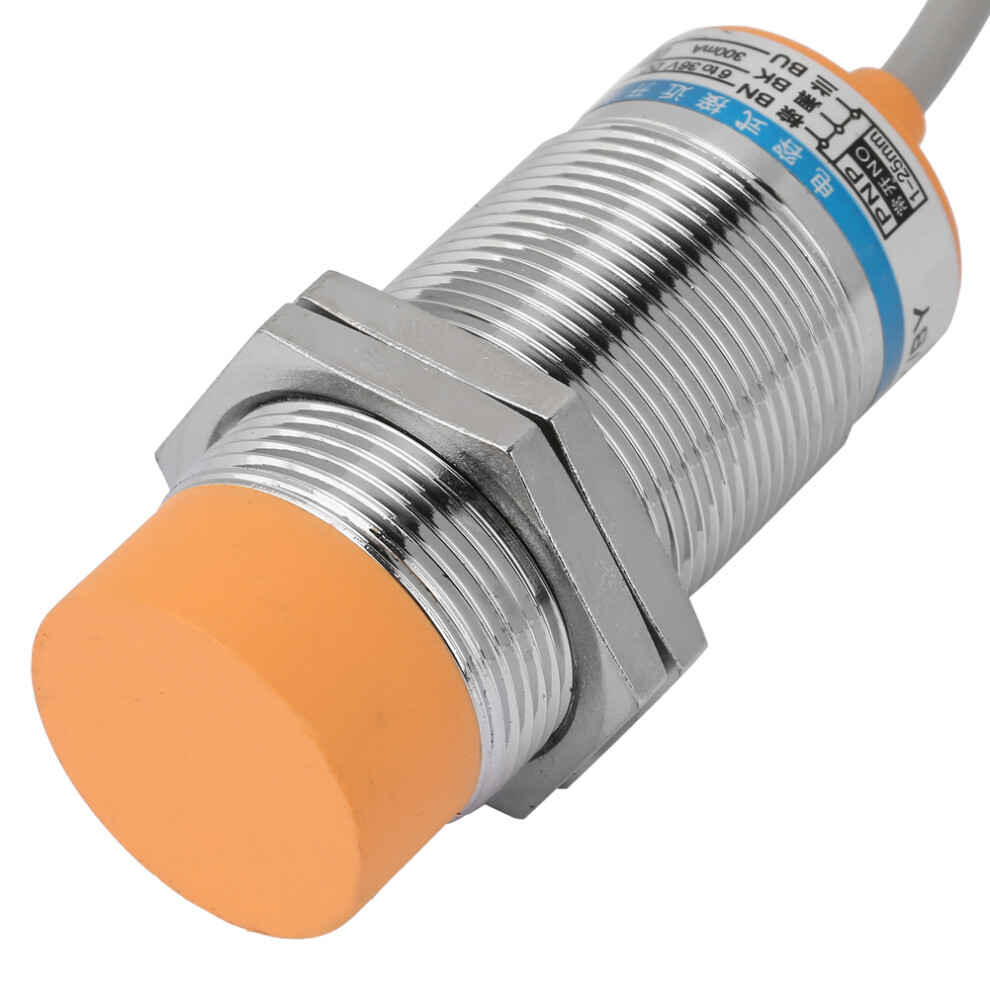

LJC30A3-hz Capacitance NO 25mm Nickel Sensor

LJC30A3-hz Capacitance NO 25mm Nickel Sensor Description

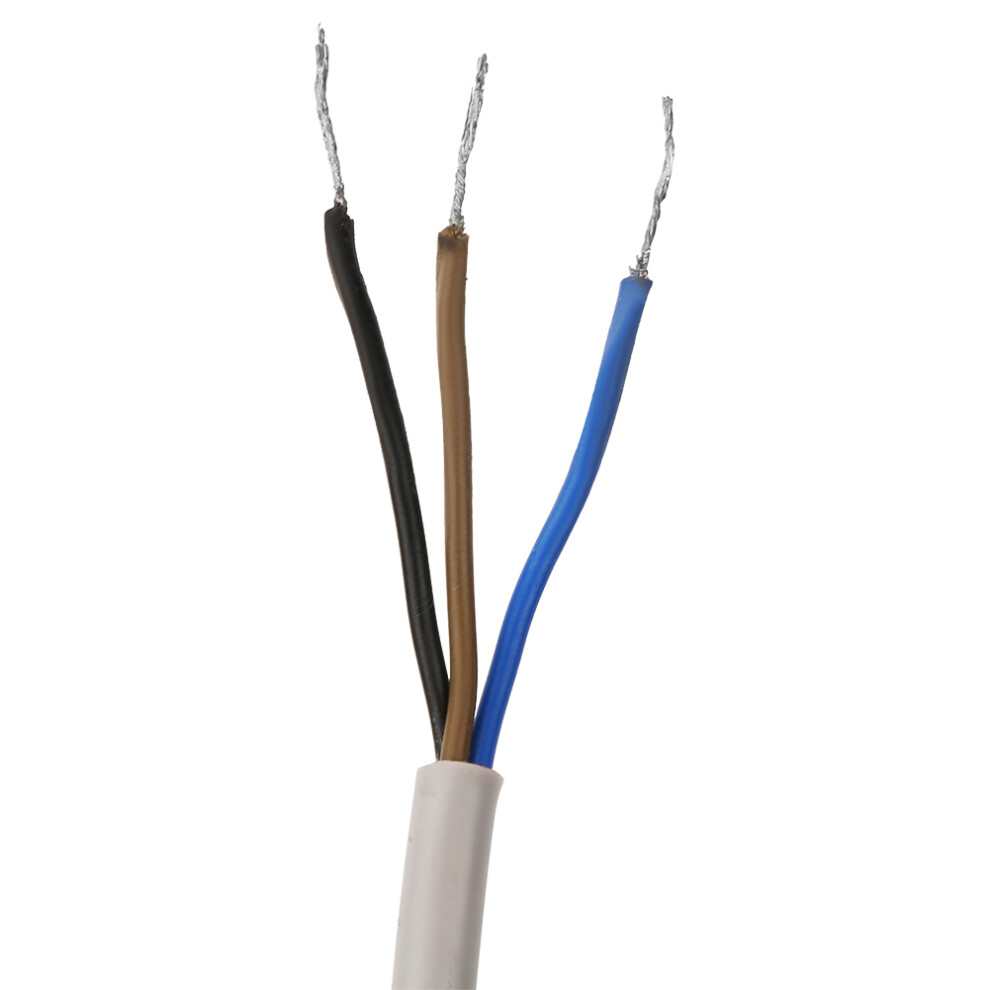

LJC30A3-h z BY DC Type 3-Wires PNP Normally Open Inductive Sensor Capacitance Proximity Switch
Features:



Proximity switch, also known as contactless proximity switch, is an ideal electronic on-off sensor.


It has sensing performance, reliable action, stable performance and fast frequency response.


Shockproof, corrosion resistance, strong anti-interference capability.


Non-contact detection, does not affect the operating conditions of the measured object.


Sealed structure, good moisture and dust resistance, strong work reliability.


No mechanical wear and fatigue damage, long working life.


Widely used in machine tools, metallurgy, chemical, textile and printing industries.



Specification:

Condition:

Material: brass plated nickel shell, ABS detection surface

Weight: 165g/5.8oz

Detection distance: 25mm 10%

Set distance: 0-18mm

Lag distance: less than 10% of the detection distance

Detection object: any dielectric substance

Standard test object: iron SPCC 50*50*1mm

Response frequency: DC: 0.5kHz; AC: 25Hz

Current consumption:

N.P type: below 13mA

D type: below 0.8mA

A type: below 1.7mA

Control output:

N.P type: below 300mA

D type: below 200mA

A type: below 400mA

Circuit protection:

N.P.D type: reverse connection protection, surge absorption, load short circuit protection

A Type: surge absorption

Ambient temperature: each - 30 to + 65 action and save

Ambient humidity: 35-95% RH each (no ice, no frost) action and save

Temperature influence:

Temperature range -30 to + 65 , +23 , 15% detection distance;

Temperature range -25 to + 60 , +23 , 10% detection distance.

Insulation resistance: more than 50mΩ (DC500 megger) charge between parts and the shell


Package List:

1 x Proximity Sensor Switch
