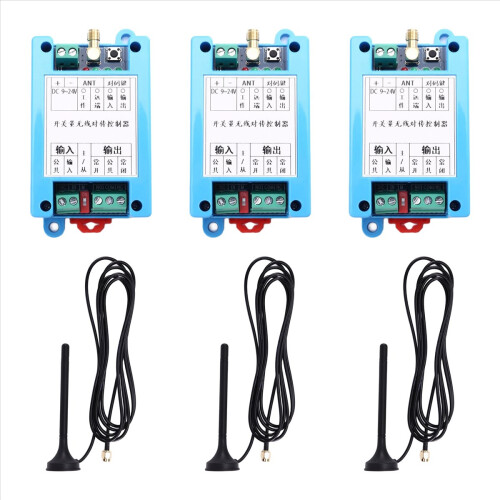

Lora Wireless Transceiver Remote Switching Data Transfer Switch Module

Lora Wireless Transceiver Remote Switching Data Transfer Switch Module Description

The products are used in pairs and need to be received and sent in order to be used normally.
Product overview ZC32 is a single channel one to one switching module, based on LORA spread spectrum technology development, to achieve the remote transmission of switching between two modules.
The input switching state of module A is associated with the relay output of module B, and the input switching state of module B is associated with the relay output of module A, which supports rail mounting. To achieve barrier-free long-distance control, widely used in industrial automation, remote monitoring, intelligent agriculture and other fields.

Product parameter Interface:DI x 1, DO x 1
The output supports point-and-click and self-locking modes Communication protocol: User-defined protocol
Power supply :9-24VDC
Power consumption :Less than 0.3W
Transmit power :20 1dBm
Receiving sensitivity :-129dBm@125KHz
Communication distance : 3000m @2400bps (open environment)
DI input: Supports N-type input and dry contact switch input replication
DO output: Relay output: AC 277V 10A
DC 28V 10A
Working environment :-20~65 0%RH-90%RH (non-condensation)
Storage conditions :-20-80 0%RH-90%RH (non-condensation)
Mounting method: Wall hanging Install.
Color: As Shown
Material: plastic

Package Contents:
1 * Transmitter
2 * Receivers

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
