M-218E 10M range secure Beam relay output sensor for automatic doors

M-218E 10M range secure Beam relay output sensor for automatic doors Description

Description:

The security light of the automatic door is composed of pairs of transmitting and receiving light eyes and a main controller;
It is mainly applied to the safety anti-clamp (person or object) auxiliary functions of each translation automatic door, electric retractable door and automatic rolling gate.
It can accurately and reliably detect the passing of people or things, and provides a door open signal for the automatic door to open and close, so as to avoid the hidden safety incident of the automatic door.
The most important feature: the distance of transmitting and receiving is far (up to 10 meters); the installation and wiring of optical eye is flexible and convenient; the eye is easy to adjust; the adjustment tolerance is large; the optical eye head is fixed firmly and is not easy to take off;
The anti-interference ability is strong and is not affected by all kinds of visible light. , non-modulated infrared light interference and false trigger; single beam light, double beam light optional; signal contact output delay flexible and adjustable;

Specification:

Supply power: AC/DC 12~36V
Static current: 25mA
Action current: 40mA
The maximum distance between the sending and receiving: 10m
NO or NC output contact: 0~1.5s (adjustable)
Outside in lines with the send wiring: 6m(blue)
Receive line: 6m(black)
Beam: Single beam or double beam
Working Environment temperature: -42~45oC
Working environment humidity: 10~90%RH
Appearance dimensions(Main controller): 123(L)x50(W)x32(H)mm
Appearance dimensions(Magic eye head): 19(L)x13(D)

Electric eye installation, holes of 13mm.
UV light, it is recommended that the ground installation height:60cm.
Double beam of light, a set of installation height 30 cm, another group of height 90 cm.
Select UV light, the light emitted must be received in the eye head 8 spell Terminal master transceiver, otherwise it will cause the control failure.
Send and receive on the magic eye, usually between the head should be careful not to put a bonsai or other piling up, so as not to cause blocking maloperation.
This system has excellent resistance to natural light interference ability, but when installing you should avoid strong sunlight direct Irradiate positive electric eye head.
To ensure the sensor beam Height above ground not less than 20 cm.

Package Includes:

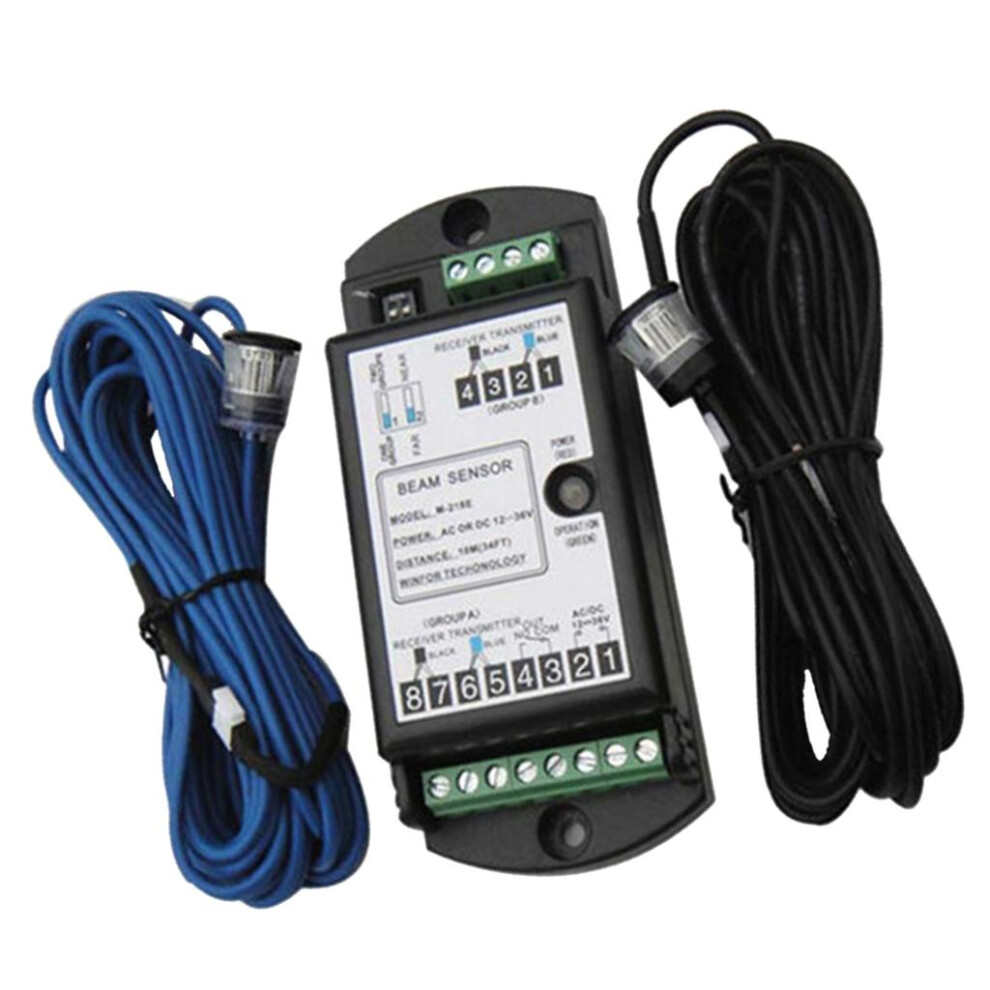

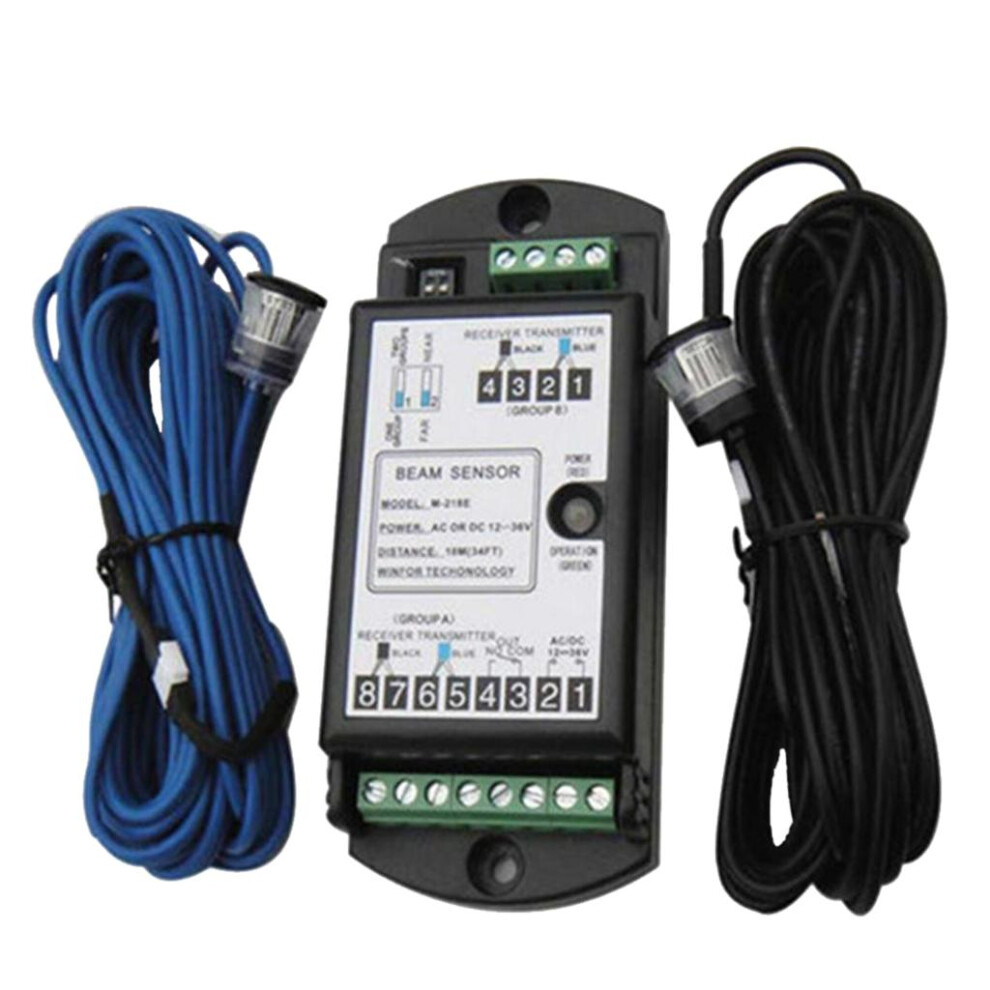

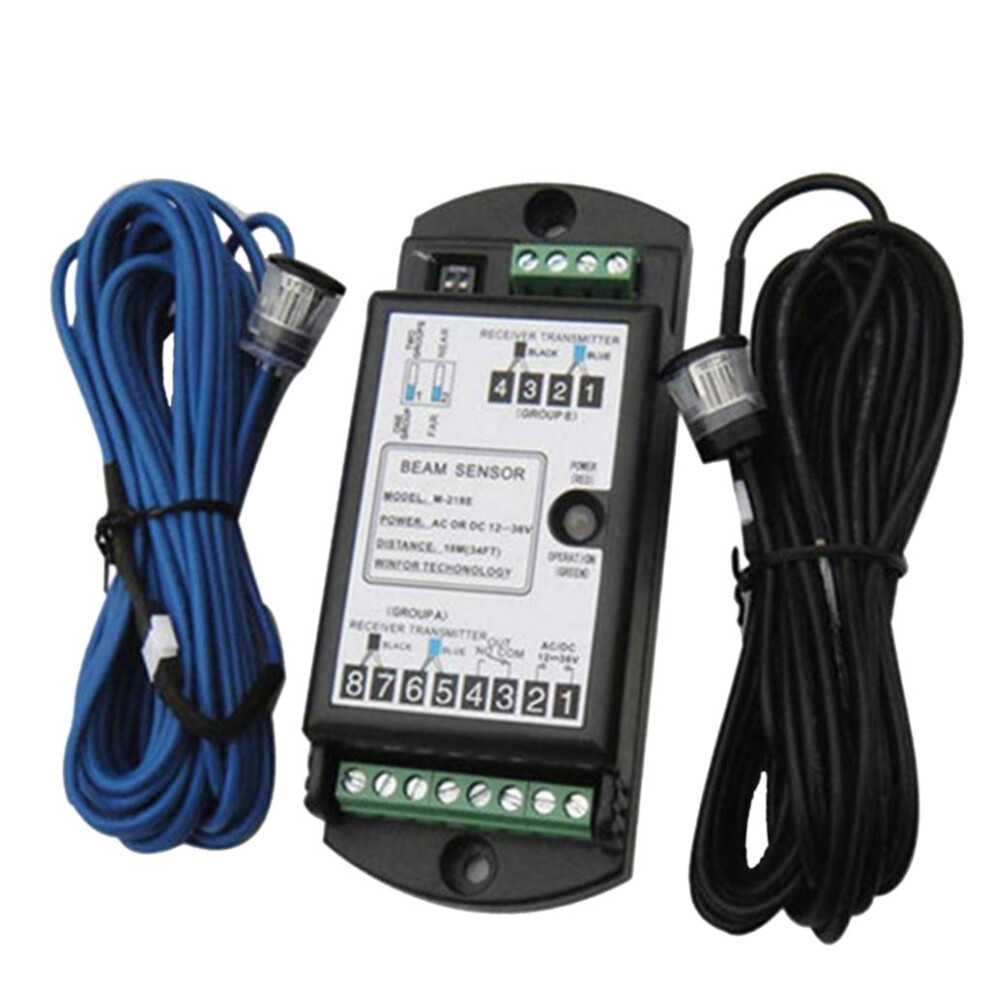

1 piece secure Beam relay output sensor
2 pieces Cable
