Magnetic Wind Turbine 500W Small Windmill

Magnetic Wind Turbine 500W Small Windmill Description

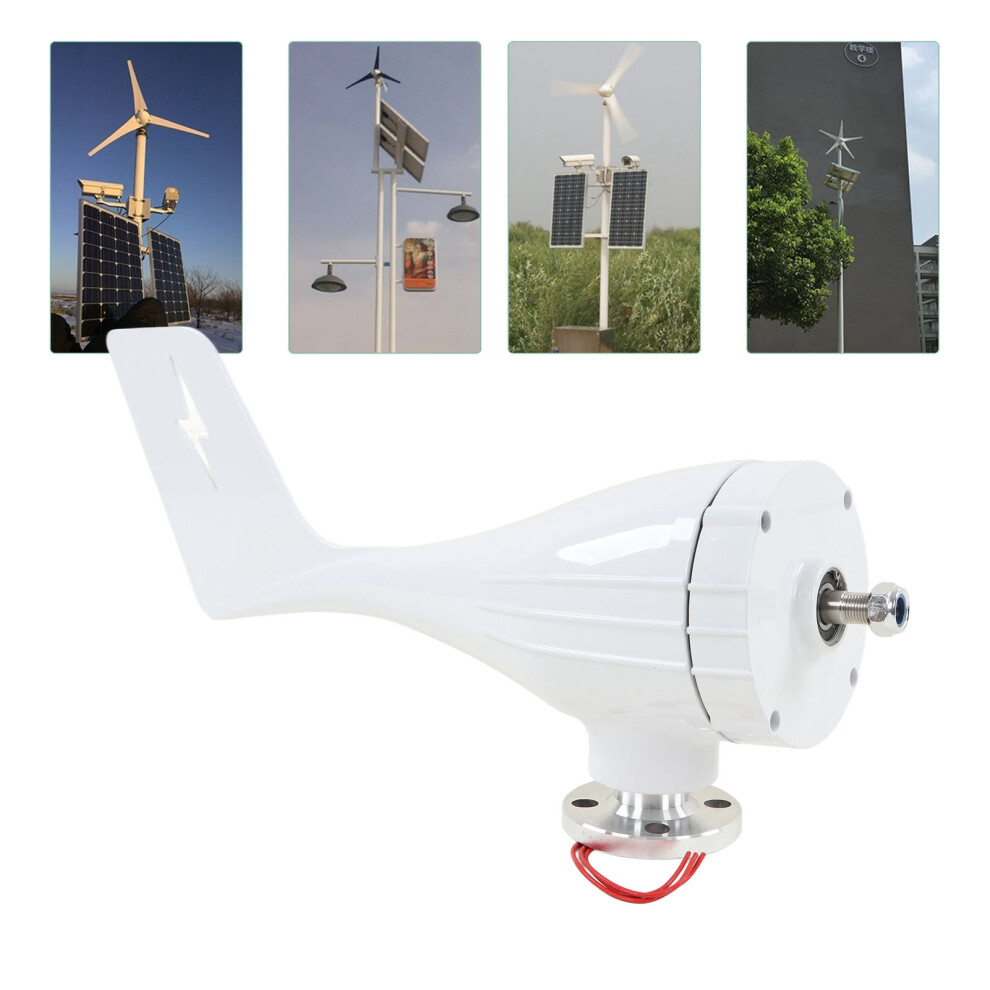

Magnetic Wind Turbine 500W Small Windmill Generator with MPPT Controller for Wind Solar Hybrid Street Light 12V



1、High Wind Energy Utilization: This magnetic wind turbine has low start up wind speed and high wind energy utilization. 2、Aluminum Alloy Die Casting: The housing of this wind turbine is made of aluminum alloy die casting with double bearing blocks for stronger typhoon resistance, safe and reliable operation. 3、High Power Tracking Intelligent Microprocessor: This wind turbine is controlled by a high power tracking intelligent microprocessor, which effectively regulates current and voltage. 4、New Accurate Injection Moulding Technology: This wind turbine blade adopts the new technology of accurate injection moulding, plus the optimized air shape design and junction and design, the wind energy utilization rate is high and the annual power generation capacity is increased. 5、Patented Magnetic Bearing Alternator: The generator adopts the patented magnetic bearing alternator, coupled with the special stator design, which effectively reduces the resistance torsion of the generator, while the wind turbine and generator have better matching characteristics and the unit runs reliably.



Item Type: Wind Turbine Model: S3 500W ( White ) Rated Power: 500W Maximum Power: 550W Start Wind Speed: 2.0m/s Rated Wind Speed: 13m/s Safety Wind Speed: 50m/s Blade Quantity: 3 Blade Blade Material: Nylon Fiber Generator Type: 3 Phase AC Permanent Magnet Generator Brake Mode: Electromagnetic Brake Wind Adjustment: Automatic Windward Adjustment Working Temperature: -40~80

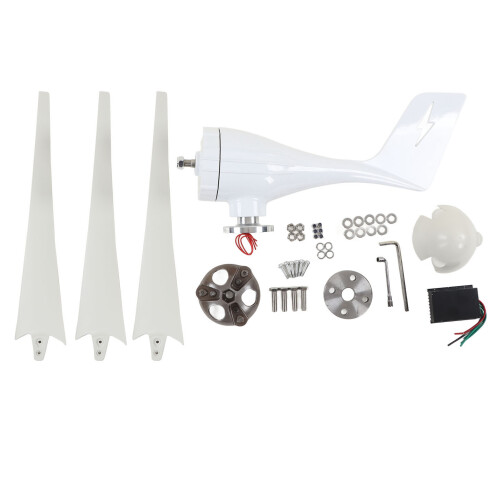

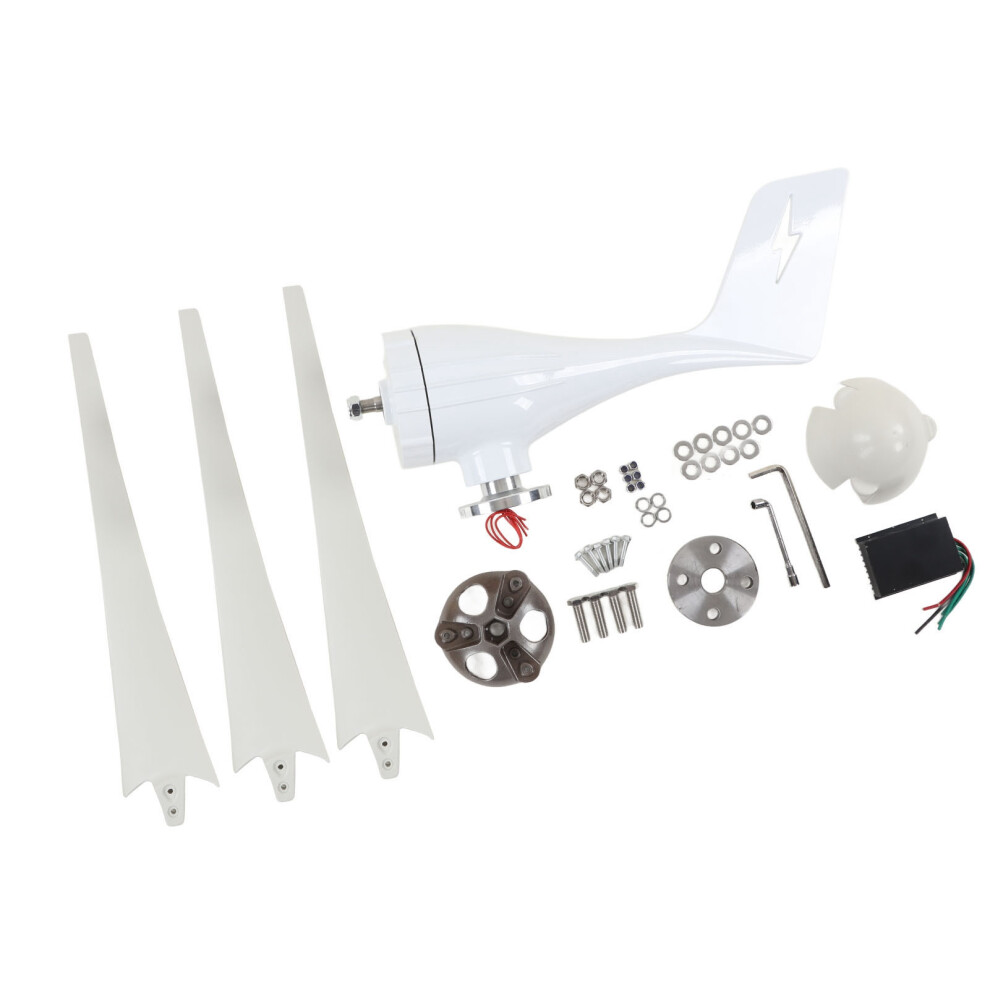

1 x Wind Turbine 3 x Blade 1 x Flange Holder 2 x Hex Wrench 1 x Controller 1 x Rectifier 1 x Wind Wheel Hub 4 x Large Screw 4 x Large Nut 9 x Large Gasket 4 x Washer 6 x Small Screw 6 x Small Nut 1 x Manual
