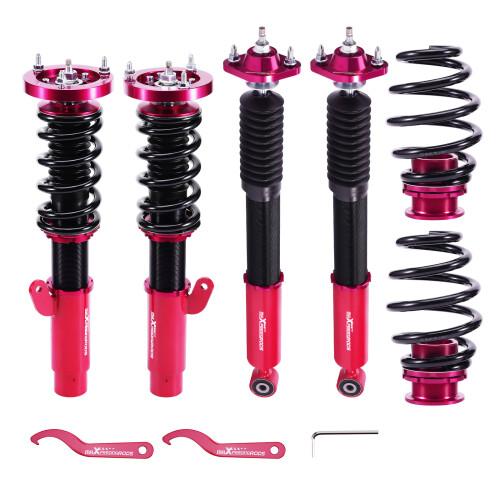

maXpeedingrods Coilover Suspension Kit for BMW 3 Series E46 1998-06 Shock Struts

maXpeedingrods Coilover Suspension Kit for BMW 3 Series E46 1998-06 Shock Struts Description

Applications:

For BMW 3 E46 Saloon 1997-2005

  316i 318i 320i 323i 325i 328i 330i 318d 320d 330d

For BMW 3 E46 Convertible 2000-2007

  318Ci 320Ci 323Ci 325Ci 330Ci 320Cd 330Cd

For BMW 3 E46 Coupe 1998-2006

  316Ci 318Ci 320Ci 323Ci 325Ci 328Ci 330Ci 320Cd 330Cd 323i 325i

For BMW 3 E46 Touring / Estate 1999-2005

  316i 318i 320i 323i 325i 328i 330i 330d 318d 320d

Note:

not for Xi/xd 4 wheel drive

not for M3 model either

OE shims need to be installed on the rear eye bolt bushings.

Specifications:

Adjustable height: Yes lowering 1'' to 3''

Damping: not available

Top mounts: front pillow ball top mounts with camber plate

Top mounts: rear pillow ball top mount

Spring rate: front  8kg/mm

Spring rate: rear  7kg/mm

Shock type: Twin tube

Spring Preload: 7-10 mm

Warranty: 2 year warranty for any manufacturing defect

Quantity:

Coilovers for 2 front and 2 rear

a pair wrench for height adjustment

Feature:

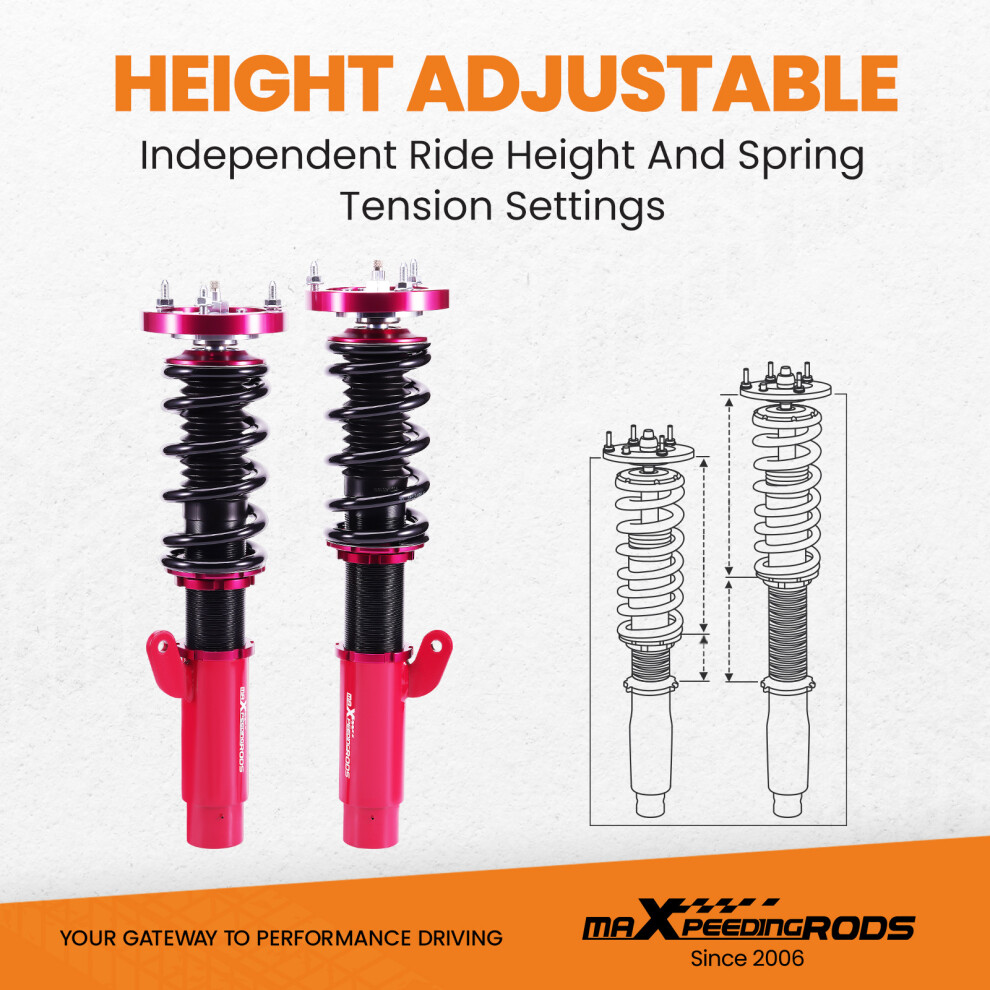

1. Lowered height adjustment from 1''-3'' which allow lower center of gravity and also add a more aggressive stance
2. Twin-Tube structure allows sufficient stroke within the shock absorber
3. Separate height adjustment does not affect damper stroke
4. High Tensile performance spring – STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
5. Height Adjustment tools included
6. Camber plate top mounts help to eliminate the need for a separate camber kit

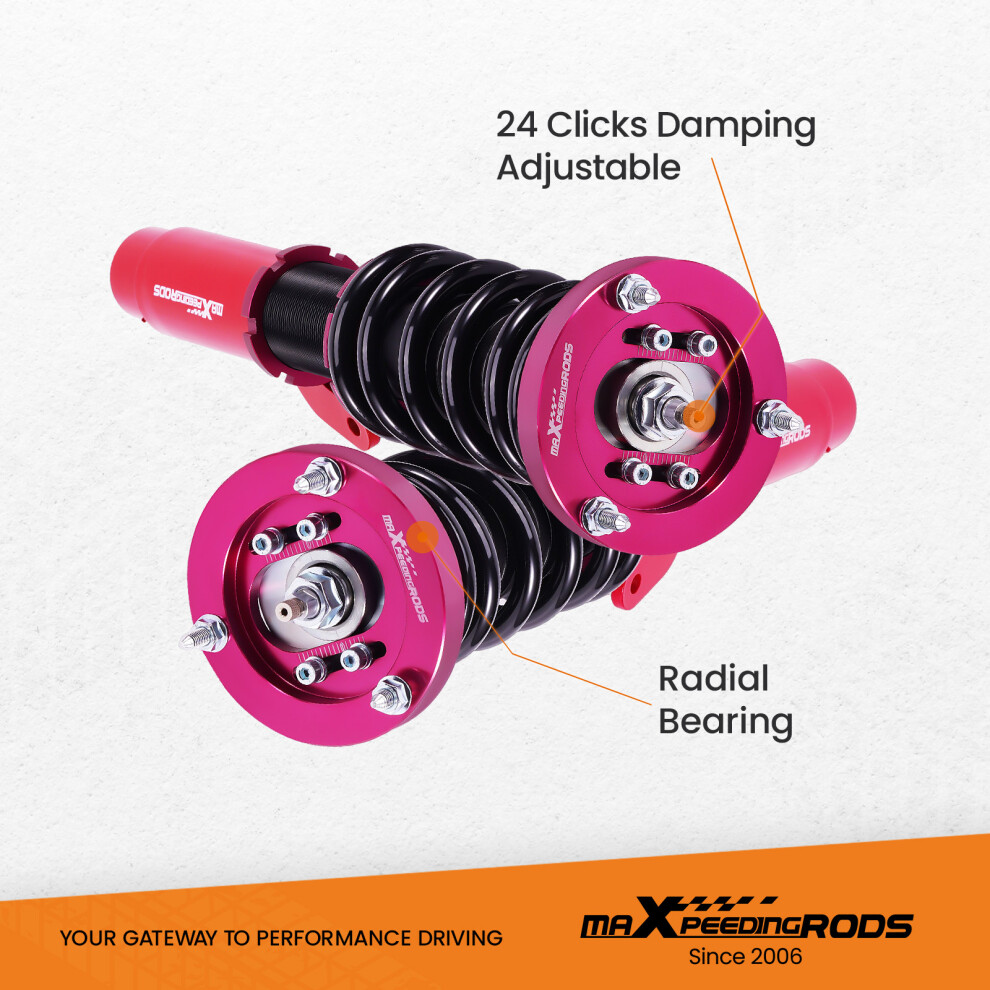

7. Pillow ball top mount - It improves the steering feel and response
8. Most pieces in our Coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
9. Full rebuildable

Notice:

* Professional installation & alignment suggested.

* Please check our store for other auto parts you may be interested in.

* Please feel free to contact us for whatever we can help
