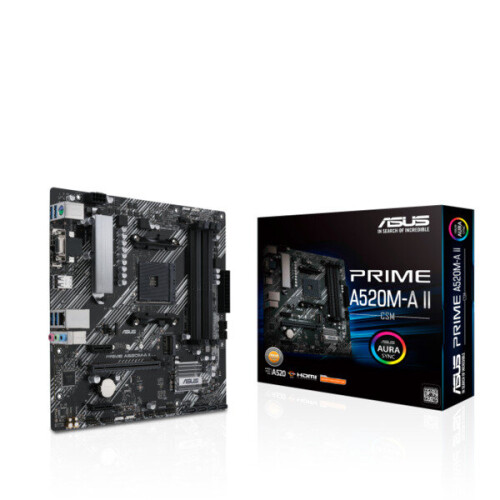

MB ASUS AMD AM4 PRIME A520M-A II/CSM
Brand ASUS
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 131,000 Trustpilot reviews and an 'Excellent' rating
£89.15
FREE Delivery
1%
Earn £0.89 instantly
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Fri 21st - Thu 27th Aug
Returns: 30 days
180-day payment protection
You might also like
Description & Details
MB ASUS AMD AM4 PRIME A520M-A II/CSM Description
MB ASUS AMD AM4 PRIME A520M-A II/CSM
Details
| OPC | PBYWWKH |
|---|---|
| Brand | |
| Codes | 4711081135395 (EAN) |
| Links | AM4 Motherboards |
| ASUS Motherboards |
External product information
Disclaimer: The information below is provided by various external sources and should be used as a guide only.
Detailed Product Information
Features
| Motherboard chipset | AMD A520 |
|---|---|
| Motherboard form factor | micro ATX |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 x64 |
| Motherboard chipset family | AMD |
| Component for | PC |
| Audio chip | Realtek ALC887 / Realtek ALC897 |
Processor
| Processor manufacturer | AMD |
|---|---|
| Compatible processor series | AMD Ryzen™ 3, AMD Ryzen™ 5 |
| Processor socket | Socket AM4 |
BIOS
| BIOS memory size | 128 Mbit |
|---|---|
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Y |
Rear panel I/O ports
| PS/2 ports quantity | 1 |
|---|---|
| USB connector type | USB Type-A |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
Network
| Ethernet LAN | Yes |
|---|---|
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
| Top Wi-Fi standard | Not available |
Memory
| Maximum internal memory | 128 GB |
|---|---|
| Supported memory clock speeds | 2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4100,4133,4400,4466,4600,4800 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Unbuffered memory | Yes |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
Storage controllers
| RAID levels | 0, 1, 10 |
|---|---|
| Number of HDDs supported | 4 |
| RAID support | Yes |
| Number of storage drives supported | 5 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
Weight & dimensions
| Width | 244 mm |
|---|---|
| Depth | 244 mm |
Internal I/O
| USB 2.0 connectors | 2 |
|---|---|
| S/PDIF out connector | Yes |
| CPU fan connector | Yes |
| Number of COM connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| TPM connector | Yes |
| EPS power connector (8-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
Graphics
| Parallel processing technology support | Not supported |
|---|
Expansion slots
| PCI Express x1 (Gen 3.x) slots | 2 |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
