MB85RS64V SPI Non-Volatile FRAM Module 64Kbit / 8KByte SPI Interface for Raspberry Pi Extension

MB85RS64V SPI Non-Volatile FRAM Module 64Kbit / 8KByte SPI Interface for Raspberry Pi Extension Description

Ultra-long lifespan: 10¹² read/write cycles eliminate concerns about memory wear.
Ultra-fast write speed: Zero write latency allows for rapid response to write commands, similar to , making it ideal for real- data logging.
Wide voltage compatibility: Supports a wide operating voltage range of 3.0V to 5.5V, allowing direct application in 3.3V or 5V systems without additional level conversion.
Reliable and durable: No battery backup required, long data retention , wide operating temperature range, and high reliability.
SPI interface for easy integration: Communicates using the standard SPI (Serial Peripheral Interface) with a maximum clock frequency of 20 MHz, easily connecting to various microcontrollers (MCUs).

Storage capacity: 64 Kbit (8 KByte), organized as 8,192 words x 8 bits.
Interface type: SPI.
Operating frequency: to 20 MHz.
Supply voltage: 3.0V to 5.5V; compatible with 3.3V and 5V systems.
Power consumption: Typical operating current of 1.5 mA (at 20 MHz); standby current of only 10 µA.
Module dimensions: 15.5 mm x 20 mm.
Color: Black
Material: PCB

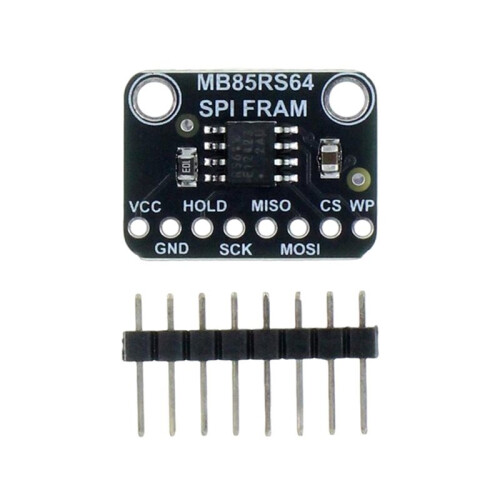

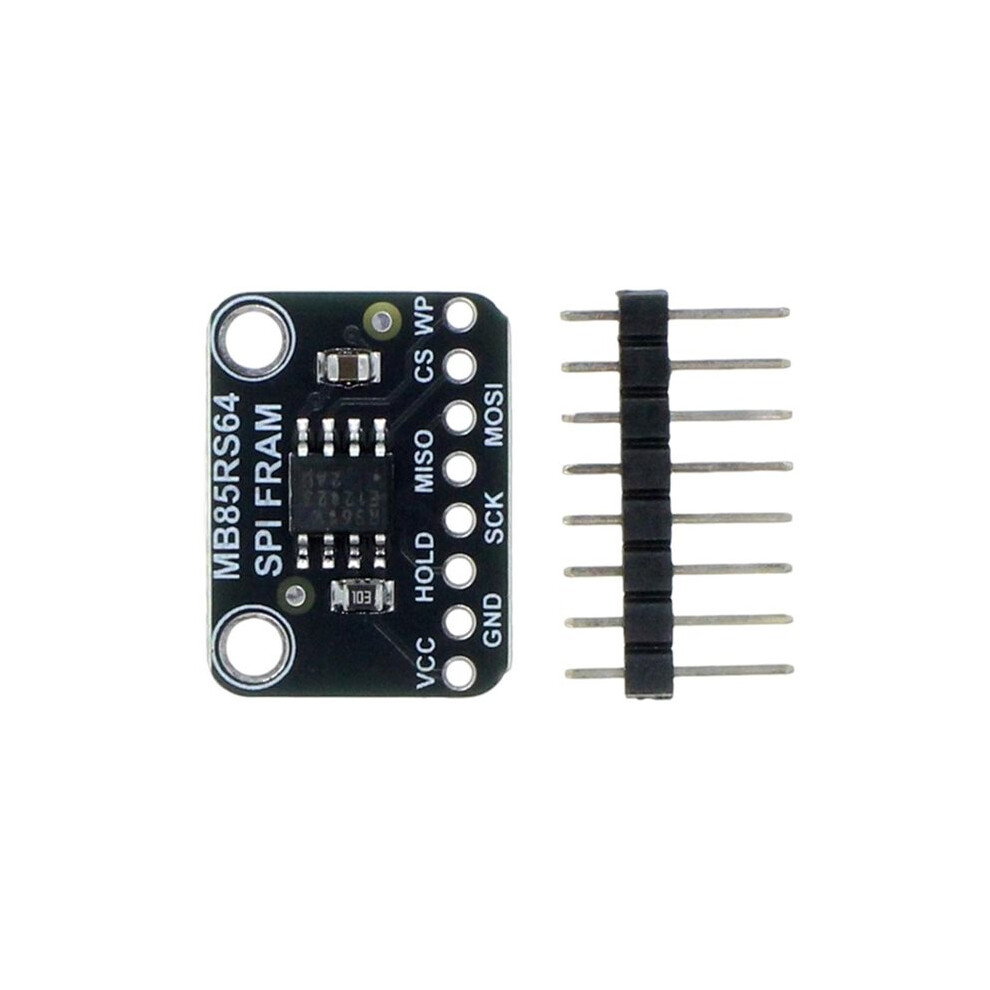

Package Contents:

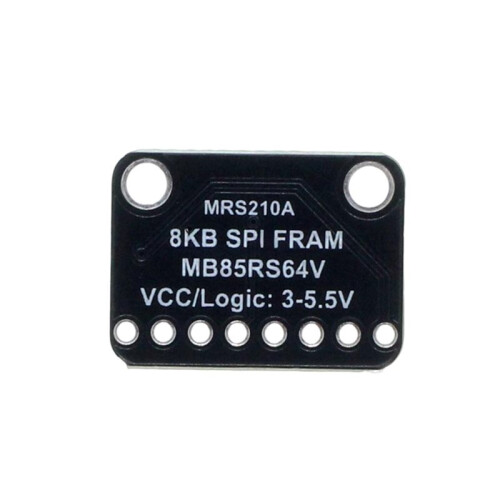

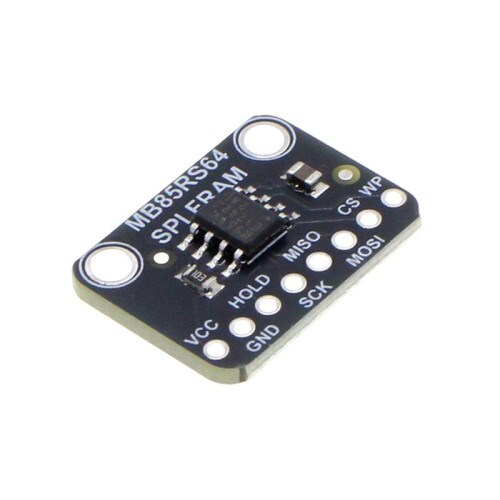

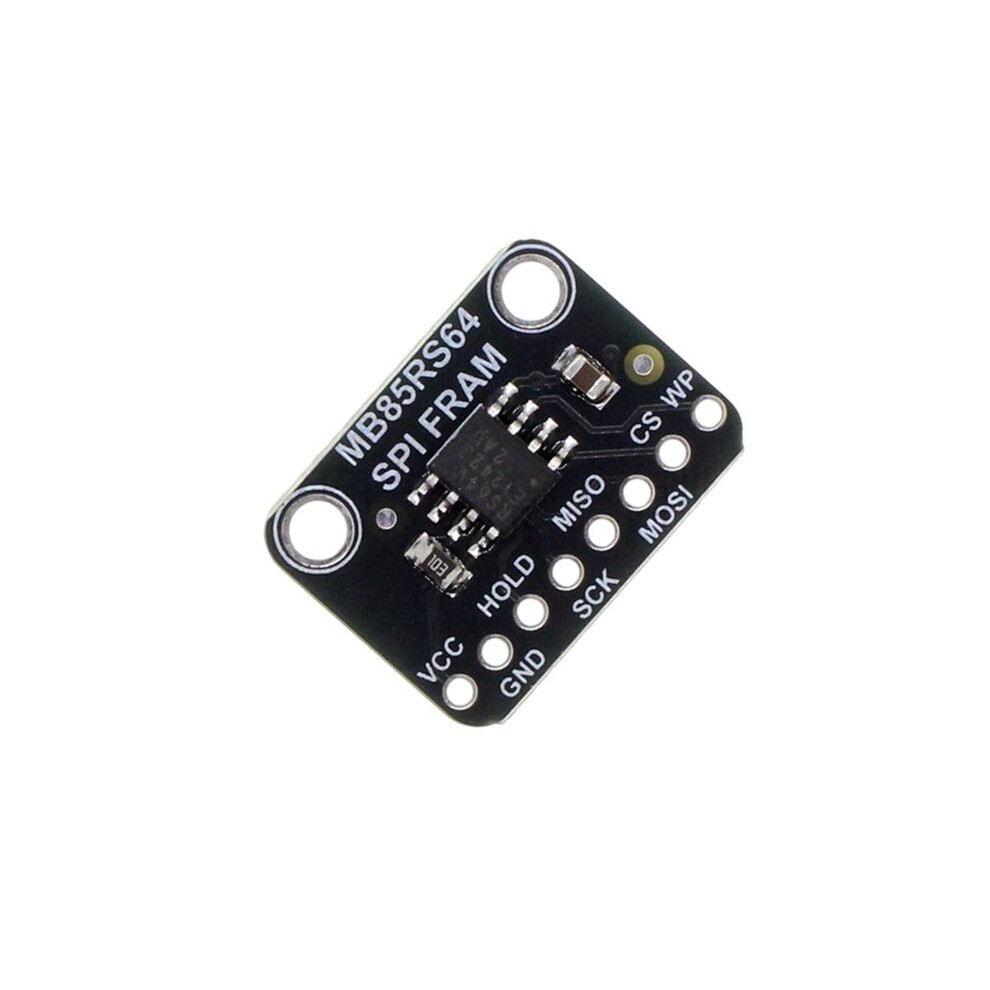

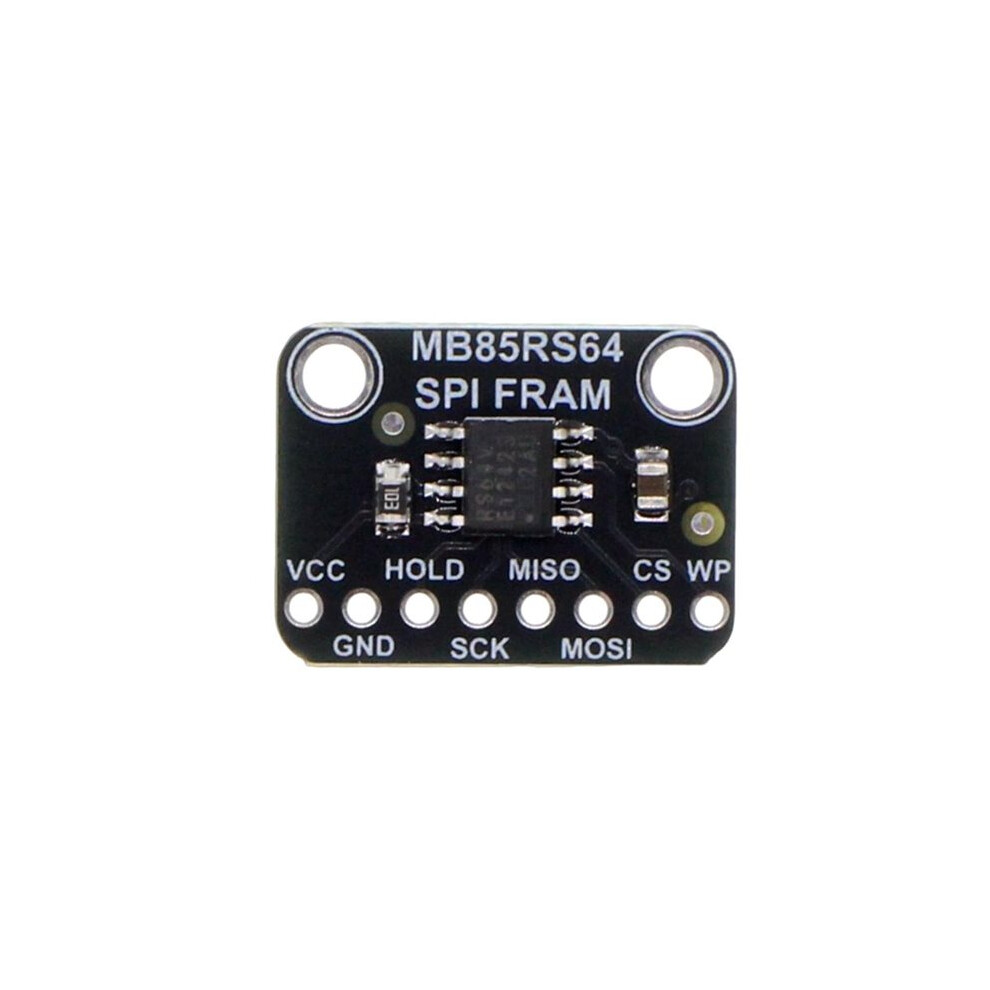

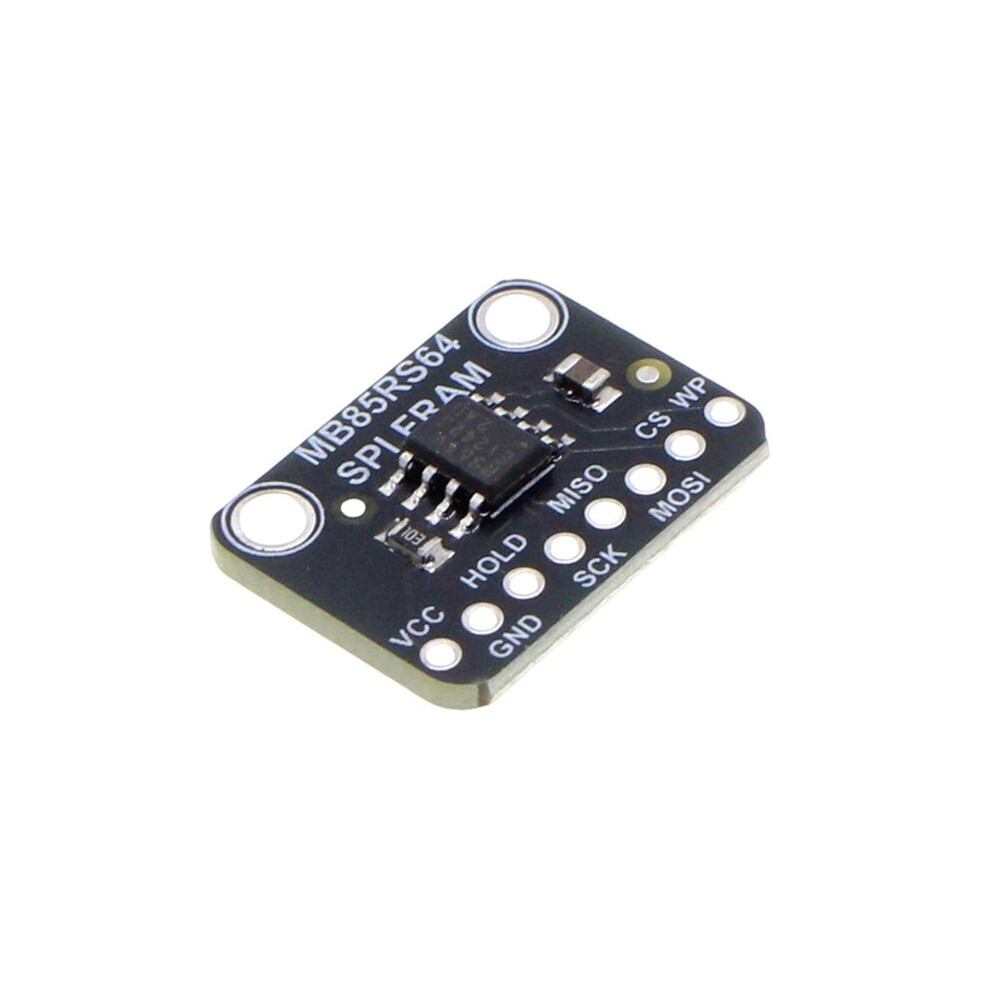

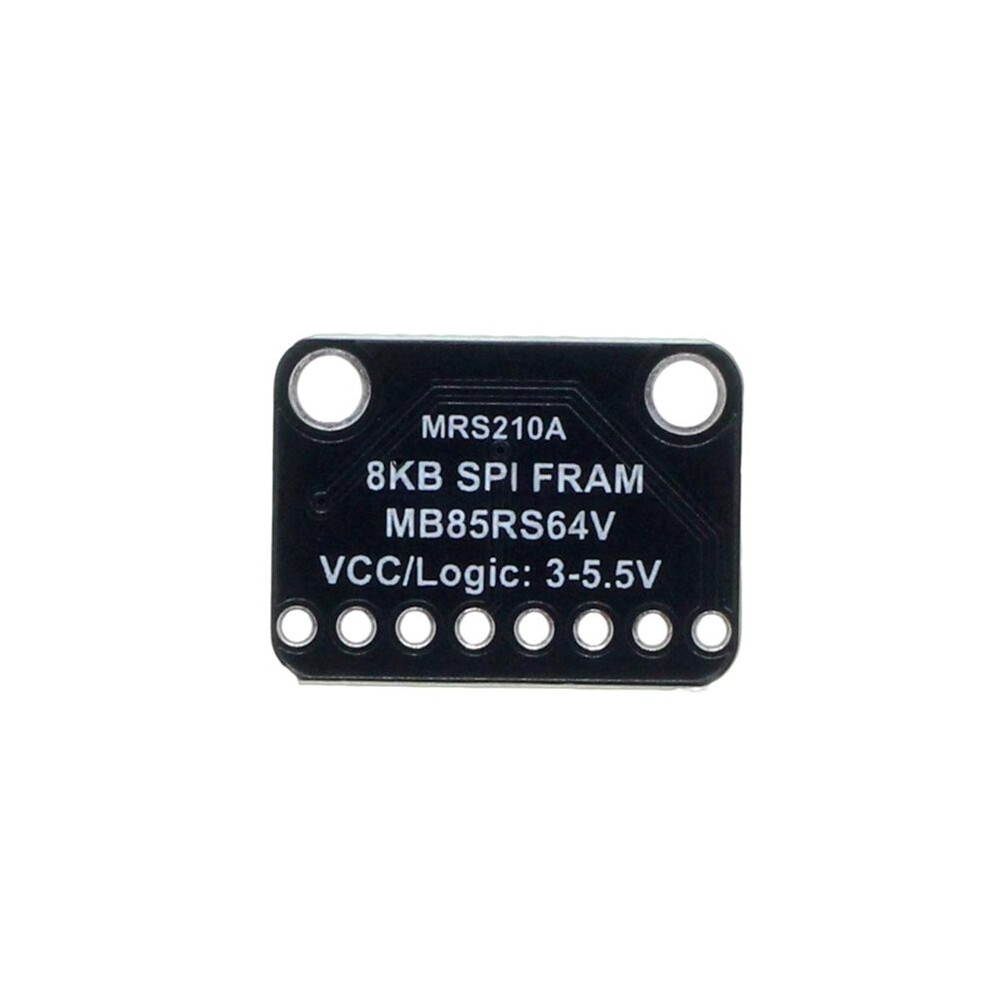

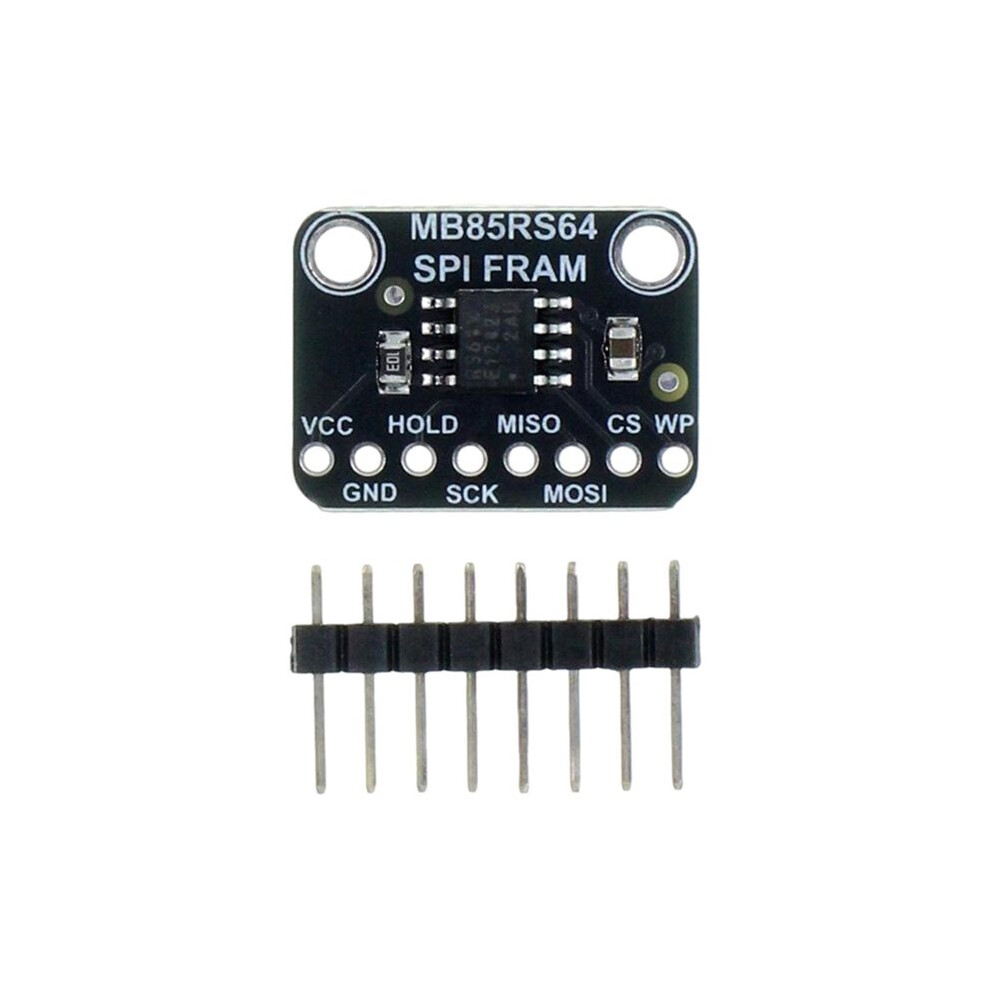

1*SPI FRAM breakout board (based MB85RS64V)
1*pin header
